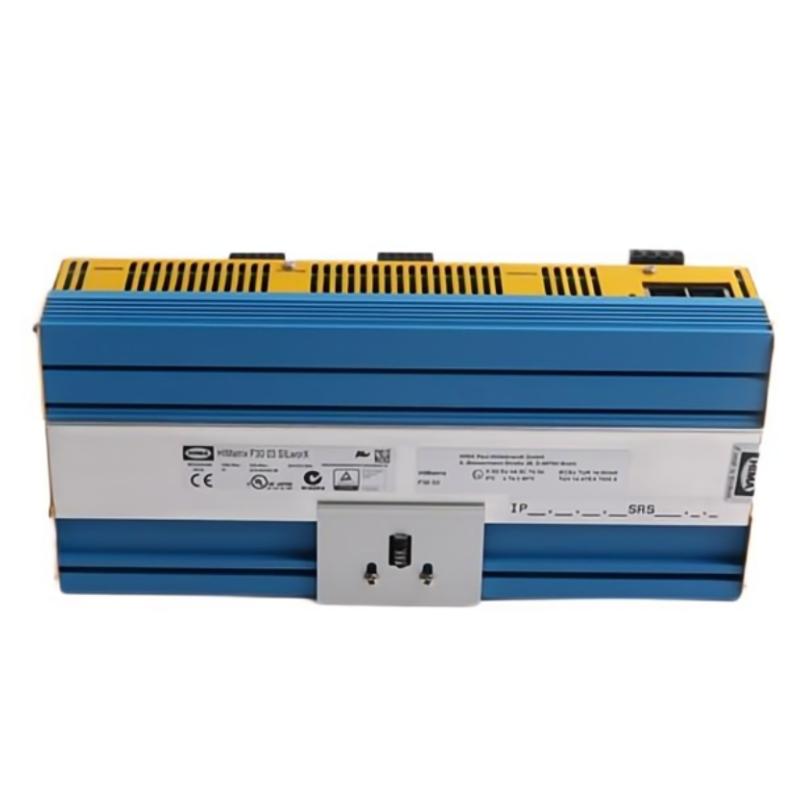

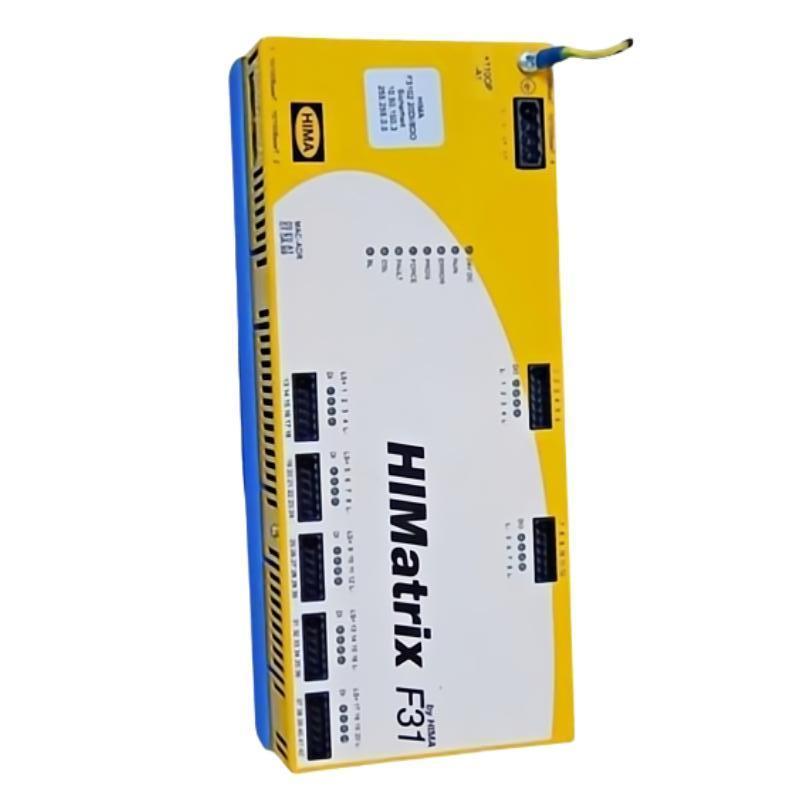

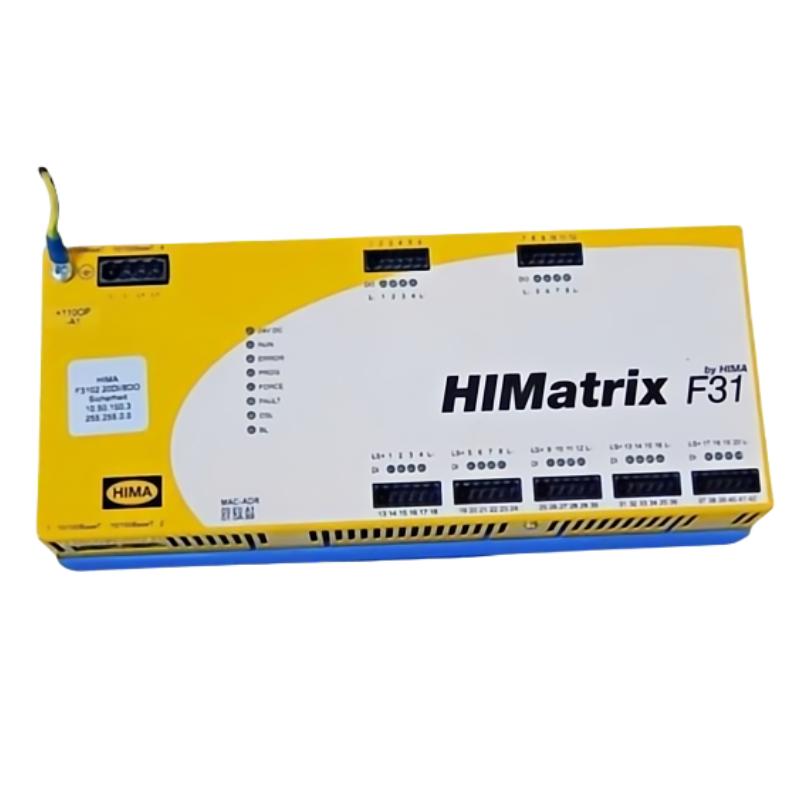

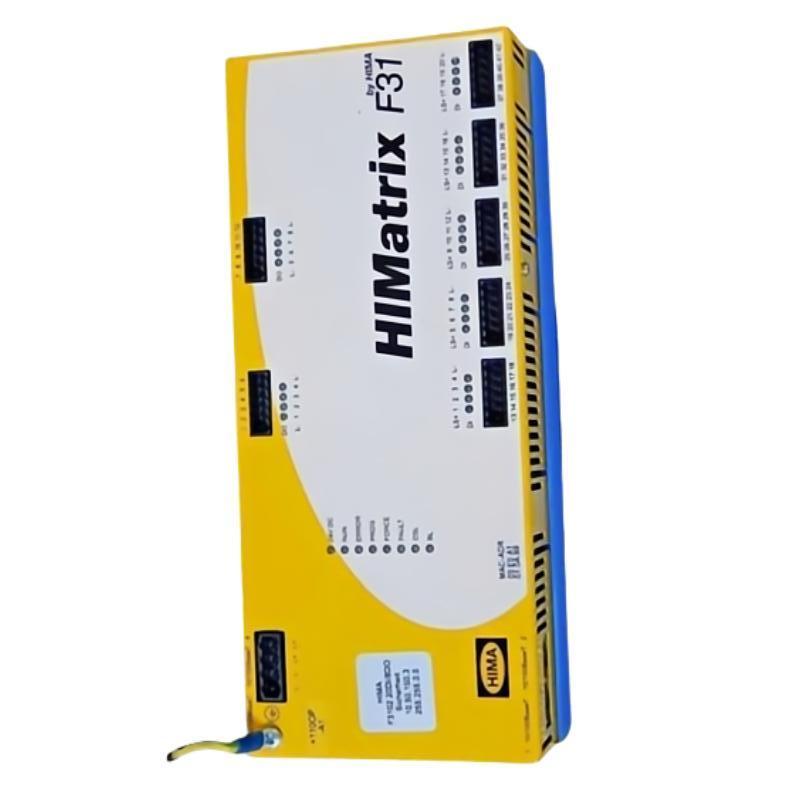

HIMA F31 SPS D0171 Output Amplifier Module (Himatrix F31 System)

Overview

The HIMA F31 SPS D0171 is an output amplifier module designed for the HIMatrix F31 safety automation system. It ensures safe and reliable amplification of output signals to actuators and other field devices, supporting high-performance control in critical industrial applications.

General Information

Part Number: F31 SPS D0171

Manufacturer: HIMA GmbH

Brand / Country of Origin: HIMA / Germany

Series: HIMatrix F31 System

Type: Output Amplifier Module

Mounting: Card or rack installation within HIMatrix F31 controller chassis

Technology: Redundant output channels, fault diagnostics, protective logic

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 25 W

Input: Powered via controller backplane

Protection: Surge, short-circuit, and reverse-polarity protection

Indicators: LEDs for power, channel status, and fault

Communication & Interface

Communication Ports: Backplane interface for controller connectivity

Protocol Support: Proprietary HIMA communication bus

Diagnostics: Channel monitoring, fault detection, and event logging

Operator Interface: LED indicators for status and fault

Reset Features: Supports hardware and software reset

I/O & Channels

Output Channels: Configurable amplifier outputs for safety-critical devices

External Load Support: Supports actuators, solenoids, and other field devices

Environmental

Operating Temperature: −20 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (standard industrial enclosure)

Dimensions & Weight

Dimensions (L × W × H): 257 × 114 × 66 mm

Weight: ~ 1.2 kg
