Overview

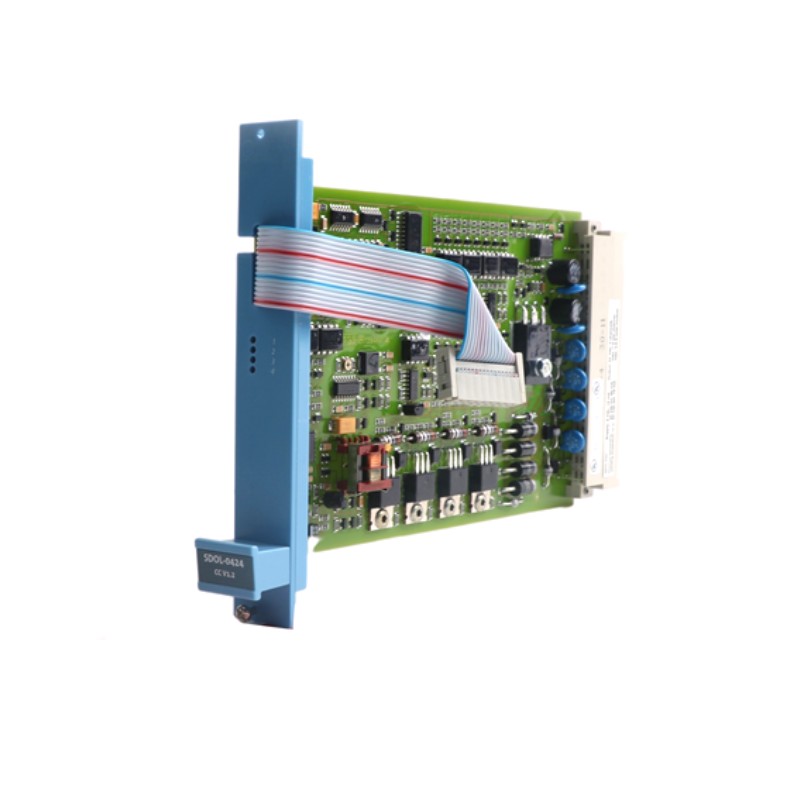

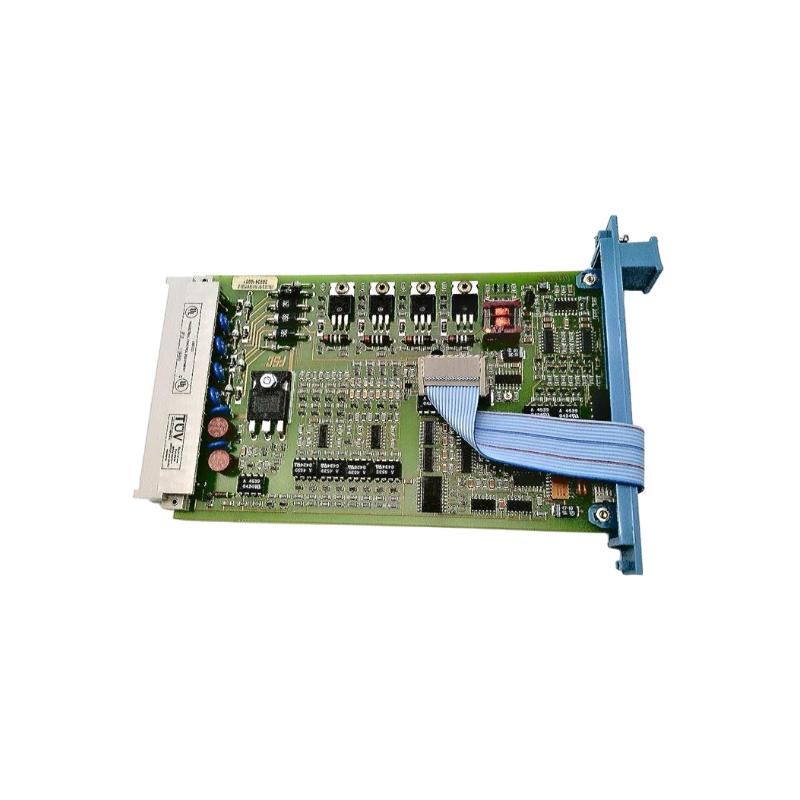

The Honeywell FS‑SDOL‑0424 is a safe, loop‑monitored digital output module designed for industrial automation systems, providing enhanced diagnostics and fault detection for reliability in safety‑critical applications.
General Information
Part Number: FS‑SDOL‑0424
Manufacturer: Honeywell International Inc.
Brand / Country of Origin: Honeywell / USA
Type: Safe Digital Output Module
Mounting: Module installation in safety I/O rack
Technology: 4 monitored solid‑state 24 V DC outputs with fault detection and isolation
Power Specifications
Supply Voltage: 24 V DC
Output Channels: 4
Maximum Current per Channel: 1 A
Maximum Total Module Load: 3.6 A
Protection: Short‑circuit and open‑wire detection, loop monitoring
Communication & Interface
Interface: Backplane connection to safety controller system
Signal Type: Digital output for switching field loads
Diagnostics: Per‑channel status monitoring, module fault indication, short/open‑wire detection
Environmental
Operating Temperature: −10 °C to +60 °C
Humidity: Up to 95% RH, non‑condensing
Installation Environment: Industrial control cabinet, safety instrumented system
Dimensions & Weight
Dimensions: 96 × 72 × 50 mm
Weight: 0.2 kg
