Overview

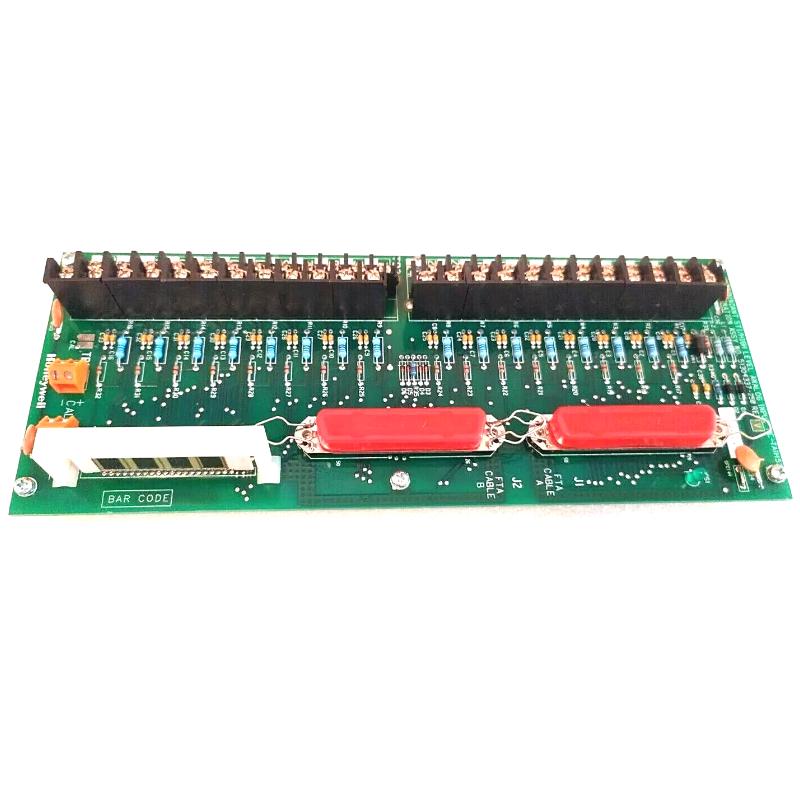

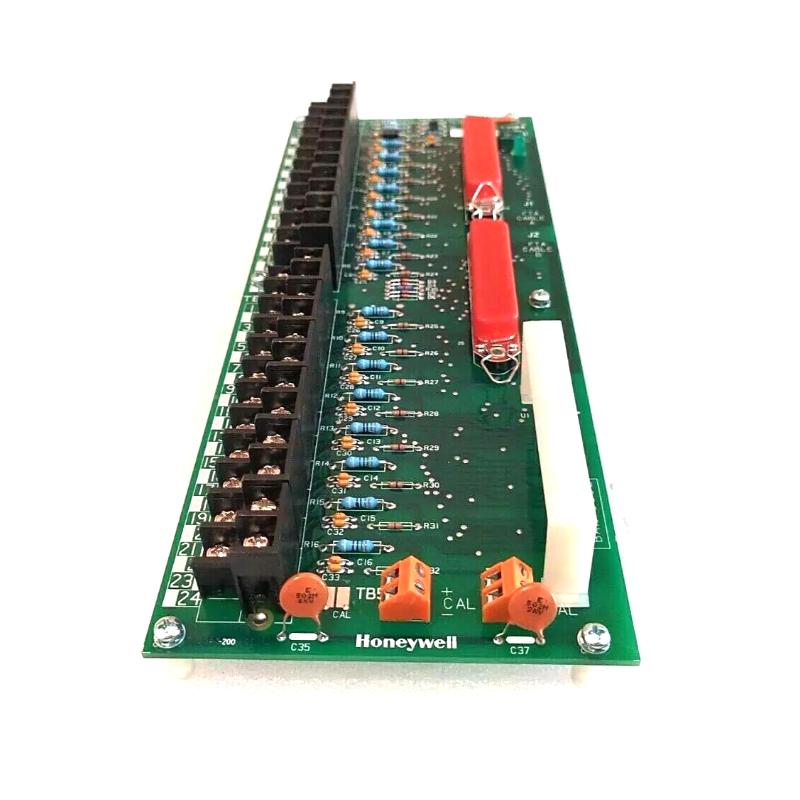

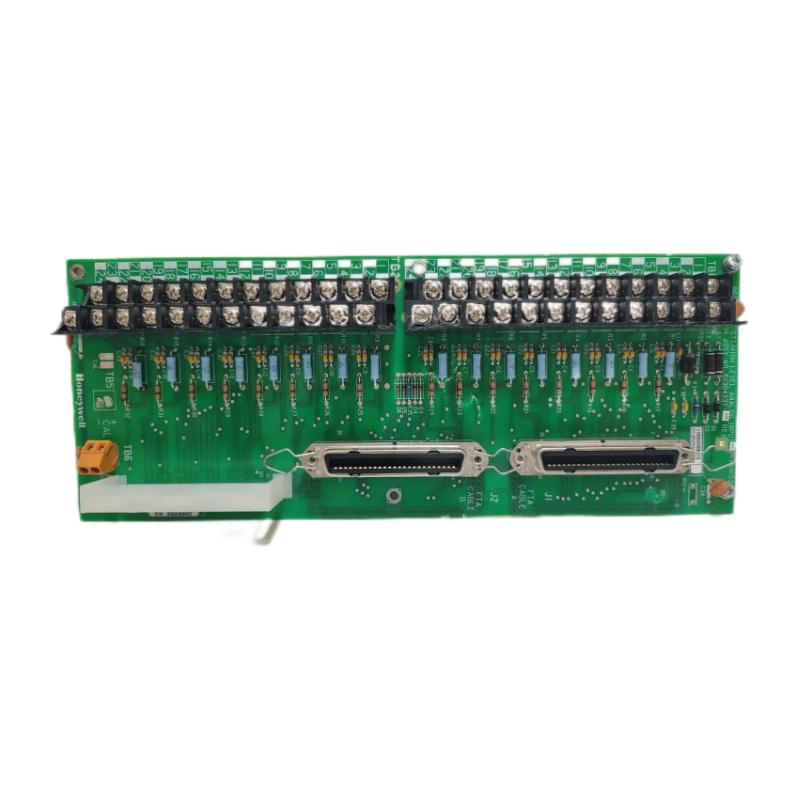

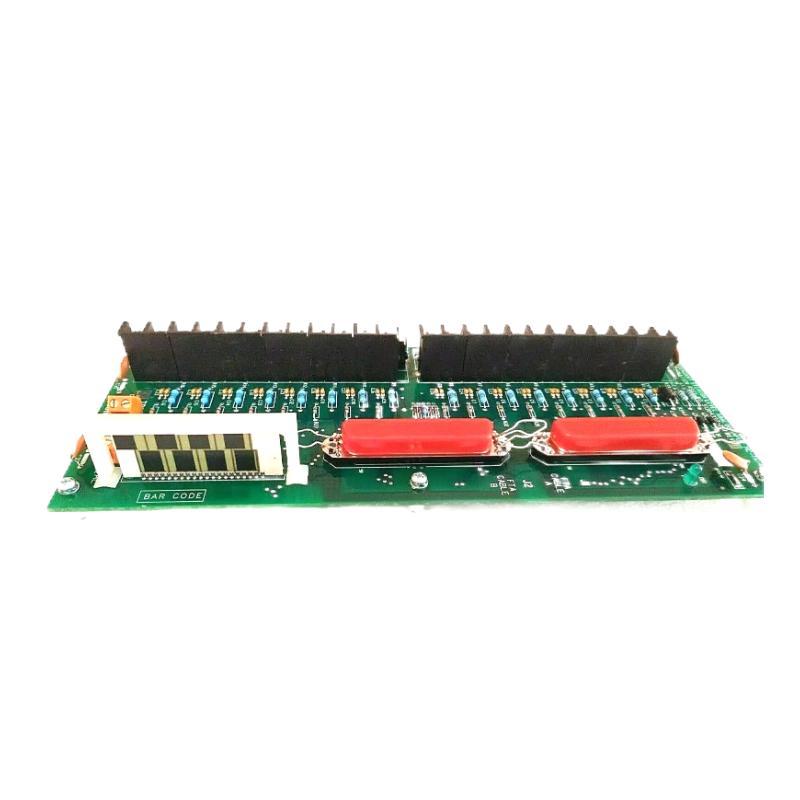

The Honeywell MC‑TAIH52 51304337‑250 is a high‑level analog input module designed for industrial process control systems. It accepts a wide range of analog field signals, converts them into digital data, and provides them to the control system with high reliability.
General Information
Part Number: MC‑TAIH52 51304337‑250
Manufacturer: Honeywell
Brand / Country of Origin: Honeywell / USA
Type: Analog Input Module
Technology: Supports high‑level analog inputs, redundant configuration capable for increased system availability
Power Specifications
Supply Voltage: 24 V DC nominal
Analog Input Channels: 16 channels
Input Signal Types: Voltage and current range (high‑level)
Protection: Includes reverse‑polarity protection and input fault monitoring
Communication & Interface
Interface: Backplane connection to the host controller system
Function: Converts field analog inputs into system data for monitoring and control
Diagnostics: Per‑channel monitoring for signal integrity, module health status indication
Environmental
Operating Temperature: –20 °C to +70 °C
Humidity: Up to 95% RH, non‑condensing
Installation Environment: Industrial control cabinet or automation rack
Dimensions & Weight
Dimensions: Approx. 137 × 51 × 151 mm
Weight: Approx. 0.5 kg
