Overview

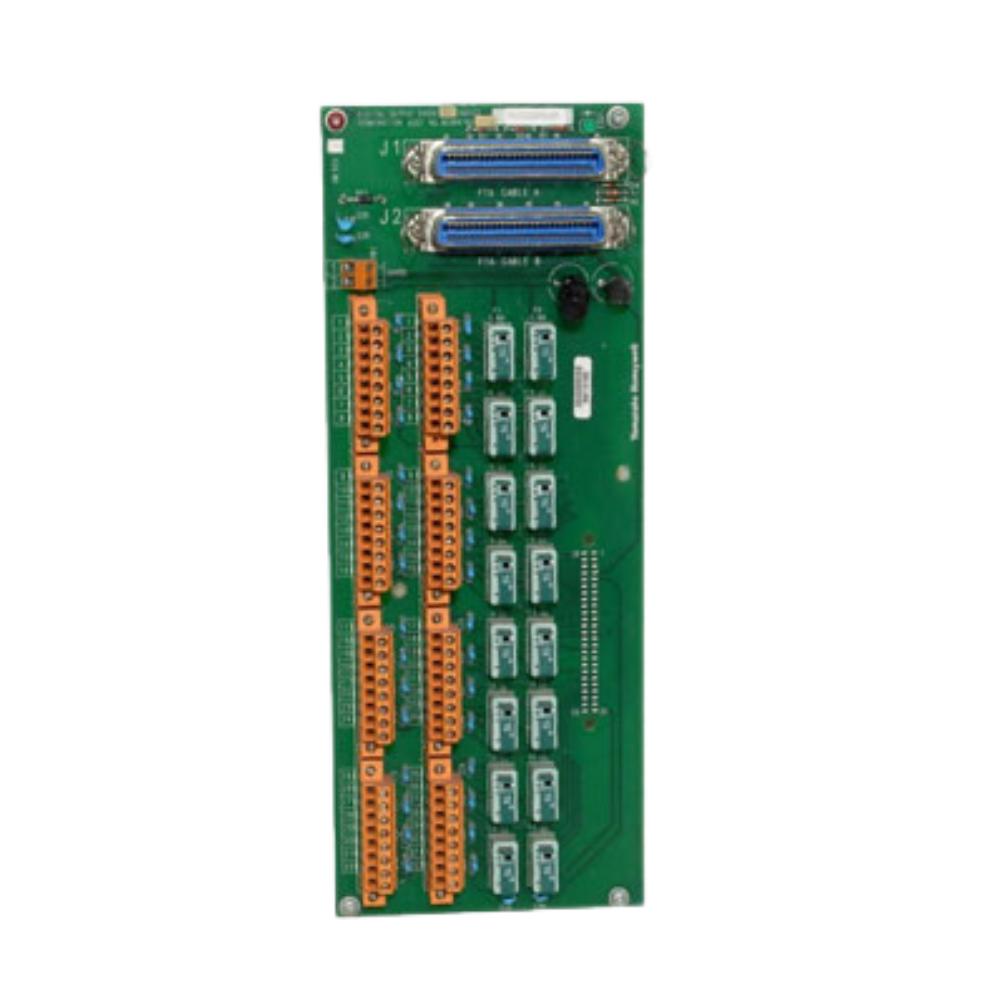

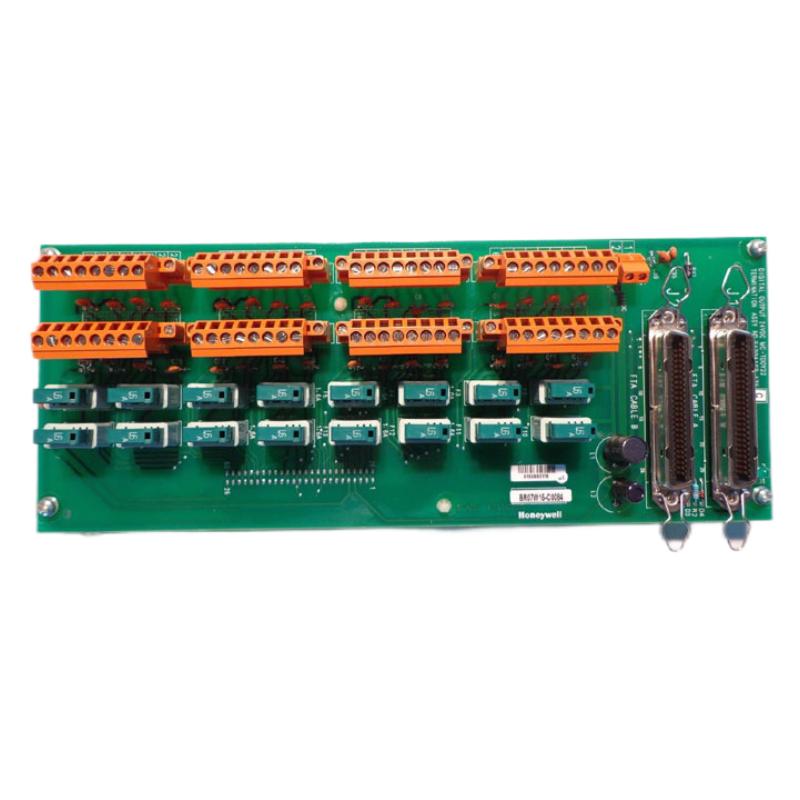

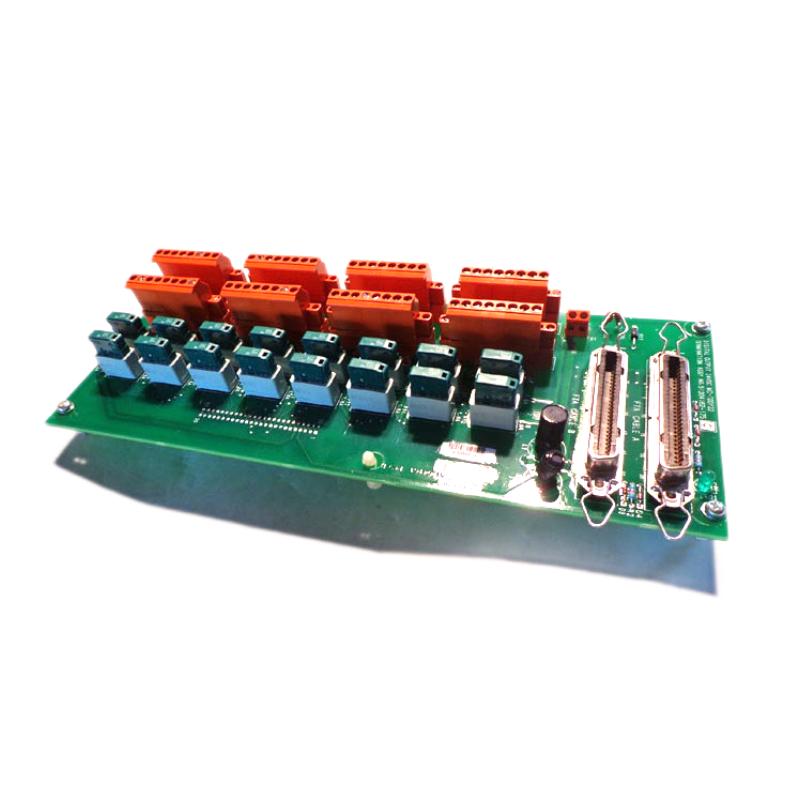

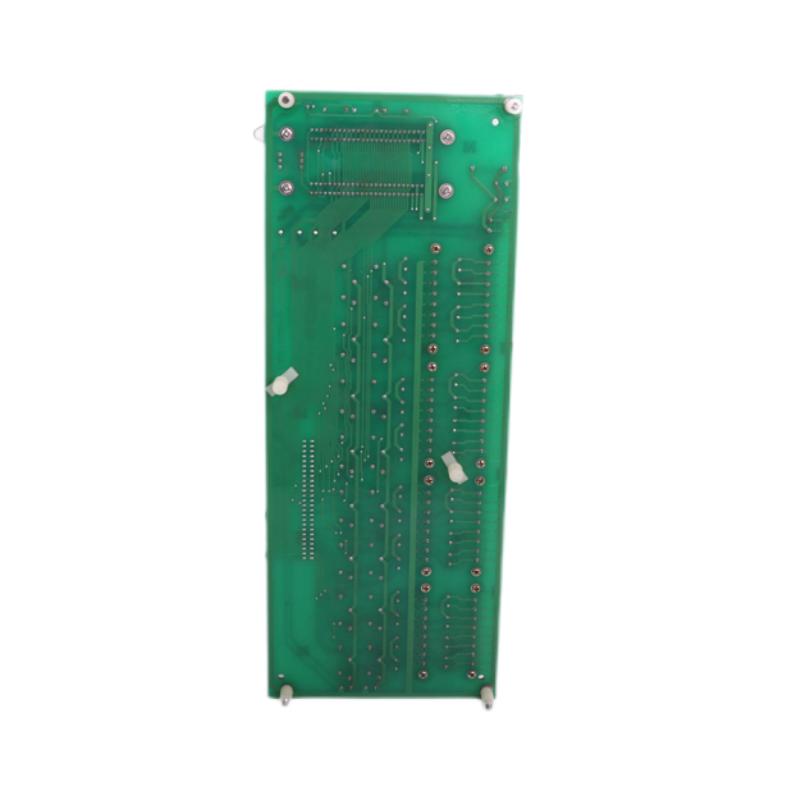

The Honeywell MC‑TDOY22 51204162‑175 is a 24 V DC digital output termination module designed for industrial control systems. It supports up to 32 isolated output channels for reliable signal delivery to field devices.
General Information
Part Number: MC‑TDOY22 51204162‑175
Manufacturer: Honeywell
Brand / Country of Origin: Honeywell / USA
Type: Digital Output Termination Assembly
Technology: Field termination assembly (FTA) with isolated open‑collector outputs compatible with FTA interface modules
Power Specifications
Supply Voltage: 24 V DC nominal
Output Channels: 32 isolated channels
Load Voltage Range: 15 V DC to 30 V DC
Maximum Load Current: 0.5 A per channel
Communication & Interface
Interface: Plug‑in termination board for attachment to external load circuits
Signal Type: Digital outputs (open‑collector, NPN)
Diagnostics: Enhanced per‑point monitoring, support for module health indication and fault reporting
Environmental
Operating Temperature: –20 °C to +70 °C
Humidity: Up to 95% RH, non‑condensing
Installation Environment: Industrial control cabinet or I/O rack environment
Dimensions & Weight
Dimensions: 241.3 × 24.4 × 99.1 mm
Weight: 0.8 kg
