Honeywell FC‑TSDOL‑0424C | Safe Digital Output Hot Items

Overview

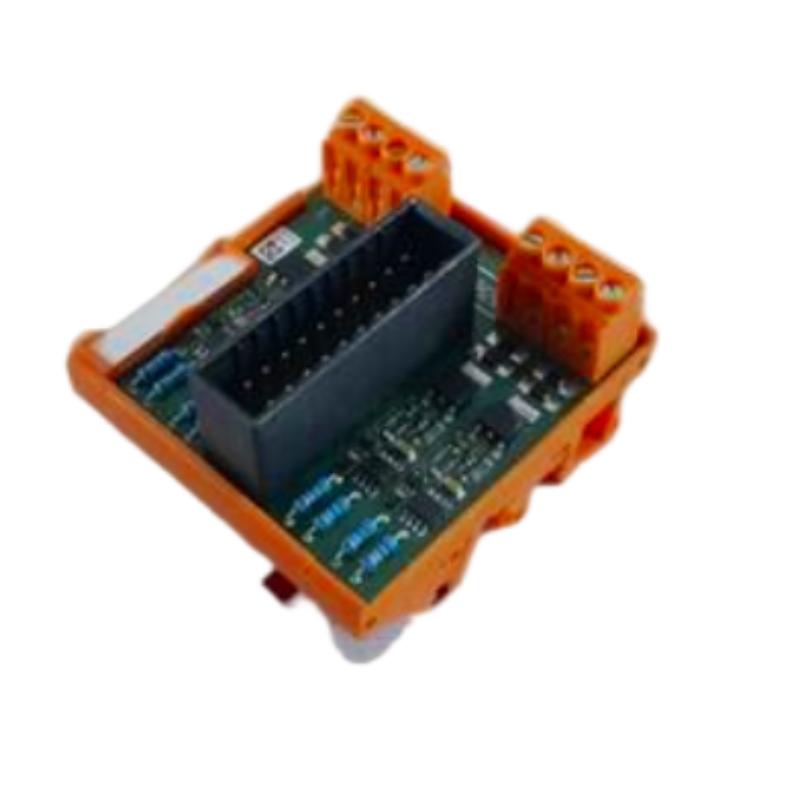

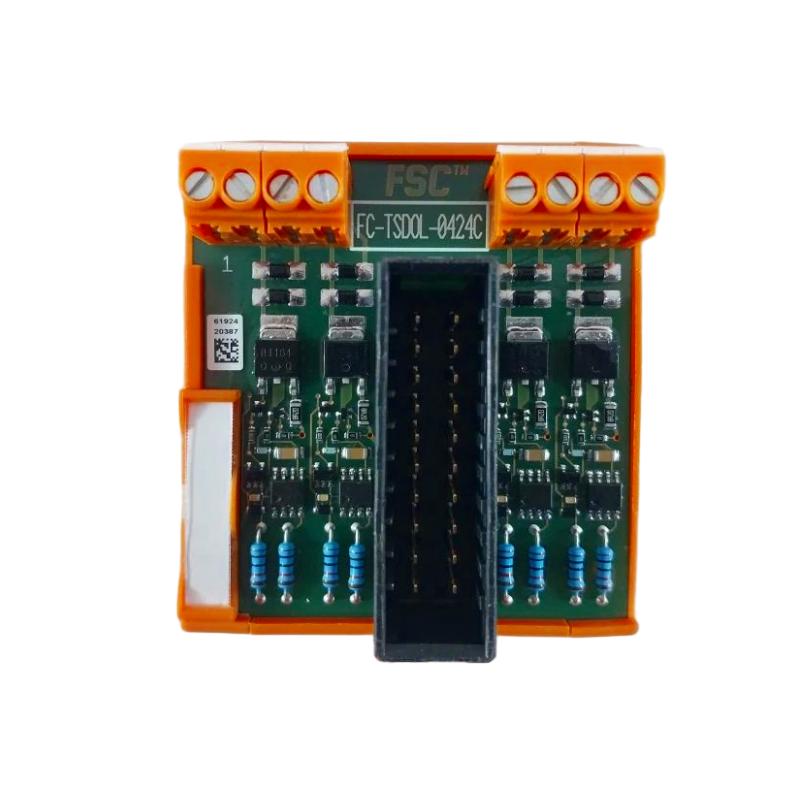

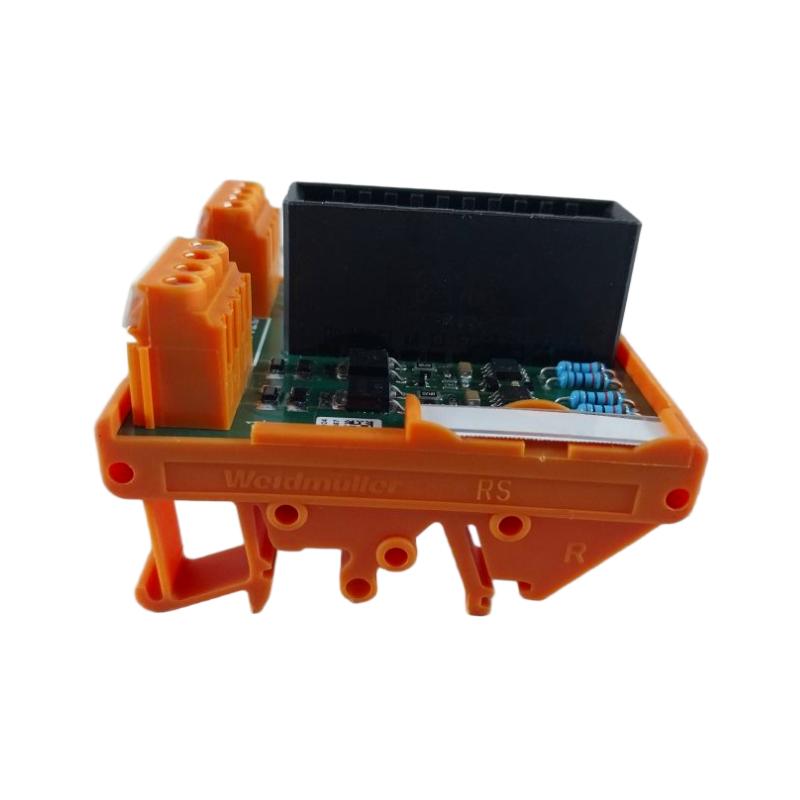

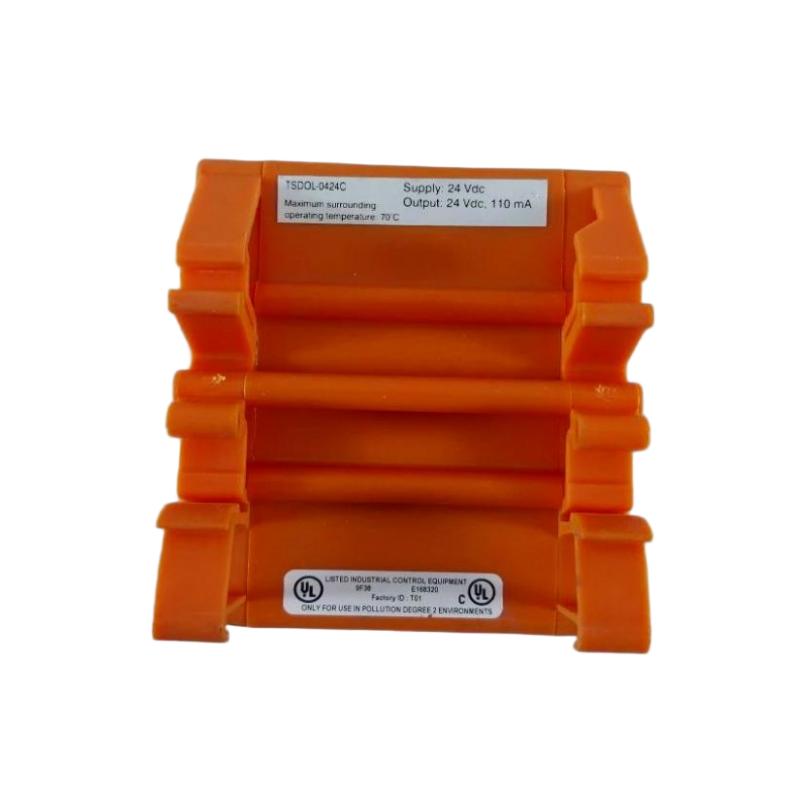

The Honeywell FC‑TSDOL‑0424C is a field termination assembly (FTA) module that provides safe digital output functionality for industrial safety systems. It is designed for use in Honeywell’s safety controller platforms and supports high-integrity output channels for automated shutdowns or safety interlocks.

General Information
Brand: Honeywell
Country of Origin: United States
Model Number: FC‑TSDOL‑0424C
Series: FSC / Safety Manager I/O Modules
Product Type: Safe Digital Output Field Termination Assembly
Application: Safety instrumented systems, emergency shutdown logic, and control output interfaces

Power Specifications
Supply Voltage: 24 V DC nominal
Output Current: Specified per channel (typical capacity approx. capable of 4 A continuous per channel)
Protection Features: Output short‑circuit protection, current limiting, and fault diagnosis built‑in

Communication & Interface
Channels: Four digital output channels (24 V DC)
Signal Type: Safe digital output to actuators or system interlocks
Interface: Connects field output wiring to the safe I/O backbone in the controller rack
Diagnostics: Monitors channel status, fault condition reporting, and supports safe state transition

Environmental
Operating Temperature: ‑40 °C to +70 °C
Storage Temperature: ‑55 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Installation: Industrial control cabinet environment
Cooling: Natural convection

Dimensions & Weight
Dimensions: Approximately 160 × 100 × 35 mm
Weight: Approx. 0.63 kg
