Honeywell FS‑TSDO‑0424 | Safe Digital Output Efficient delivery

Overview

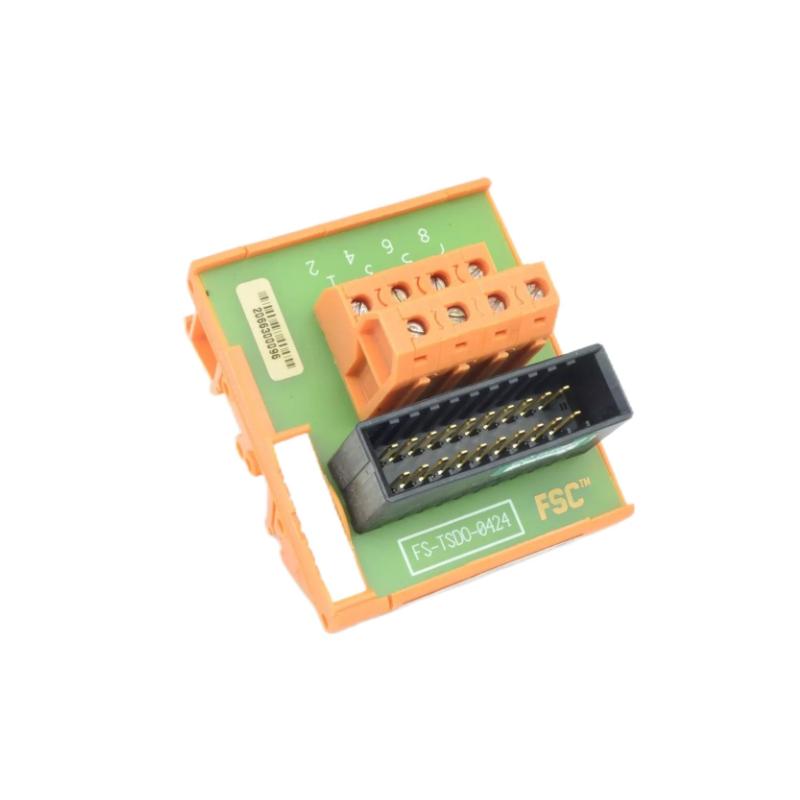

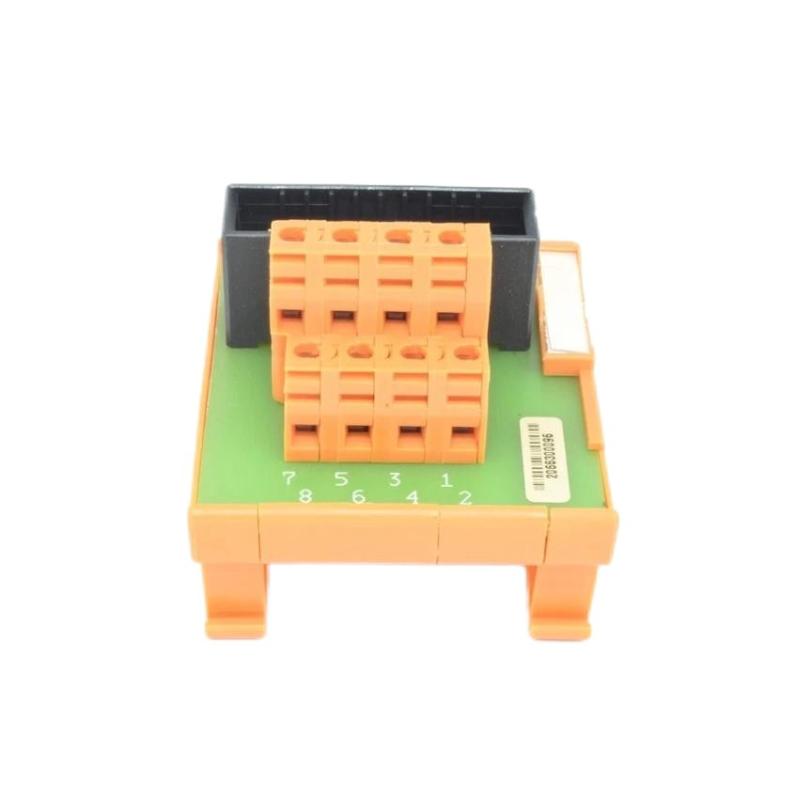

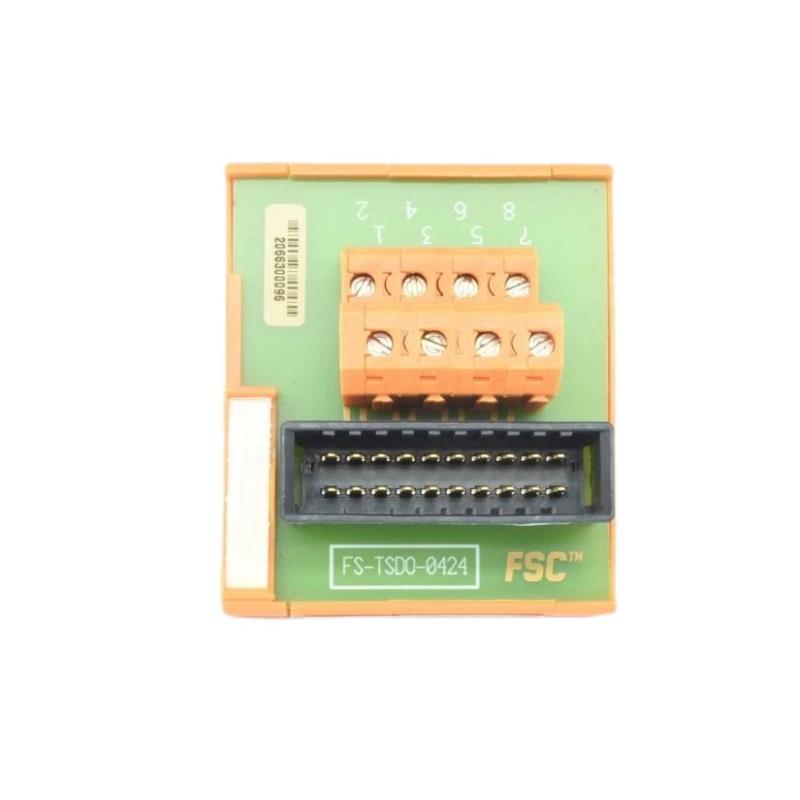

The Honeywell FS‑TSDO‑0424 is a 4‑channel safe digital output field termination assembly designed for integration with Honeywell safety logic systems. It provides safe and monitored digital outputs for field devices in industrial and safety instrumented systems.

General Information
Brand: Honeywell
Country of Origin: United States
Model Number: FS‑TSDO‑0424
Series: Safety Manager I/O Modules
Product Type: Safe Digital Output Field Termination Assembly
Application: Industrial automation and safety instrumented systems requiring safe digital outputs

Power Specifications
Supply Voltage: 24 V DC nominal
Output Channels: 4 digital output channels
Output Signal Type: 24 V DC relay or solid‑state, loop‑monitored
Protection Features: Short‑circuit detection, loop‑monitoring per channel, failsafe de‑energize path

Communication & Interface
Interface Type: Screw‑terminal field wiring per channel, system interconnect to safe output module
Channel Monitoring: Open‑circuit, short‑circuit, and wiring fault detection
Diagnostics: Channel status indication, wiring fault reporting, module health status

Environmental
Operating Temperature: –40 °C to +70 °C
Storage Temperature: –55 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Installation: Cabinet‑mounted in industrial control or safety system environment

Dimensions & Weight
Dimensions (L × W × H): Approx. 160 × 100 × 58 mm
Weight: Approx. 0.6 kg

Factory-sealed brand-new products, transparent pricing, quick reply.
