Overview

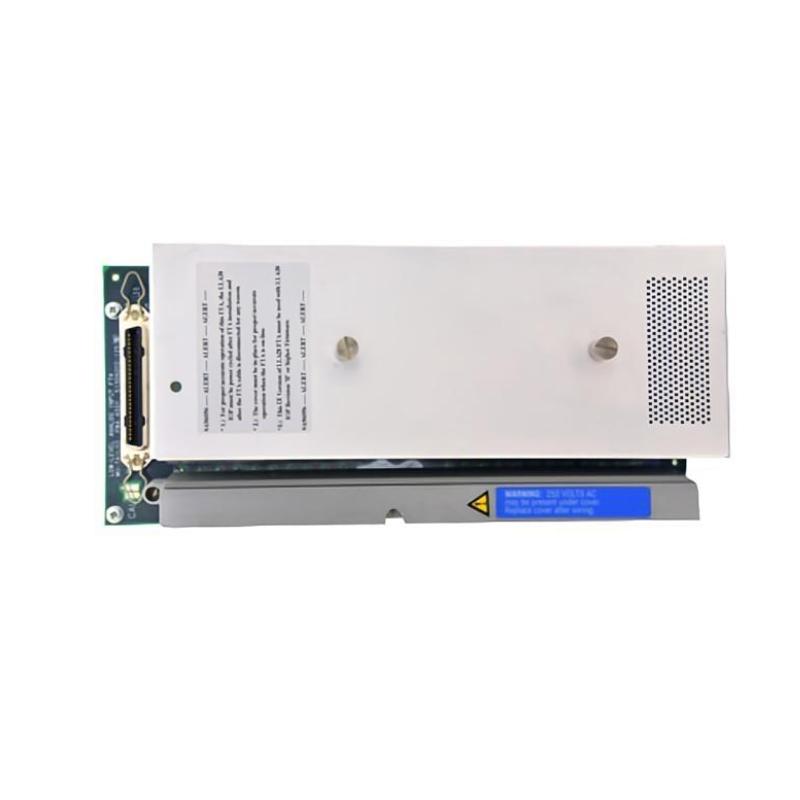

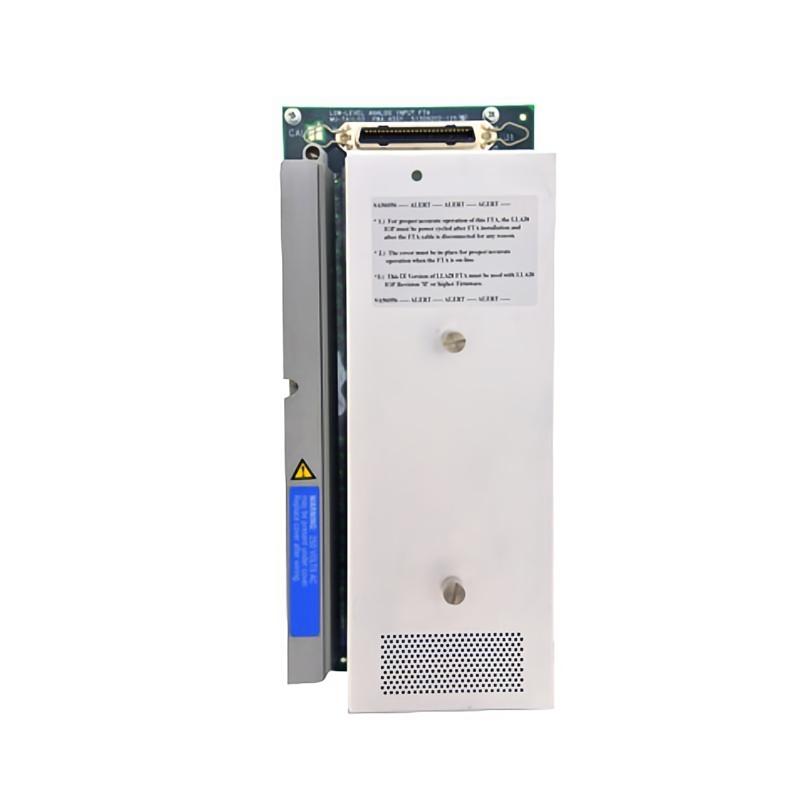

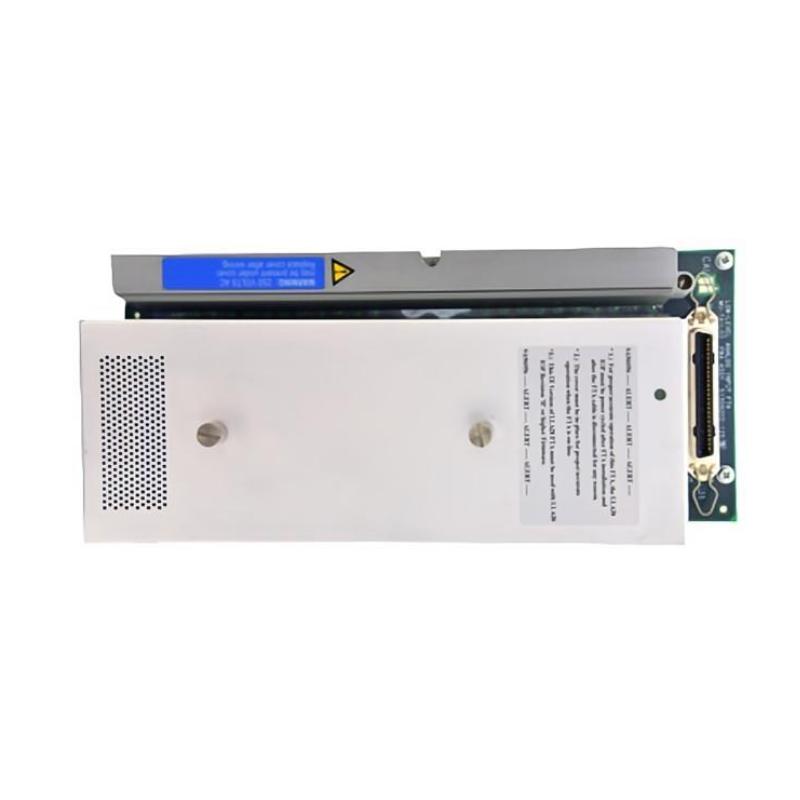

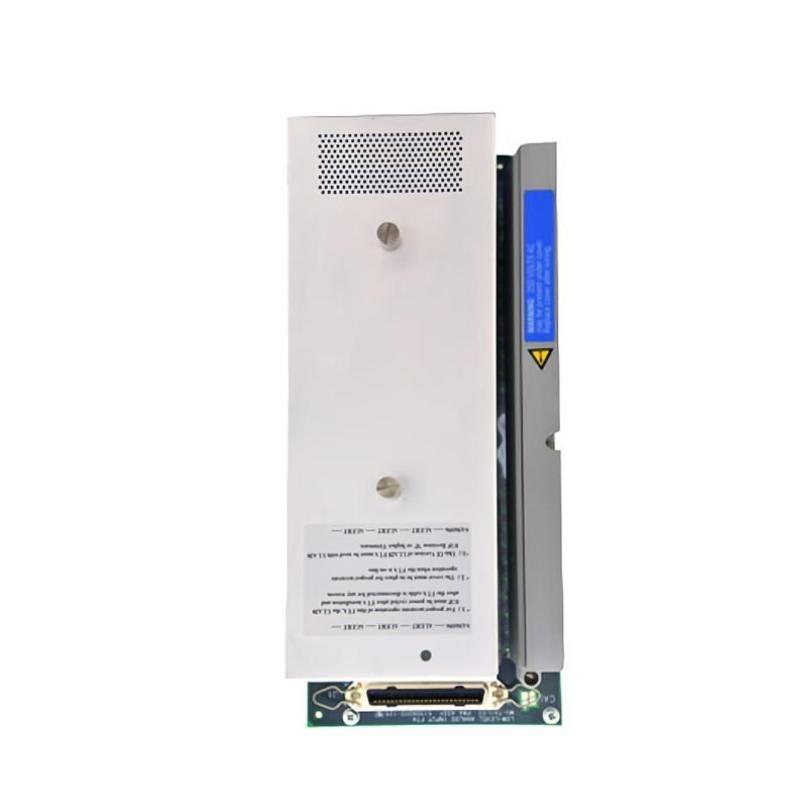

The Honeywell MC-TAIL03 51309202-175 is a field termination assembly (FTA) tailored for low-level analog inputs. It enables secure termination and connection of field sensors (such as thermocouples, RTDs, voltage and current sources) into a Honeywell Universal Control Network (UCN) system.

General Information
Model: MC-TAIL03

Part Number: 51309202-175

Manufacturer: Honeywell

Type: Low-Level Analog Input Field Termination Assembly

Country of Origin: USA

Channel Count: 8 channels

Power Specifications
Supply Source: Powered through the system backplane of the control rack

Input Types Supported: Thermocouples, RTDs, voltage and current signals

Signal Conditioning: Integrated filtering and surge protection for accurate analog acquisition

Communication & Interface
Interface Type: Terminal blocks for field wiring and ribbon cable to system I/O chassis

Diagnostics: Channel status monitored by the control system

Environmental
Operating Temperature: Standard industrial environment

Humidity: Up to 95% RH, non-condensing

Mounting Location: Installed in rack or enclosure as part of the UCN I/O subsystem

Dimensions & Weight
Dimensions: Approx. 307 × 120 × 120 mm
Weight: Approx. 2.0 kg
