Overview

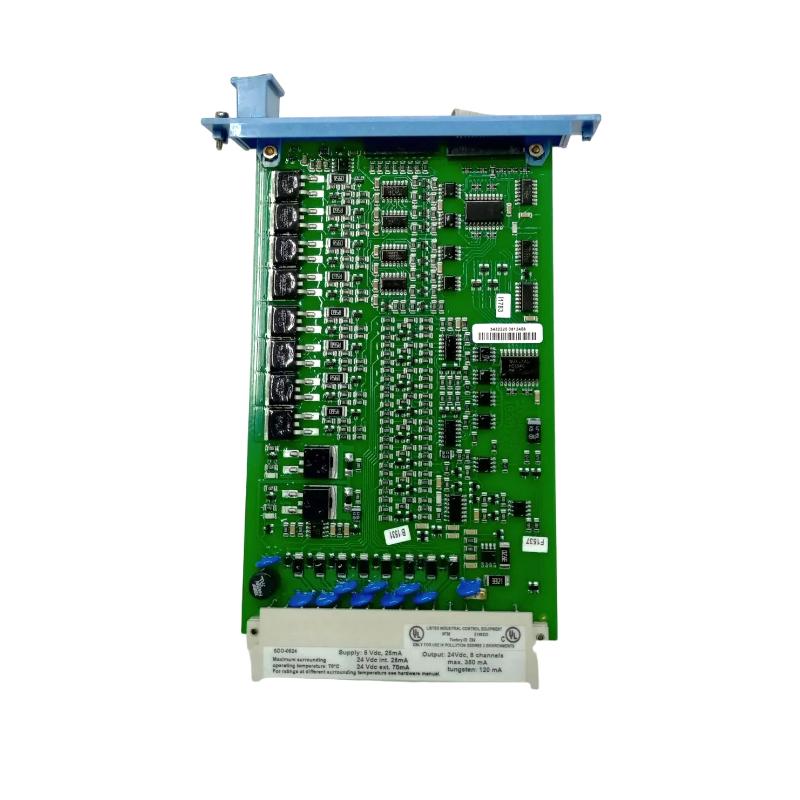

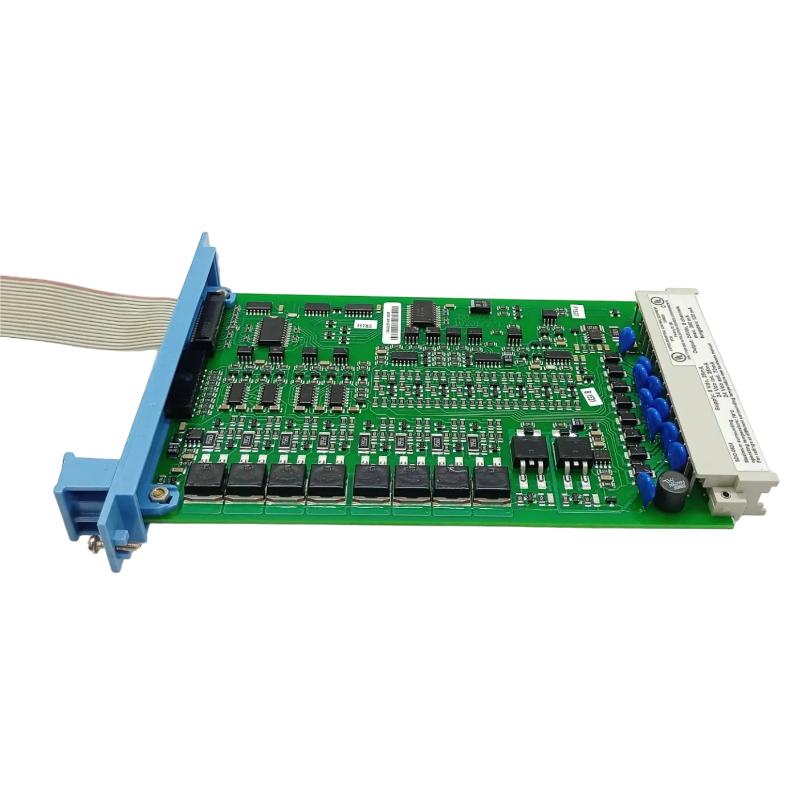

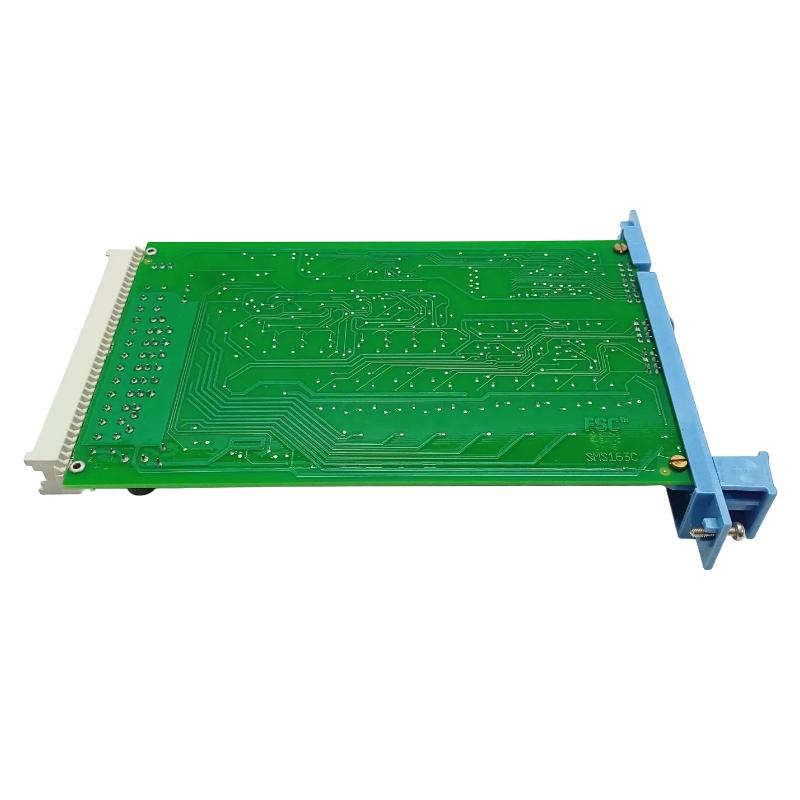

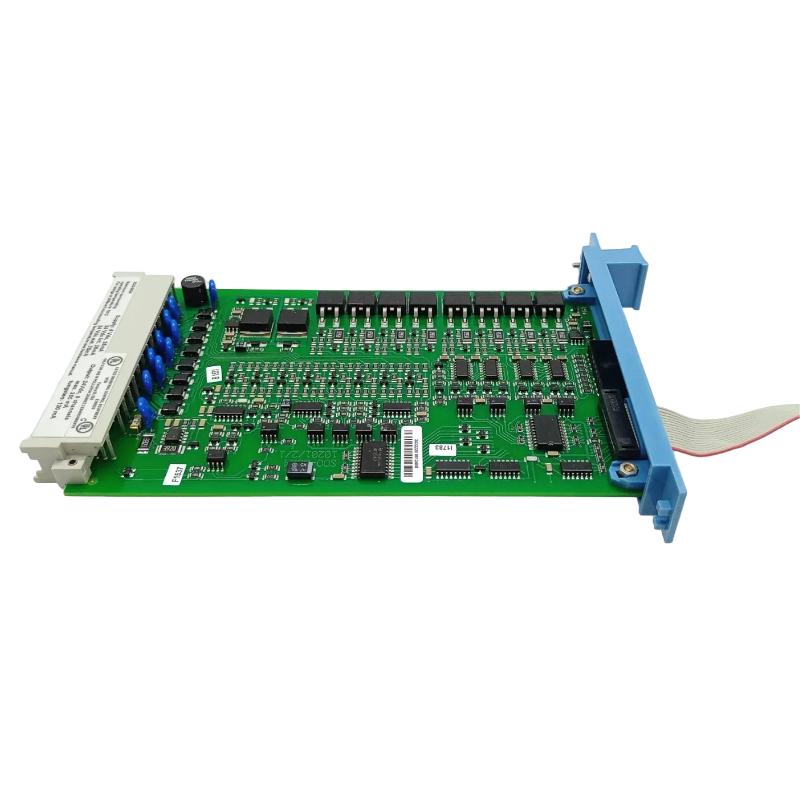

The Honeywell FC-SCDO-0824 is a serial configurable digital output module used in Honeywell TDC 3000 and Experion control systems. It provides flexible relay-based outputs to control field devices such as actuators, solenoids, and indicators, allowing configurable channel assignments for process automation applications.
General Information
Part Number: FC-SCDO-0824
Manufacturer: Honeywell
Brand / Country of Origin: Honeywell / United States
Series: FC Series
Type: Serial Configurable Digital Output Module
Mounting: Panel or rack installation within I/O chassis
Technology: Relay-based digital outputs with configurable channels and LED status indicators
Power Specifications
Supply Voltage: 24 V DC
Output Rating: Up to 240 VAC or 125 VDC per channel
Power Consumption: Low, relay-driven
Protection: Channel isolation and surge protection
Indicators: LED indicators for channel status and faults
Communication & Interface
Output Type: Configurable isolated relay outputs
Channels: 8 digital output channels
Connection Type: Screw terminal connections for field wiring
Diagnostics: LED indicators for monitoring channel operation and faults
System Integration: Compatible with Honeywell DCS I/O modules
Environmental
Operating Temperature: −10 to +60 °C
Humidity: 5–95% RH, non-condensing
Storage Temperature: −40 to +85 °C
Installation Environment: Indoor industrial control cabinets
Dimensions & Weight
Dimensions (W × H × D): 307 × 257 × 50 mm
Weight: ~ 2.0 kg
