Overview

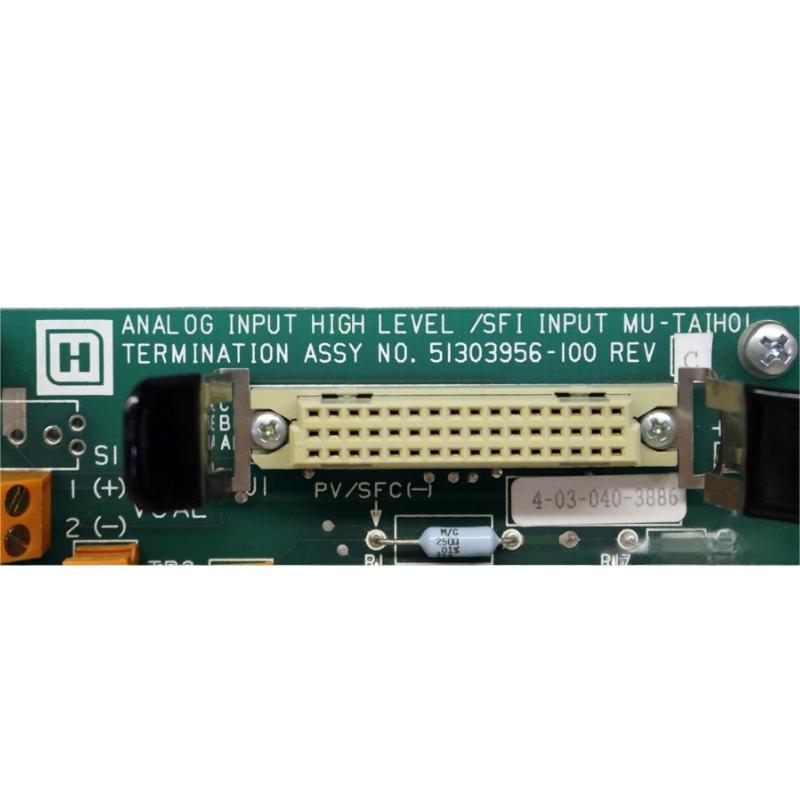

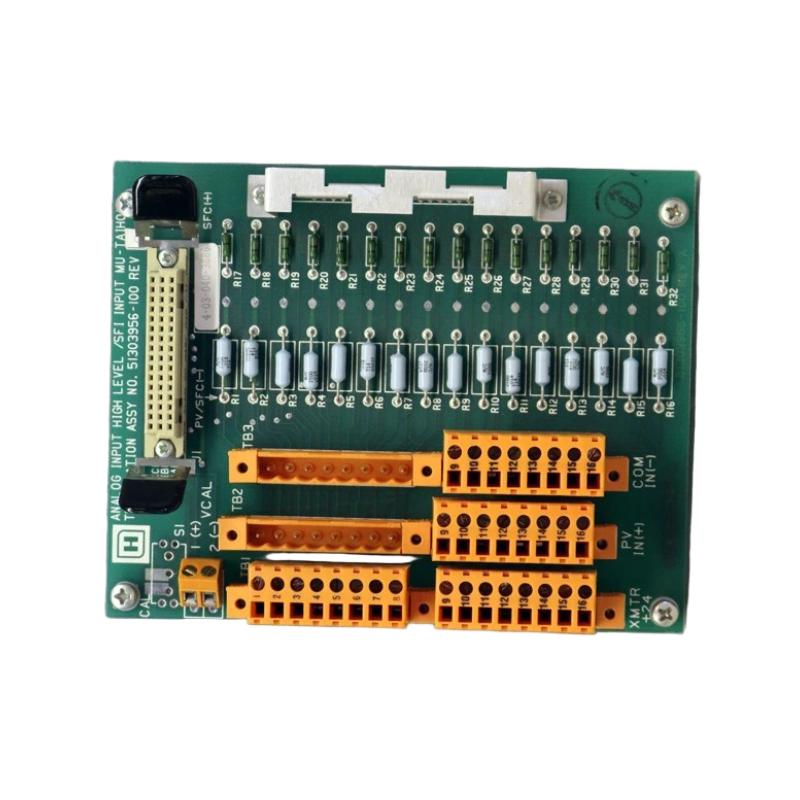

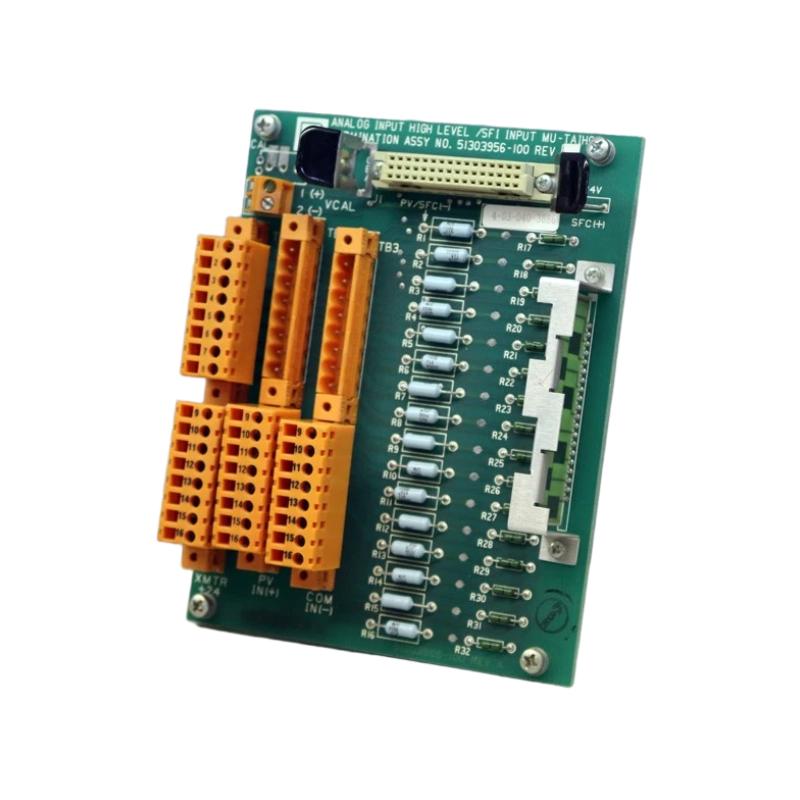

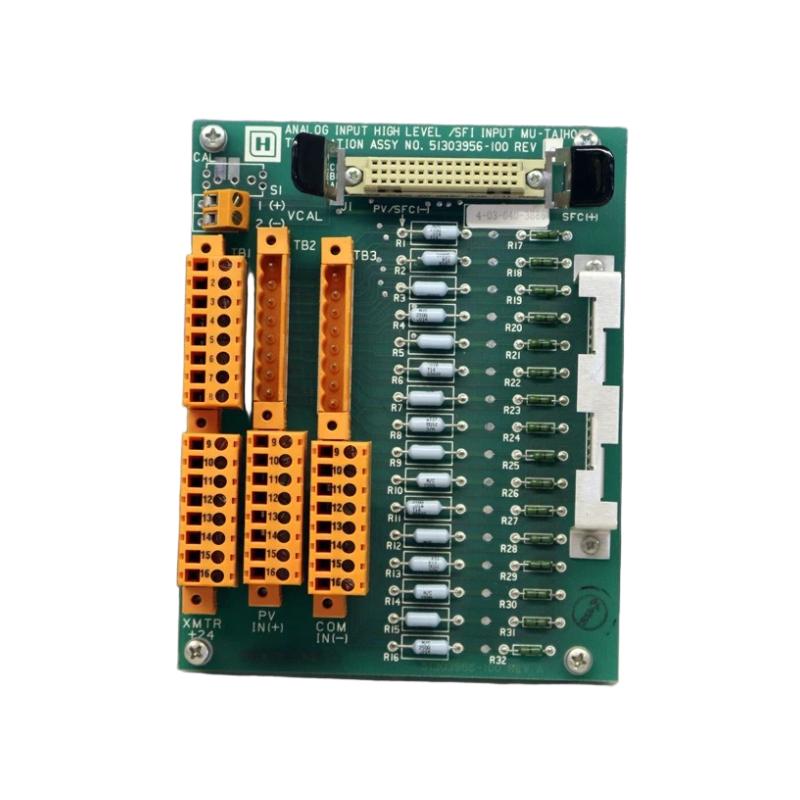

The Honeywell MC-TAIH01 51303956-100 is an analog input field termination assembly designed for Honeywell’s TDC 3000 and Experion control systems. It provides a reliable interface for connecting field sensors, including thermocouples, RTDs, and voltage/current inputs, to the control system for accurate process measurement and monitoring.
General Information
Part Number: 51303956-100
Manufacturer: Honeywell
Brand / Country of Origin: Honeywell / United States
Series: MC Series
Type: Analog Input Field Termination Assembly
Mounting: Panel or rack installation within I/O chassis
Technology: Low-level analog input processing with channel isolation and LED status indicators
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: Low, powered via system backplane
Input Types: Thermocouples, RTDs, voltage and current signals
Protection: Surge protection and isolation between channels
Indicators: LED indicators for input channel status
Communication & Interface
Input Type: Low-level analog signals from field sensors
Channels: Multiple isolated input channels
Connection Type: Screw terminal field wiring interface
Diagnostics: LED indicators for channel health and system fault monitoring
System Integration: Compatible with Honeywell DCS input modules
Environmental
Operating Temperature: −10 to +60 °C
Humidity: 5–95% RH, non-condensing
Storage Temperature: −40 to +85 °C
Installation Environment: Indoor industrial control cabinets
Dimensions & Weight
Dimensions (W × H × D): 307 × 257 × 50 mm
Weight: ~ 2.0 kg
