Overview

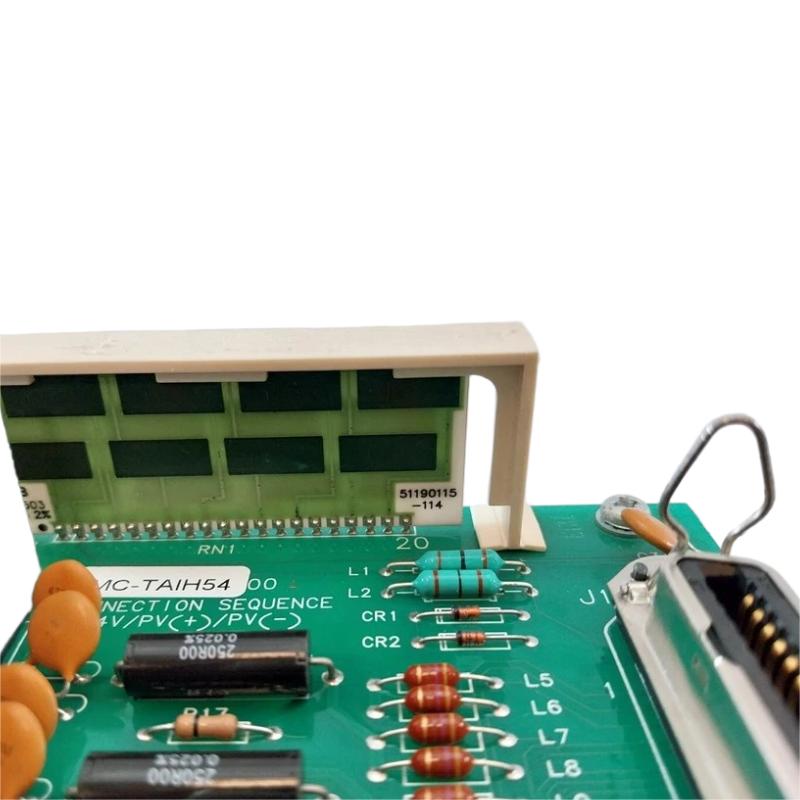

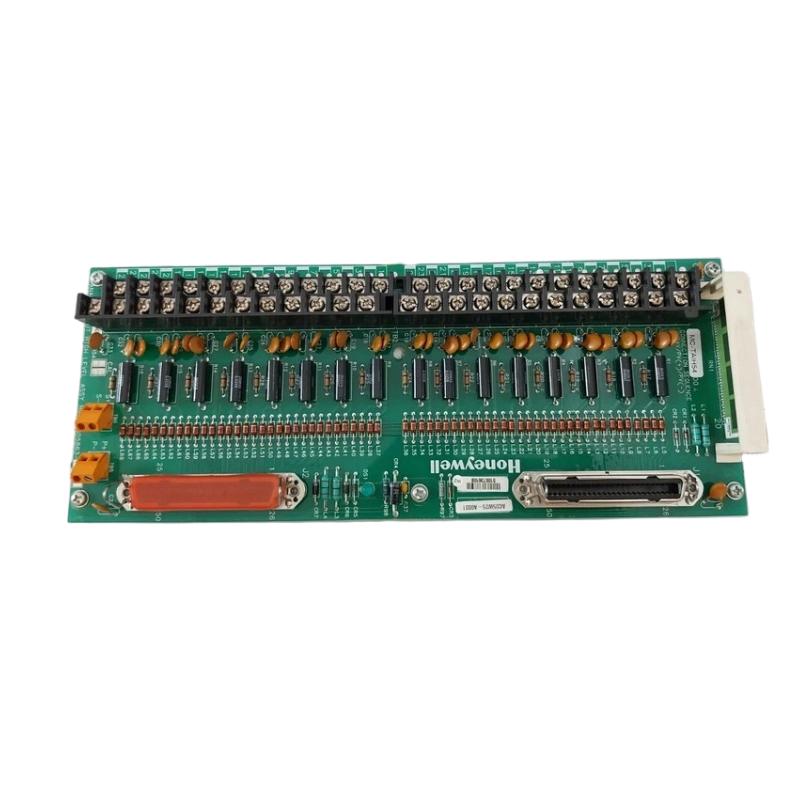

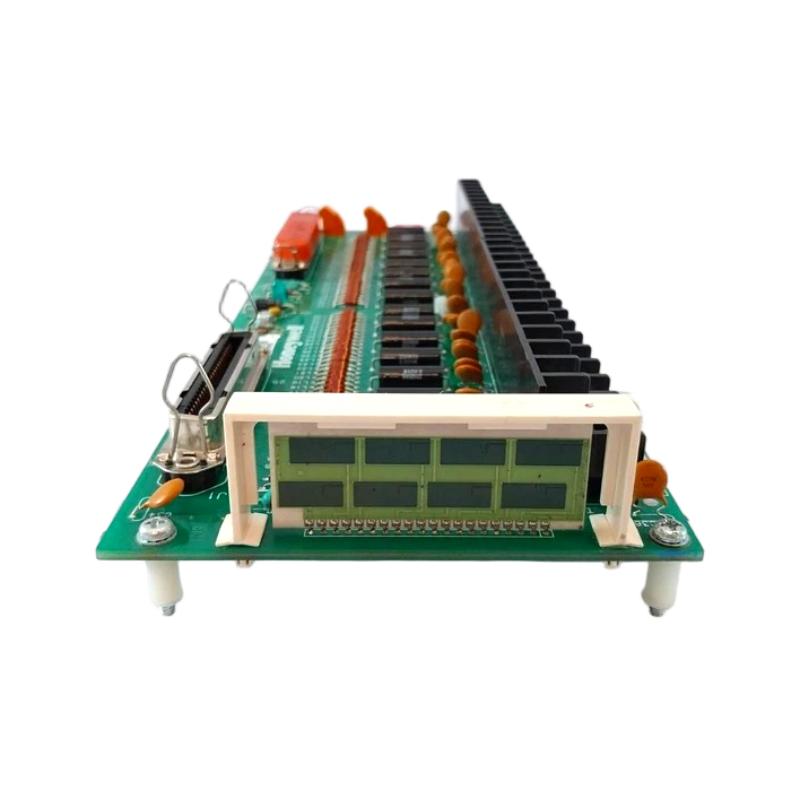

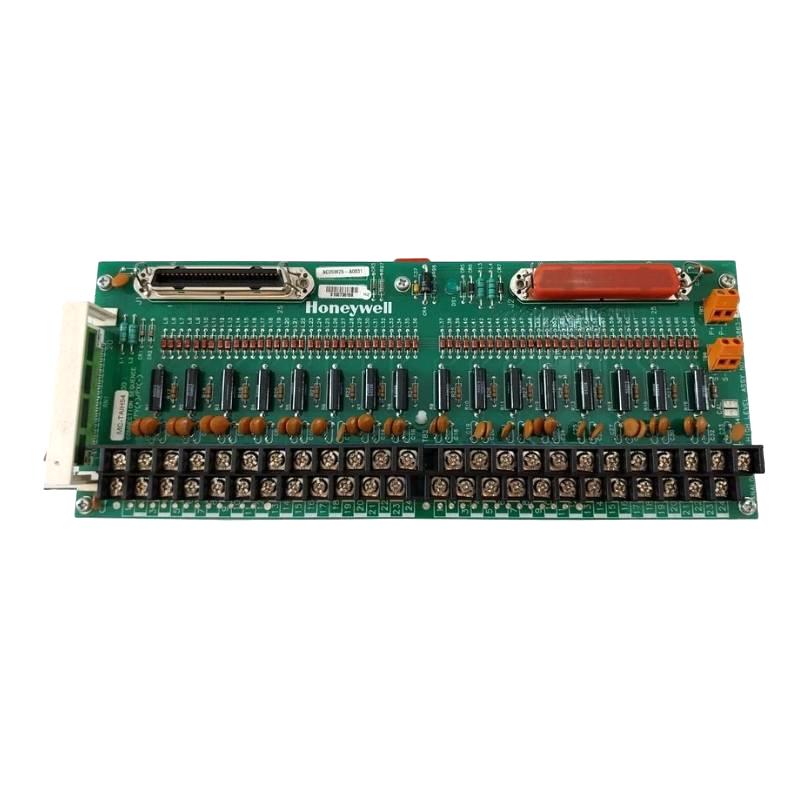

The Honeywell MC-TAIH54 51305863-275 is a high-level analog input field termination assembly designed for Honeywell’s I/O systems. It provides 16 channel inputs, supporting signals such as voltage and current from field transmitters. The assembly ensures accurate and reliable signal transmission for industrial process measurement.
General Information
Part Number: 51305863-275
Manufacturer: Honeywell
Brand / Country of Origin: Honeywell / United States
Series: MC-TAIH High-Level Analog Input Termination Assemblies
Type: Field Termination Assembly (FTA)
Application: Field sensor termination for analog inputs, compatible with Honeywell analog input processors
Power Specifications
Supply Voltage: 24 V DC, provided via system backplane
Input Support: Accepts high-level analog signals such as 0–10 V and 4–20 mA
Protection: Surge protection and channel-to-channel isolation
Indicators: LED indicators for channel health
Communication & Interface
Signal Interface: Terminal blocks for field wiring on each channel
Channel Count: 16 isolated analog input channels
Backplane Connection: Connects to Honeywell I/O chassis
Diagnostics: System-level diagnostics supported through the control system
Environmental
Operating Temperature: −10 to +60 °C
Humidity: 5–95% RH, non-condensing
Storage Temperature: −40 to +85 °C
Installation: Cabinet or panel mounting within control environments
Dimensions & Weight
Dimensions (approx.): 307 × 257 × 50 mm
Weight: ~2.0 kg
