Overview

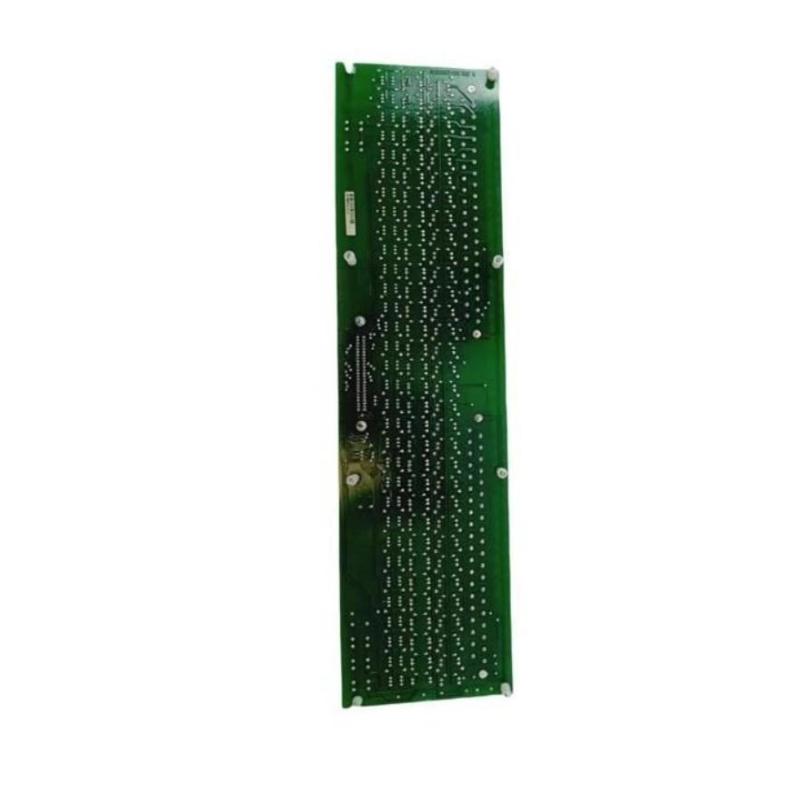

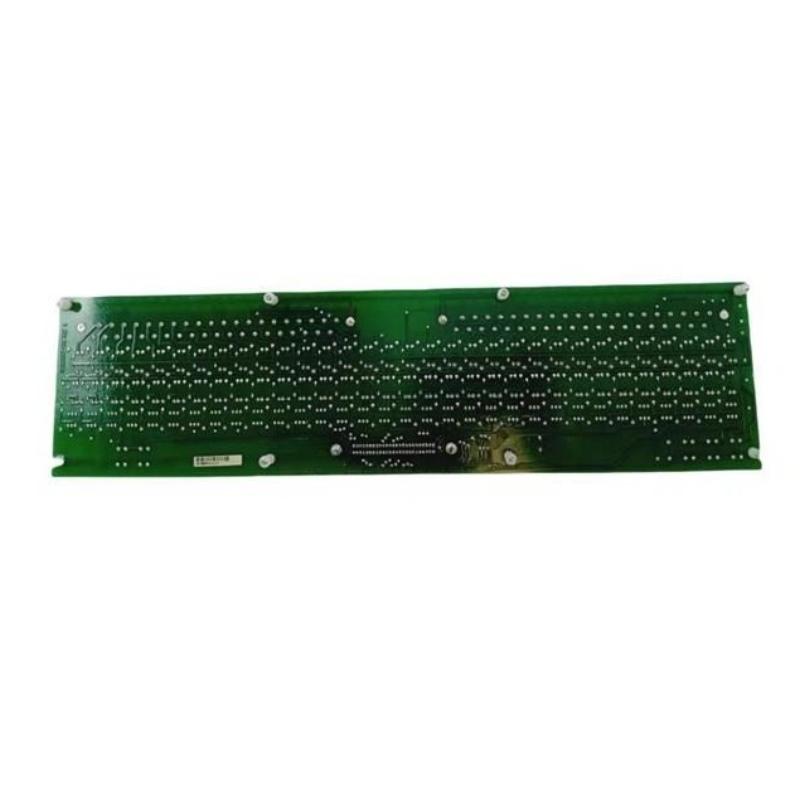

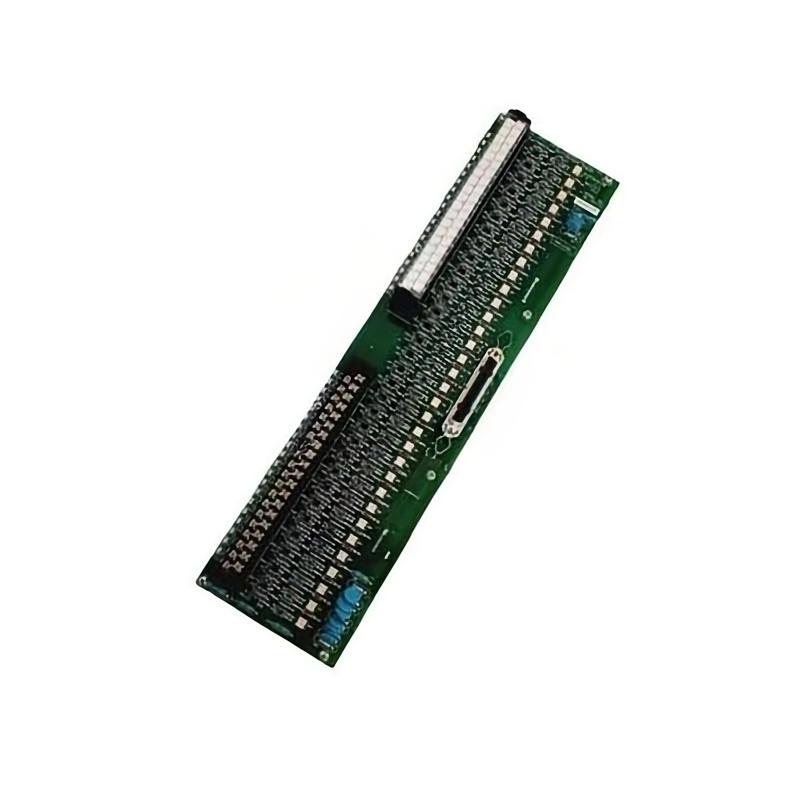

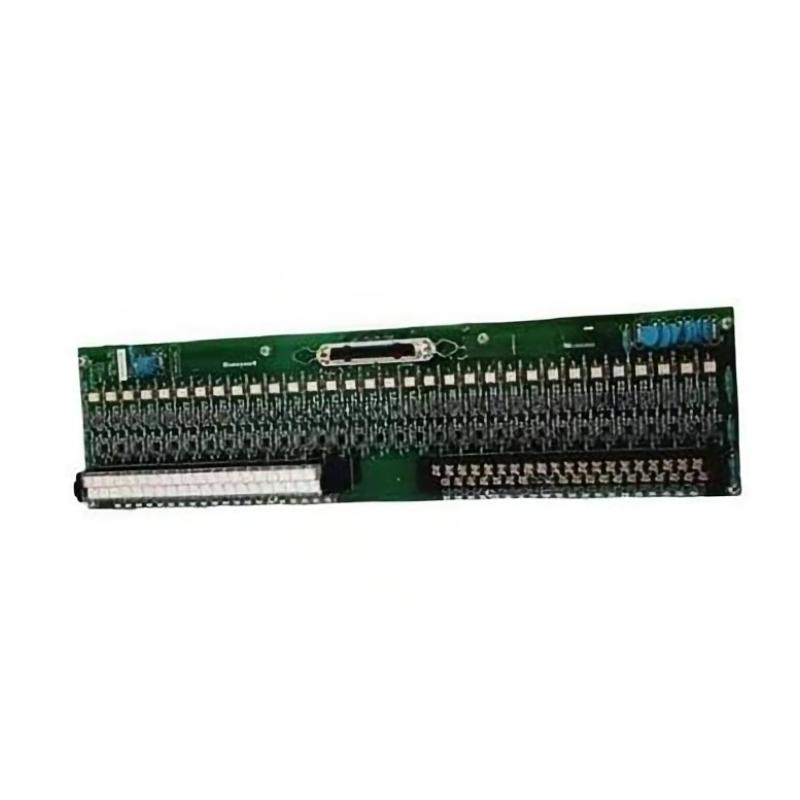

The Honeywell MC-TDID72 51303928-150 is a digital input module for Honeywell MasterLogic and Experion process control systems. It allows the system to receive and process discrete digital signals from field devices, enabling accurate monitoring of process conditions and efficient control operations.
General Information
Part Number: 51303928-150
Manufacturer: Honeywell
Brand / Country of Origin: Honeywell / USA
Series: MC Series
Type: Digital Input Module
Mounting: Card or rack installation in system chassis
Technology: Discrete input signal conditioning and isolation
Power Specifications
Supply Voltage: Powered via system backplane
Power Consumption: Low power, designed for continuous operation
Input Source: System backplane
Protection: Surge and overvoltage protection
Indicators: LED indicators for power, channel status, and fault detection
Communication & Interface
Signal Interface: Discrete digital inputs from field devices
Module Role: Conditions input signals and sends them to the control system
Diagnostics: Self-monitoring with status reporting
Operator Interface: LEDs for channel activity and module health
Reset Features: Supports soft reset via system software
Environmental
Operating Temperature: 0 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for industrial control cabinet installation
Dimensions & Weight
Dimensions (L × W × H): 200 × 120 × 35 mm (approx.)
Weight: ~0.35 kg
