Overview

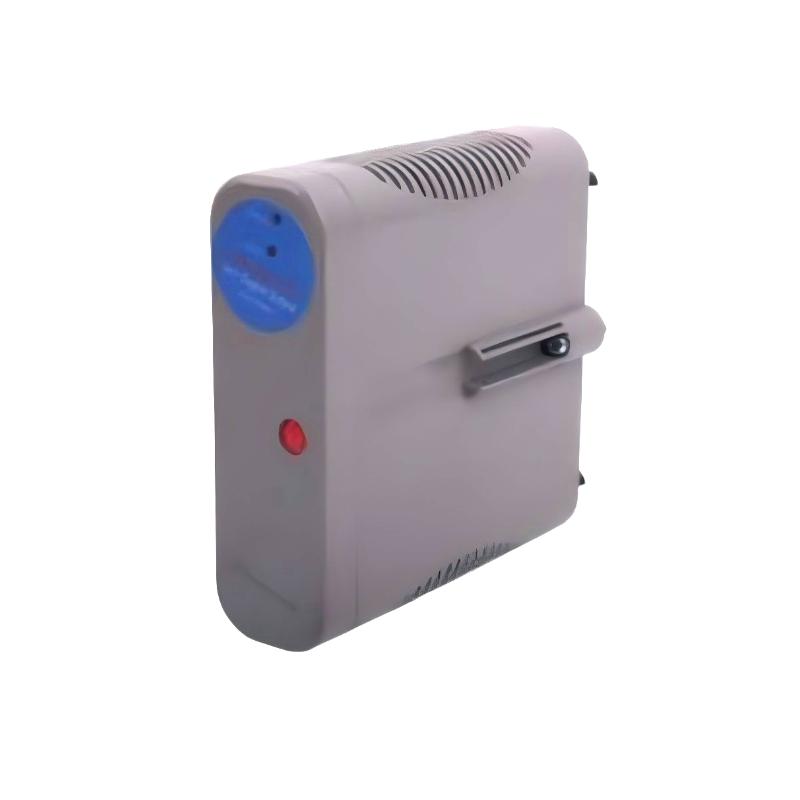

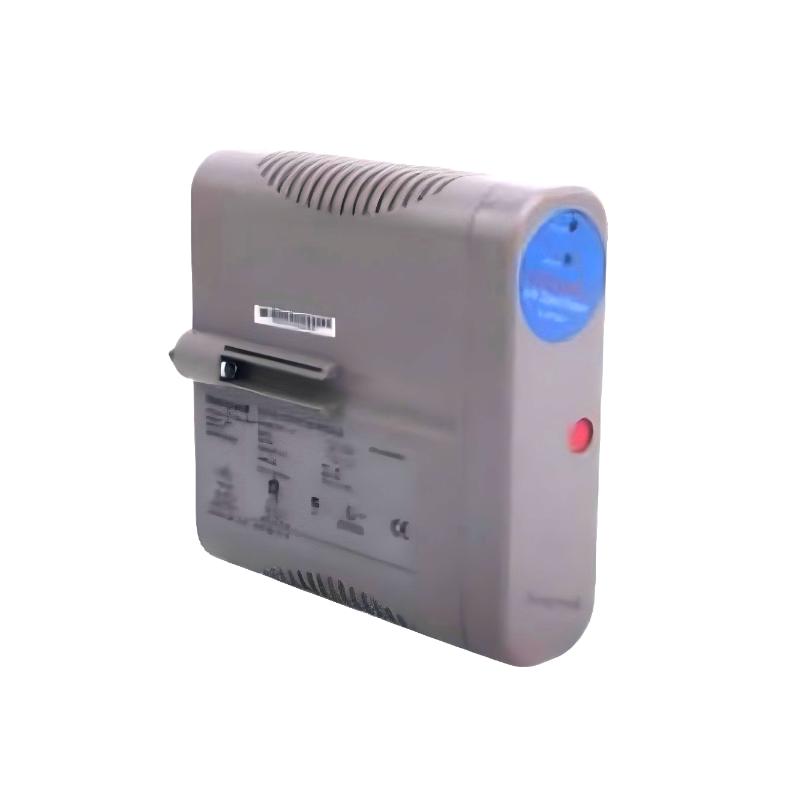

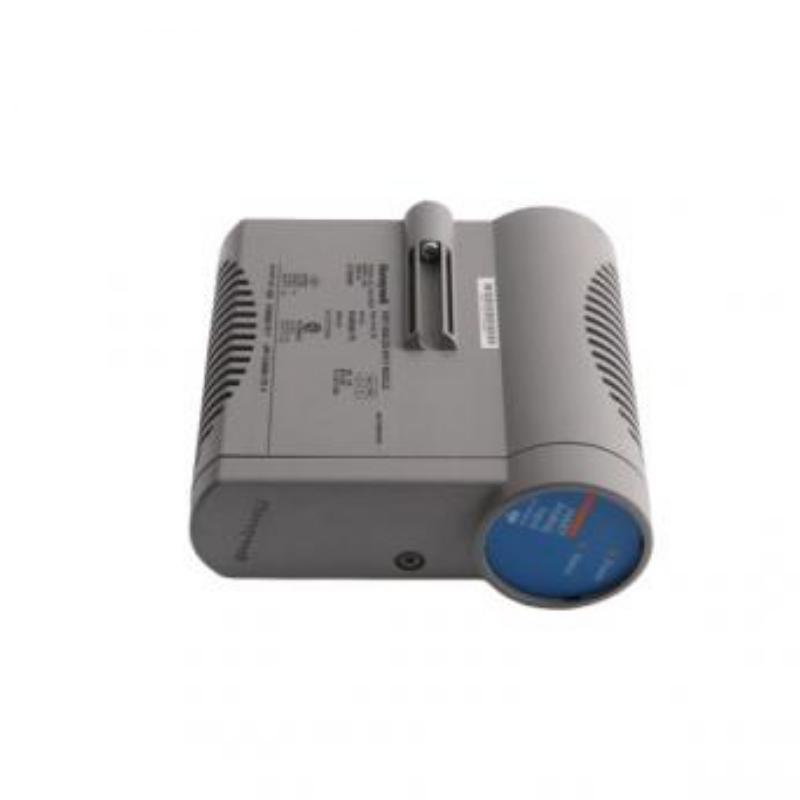

The Honeywell 8C-PAZH54 is an analog output module used in Honeywell Experion Series 8 and C300 control systems. It provides accurate analog output signals for controlling field devices in industrial automation and process applications.

General Information
Part Number: 8C-PAZH54
Manufacturer: Honeywell
Series: Series 8 I/O
Type: Analog Output Module
Mounting: Installed on Series 8 IOTA/IOPM base
Function: Sends analog control signals to actuators and field instruments

Power Specifications
Supply Voltage: 24 V DC (backplane powered)
Power Consumption: ≤ 8 W
Input Source: From IOPM
Protection: Built-in over-voltage and short-circuit protection
Indicators: Status LEDs for power and output

Communication & Interface
System Interface: Communicates with C300 via IOPM
Signal Type: Analog output channels
Diagnostics: Module health monitoring, output status, fault reporting
Configuration: Via Experion engineering tools
Reset Features: Supports software reset

I/O & Channels
Channel Type: Analog output
Number of Channels: 8 or 16 channels (model dependent)
Output Range: 4–20 mA / 0–10 V selectable
Isolation: Channel-to-system isolation
External Load Support: Can drive standard field devices

Environmental
Operating Temperature: −20 to +70 °C
Humidity: 5–95% RH, non-condensing
Protection Rating: IP20 for industrial cabinet installation

Dimensions & Weight
Dimensions (L × W × H): 130 × 35 × 150 mm
Weight: ~ 0.25 kg
