Honeywell 8C-PAONA1 51454469-175 Analog Output Module 12-Month Warranty

Overview

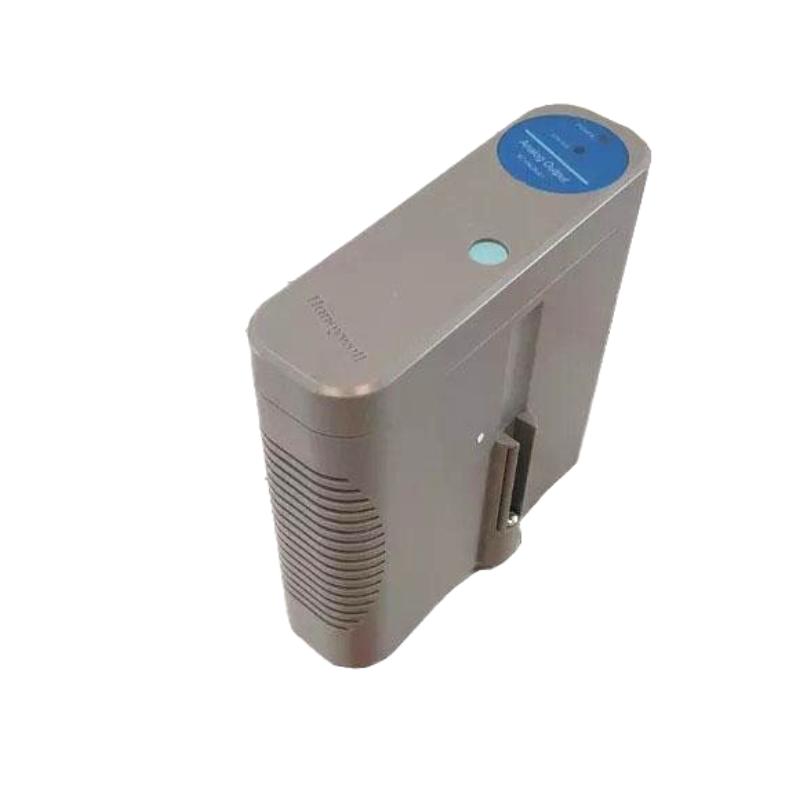

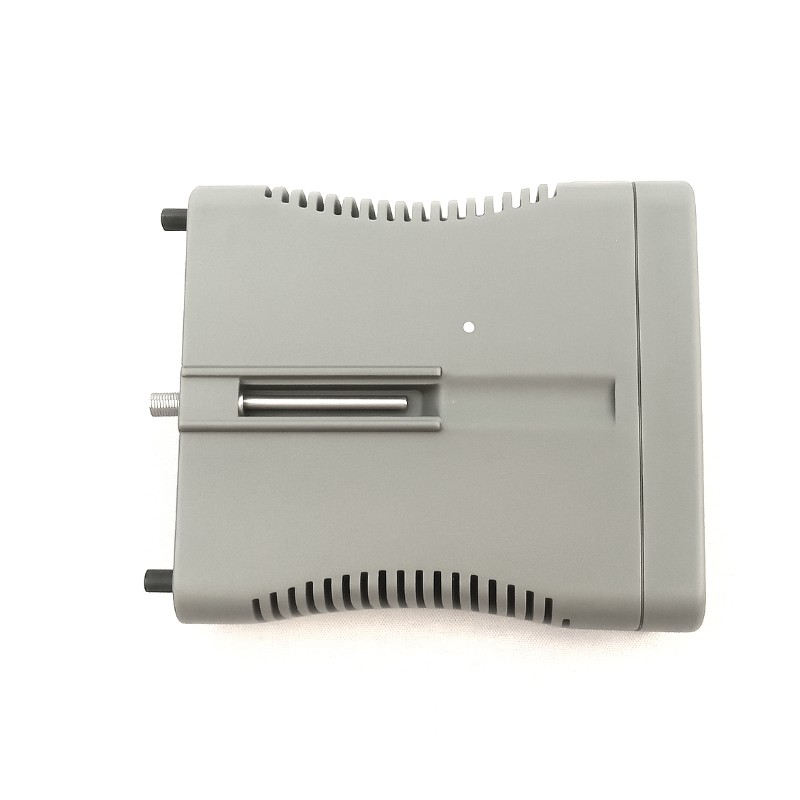

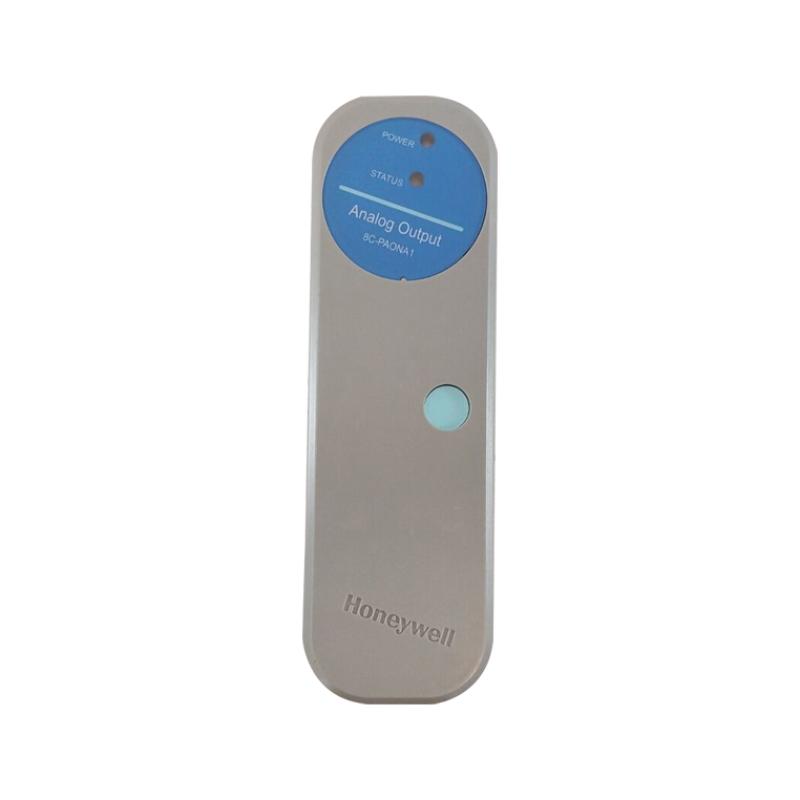

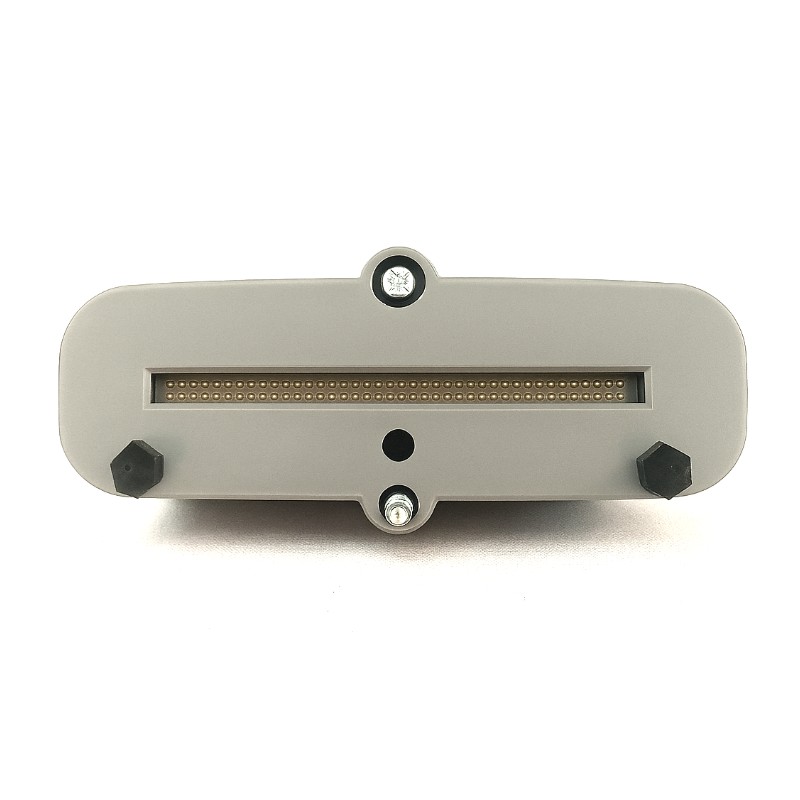

The Honeywell 8C-PAONA1 (Part No. 51454469-175) is a 16-channel analog output module (coated), used in Honeywell Series 8 I/O systems. It provides reliable 4–20 mA output channels with configurable fail-safe modes and self-diagnostic features.

General Information

• Part Number: 51454469-175 / 8C-PAONA1

• Product Name / Model: 8C-PAONA1 Analog Output Module

• Manufacturer: Honeywell

• Country of Origin: United States

• Series / Module Type: Coated Series 8 AO

• Type: Analog Output Module

• Mounting / Format: Backplane / rack module

• Application Area: DCS, process control, industrial automation

Electrical Specifications

• Number of Output Channels: 16 (coated)

• Output Type: 4–20 mA DC

• Output Ripple: < 100 mV peak-to-peak on 250 Ω load

• Linearity: ±0.05% of full scale nominal

• Temperature Drift: 0.005% of full scale / °C

• Load Resistance Range: 50 to 800 Ω

• Supply Voltage: 24 VDC

• Module Current Rating: 190 mA

• Calibrated Accuracy: ±0.2% of full scale at 25 °C

• Output Range Setting: 2.9 mA to 21.1 mA

• Max Compliant Voltage: 16 V

• Open-Circuit Voltage (max): 22 V

• Response Time: 80 ms to 1%

• FAILOPT (Fail-Safe): Configurable per channel to HOLD last value or drive to a safe value

• Diagnostics: Open-wire detection and channel soft-failure indication

• Self-Diagnostics & Isolation: System-to-field isolation possible when using external field power

Environmental

• Operating Temperature: 0 °C to +60 °C

• Storage Temperature: −40 °C to +85 °C

• Relative Humidity: Up to 95%, non-condensing

• Cooling Method: Natural convection

• Protection / Coating: Conformal coating for moisture and contaminant resistance

Dimensions & Weight

• Dimensions (L × W × H): 267  × 51  × 178 mm

• Weight: 0.5 kg
