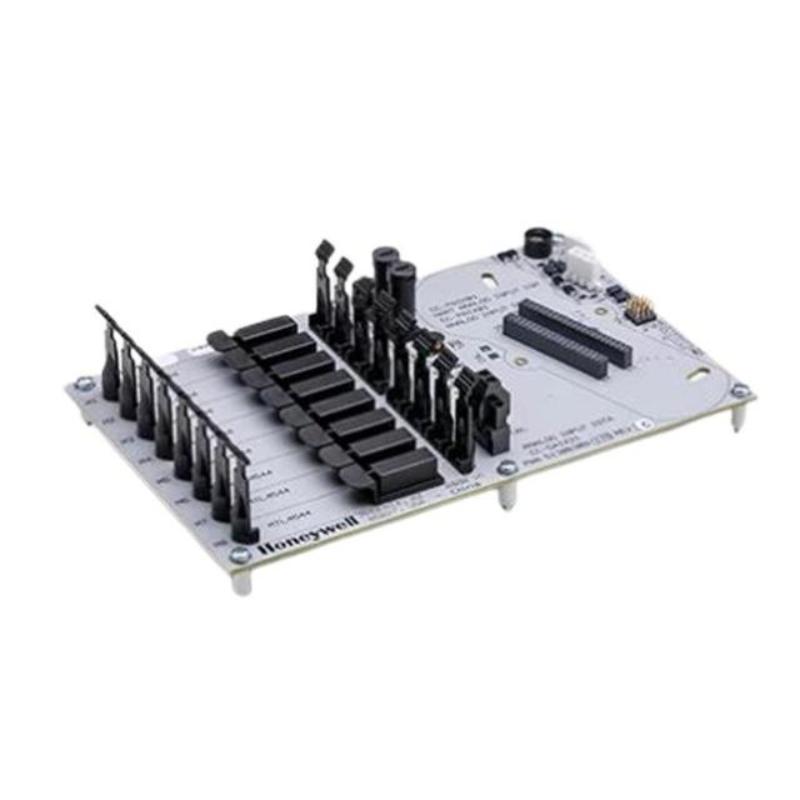

Honeywell CC-GAIX21 51306309-175 Analog Input Module Quality Selection

Overview
The Honeywell CC-GAIX21 is an analog input module designed for hazardous area (GI/IS) applications within the Series C I/O architecture. It provides precise and isolated analog signal processing for field devices such as transmitters and sensors, ensuring safe and reliable operation in explosive environments.

General Information

• Manufacturer: Honeywell Process Solutions

• Origin: United States

• Model Number: CC-GAIX21

• Part Number: 51306309-175

• Type: Analog Input Module (GI/IS rated)

• Series: Series C I/O – Experion PKS platform

• Channels: 4 analog input channels

• Mounting: Installed on IOTA (Input/Output Termination Assembly); plugs into IOM (Input/Output Module) slot of Series C rack

• Function: Accepts high-level current or voltage inputs from transmitters and sensing devices, providing galvanic isolation and protection for hazardous area installations

Power Specifications

• Supply Voltage: Nominal 24 V DC

• Power Consumption: Typically low; fully loaded module <10 W

• Isolation Voltage: Up to 1500 V AC RMS (field to logic common)

• Protection: Short-circuit, overload, and reverse-polarity protection

Communication & Interface

• System Interface: Mounted on IOTA; communicates over I/O Link or equivalent bus within the C300 system

• Input Types: Supports 4–20 mA and 0–10 V signals

• Field Connections: Suitable for field wiring in Zone/Division explosion-hazard rated environments with galvanic isolation and protective separation

Environmental

• Operating Temperature: –40 °C to +70 °C

• Humidity: 5% to 95% RH, non-condensing

• Protection Rating: IP20 (when installed in cabinet); module is designed for use within protective enclosure in hazardous area classification

Dimensions & Weight

• Dimensions (L × W × H): Approximately 313 × 278 × 30 mm

• Weight: Approximately 0.55 kg

Brand-new originals supplied, stock ready, customer service available 24/7 for instant pricing.
