Overview

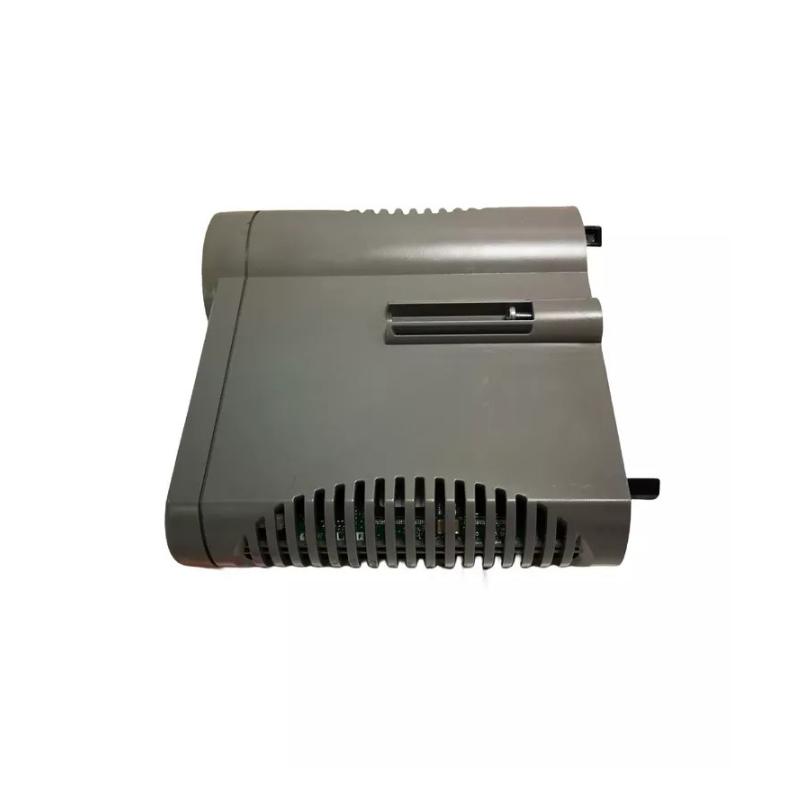

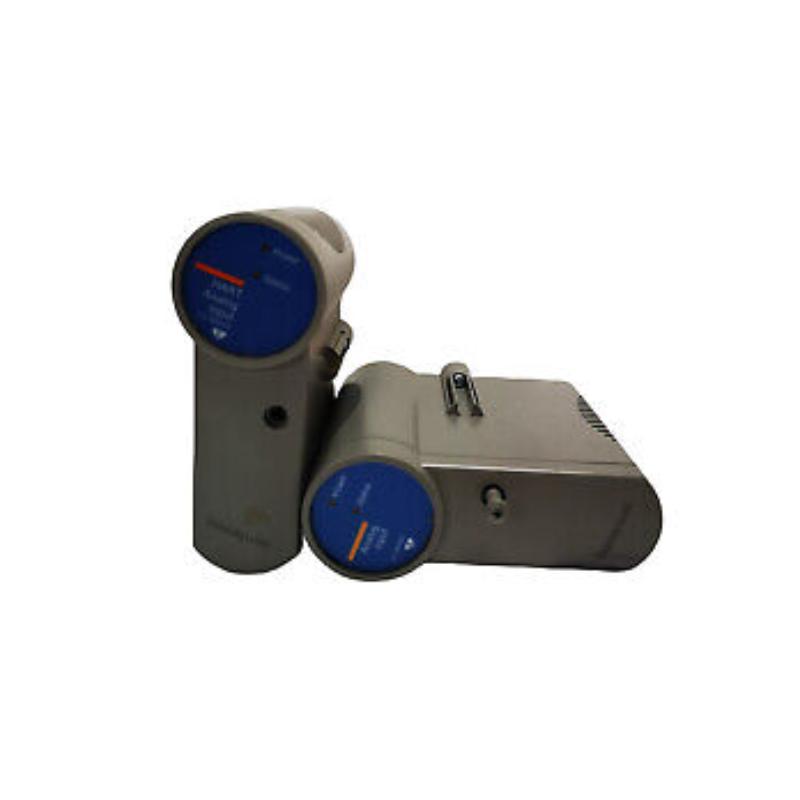

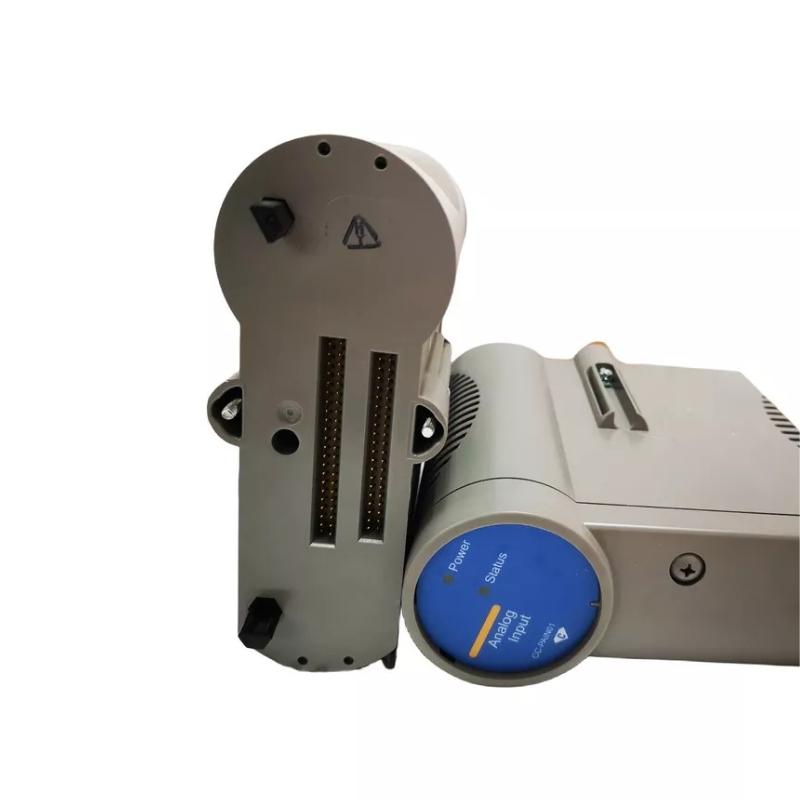

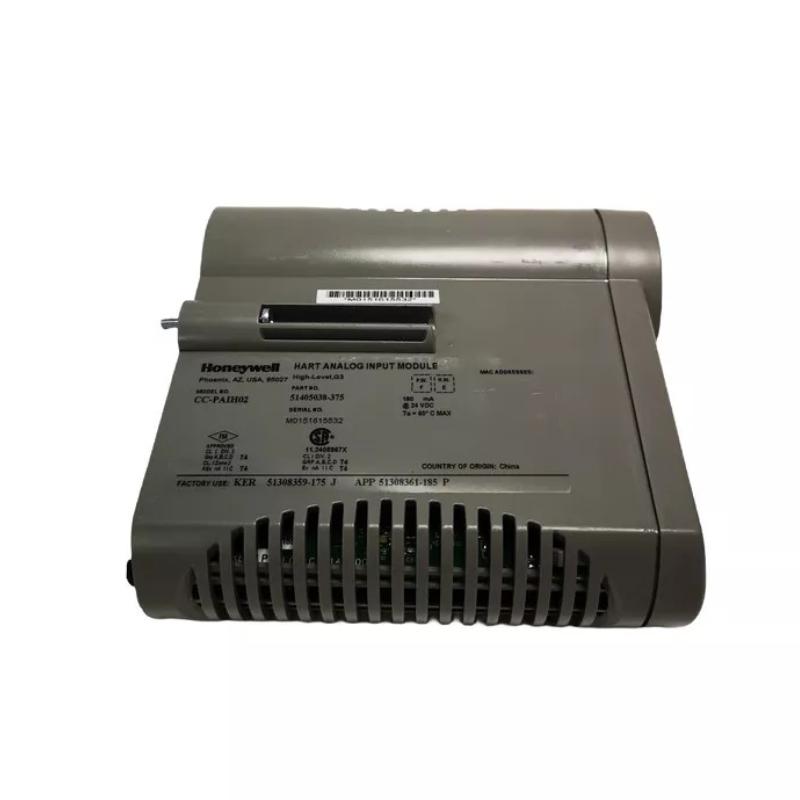

The Honeywell CC-PAIH02 (51405038-375) is a high-level analog input module for Honeywell Experion PKS and other industrial control systems. It supports HART 7 communication and provides accurate, isolated analog signal acquisition from field devices.

General Information

• Manufacturer: Honeywell

• Origin: United States

• Model Number: CC-PAIH02

• Part Number: 51405038-375

• Type: High-Level Analog Input Module

• Protocol: HART 7

• Applications: Process automation, safety instrumented systems (SIS), industrial monitoring

Electrical Specifications

• Input Channels: 16 (12 single-ended, 4 differential)

• Input Types: 4–20 mA, 0–5 V, 1–5 V, 0.4–2 V (through 250 Ω resistor)

• Resolution: 16-bit

• Accuracy: ±0.075% full scale (23.5 °C ±2 °C); ±0.15% full scale (0–60 °C)

• Input Impedance: >10 MΩ (voltage inputs)

• Common Mode Voltage: −6 to +5 V peak

• Common Mode Rejection Ratio: 70 dB

• Input Scan Rate: 50 ms

• Power Consumption: 1.2 W per channel

• Isolation: 1000 V RMS (channel-to-channel)

• Operating Temperature Range: −40 °C to +70 °C

Environmental Specifications

• Humidity: 5–95% RH, non-condensing

• Protection Rating: IP20 (installed in standard rack/cabinet)

• Installation Environment: Industrial control cabinet, DIN-rail or rack mount

Dimensions & Weight

• Dimensions (L × W × H): 102 × 80 × 128 mm

• Weight: Approx. 0.12 kg
