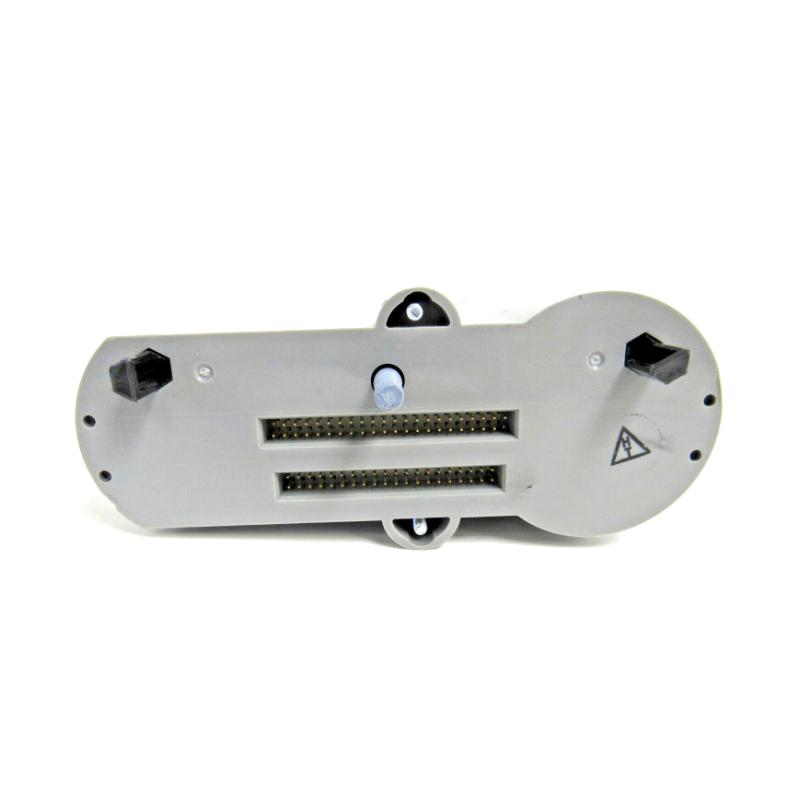

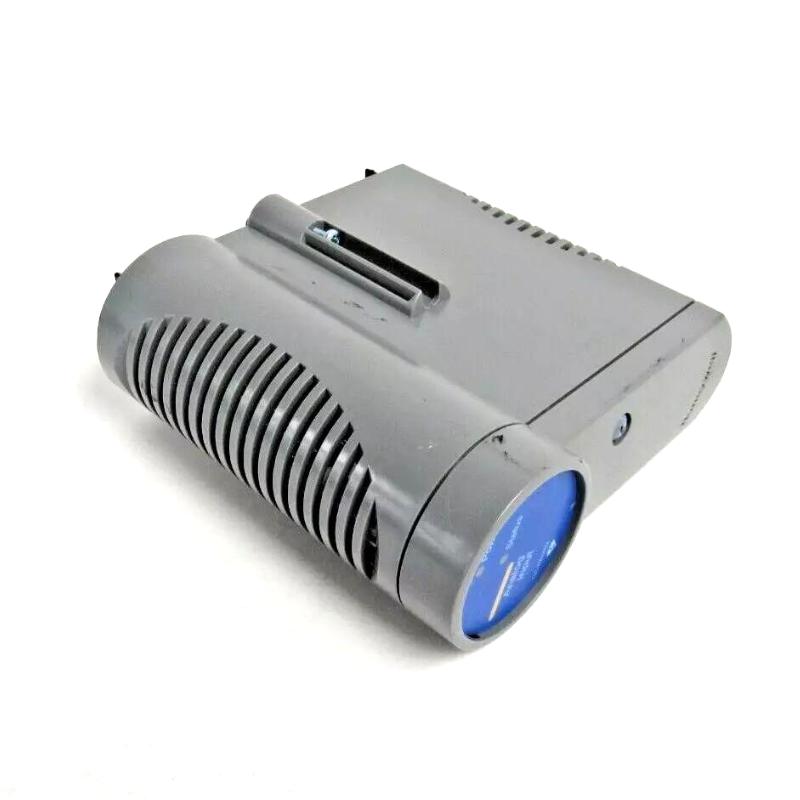

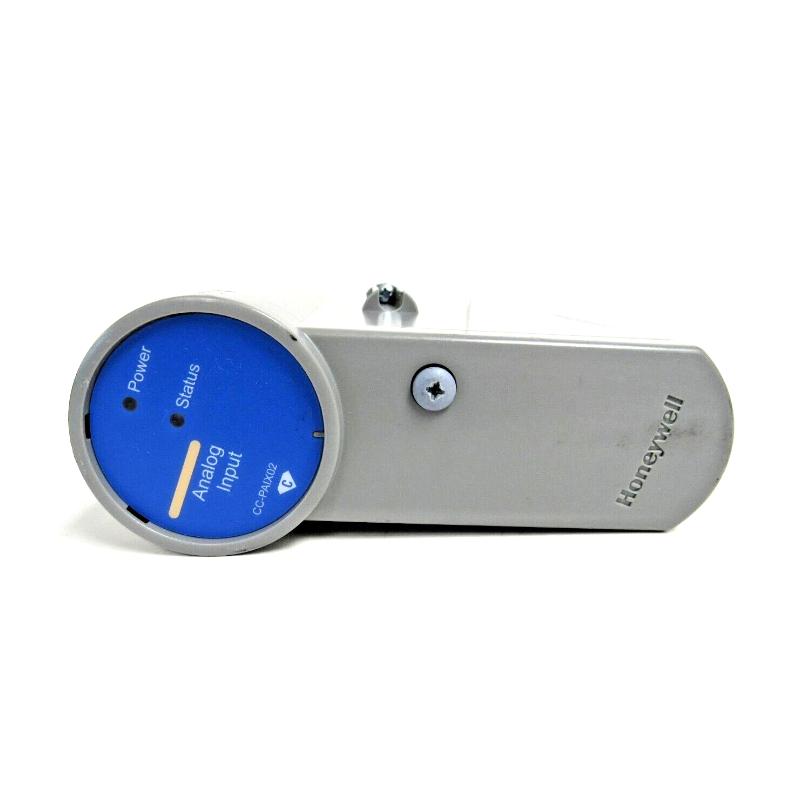

Honeywell CC-PAIX02 51405038-475 Analog Input Module Quality Assurance

Overview

The Honeywell CC-PAIX02 51405038-475 is a high-performance analog input module designed for industrial automation systems. Manufactured by Honeywell International Inc., USA, this module is part of the Experion® PKS Series C I/O family. It offers reliable conversion of various analog signals into digital data for processing by control systems.

General Information

• Manufacturer: Honeywell International Inc.

• Country of Origin: USA

• Part Number: CC-PAIX02 51405038-475

• Product Name: Experion PKS Series C Analog Input Module

• Product Type: Analog Input Module

• Channels: 8 channels (isolated)

• Resolution: 16-bit

• Mounting: Rack-mounted module

• Application: Industrial automation, process control, DCS integration

Power Specifications

• Supply Voltage: 24 V DC (±10%)

• Power Consumption: Approximately 1.5 W

• Field Power: Provided by external sources

• Isolation: 2500 V AC field-to-system

Communication & Interface

• Signal Type: 4–20 mA and 0–20 mA analog input

• Interface: HART 7 protocol support

• Data Update Rate: Standard process scan rates

• Diagnostics:

• Open circuit detection

• Short circuit detection

• Overrange/underrange detection

• Redundancy: Supports redundant configurations for enhanced reliability

Environmental

• Operating Temperature: 0°C to 60°C

• Storage Temperature: −40°C to +85°C

• Relative Humidity: 5% to 95% RH, non-condensing

• Vibration Resistance: Compliant with industry standards

• Protection Class: IP20 (when installed in a control cabinet)

Dimensions & Weight

• Dimensions: 63.5 x 124.46 x 307.34 mm

• Weight: 0.299 kg

Brand-new originals supplied directly, stock sufficient, customer service ready to provide quotes.
