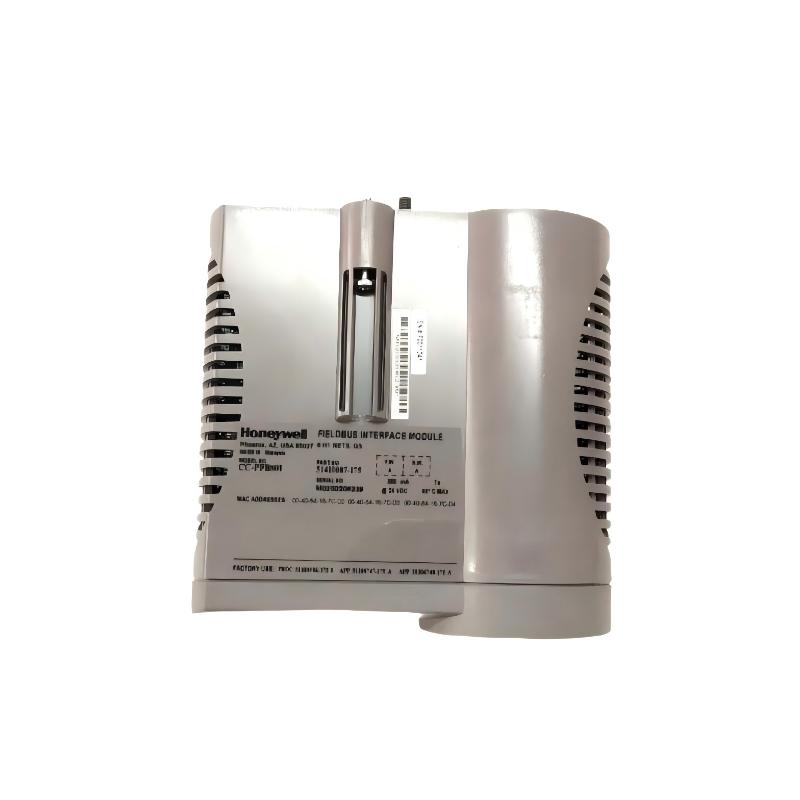

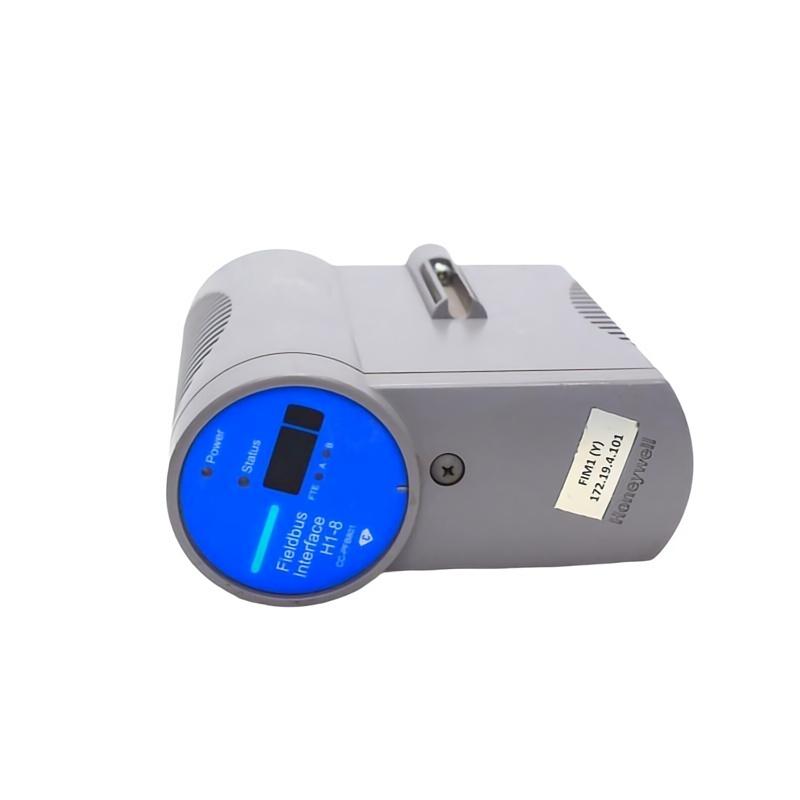

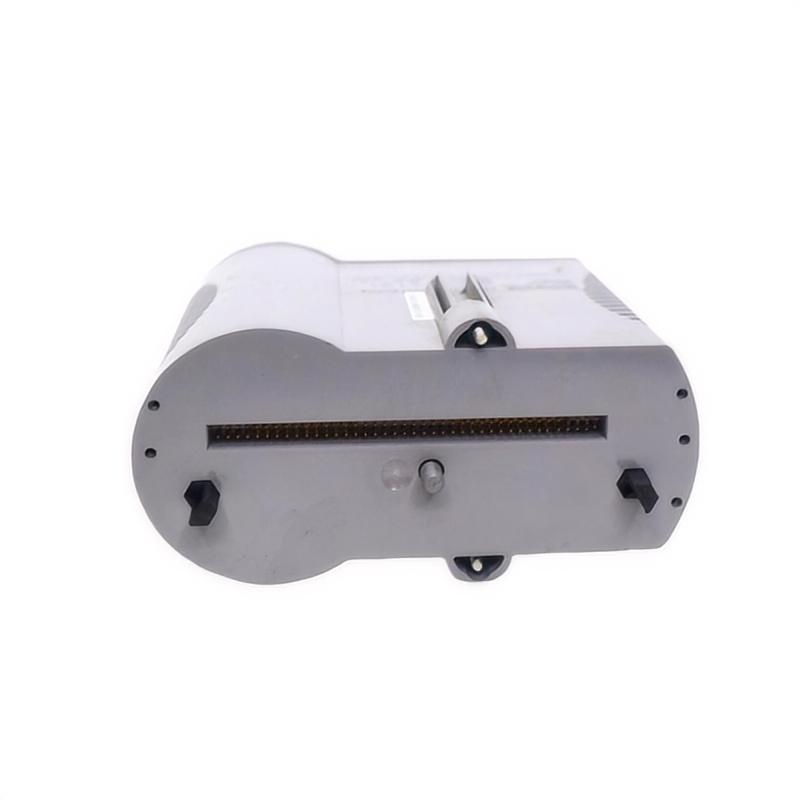

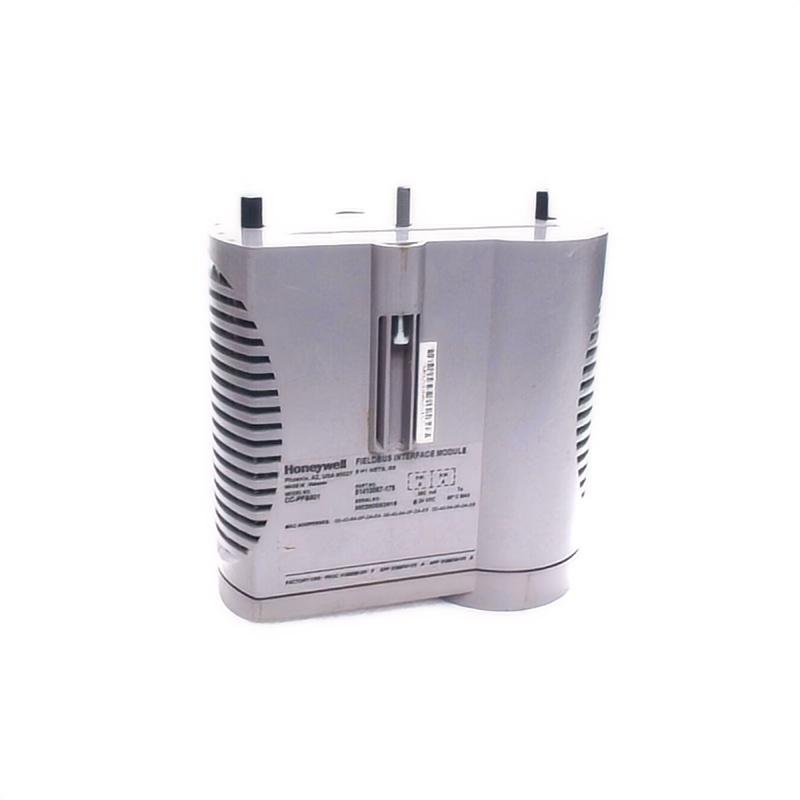

Honeywell CC-PFB801 51410087-175 Fieldbus Interface Module

Overview

The Honeywell CC-PFB801 is a fieldbus interface module designed to connect Honeywell control systems with PROFIBUS or other industrial networks. It ensures smooth communication between controllers and field devices while providing advanced diagnostic features and reliable network connectivity.

General Information

Part Number: 51410087-175

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / USA

Series: CC-PFB

Type: Fieldbus Interface Module

Mounting: DIN rail or panel installation within industrial control cabinets

Technology: Fieldbus interface, network diagnostics, fault monitoring

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 10 W

Input: Module powered via control backplane or dedicated supply

Protection: Surge, overcurrent, and reverse-polarity protection

Indicators: LEDs for power, communication link, and fault status

Communication & Interface

Fieldbus Port: PROFIBUS DP

Bus Coupler Role: Connects controllers to field devices via industrial networks

Diagnostics: Link supervision, fault detection, and status reporting

Operator Interface: LED indicators for network and module status

Reset Features: Supports soft and hardware reset functions

I/O & Channels: No direct relay or load outputs; used for communication routing only

Environmental

Operating Temperature: −40 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or standard industrial cabinet environment

Dimensions & Weight

Dimensions (L × W × H): 307.34 × 124.46 × 63.5 mm

Weight: ~ 0.3 kg
