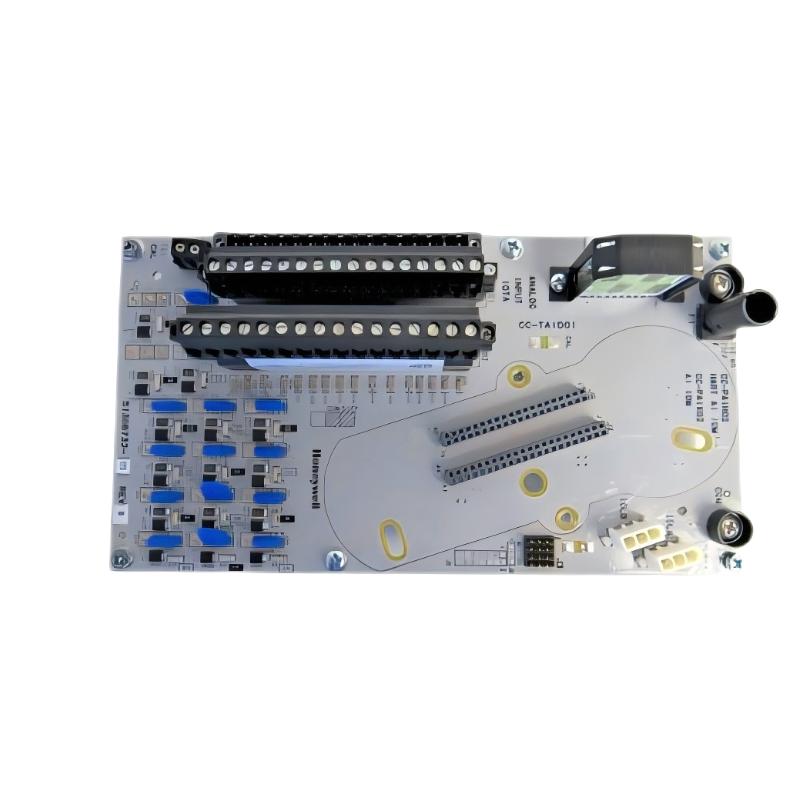

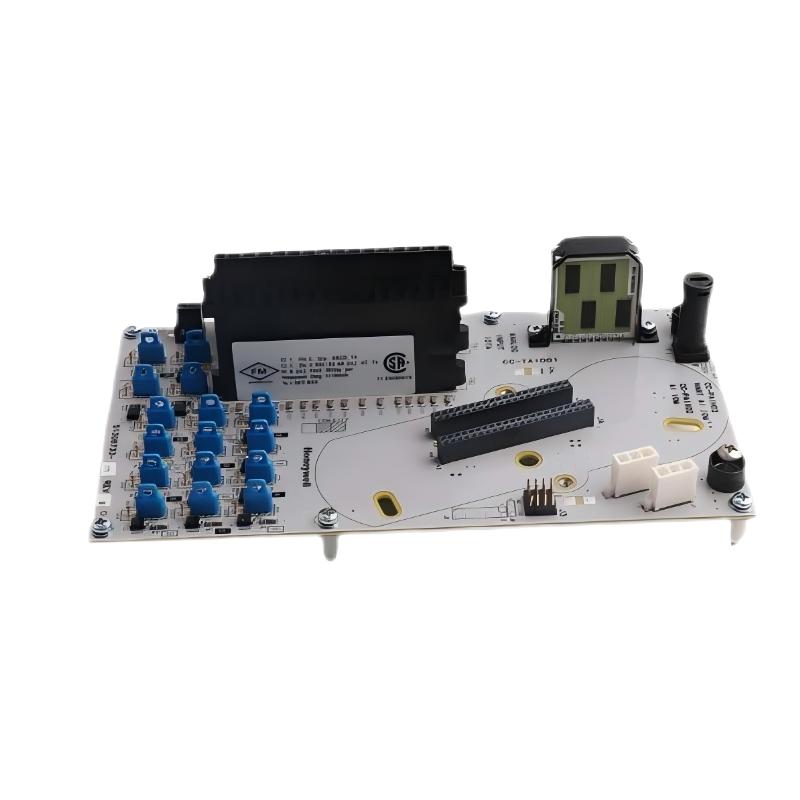

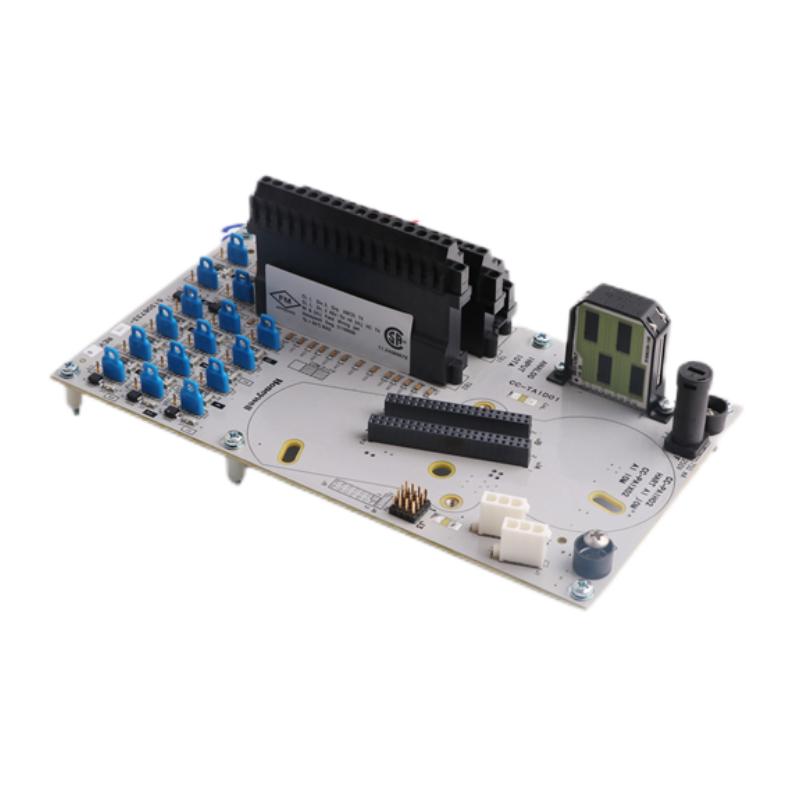

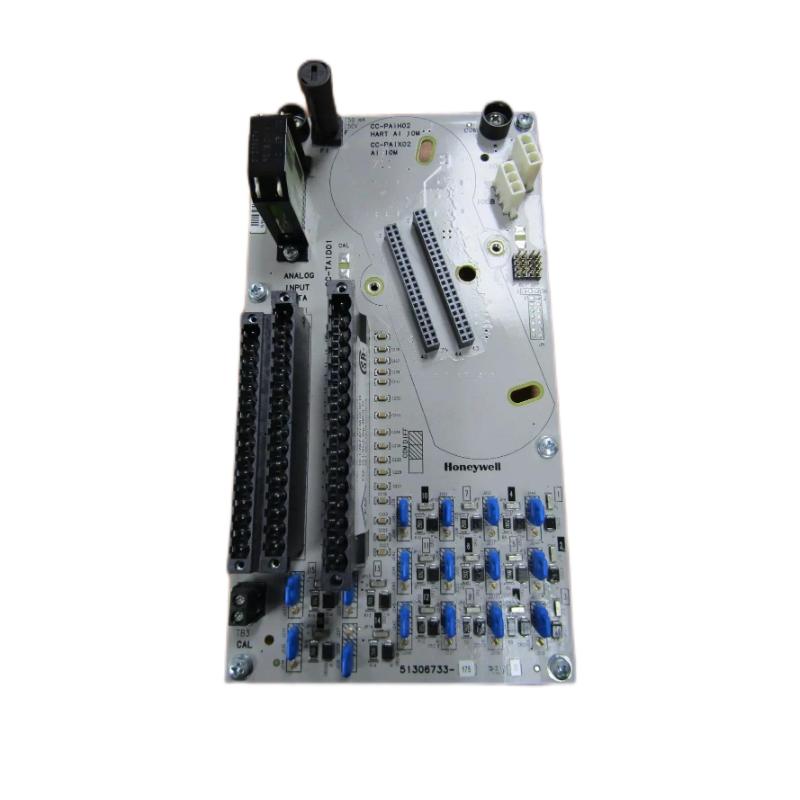

Honeywell CC-TAID01 51306733-175 | 16-Channel Analog Input Module Trusted supplier

Overview

The Honeywell CC-TAID01 51306733-175 is an advanced analog input module designed for the Experion PKS and C300 control systems. It delivers precise and reliable measurement of analog signals from field instruments, supporting a wide range of process variables such as pressure, flow, temperature, and level. Engineered for high stability and noise immunity, this module ensures consistent performance in industrial automation and process control environments.

General Information

• Part Number: 51306733-175

• Manufacturer: Honeywell

• Brand Origin: United States

• Series: CC-TAID01

• Type: Analog Input Module

• Channels: 16 differential inputs

• Signal Type: 4–20 mA, 0–10 V, or thermocouple inputs

• Mounting: Rack-mounted on C300 or similar control systems

• Application: Industrial process monitoring and control

Power Specifications

• Supply Voltage: 24 V DC nominal

• Power Consumption: Approx. 6.5 W

• Input Impedance: >250 Ω for current inputs

• Accuracy: ±0.1% of full scale typical

• Protection: Input overvoltage and reverse polarity protection

Communication & Interface

• Interface Type: Redundant I/O bus connection

• Protocols Supported: FTE / ControlNet communication

• Sampling Rate: 10 ms typical per channel

• Diagnostics: Signal quality, line break, and module fault detection

• Isolation: Channel-to-channel and channel-to-system isolation

Environmental

• Operating Temperature: 0°C to +55°C

• Storage Temperature: −40°C to +70°C

• Humidity: 5% to 95% RH, non-condensing

• Protection Class: IP20

Dimensions & Weight

• Dimensions: 145 × 130 × 40 mm

• Weight: Approx. 0.35 kg

Authentic brand-new products, large supply, and professional help.
