Overview

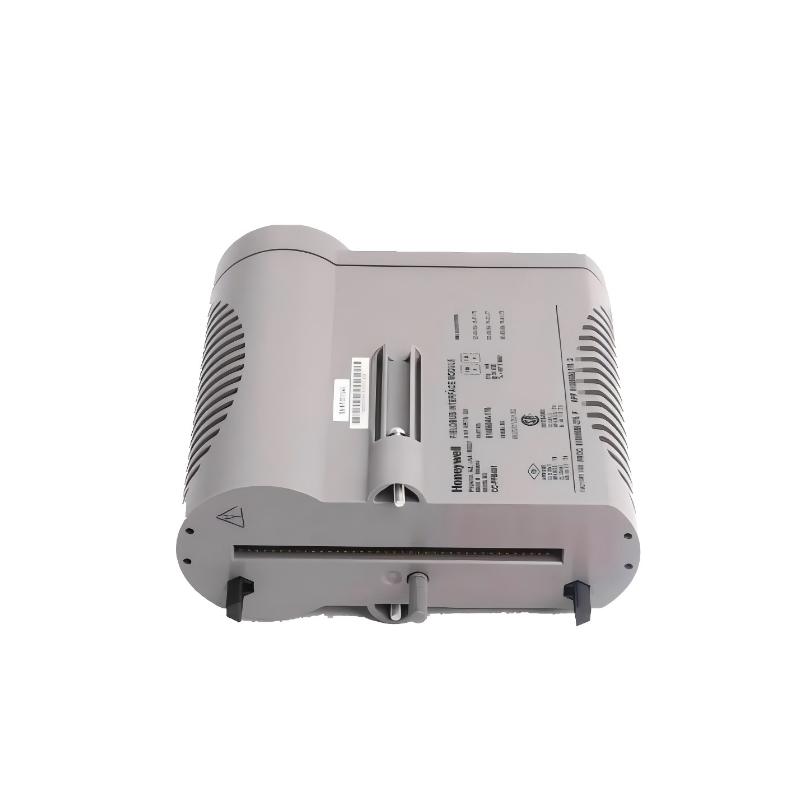

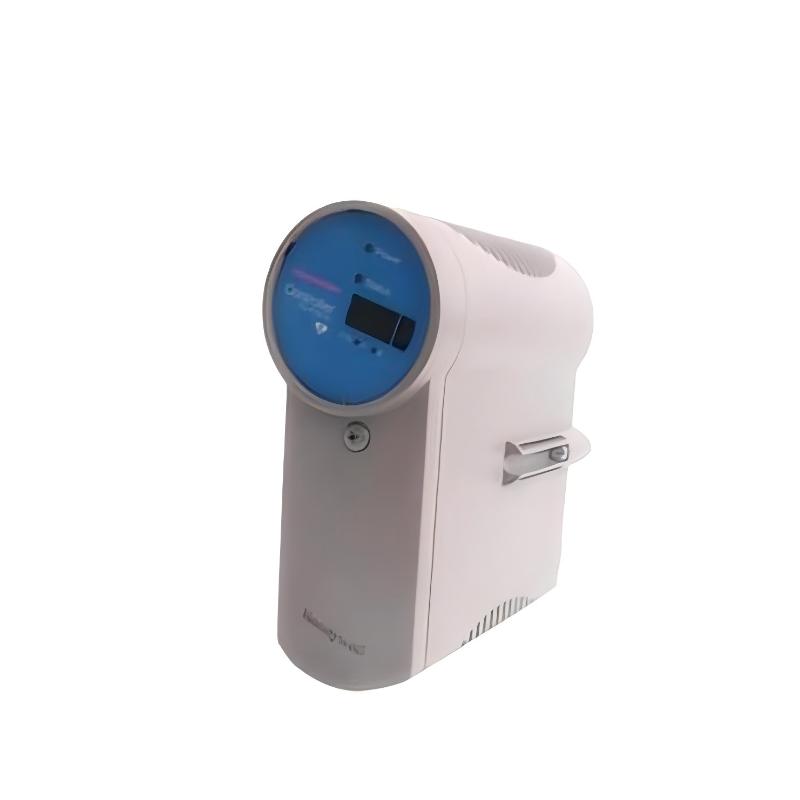

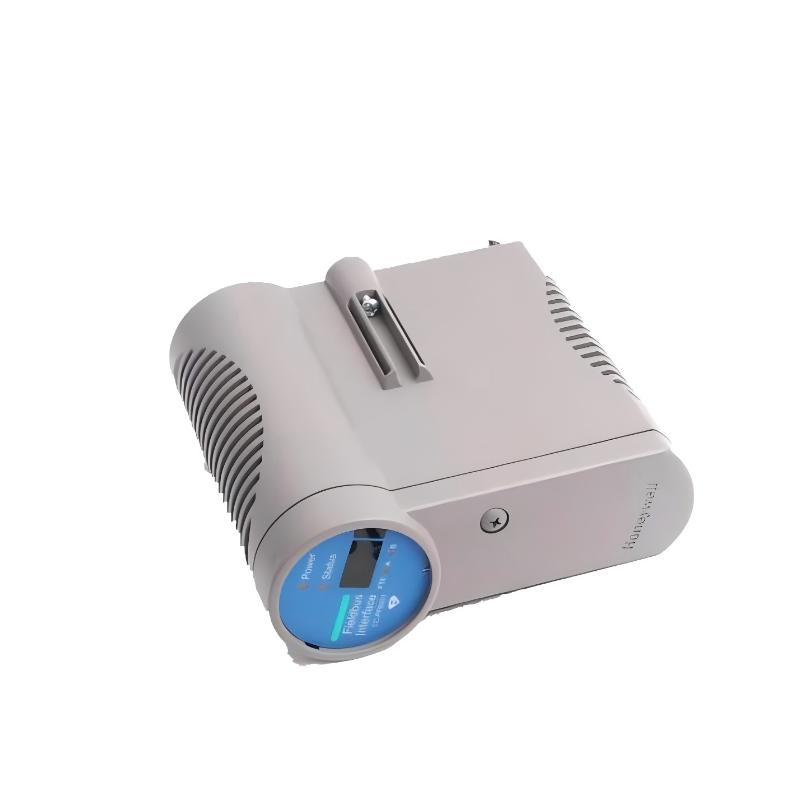

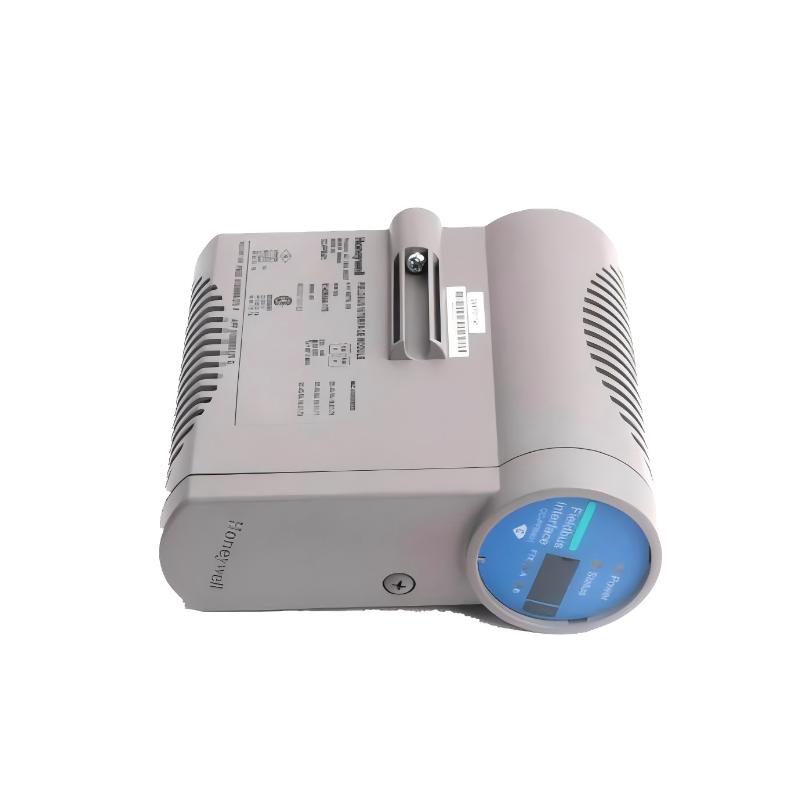

The Honeywell CC-TSV211 51306665-175 is a servo valve positioner module designed for precision control applications within Honeywell distributed control and automation systems. It manages and regulates the position of servo valves used in critical process equipment, ensuring accurate and stable control of fluid or gas flow.
This module receives control signals from the controller and converts them into precise positioning commands for servo valves. It is commonly used in turbine control, hydraulic systems, and other high-performance industrial processes where accurate valve positioning and rapid response are essential.
General Information
Part Number: 51306665-175
Manufacturer: Honeywell
Brand: Honeywell
Country of Origin: United States
Series: Experion / ControlEdge compatible control modules
Type: Servo Valve Positioner Module
Mounting: Rack or chassis installation within industrial control cabinets
Technology: Precision servo control with integrated monitoring and diagnostics
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 10 W
Power Source: Supplied via the system backplane
Protection: Built-in over-current and surge protection
Indicators: LED indicators for power status, signal activity, and fault conditions
Communication & Interface
Control Interface: Direct communication with Honeywell controllers via system backplane
Output Function: Provides control signals for servo valve positioning
Signal Processing: Converts controller commands into precise actuator positioning
Diagnostics: Position feedback monitoring and fault detection
Configuration: Configurable through Honeywell engineering software
Status Monitoring: Front-panel LED indicators for module status and operation
Environmental
Operating Temperature: −40 to +70 °C
Storage Temperature: −40 to +85 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Intended for installation inside industrial control cabinets
Vibration Resistance: Designed for industrial automation environments
Dimensions & Weight
Dimensions (L × W × H): 63.5 × 124.46 × 307.34 mm
Weight: 0.7 kg
