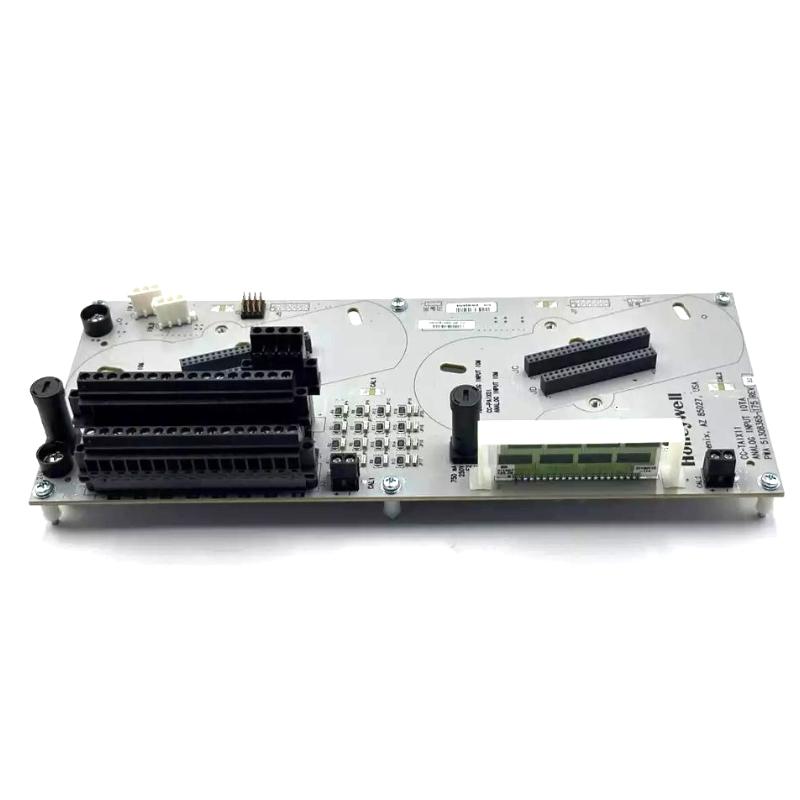

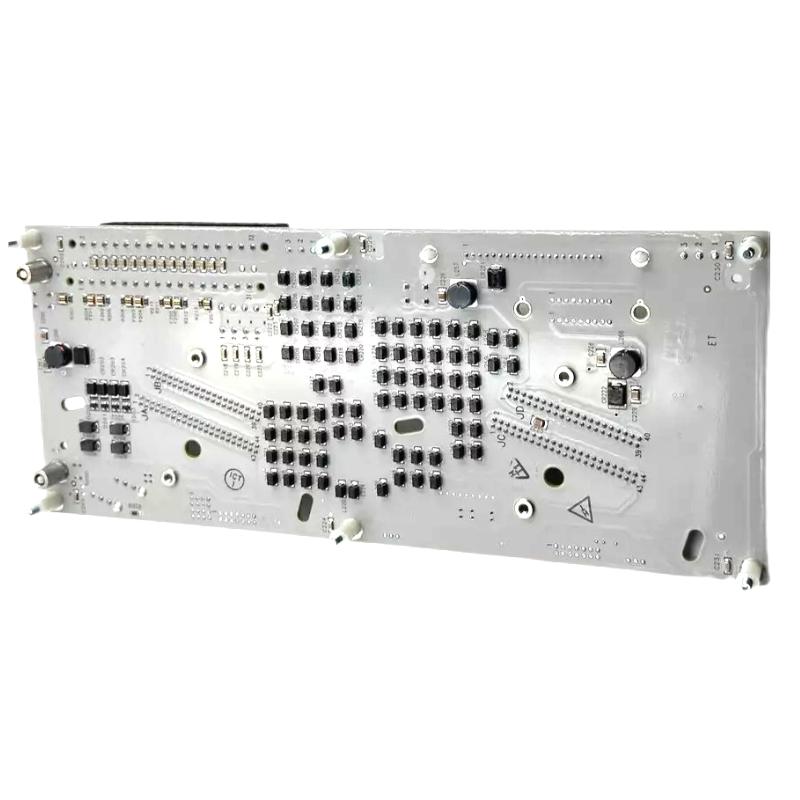

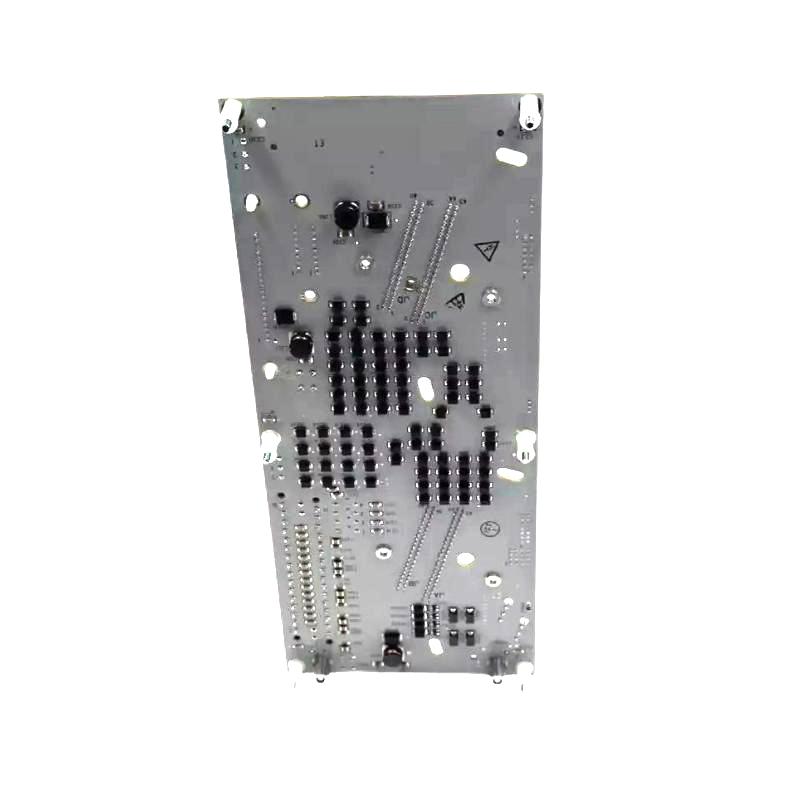

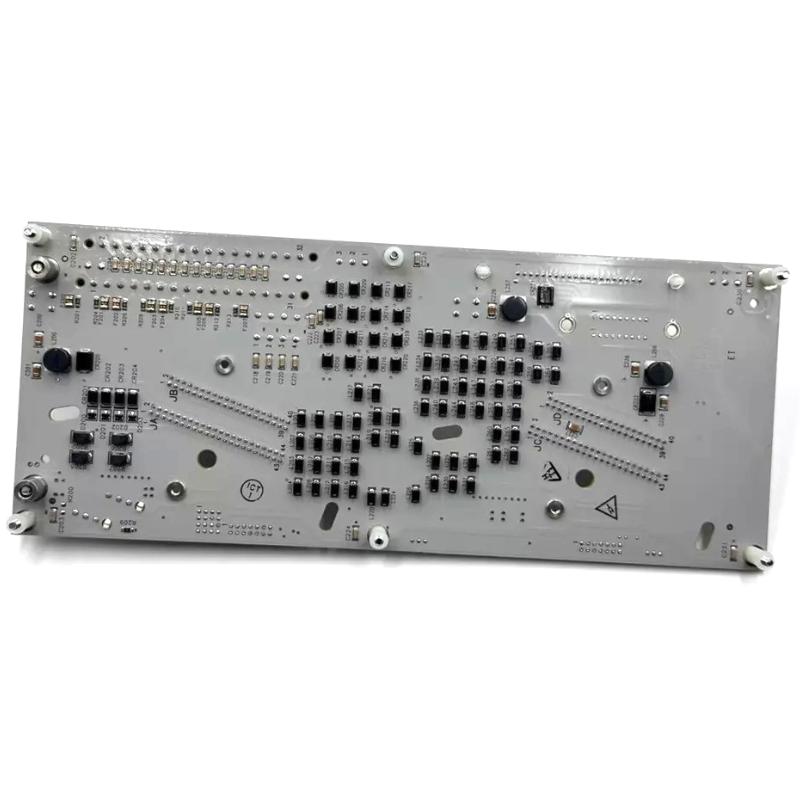

Honeywell CC-TAIX11 51308365-175 | 16-Channel Redundant Analog Input Module Original

Overview

The Honeywell CC-TAIX11 51308365-175 is a high-reliability redundant analog input module (RAIM) designed for Experion PKS and C300 control systems. It provides precise measurement of analog signals including current, voltage, and HART-compatible inputs, ensuring continuous and accurate data acquisition for critical industrial processes.

General Information

• Part Number: 51308365-175

• Manufacturer: Honeywell

• Brand Origin: United States

• Series: CC-TAIX11

• Type: Redundant Analog Input Module

• Channels: 16 (12 single-ended, 4 differential)

• Signal Type: 4–20 mA, 0–10 V DC

• Mounting: Series C I/O baseplate or C300 system chassis

• Application: Industrial process monitoring and automation

Power Specifications

• Supply Voltage: 24 V DC

• Power Consumption: Approx. 5 W

• Input Impedance: 250 Ω for current, >10 MΩ for voltage

• Accuracy: ±0.25% of full scale

• Protection: Surge and reverse polarity protection

• Indicators: LEDs for module status and fault

Communication & Interface

• Interface Type: Redundant I/O communication link

• Protocols Supported: FTE / ControlNet

• Diagnostics: Channel fault detection, line-break detection, self-test

• Sampling Rate: 50 ms per channel

• Isolation: Channel-to-channel and channel-to-system galvanic isolation

Environmental

• Operating Temperature: 0°C to +60°C

• Storage Temperature: −40°C to +105°C

• Humidity: 5% to 95% RH, non-condensing

• Protection Class: IP20

Dimensions & Weight

• Dimensions: 145 × 130 × 40 mm

• Weight: Approx. 0.35 kg

Brand-new original items, in stock with quick quotation replies.
