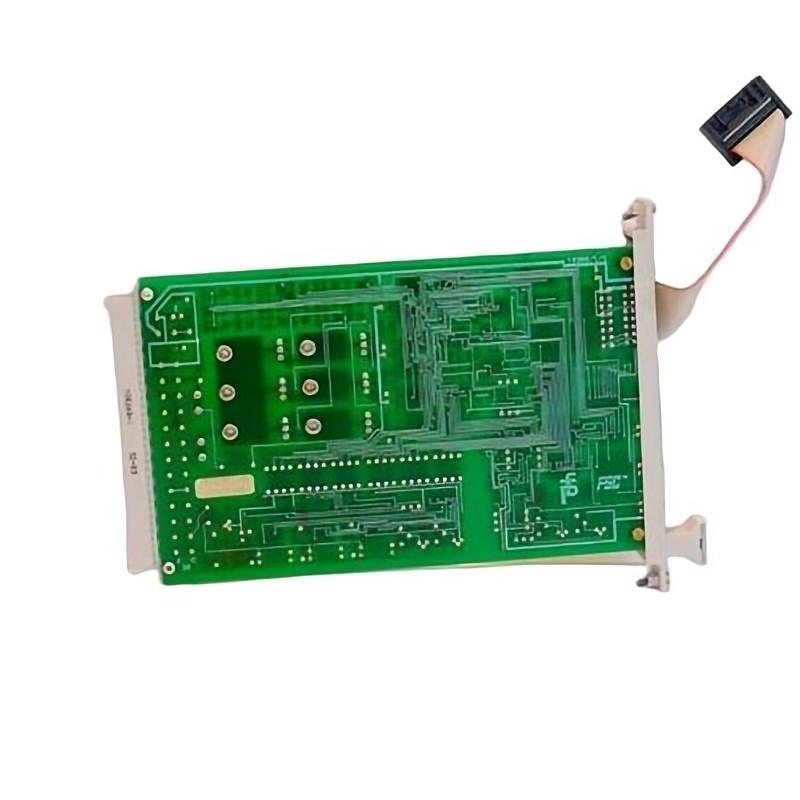

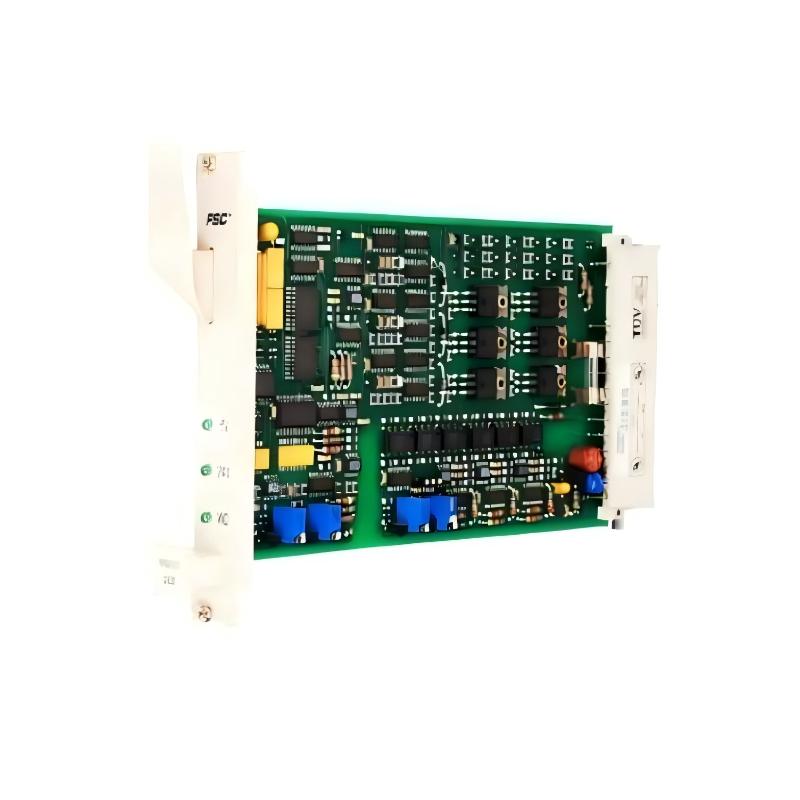

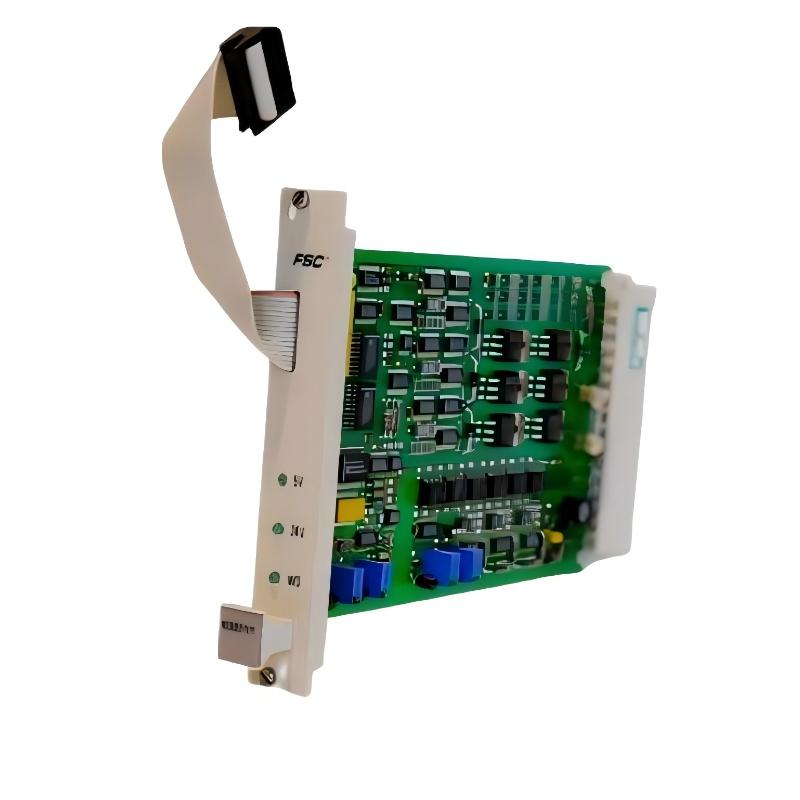

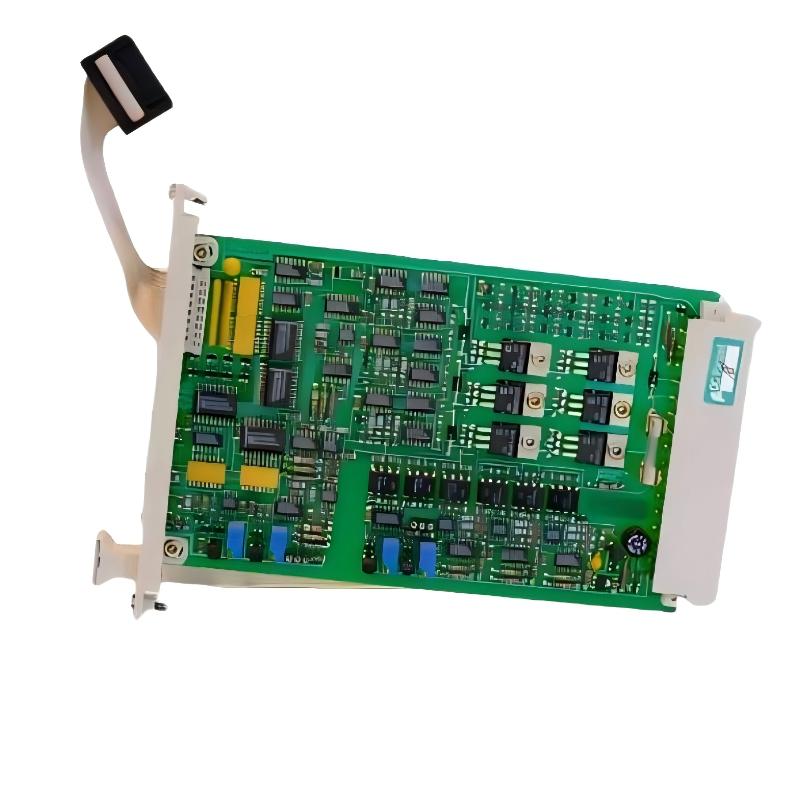

Honeywell 10302/1/1 Watchdog Repeater Printed Circuit Board Module

Overview

The Honeywell 10302/1/1 is a watchdog repeater printed circuit board module designed for Honeywell FSC (Fire & Security Control) systems. It monitors system signals and ensures uninterrupted communication between modules, providing fault detection and reliable operation for fire and security applications.

General Information

Part Number: 10302/1/1

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / USA

Series: FSC (Fire & Security Control Modules)

Type: Watchdog Repeater PCB Module

Mounting: Panel or enclosure installation

Technology: Printed circuit board module for signal supervision and fault monitoring

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 2 W

Input: Powered from system backplane

Protection: Overvoltage and reverse polarity protection

Indicators: LEDs for power, status, and fault conditions

Communication & Interface

Communication Protocol: Honeywell proprietary bus

I/O Channels: Supports monitoring of multiple module signals

Diagnostics: Watchdog monitoring, fault detection, and event logging

Operator Interface: Status LEDs

Reset Features: Supports software and hardware reset

Environmental

Operating Temperature: −20 to +55 °C

Humidity: Up to 90% RH, non-condensing

Protection Rating: IP20, suitable for standard indoor control panels

Dimensions & Weight

Dimensions (L × W × H): 160 × 100 × 25 mm

Weight: ~ 0.12 kg

Ensures Continuous System Monitoring, Ready to Ship!
