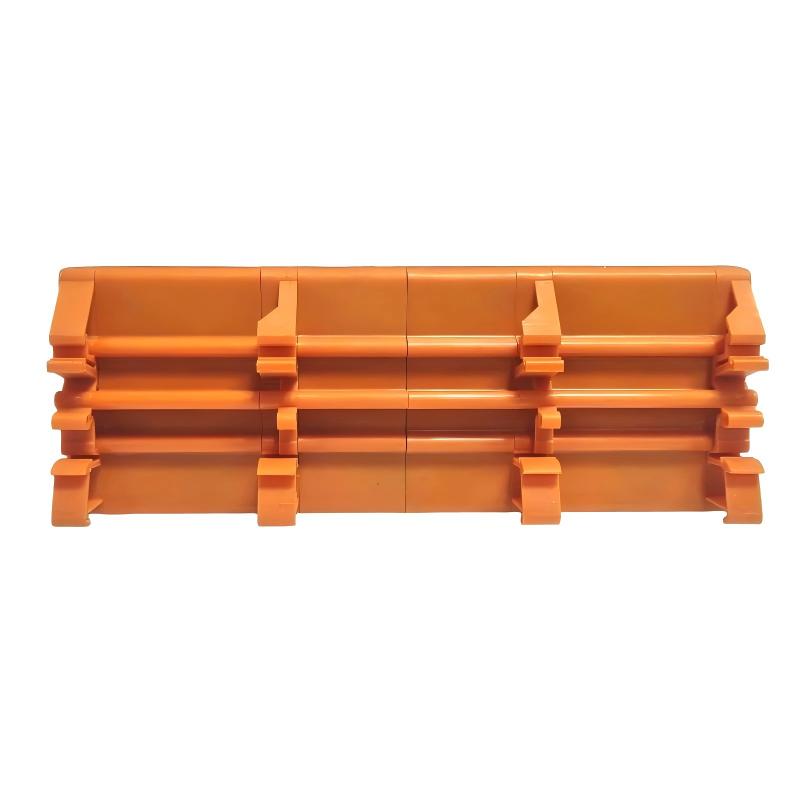

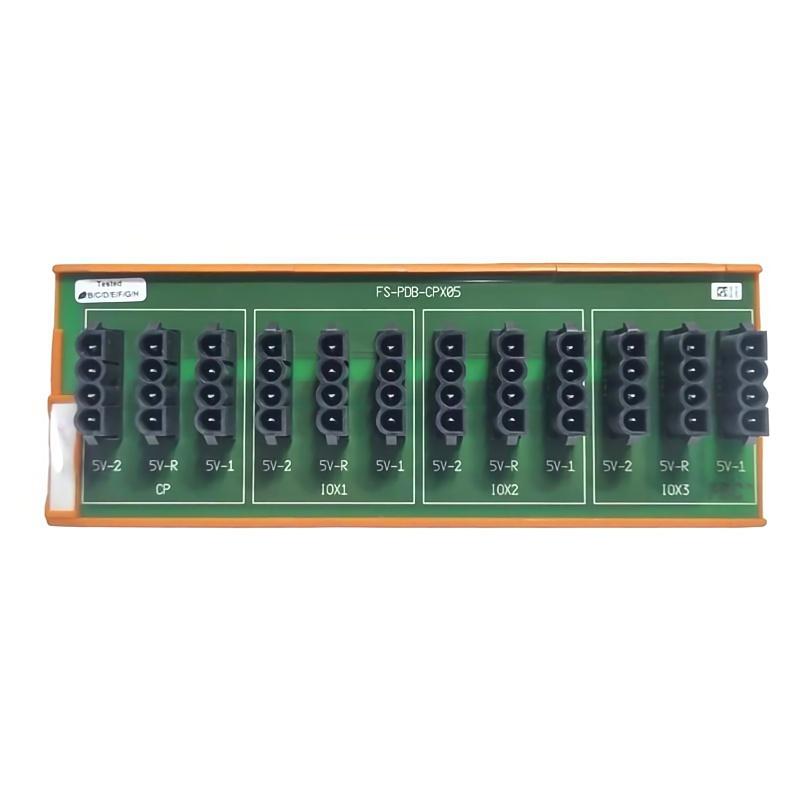

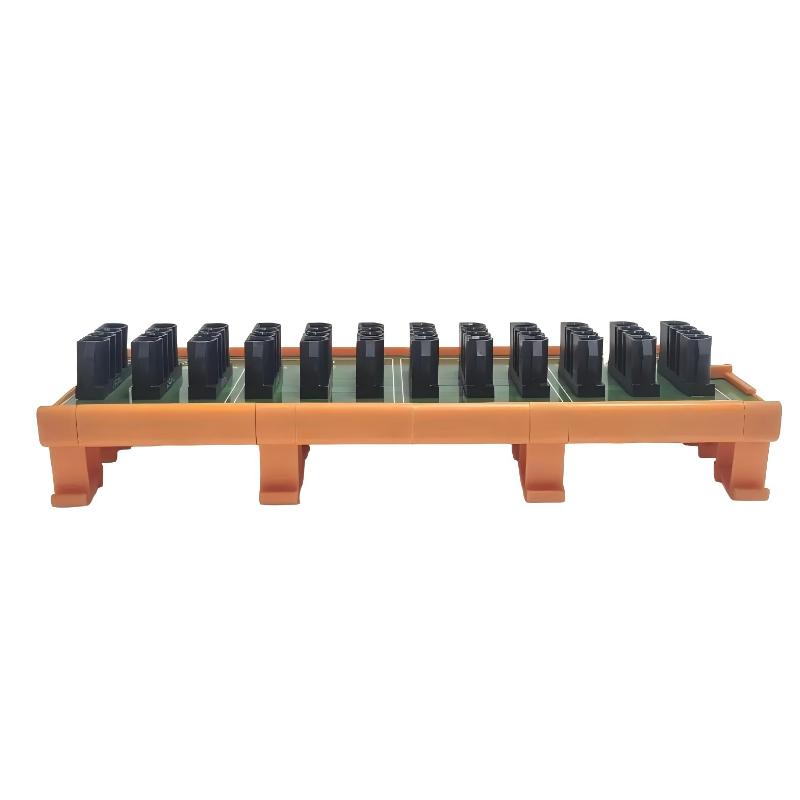

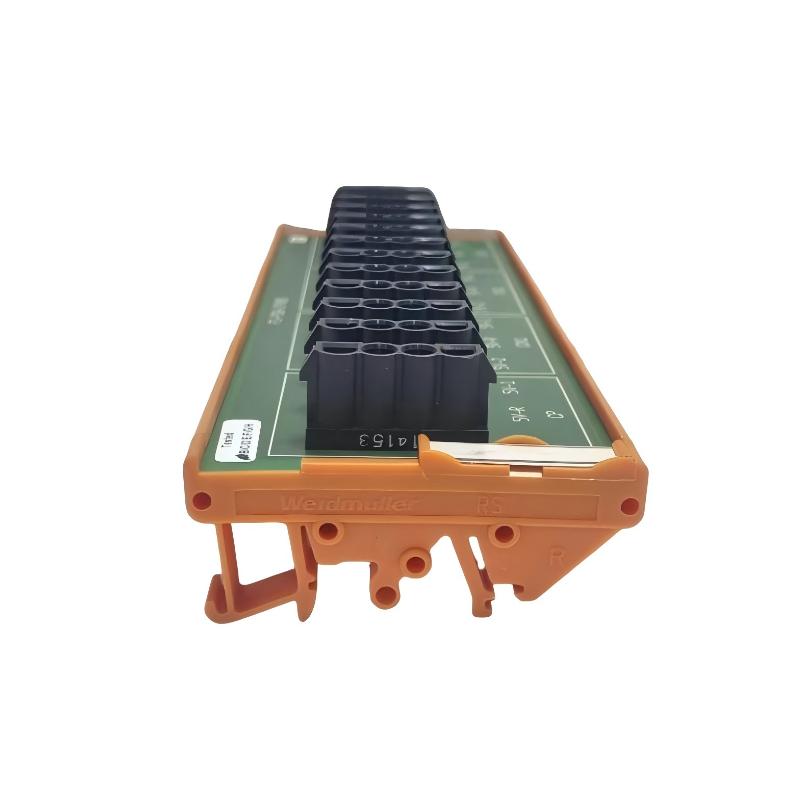

Honeywell FS-PDB-CPX05 Distribution Board Controller Cabinet

Overview

The Honeywell FS-PDB-CPX05 is a distribution board controller cabinet designed for Honeywell industrial automation systems. It provides organized housing for controller components and facilitates safe power and signal distribution within the system.

General Information

Part Number: FS-PDB-CPX05

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / United States

Series: FS

Type: Distribution Board Controller Cabinet

Mounting: Panel or DIN rail installation within control cabinets

Technology: Modular system integration, power and signal distribution, and component housing

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: N/A (passive distribution cabinet)

Input: Powered via connected system modules

Protection: Overvoltage and short-circuit protection recommended via system design

Indicators: None

Communication & Interface

Bus Interface: Compatible with Honeywell FS series controllers

Function: Houses controller modules and distributes power and signals to connected devices

Diagnostics: Monitored indirectly via system modules

Operator Interface: N/A

Reset Features: N/A

Environmental

Operating Temperature: −20 to +60 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20

Dimensions & Weight

Dimensions (L × W × H): 190 × 70 × 46 mm

Weight: 0.159 kg
