Overview

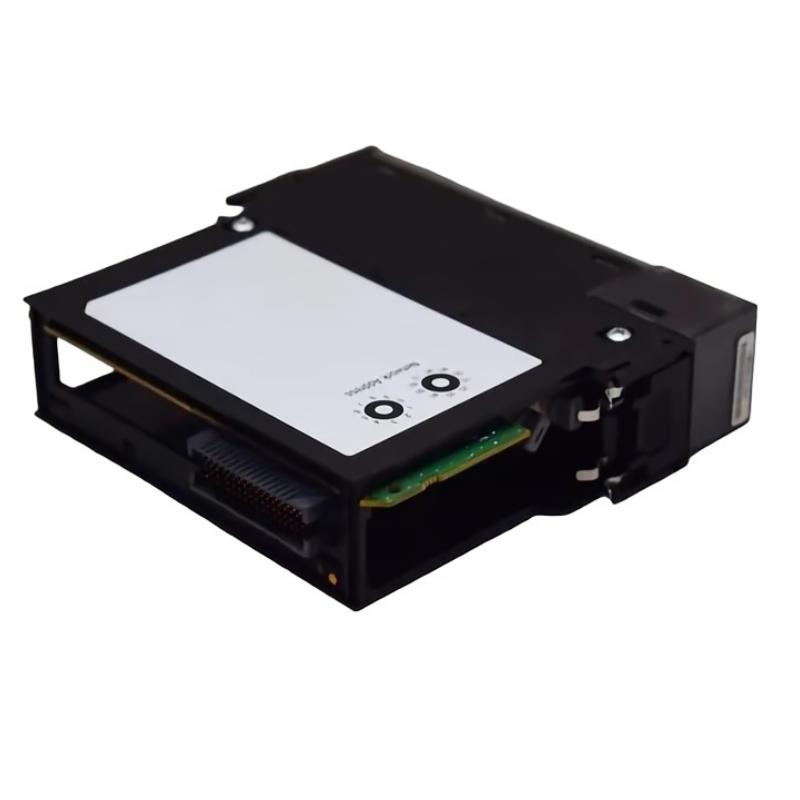

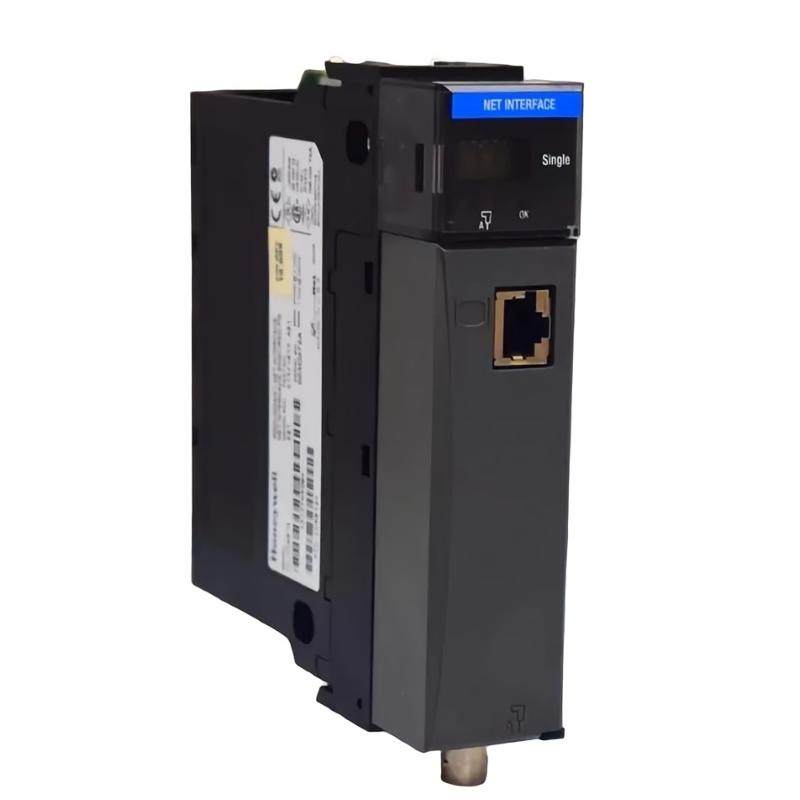

The Honeywell TC-CCN014 is a redundant network interface module designed to ensure continuous and reliable communication in industrial control systems. It provides fault-tolerant connectivity between controllers and field devices, maintaining network operation even in the event of a component failure. This module is engineered for high availability and stable performance in critical automation environments.
General Information

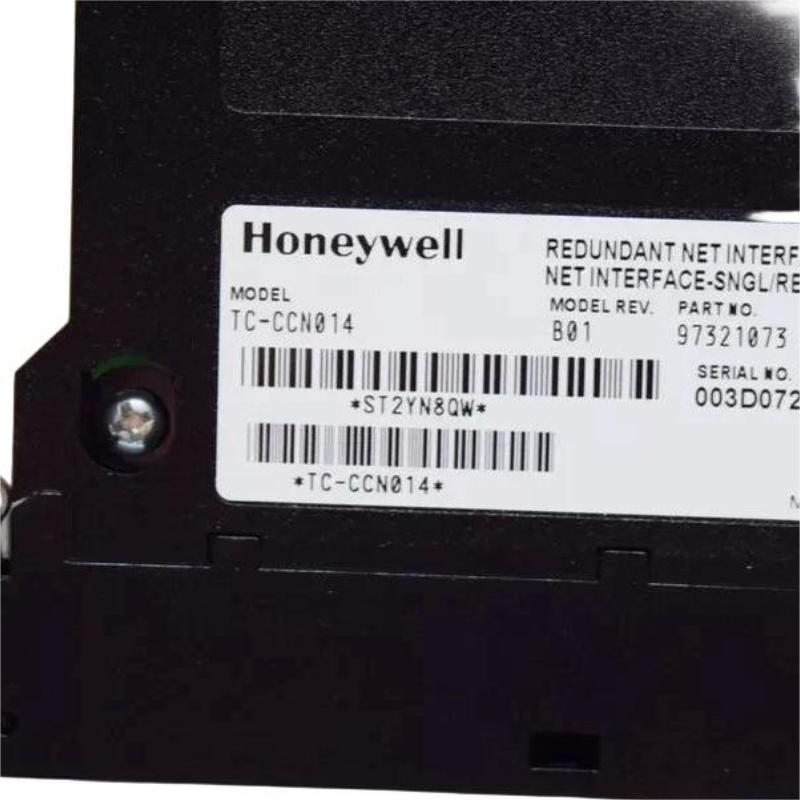

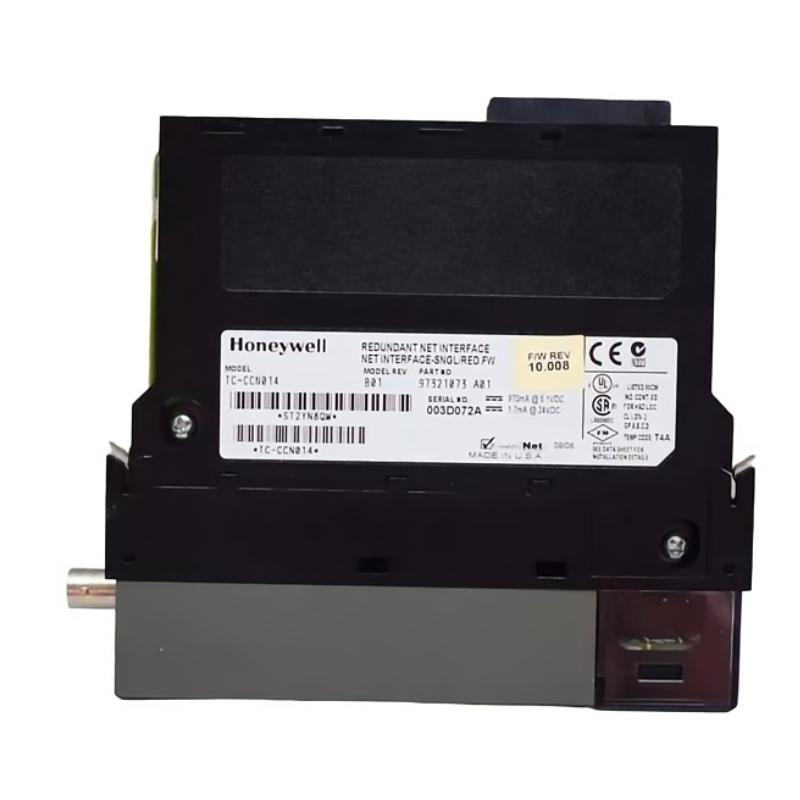

Part Number: 97321073 A01
Manufacturer: Honeywell
Brand: Honeywell
Country of Origin: USA
Series: TC-CCN Series
Type: Redundant Network Interface Module
Application: Industrial automation, distributed control systems (DCS), and process control requiring network redundancy
Mounting: Rack or panel installation within Honeywell control cabinets
Technology: Redundant network interface with built-in diagnostics and fault-tolerant design
Power Specifications
Supply Voltage: 24 V DC (system powered)
Power Consumption: Low-power operation, ≤ 8 W
Network Interface: Dual redundant communication paths
Protection: Integrated circuit protection to prevent damage from faults or surges
Status Indicators: LEDs for power, network activity, and redundancy status
Communication & Interface
System Interface: Connects to Honeywell controllers for redundant network communication
Field Interface: Provides reliable connectivity for critical field devices
Diagnostics: Network health monitoring, fault detection, and redundancy reporting
Configuration: Configurable through Honeywell automation system software
Compatibility: Designed for Honeywell DCS and industrial automation platforms
Environmental
Operating Temperature: −20 to +70 °C
Storage Temperature: −40 to +85 °C
Relative Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for installation inside industrial control cabinets
EMC Compliance: Meets industrial electromagnetic compatibility standards
Dimensions & Weight
Dimensions (L × W × H): 120 × 30 × 100 mm
Weight: Approximately 0.231 kg
