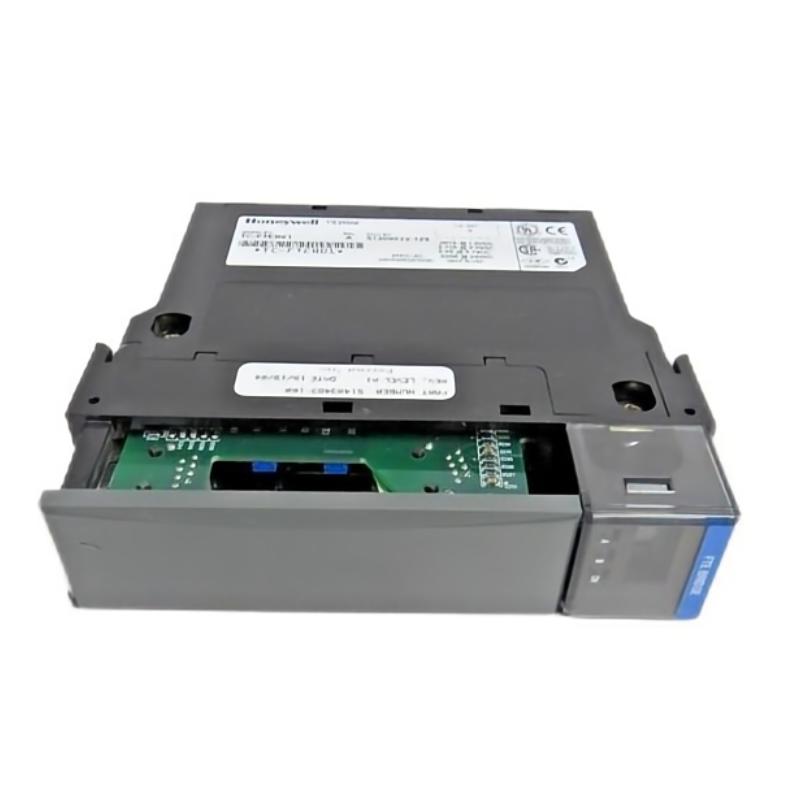

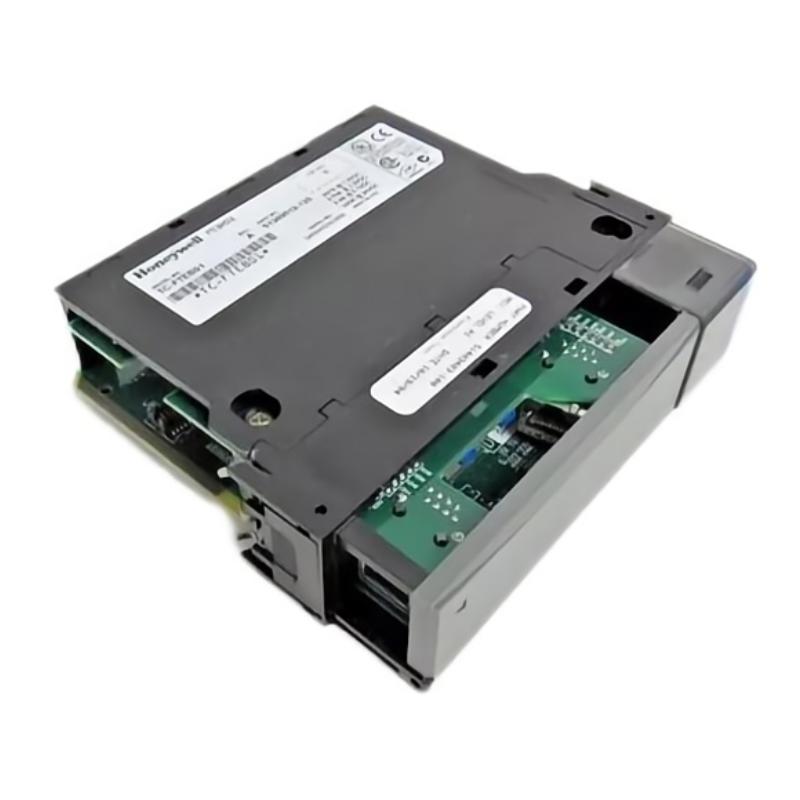

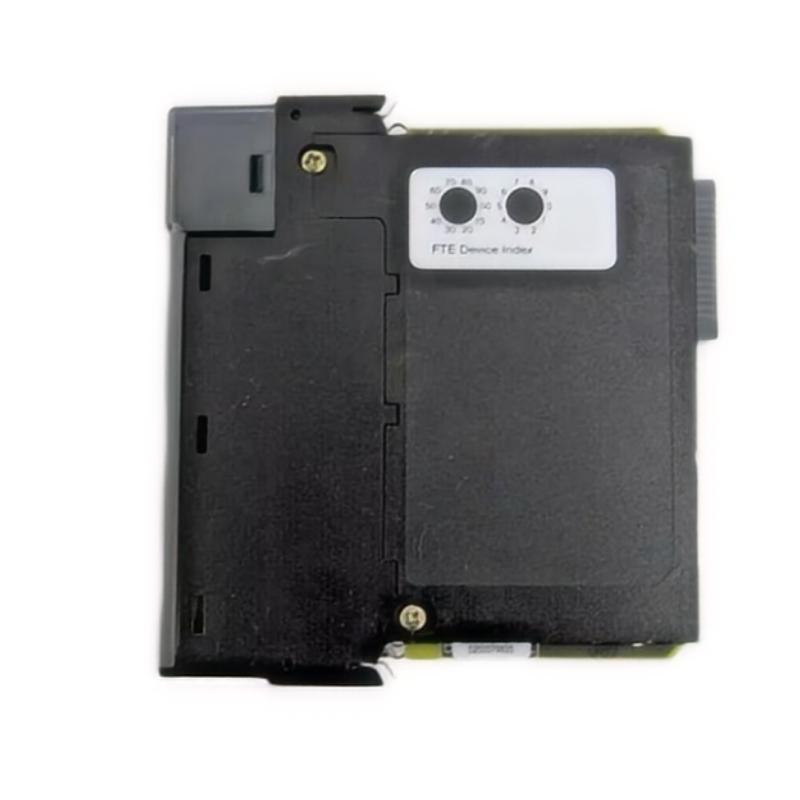

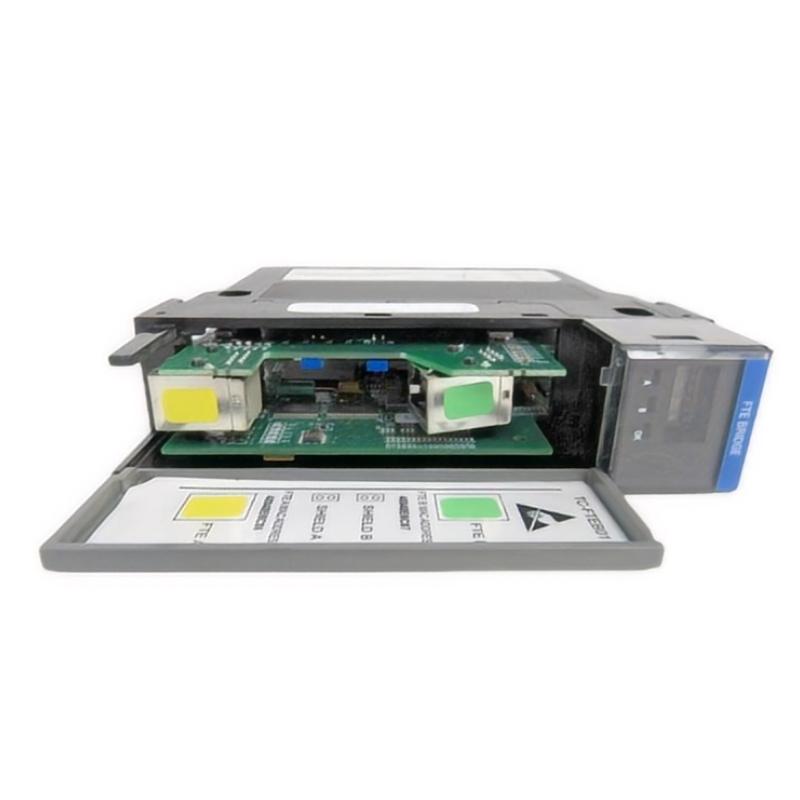

Honeywell TC-FTEB01 51309512-125 Ethernet Bridging Module

Overview
The Honeywell TC-FTEB01 is a high-speed Ethernet bridging module designed for industrial control systems. It enables seamless communication between Honeywell controllers and networked devices, providing reliable data transfer, network integrity, and efficient process automation.

General Information
Part Number: 51309512-125
Manufacturer: Honeywell
Brand / Country of Origin: Honeywell / USA
Type: Ethernet Bridging Module / Network Interface
Mounting: Rack or panel installation within control chassis
Material: Industrial-grade steel and electronic components
Compatibility: Compatible with Honeywell TDC, Experion, and other industrial control systems

Power Specifications
Supply Voltage: 24 V DC (nominal)
Power Consumption: ≤ 12 W
Input: Powered from the chassis or control system backplane
Protection: Overvoltage, short-circuit, and reverse-polarity protection
Indicators: LEDs for power, link status, and fault detection

Communication & Interface
Ethernet Port: 10/100 Mbps Ethernet interface
Network Bridging: Connects multiple industrial Ethernet segments
Diagnostics: Network status monitoring, link supervision, and fault reporting
Operator Interface: LED indicators for operational and error status
Reset Features: Supports soft and hardware reset

Environmental
Operating Temperature: −20 to +60 °C
Humidity: 5% to 95% RH, non-condensing
Vibration Resistance: IEC 60068-2-6 compliant
Protection Rating: IP20 for standard industrial cabinet environments

Dimensions & Weight
Dimensions (L × W × H): 180 × 160 × 30 mm
Weight: 0.65 kg
