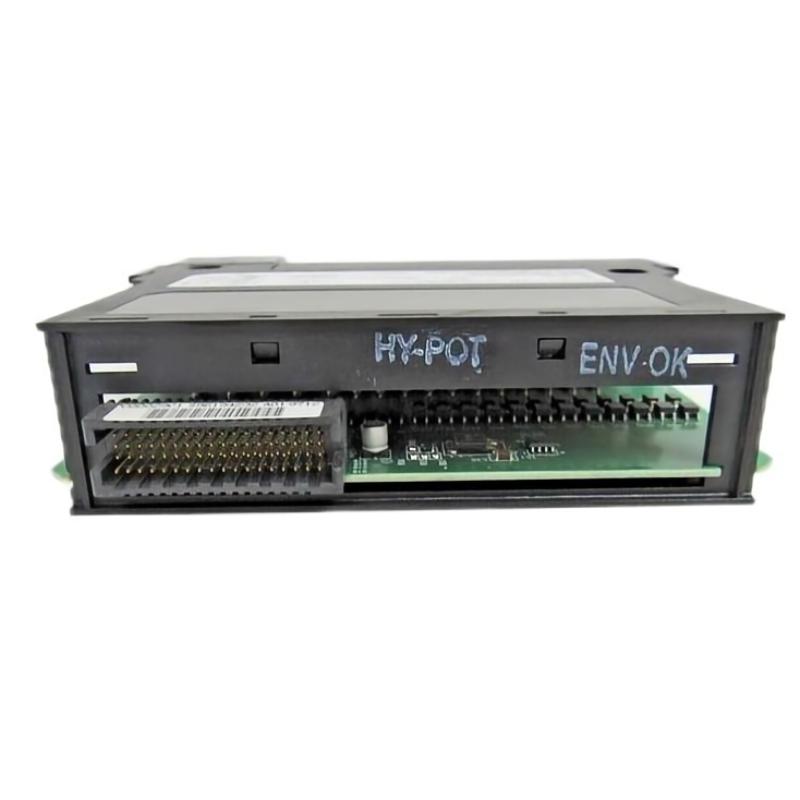

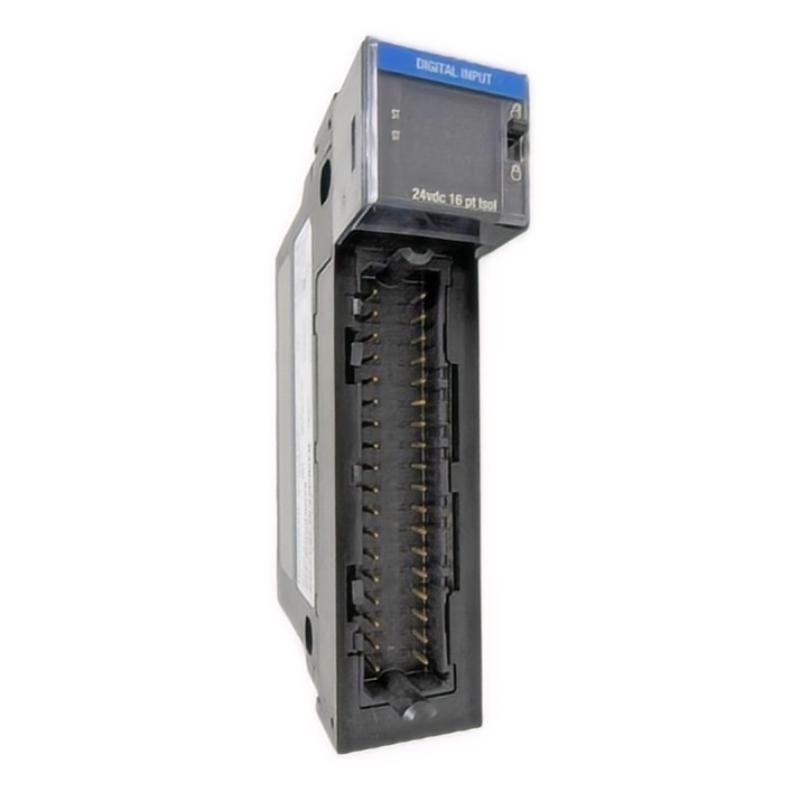

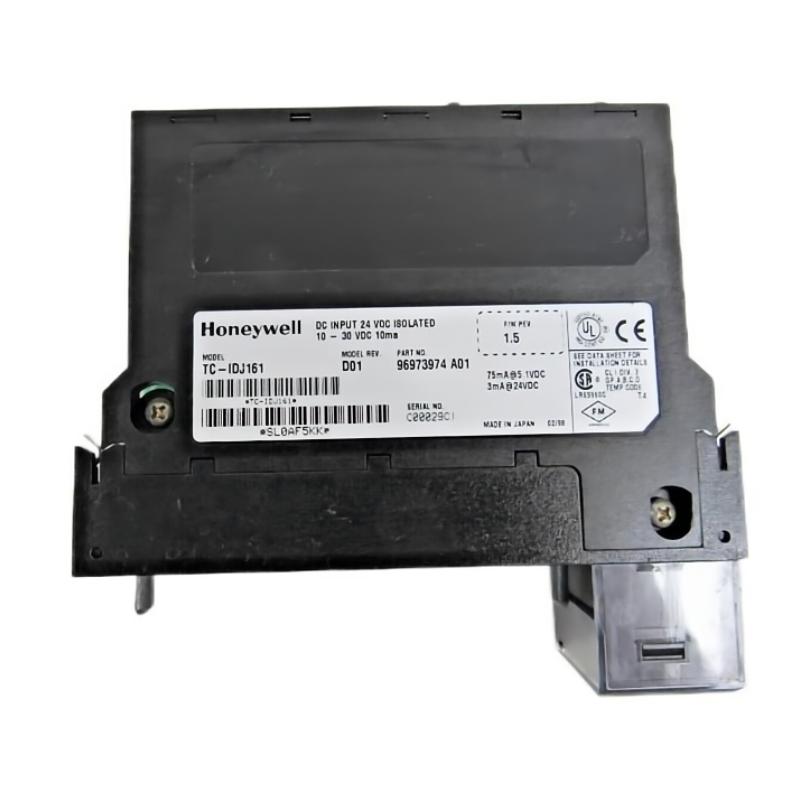

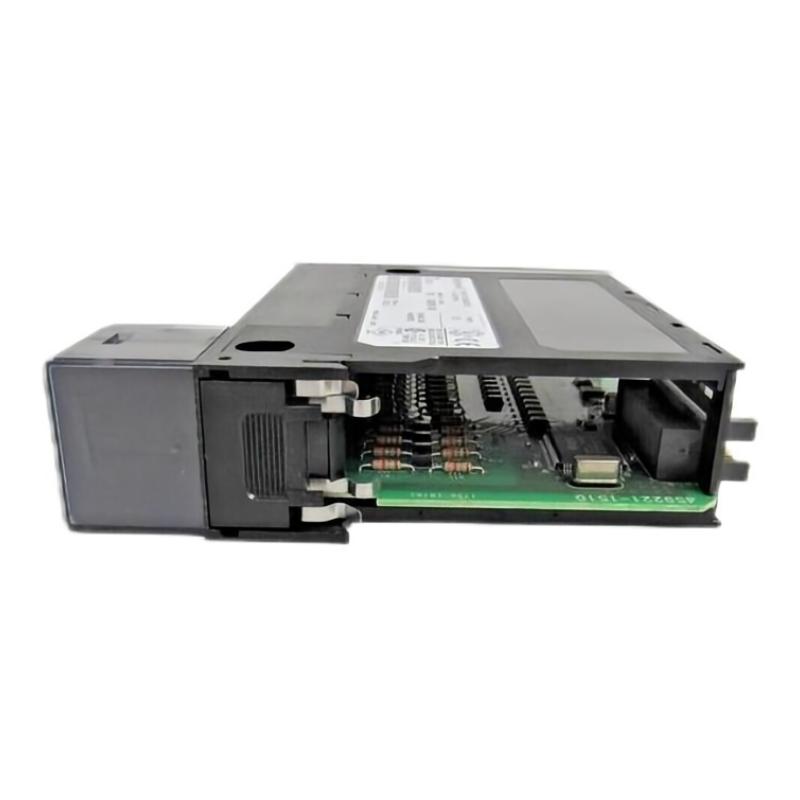

Honeywell TC-IDJ161 Experion LS Isolated Discrete Input Module

Overview

The Honeywell TC-IDJ161 isolated discrete input module is designed for Experion LS control systems, providing secure and isolated acquisition of digital signals from field devices. It ensures accurate monitoring, enhanced signal integrity, and reliable performance in industrial automation environments.

General Information

Part Number: TC-IDJ161

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / USA

Type: Isolated Discrete Input Module

Series: Experion LS

Mounting: Rack-mounted within Experion LS control systems

Material: Industrial-grade electronics with protective housing

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Protection: Overcurrent and short-circuit protection

Indicators: LED indicators for input channel status and diagnostics

Communication & Interface

Bus Connectivity: Interfaces with Experion LS control network

Input Channels: Multiple isolated discrete input channels

Diagnostics Support: Channel monitoring, fault detection, and reporting

Reset Features: Supports soft and hardware reset

Environmental

Operating Temperature: 0 to +55 °C

Humidity: 5–95% RH, non-condensing

Protection Rating: IP20 (installed inside enclosure)

Vibration Resistance: Suitable for standard industrial environments

Dimensions & Weight

Dimensions (L × W × H): 27 × 98 × 90 mm

Weight: 0.45 kg
