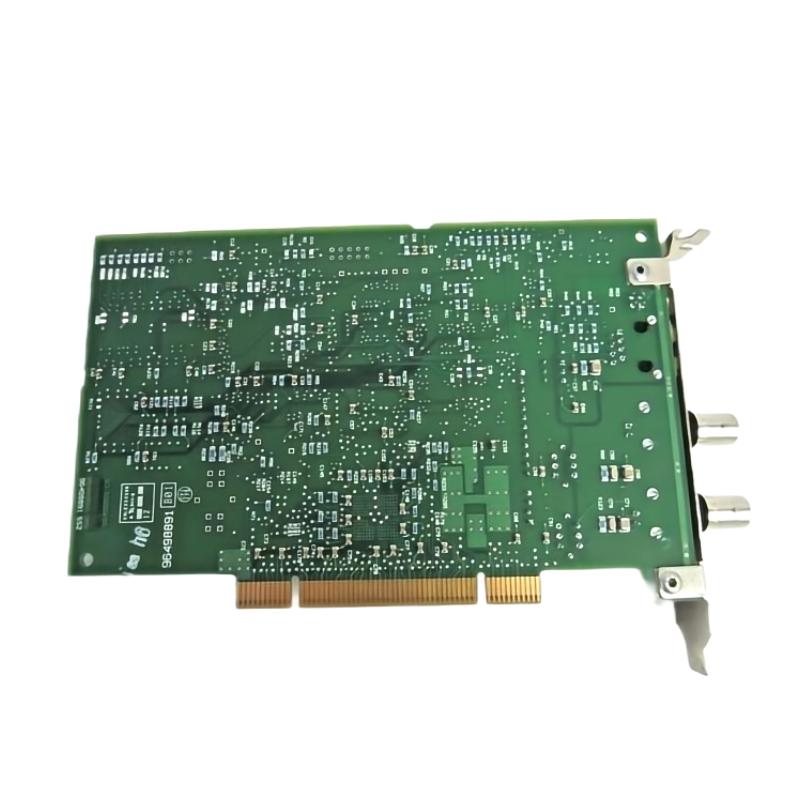

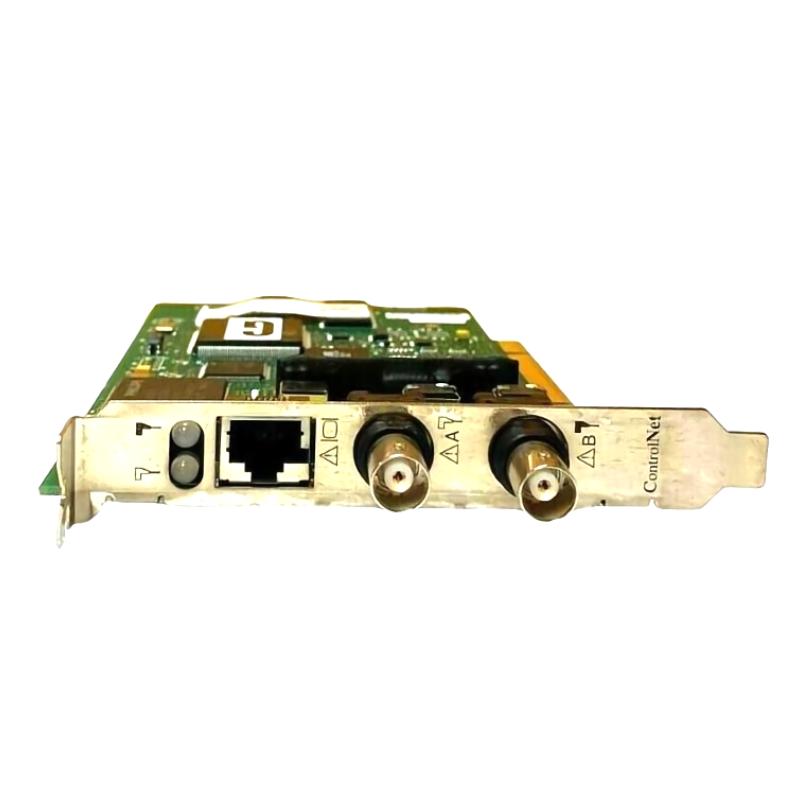

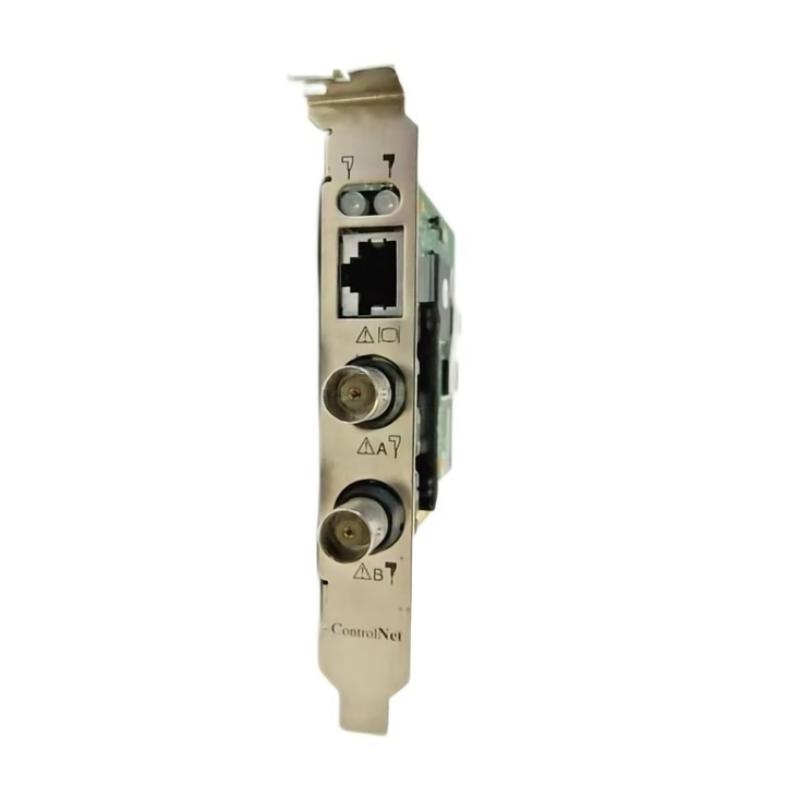

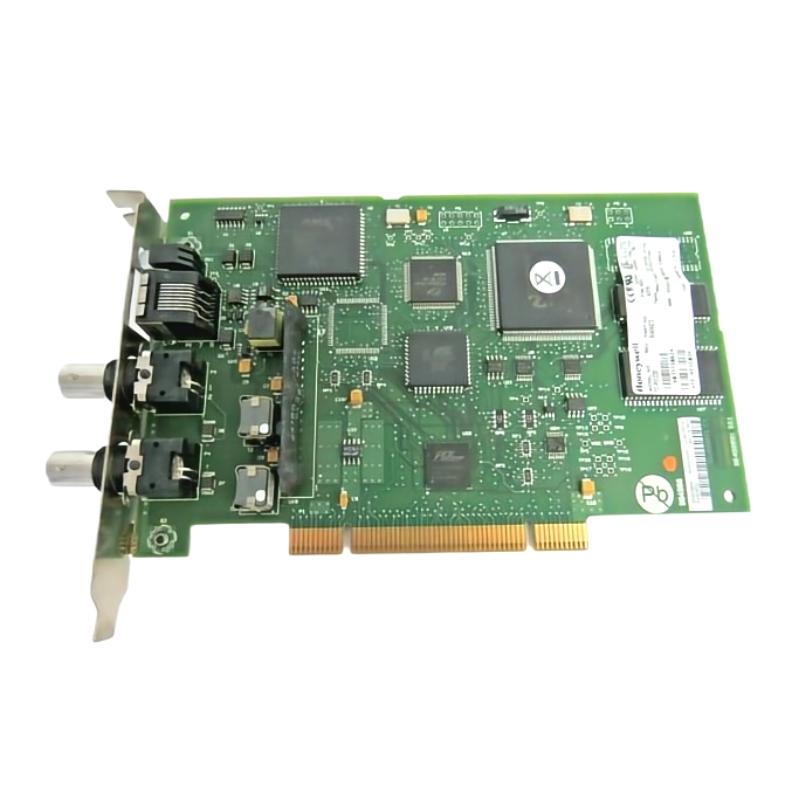

Honeywell TC-PCIC02 Experion LS Control Network Interface Card

Overview

The Honeywell TC-PCIC02 is a control network interface card designed for Experion LS process automation systems. It enables seamless communication between controllers, I/O modules, and other networked devices, ensuring reliable data exchange and system integration in industrial environments.

General Information

Part Number: TC-PCIC02

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / USA

Series: Experion LS

Type: Control Network Interface Card / Communication Module

Mounting: Rack or cabinet installation within Experion LS system

Technology: High-speed network communication, diagnostic support, safety-rated connectivity

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Input: Powered via Experion LS system backplane

Protection: Overvoltage and surge protection

Indicators: LEDs for power, network status, and fault detection

Communication & Interface

Interface Ports: Backplane connection and network ports for system communication

Module Role: Facilitates reliable data exchange between controllers, I/O modules, and field devices

Diagnostics: Network link monitoring, fault detection, and status reporting

Operator Interface: LED indicators for operational and fault conditions

Reset Features: Supports soft and hardware reset

I/O & Channels: Supports multiple communication channels depending on system configuration

Environmental

Operating Temperature: 0 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or suitable for industrial cabinet installation

Dimensions & Weight

Dimensions (L × W × H): 120 × 20 × 100 mm

Weight: 0.15 kg
