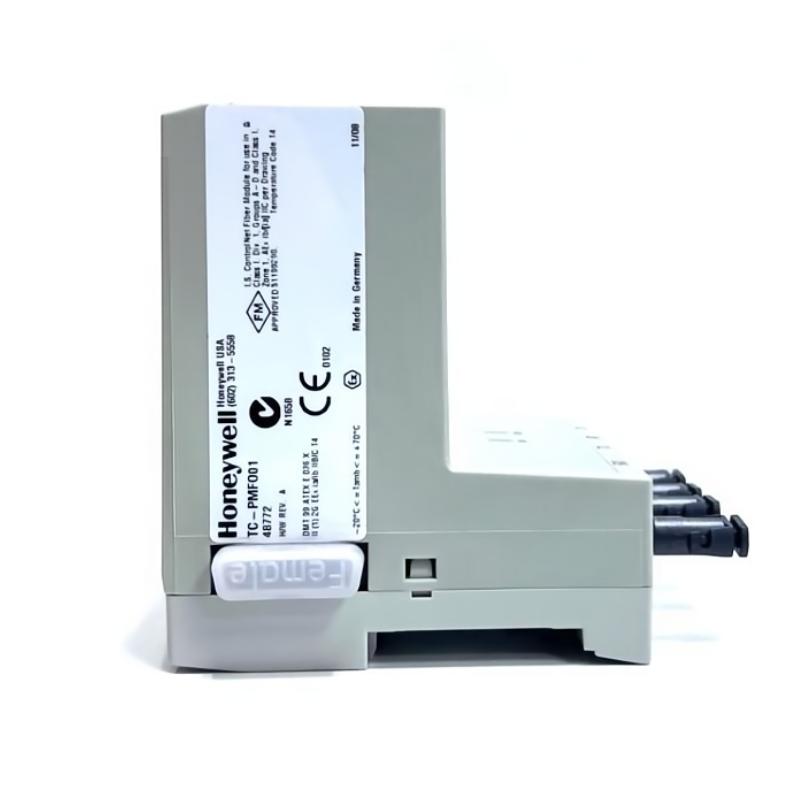

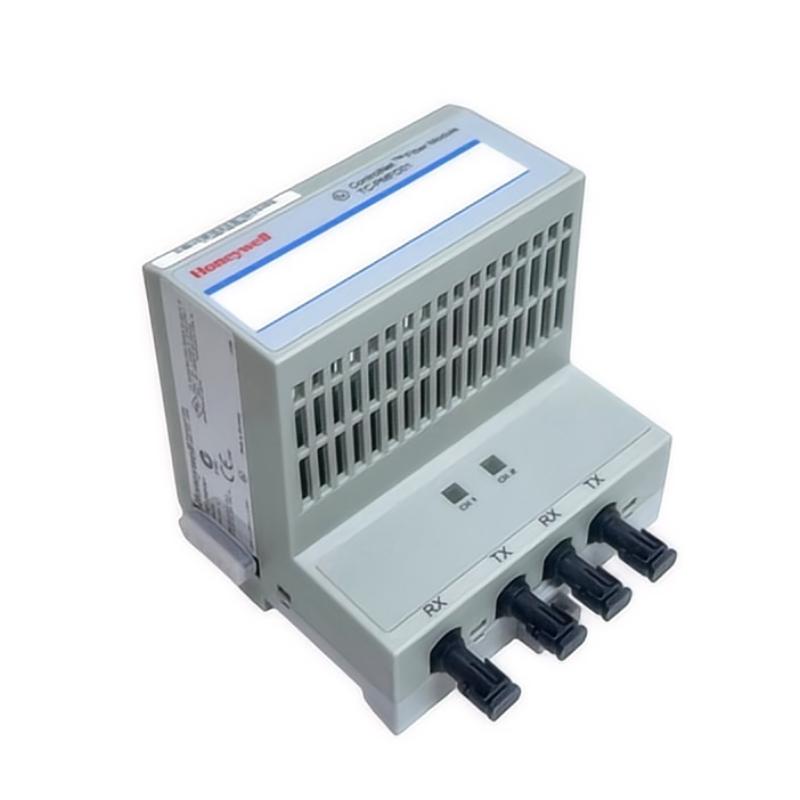

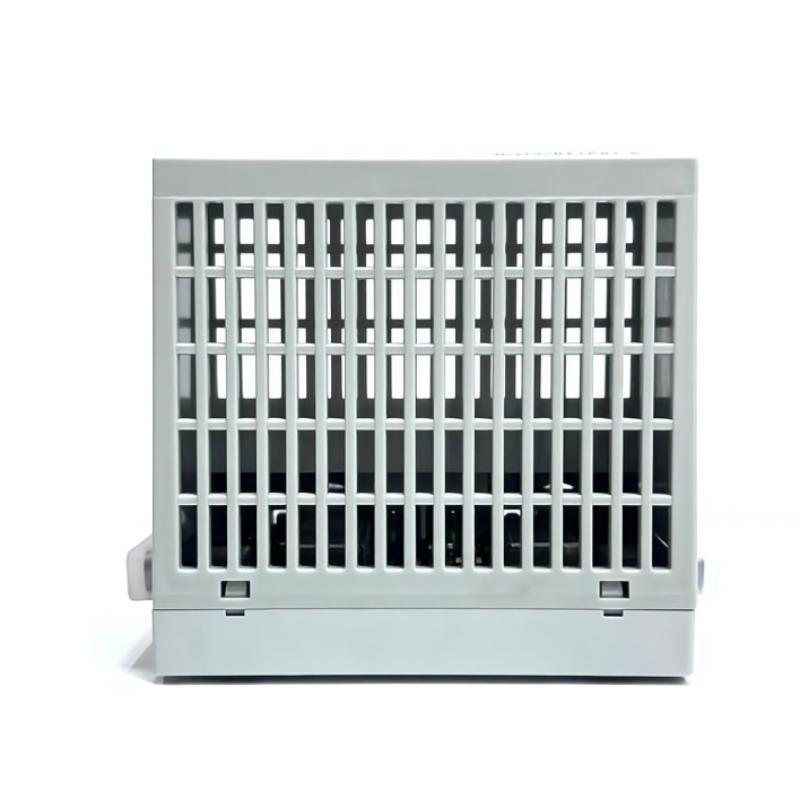

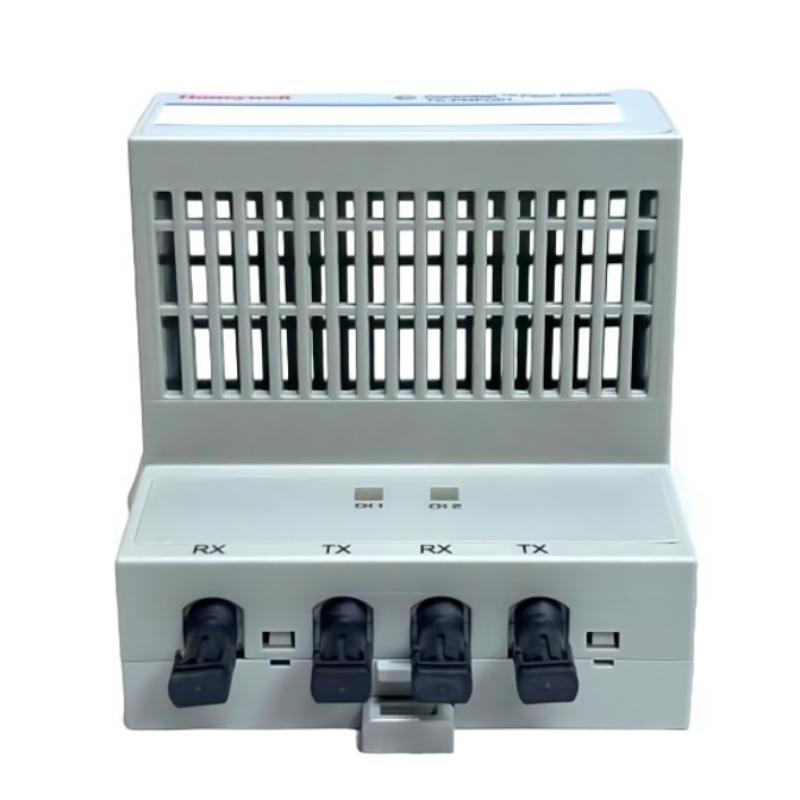

Honeywell TC-PMFO01 Experion LS Control Network Fiber Optic Module

Overview

The Honeywell TC-PMFO01 is a fiber optic control network module designed for Experion LS process automation systems. It provides high-speed, secure, and reliable optical communication between controllers, I/O modules, and networked devices, ensuring robust performance in industrial environments.

General Information

Part Number: TC-PMFO01

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / USA

Series: Experion LS

Type: Control Network Fiber Optic Module / Communication Module

Mounting: Rack or cabinet installation within Experion LS system

Technology: Fiber optic communication, high-speed data transfer, diagnostic support

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Input: Powered via Experion LS system backplane

Protection: Overvoltage, short-circuit, and surge protection

Indicators: LEDs for power, network link, and fault detection

Communication & Interface

Interface Ports: Backplane connection and fiber optic ports for network communication

Module Role: Facilitates high-speed, secure optical communication between system components

Diagnostics: Link monitoring, fault detection, and operational status reporting

Operator Interface: LED indicators for network status and fault conditions

Reset Features: Supports soft and hardware reset

I/O & Channels: Supports multiple optical communication channels for system connectivity

Environmental

Operating Temperature: 0 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or suitable for industrial cabinet installation

Dimensions & Weight

Dimensions (L × W × H): 94 × 94 × 87 mm

Weight: 0.139 kg
