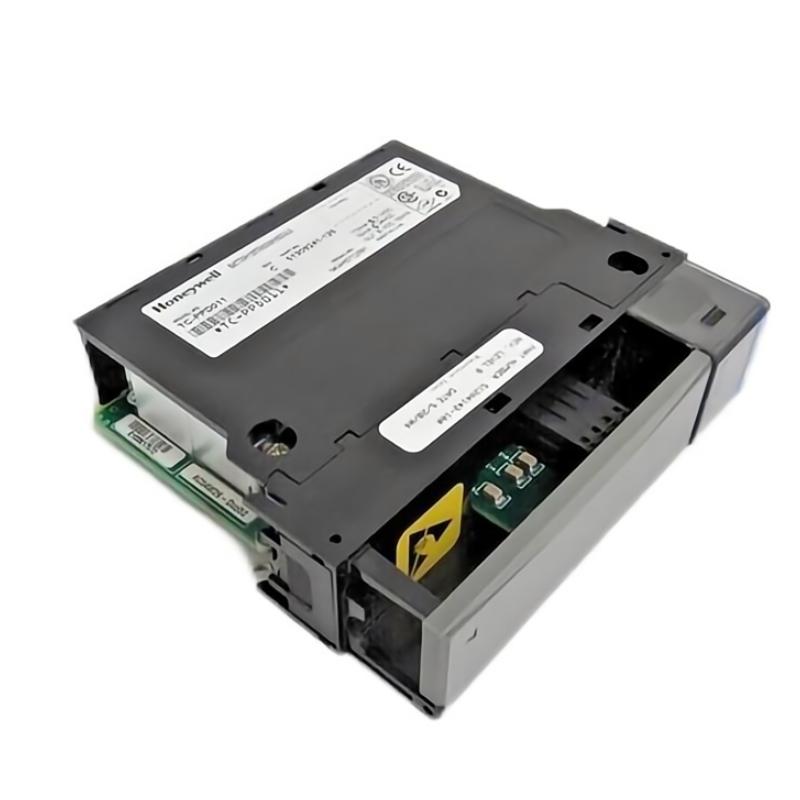

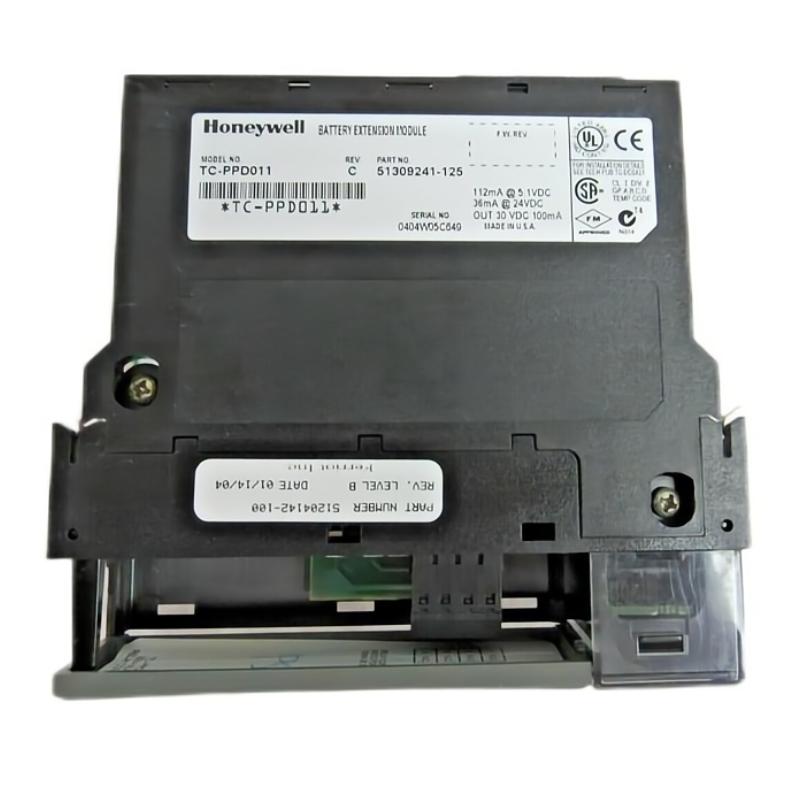

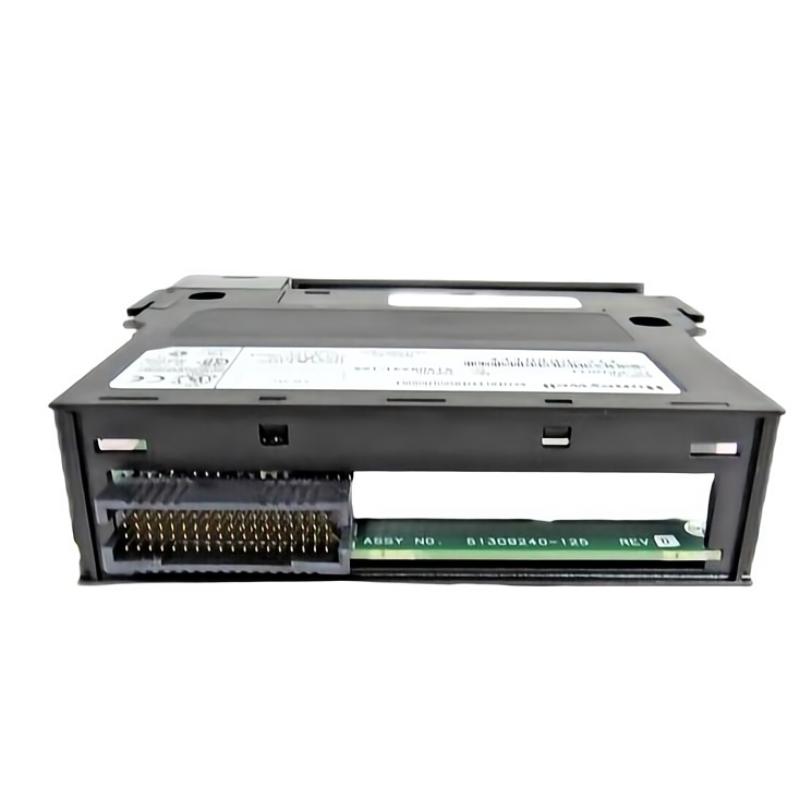

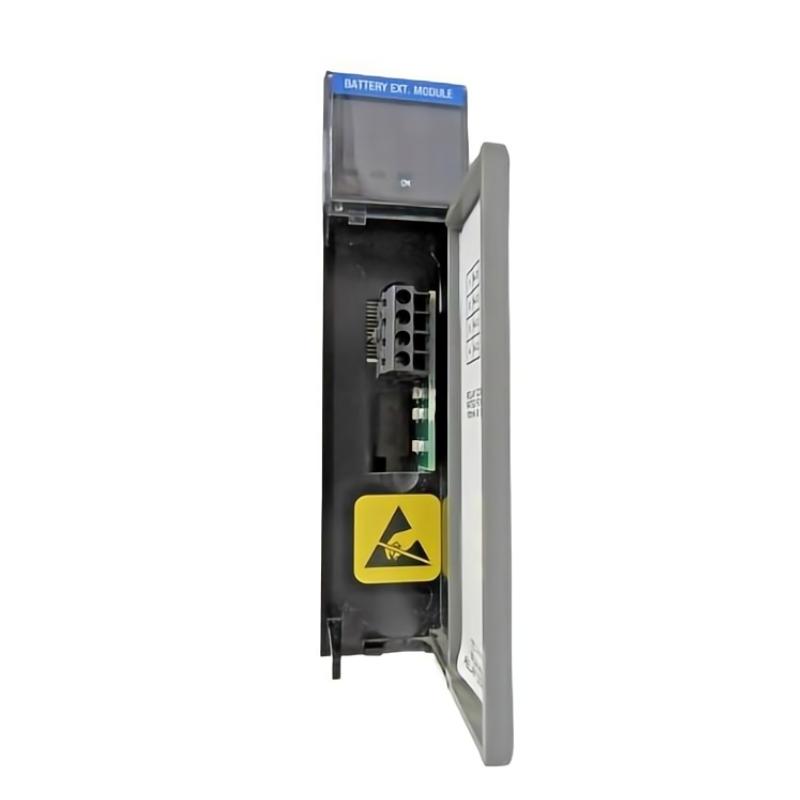

Honeywell TC-PPD011 51309241-125 Experion LS Battery Expansion Module

Overview

The Honeywell TC-PPD011 is a battery expansion module designed for Experion LS process automation systems. It provides backup power support for controllers and critical modules, ensuring uninterrupted operation and system reliability in case of power loss.

General Information

Part Number: TC-PPD011 / 51309241-125

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / USA

Series: Experion LS

Type: Battery Expansion Module / Backup Power

Mounting: Rack or cabinet installation within Experion LS system

Technology: Battery backup, diagnostic support, fail-safe power continuity

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Input: Powered via Experion LS system

Protection: Overvoltage and short-circuit protection

Indicators: LEDs for power status, battery condition, and fault detection

Communication & Interface

Interface Ports: Backplane connection to Experion LS system

Module Role: Provides backup power to controllers and critical system modules

Diagnostics: Battery status monitoring, fault detection, and operational reporting

Operator Interface: LED indicators for power, battery, and fault status

Reset Features: Supports system-level reset

I/O & Channels: Designed to maintain power continuity for critical system components

Environmental

Operating Temperature: 0 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or suitable for industrial cabinet installation

Dimensions & Weight

Dimensions (L × W × H): 120 × 80 × 45 mm

Weight: 0.36 kg
