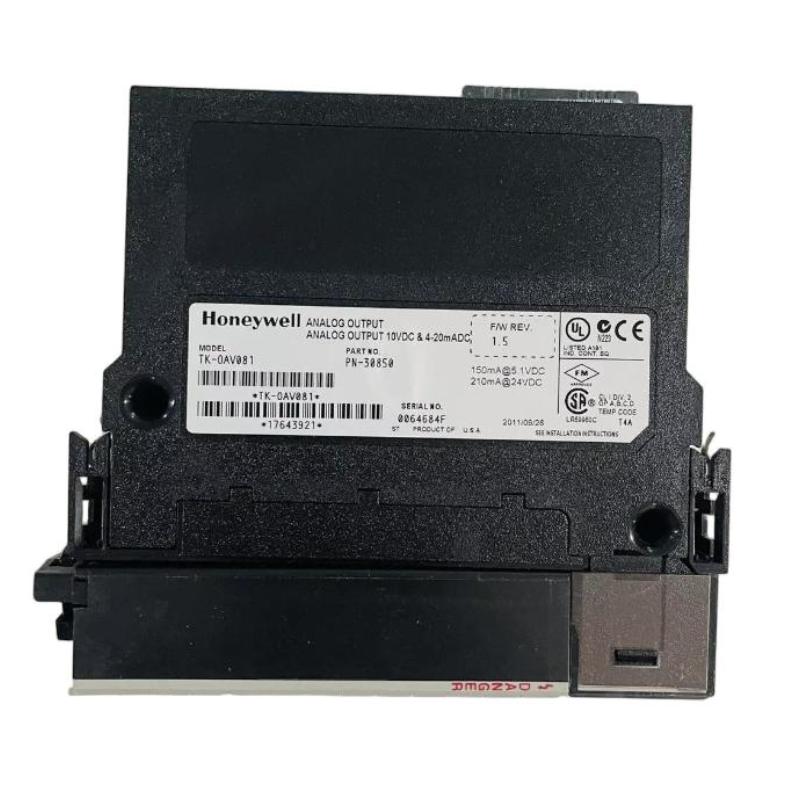

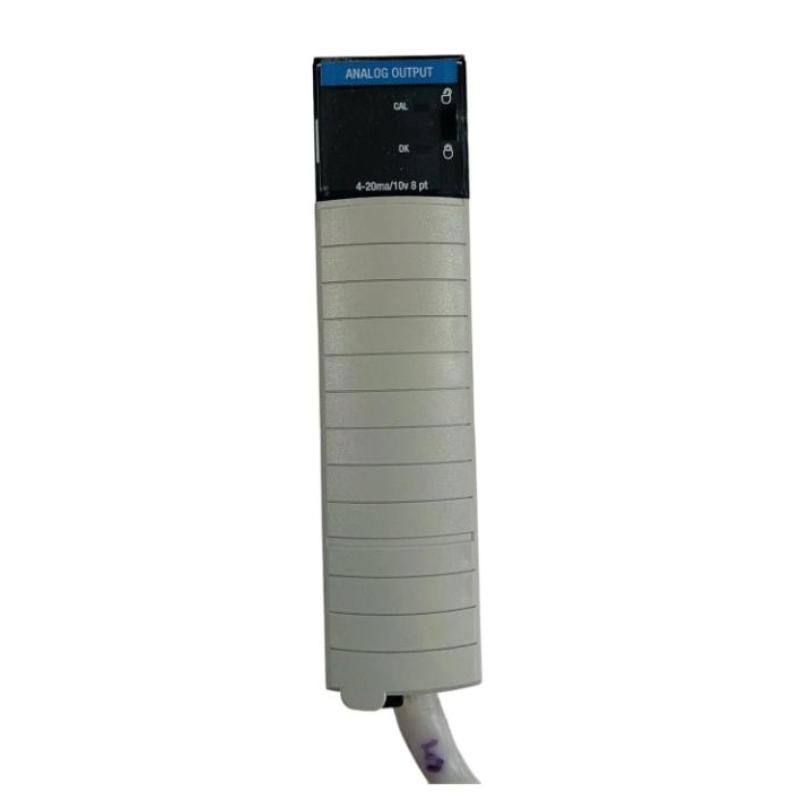

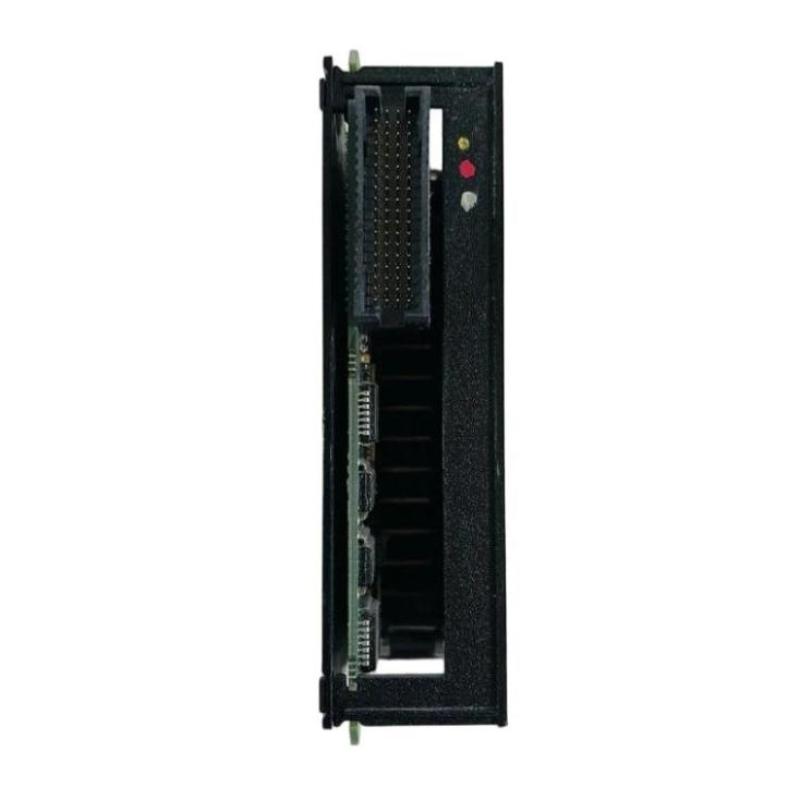

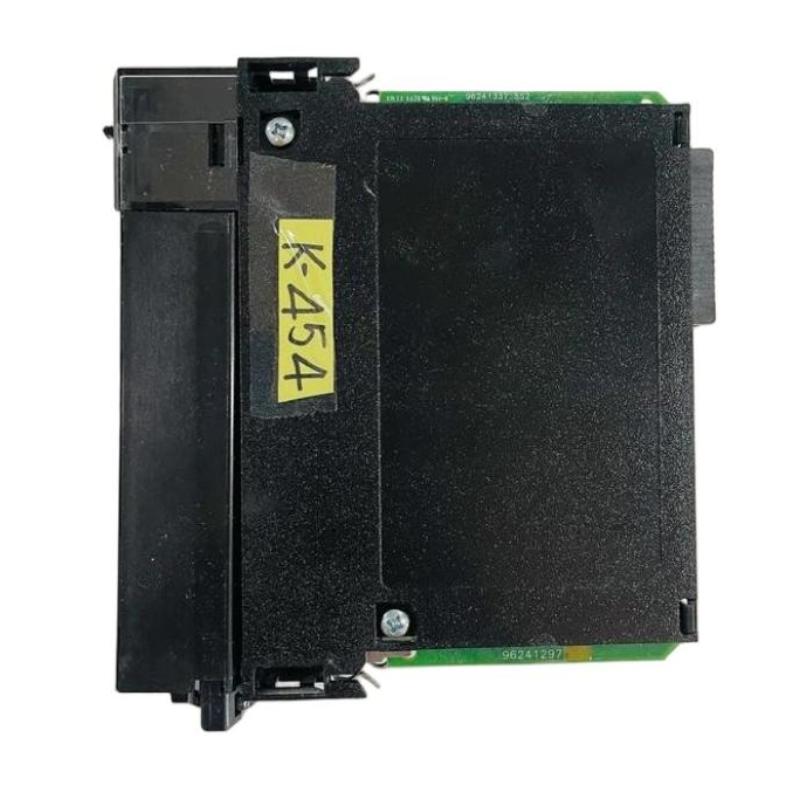

Honeywell TK-OAV081 Experion LS Analog Output Module

Overview

The Honeywell TK-OAV081 is an analog output module designed for the Experion LS distributed control system. It provides precise and reliable analog signal outputs to field devices such as control valves, actuators, and transducers, enabling accurate control of industrial processes. The module supports seamless integration with Experion LS controllers and high-speed response.

General Information

Part Number: TK-OAV081

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / USA

Series: Experion LS I/O Modules

Type: Analog Output Module

Mounting: DIN rail or rack mounting in control cabinets

Technology: High-precision analog output, LED diagnostics, system integration support

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 8 W

Input: Powered from system backplane

Protection: Reverse polarity and short-circuit protection

Indicators: LEDs for module status, output activity, and fault conditions

Communication & Interface

Bus Interface: Connects to Experion LS system backplane

Output Channels: Multiple analog outputs configurable for 4–20 mA or 0–10 V signals

Diagnostics: Individual channel monitoring, fault detection, and system alerts

Operator Interface: LED indicators for module health and output activity

Reset Features: Supports soft and hardware reset via controller commands

Environmental

Operating Temperature: 0 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 for industrial cabinet mounting

Vibration & Shock: Conforms to IEC 60068 industrial standards

Dimensions & Weight

Dimensions (L × W × H): 176 × 50 × 120 mm

Weight: ~ 0.4 kg
