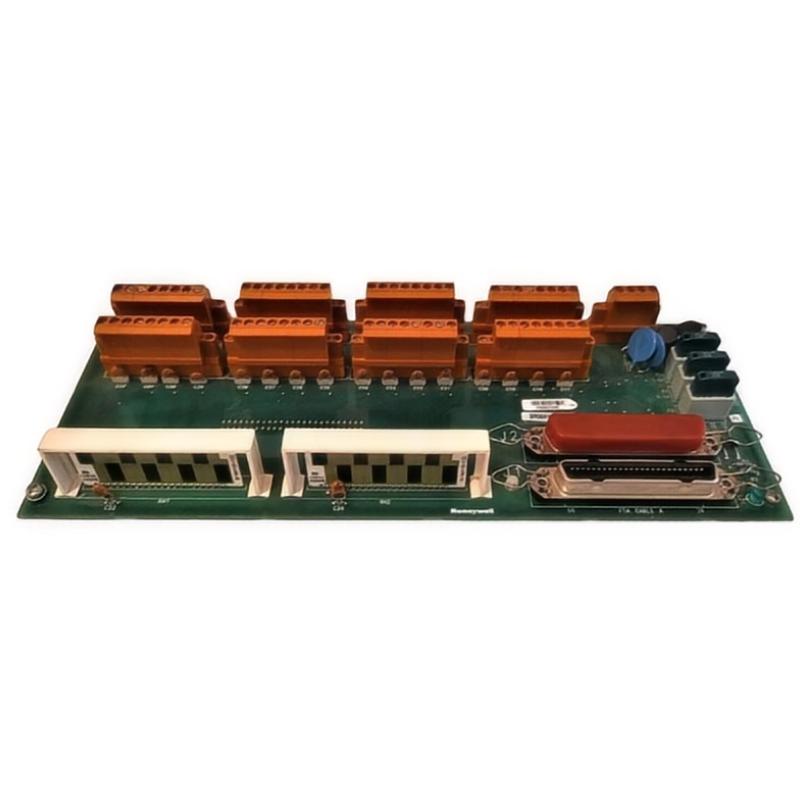

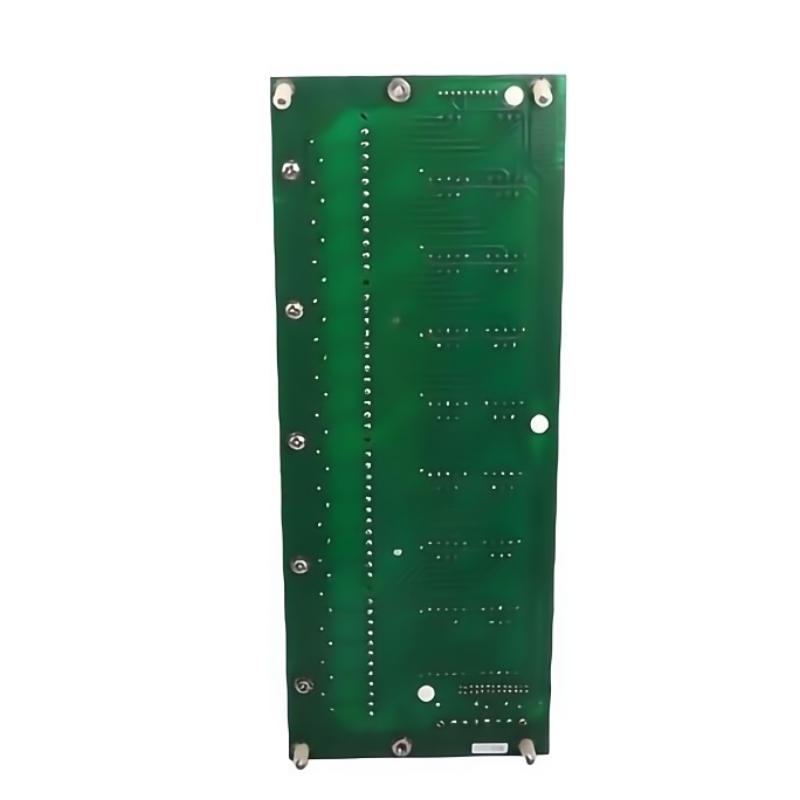

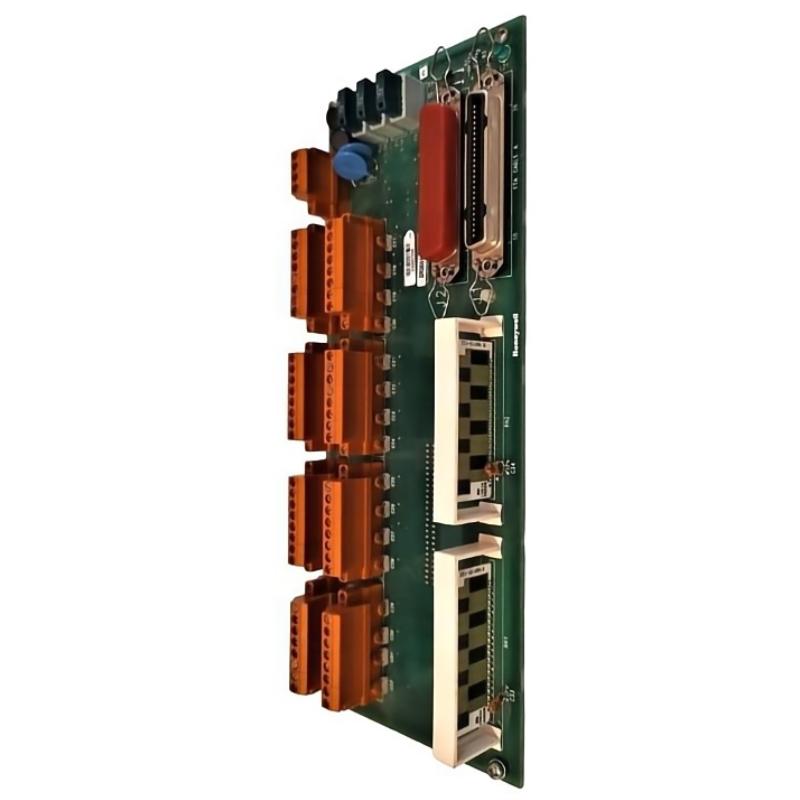

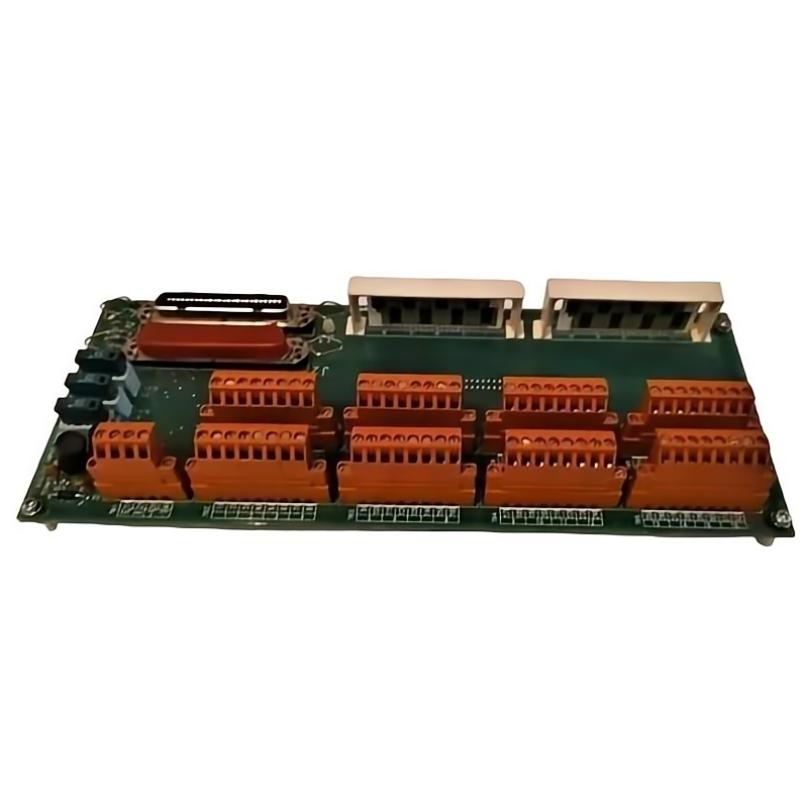

Honeywell FC-PDB-IOX05 Distribution Board

Overview
The Honeywell FC-PDB-IOX05 is a distribution board designed for FC series controllers. It provides organized power and signal distribution for modular I/O systems, ensuring reliable connectivity, streamlined wiring, and secure integration within industrial automation and flame control networks.

General Information

Part Number: FC-PDB-IOX05

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / USA

Series: FC Distribution Board

Type: Distribution Board

Mounting: Panel or DIN rail installation

Technology: Industrial-grade distribution, modular connectivity, secure signal routing

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 8 W

Input: Powered via controller or backplane

Protection: Overvoltage, surge, and reverse-polarity protection

Indicators: LEDs for power and fault detection

Communication & Interface

Interface Type: I/O distribution interface for Honeywell FC controllers

Connectivity: Distributes power and signals to multiple I/O modules

Diagnostics: Real-time monitoring of power and signal integrity

Operator Interface: LED indicators for system and channel status

Reset Features: Supports soft reset via system interface

Environmental

Operating Temperature: −20 to +60 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 (cabinet environment)

Dimensions & Weight

Dimensions (L × W × H): 170 × 70 × 46 mm

Weight: ~ 0.5 kg
