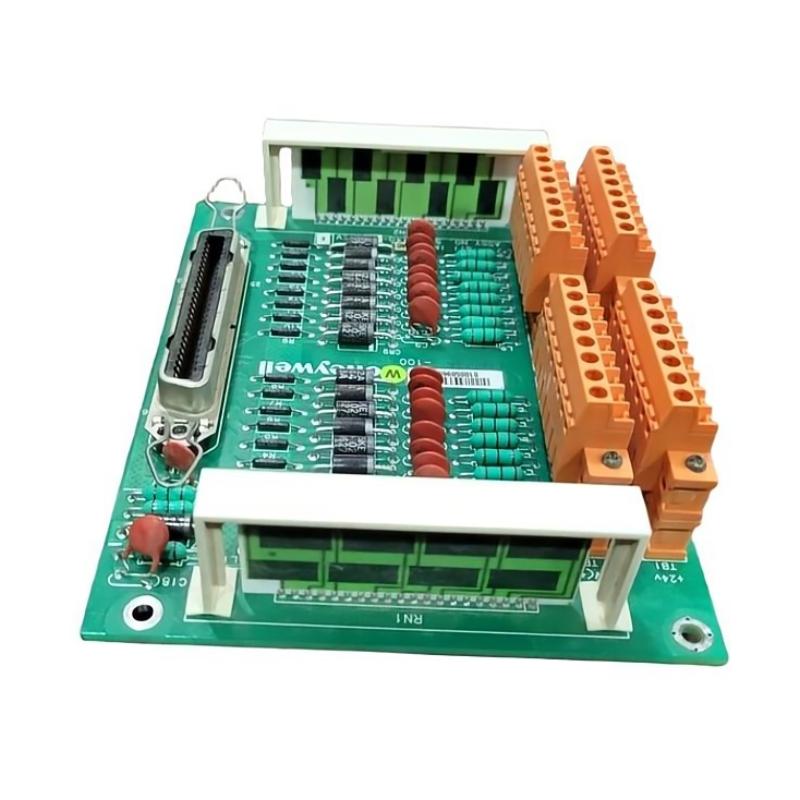

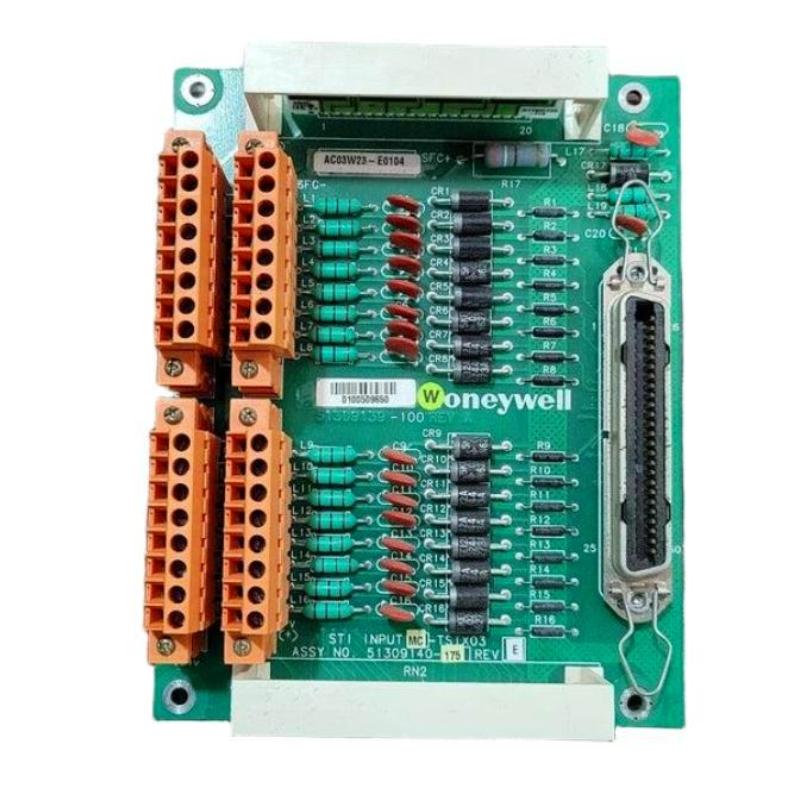

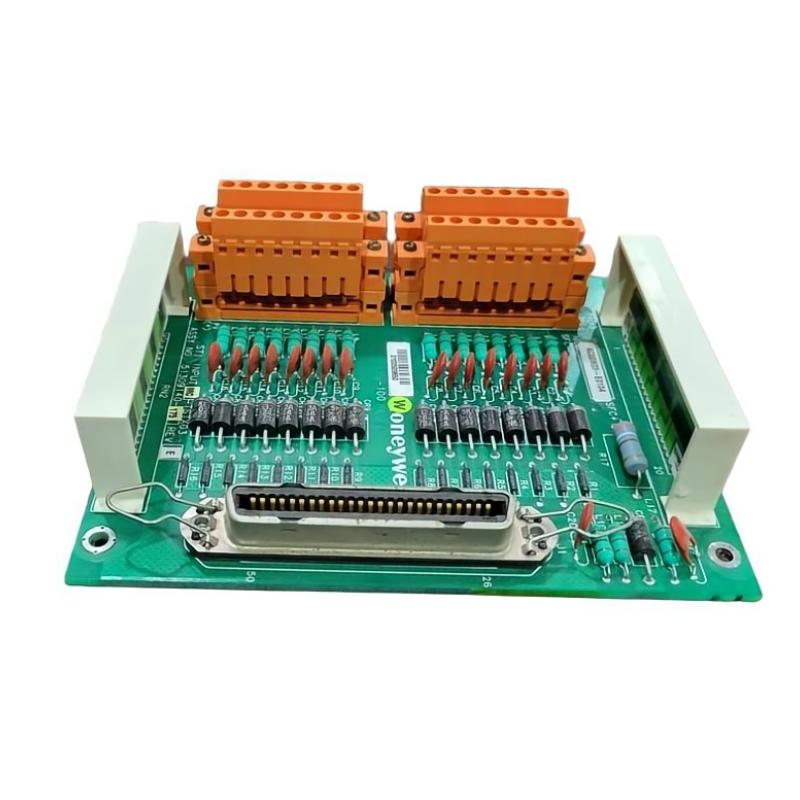

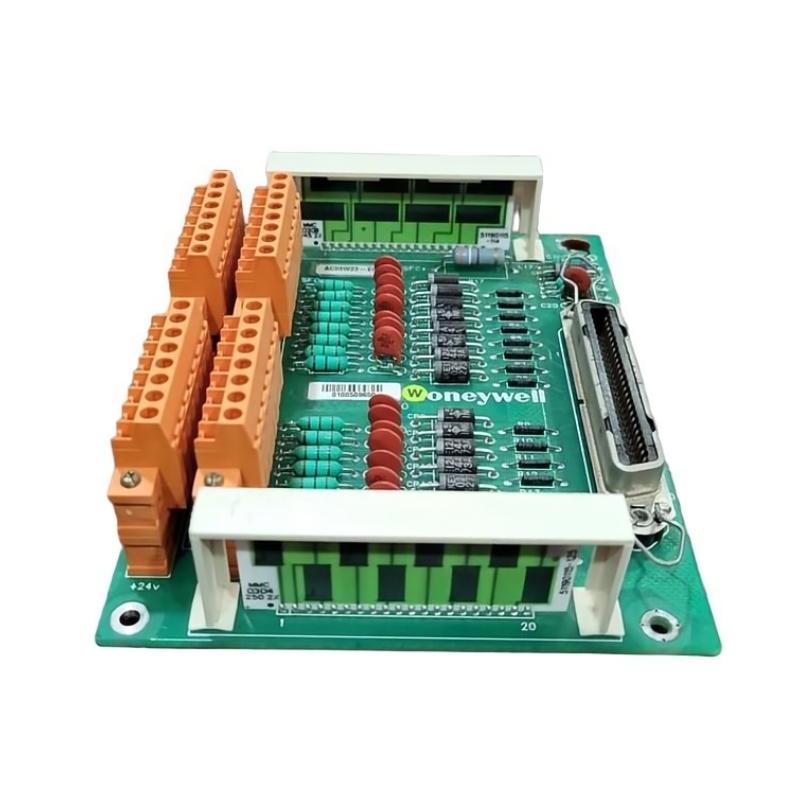

Honeywell MC-TSTX03 51309140-175 Intelligent Transmitter Interface Processor

Overview

The Honeywell MC-TSTX03 51309140-175 is an intelligent transmitter interface processor designed for Honeywell process control systems. It provides accurate signal processing, communication, and diagnostics for field transmitters, ensuring reliable data acquisition and seamless integration with automation networks.

General Information

Part Number: 51309140-175

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / USA

Series: MC-TSTX / Intelligent Transmitter Interface

Type: Interface Processor for Field Transmitters

Mounting: Rack or panel-mounted inside industrial control cabinets

Technology: High-precision signal processing with intelligent interface capabilities

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 12 W

Input: Powered via dedicated backplane or terminal

Protection: Overvoltage, surge, and reverse-polarity protection

Indicators: LEDs for power, communication status, and fault detection

Communication & Interface

Interface Ports: Connects to Honeywell controllers and I/O modules

Data Transfer: High-speed and accurate communication for transmitter signals

Diagnostics: Onboard monitoring, fault detection, and status reporting

Operator Interface: LED indicators for power, communication, and system status

Reset Features: Hardware and software reset supported

I/O & Channels: Supports multiple transmitter channels for process monitoring

Environmental

Operating Temperature: 0 to +55 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Industrial enclosure, IP20 compliant

Dimensions & Weight

Dimensions (L × W × H): 240 × 100 × 25 mm

Weight: 0.3 kg
