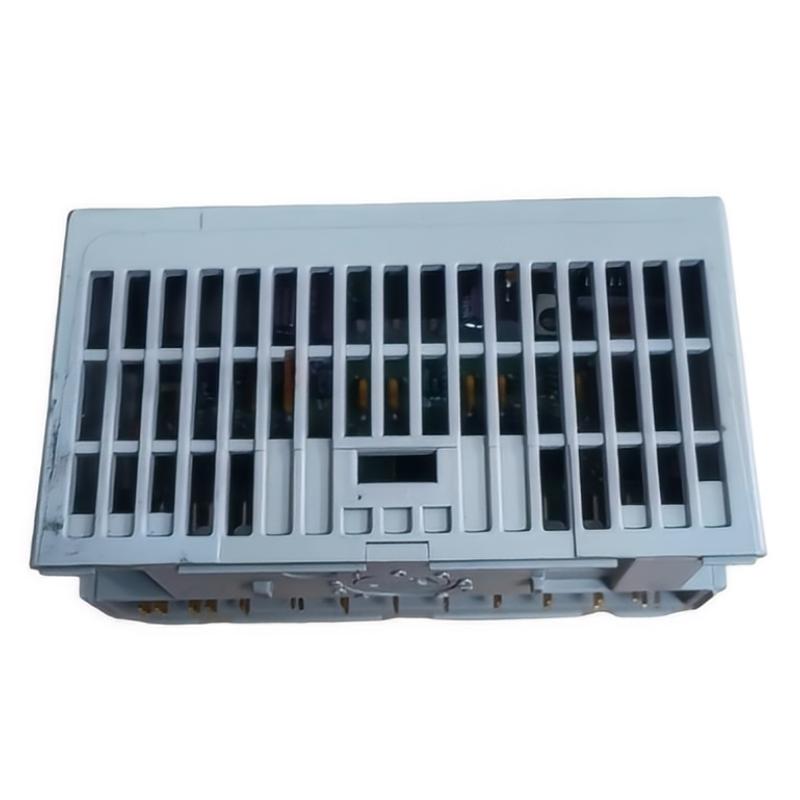

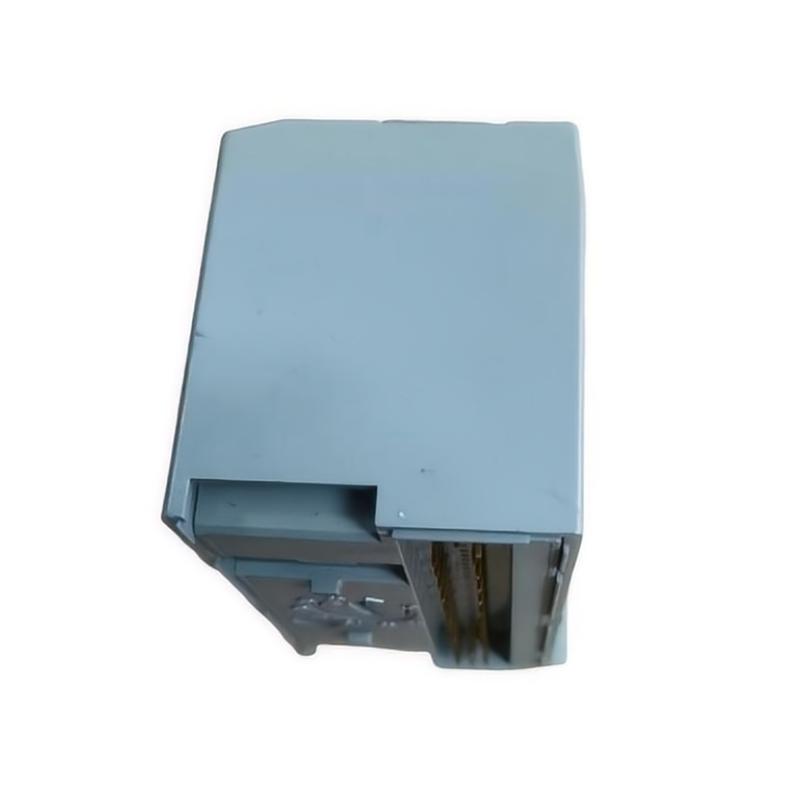

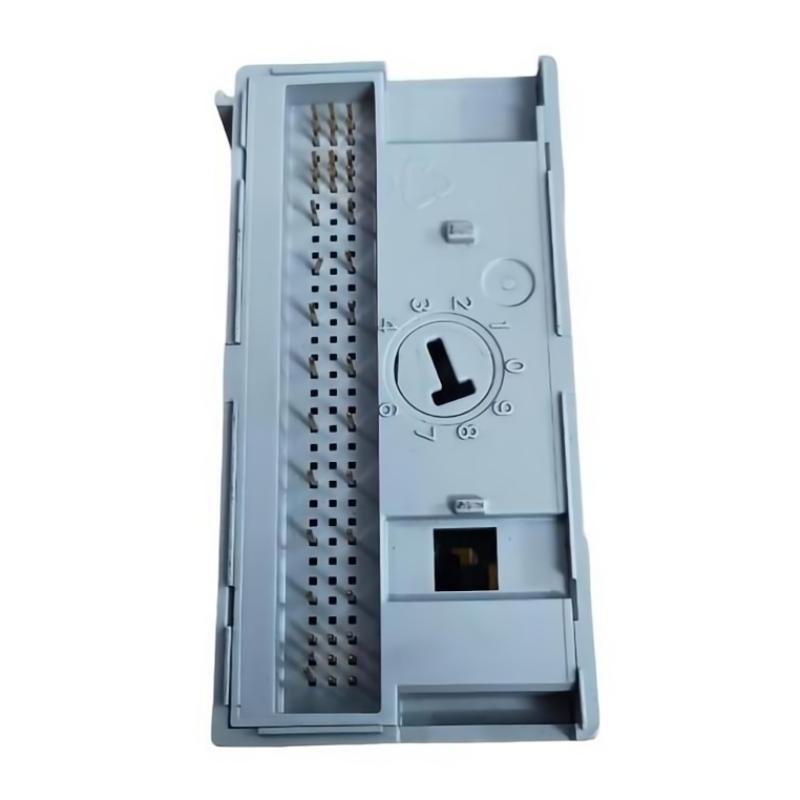

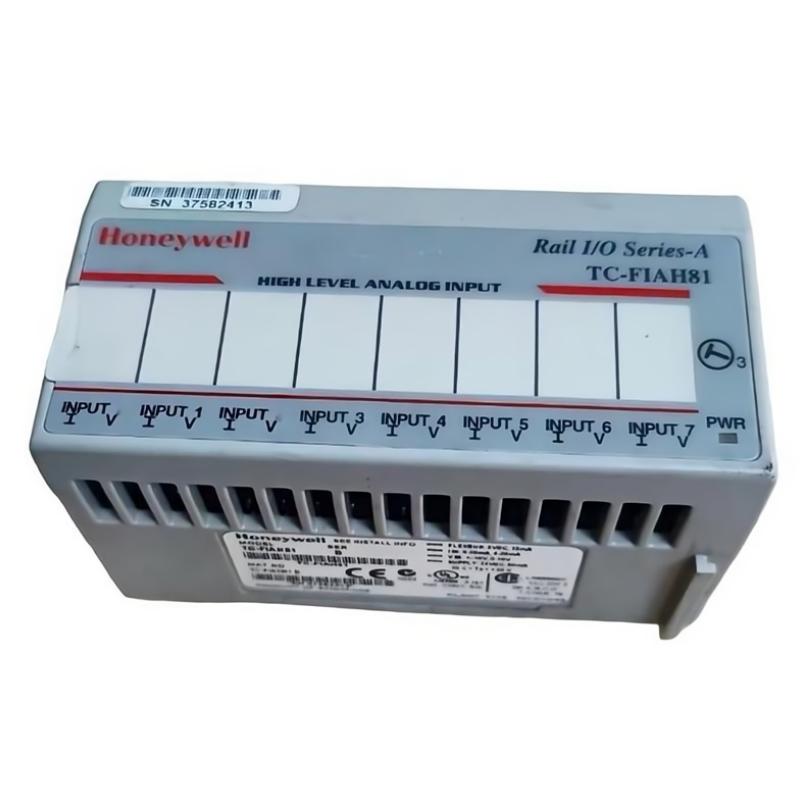

Honeywell TC-FIAH81 High-Level Analog Input Module

Overview

The Honeywell TC-FIAH81 is a high-level analog input module designed for industrial automation systems. It accurately acquires and processes analog signals from field devices, enabling precise monitoring and control of industrial processes. The module features diagnostic capabilities to ensure reliability and continuous operation.

General Information

Part Number: TC-FIAH81

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / USA

Series: TC-FIAH

Type: High-Level Analog Input Module

Mounting: DIN rail or control cabinet installation

Technology: Safety-critical analog signal processing, real-time monitoring, diagnostic support

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 4 W

Input: Powered via system backplane

Protection: Overvoltage, short-circuit, and reverse-polarity protection

Indicators: LEDs for module status and fault detection

Communication & Interface

Interface Type: Connects to control bus

Data Transmission: Processes and transmits high-level analog signals

Diagnostics: Continuous self-check, channel monitoring, fault reporting

Operator Interface: Status LEDs

Reset Features: Soft and hardware reset supported

Environmental

Operating Temperature: 0 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or standard industrial cabinet environment

Dimensions & Weight

Dimensions (L × W × H): 46 × 94 × 53 mm

Weight: ~ 0.22 kg
