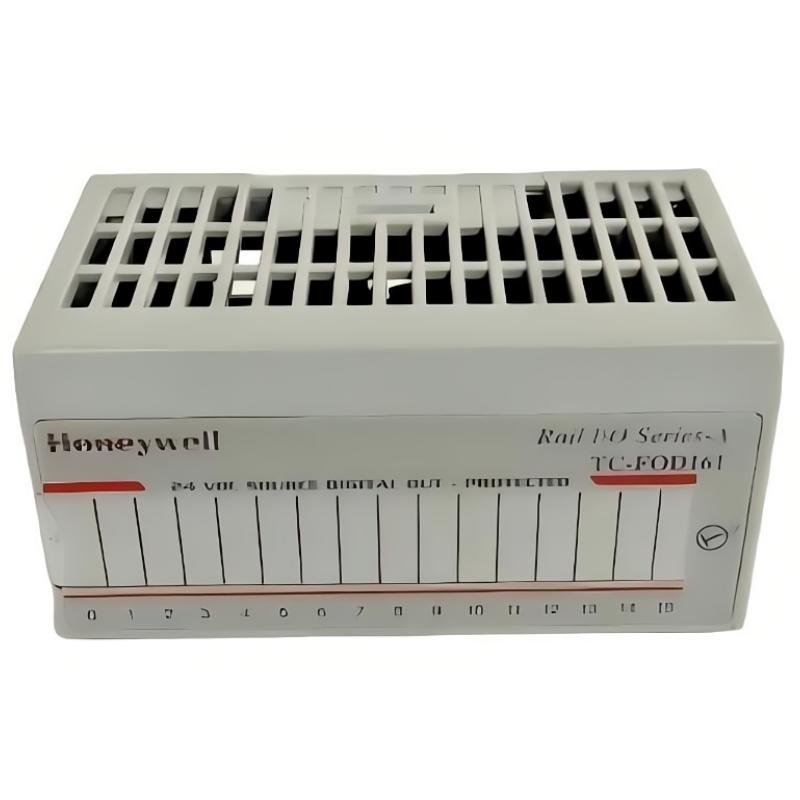

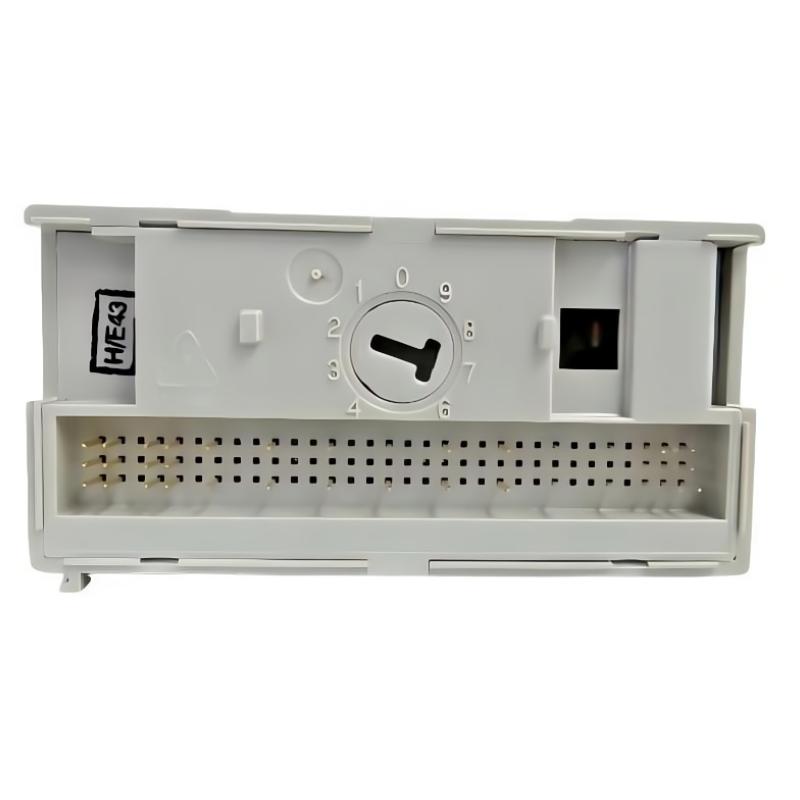

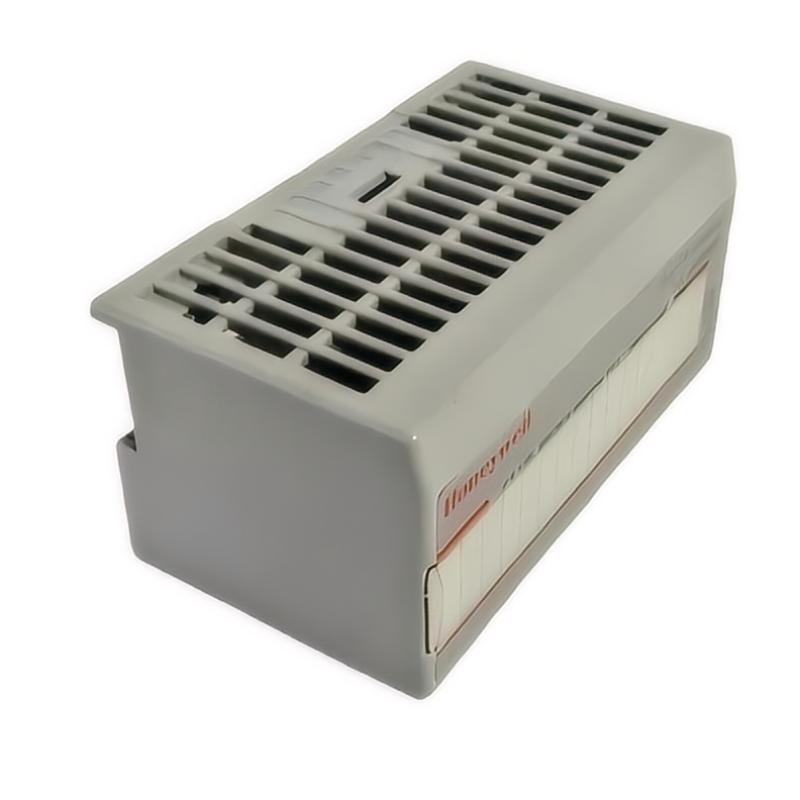

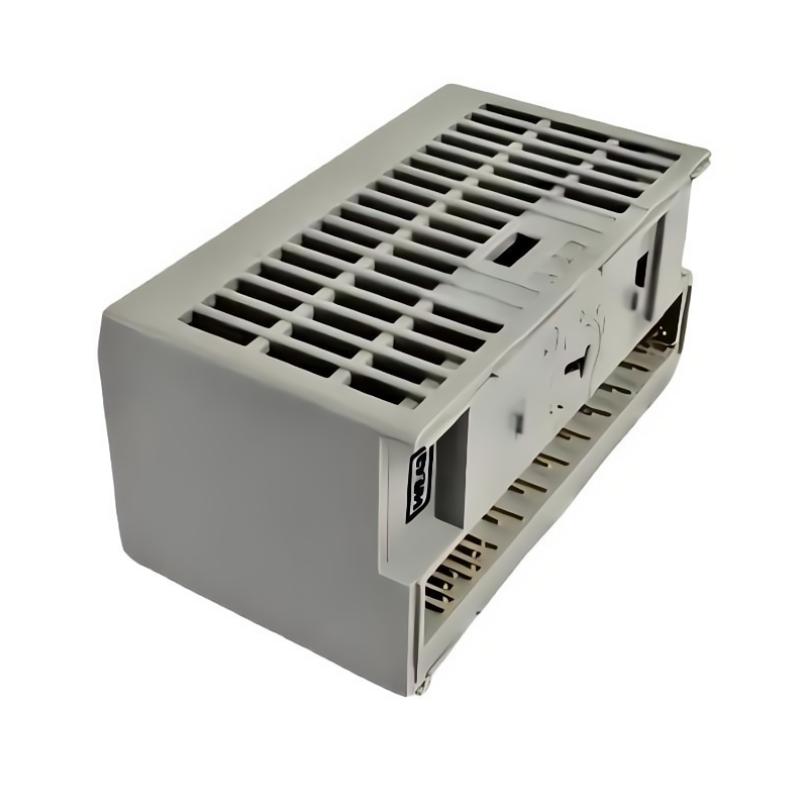

Honeywell TC-FOD161 24 VDC Source Digital Output Module

Overview

The Honeywell TC-FOD161 is a 24 VDC source digital output module designed for industrial automation and control systems. It provides reliable switching of field devices, enabling safe and precise control of actuators, relays, and other process equipment.

General Information

Part Number: TC-FOD161

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / USA

Series: TC Series

Type: 24 VDC Source Digital Output Module

Mounting: DIN rail or panel-mounted installation within control cabinets

Technology: High-speed switching, modular design, fault detection, and protection

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 4 W

Input: Powered from cabinet or system supply

Protection: Surge protection, short-circuit protection, reverse-polarity protection

Indicators: LED indicators for channel status and fault

Communication & Interface

Interface Ports: Connects directly to control system backplane

Diagnostics: Channel-level monitoring, fault detection, and reporting

Operator Interface: LEDs for operational and fault status

Reset Features: Supports soft and hardware reset via controller

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for standard industrial cabinet environments

Dimensions & Weight

Dimensions (L × W × H): 69 × 94 × 80 mm

Weight: ~ 0.222 kg

Reliable Output Control, Ready for Immediate Integration!
