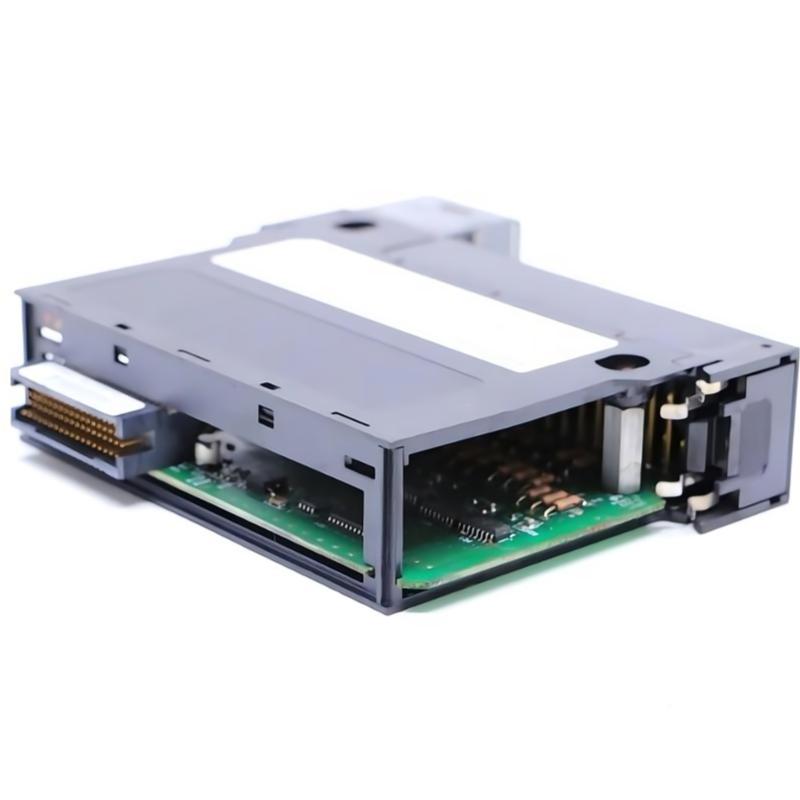

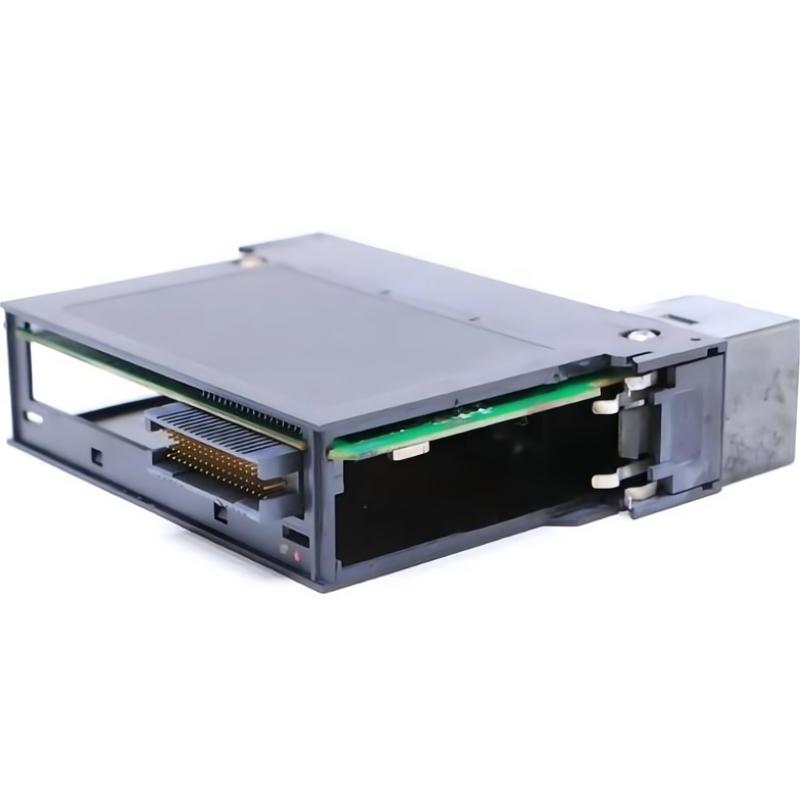

Honeywell TK-ODJ161 DC Output Module

Overview

The Honeywell TK-ODJ161 is a DC output module designed for industrial automation and control systems. It provides reliable switching of DC-powered devices, enabling precise control of actuators, relays, and other process equipment.

General Information

Part Number: TK-ODJ161

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / USA

Series: TK Series

Type: DC Output Module

Mounting: DIN rail or panel-mounted installation within control cabinets

Technology: High-speed DC output switching, modular design, fault detection, and protection

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 3 W

Input: Powered from system or cabinet supply

Protection: Short-circuit protection, reverse-polarity protection, surge protection

Indicators: LED indicators for channel status and fault

Communication & Interface

Interface Ports: Connects directly to the control system backplane

Diagnostics: Channel-level monitoring, fault detection, and status reporting

Operator Interface: LEDs for operational and fault status

Reset Features: Supports soft and hardware reset via controller

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for standard industrial cabinet environments

Dimensions & Weight

Dimensions (L × W × H): 38 × 57 × 78 mm

Weight: ~ 0.2 kg

Compact and Efficient, Perfect for Reliable DC Control!
