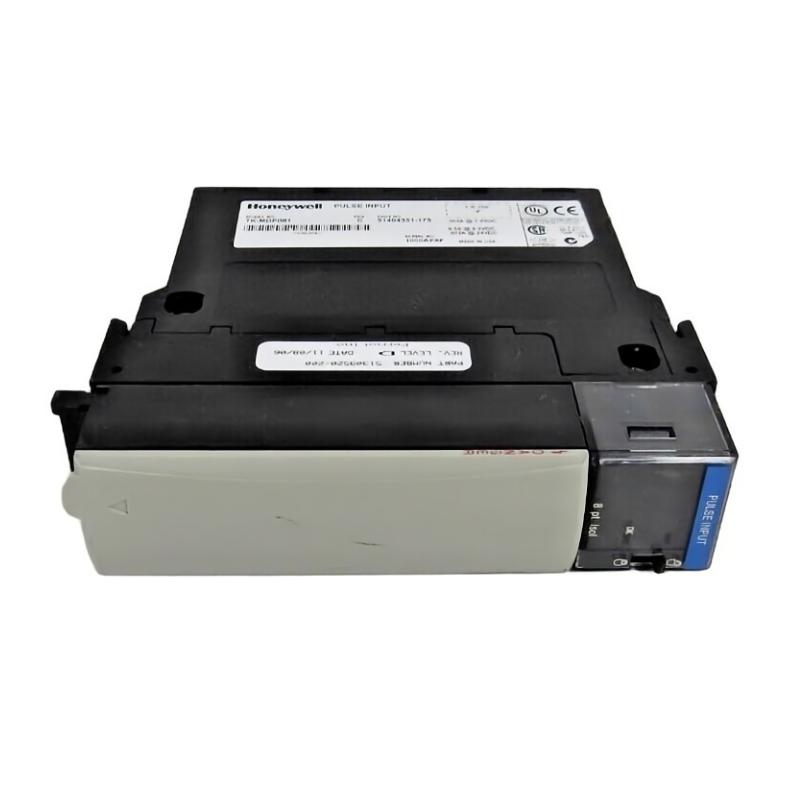

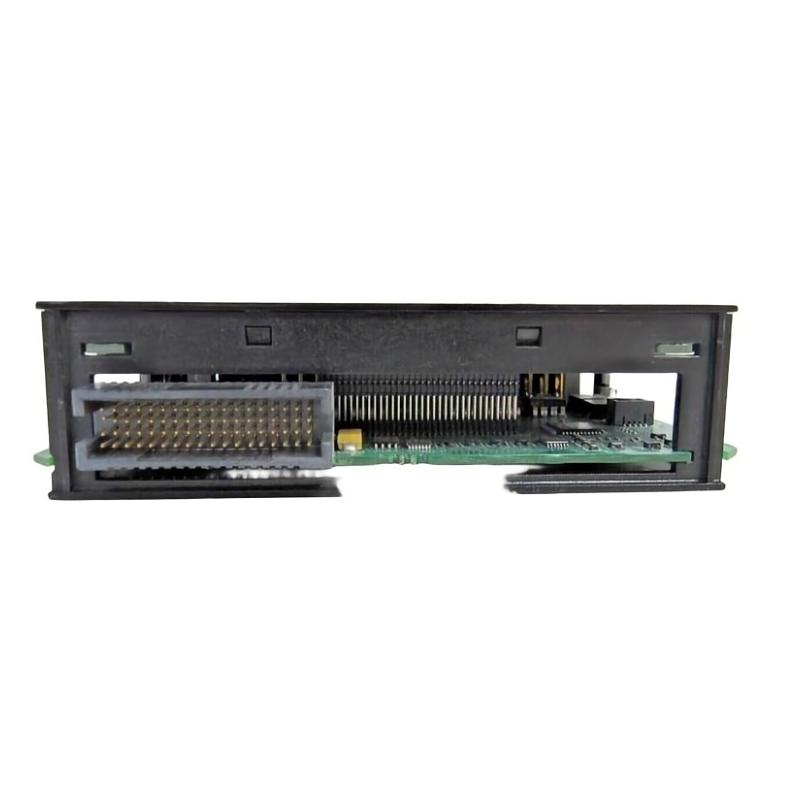

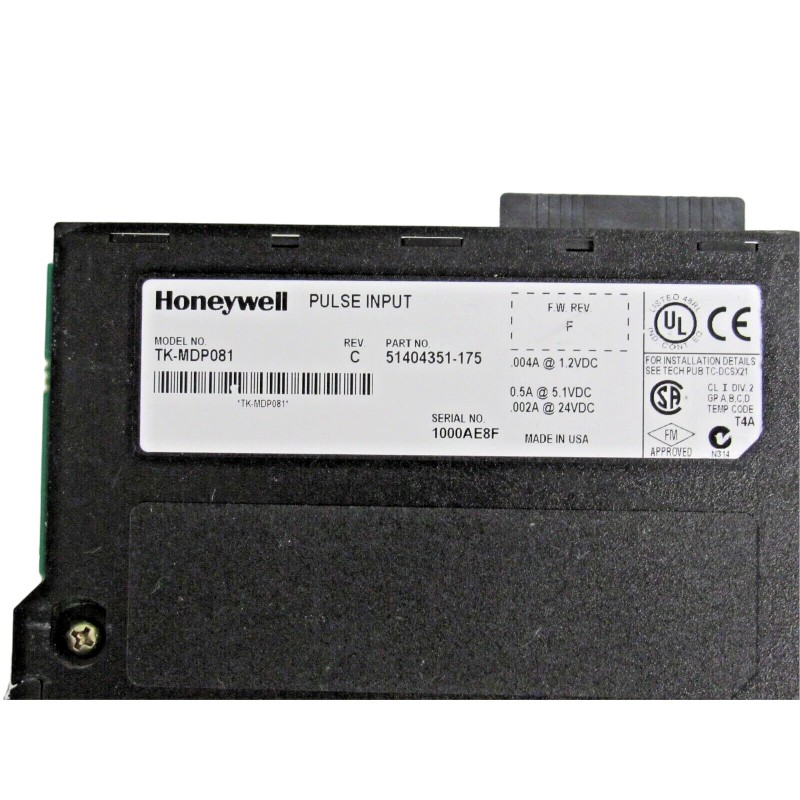

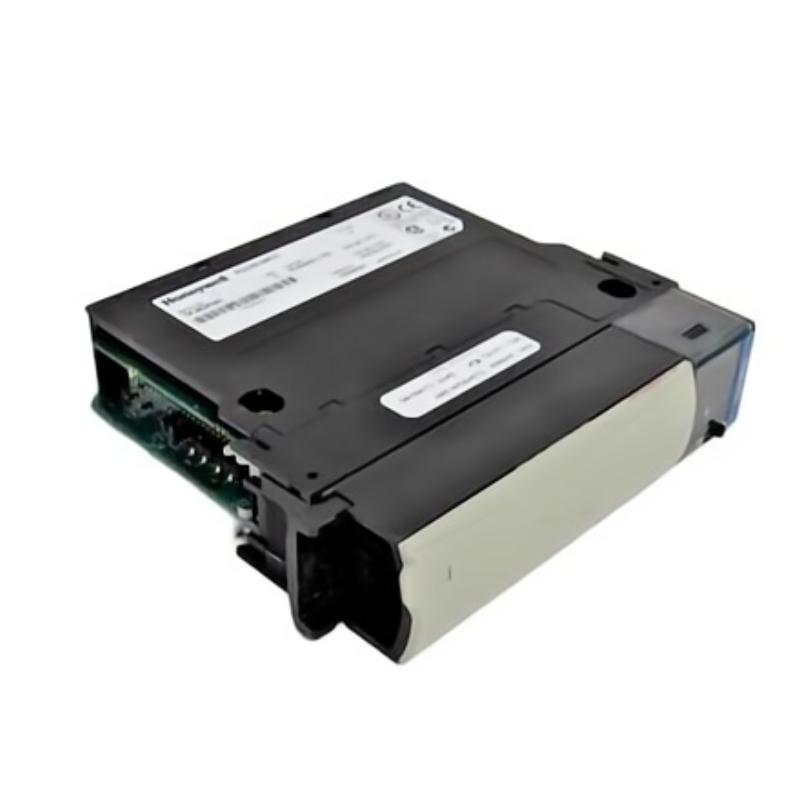

Honeywell TK-MDP081 51404351-175 Pulse Input Module

Overview

The Honeywell TK-MDP081 is a pulse input module designed for industrial automation and control systems. It accurately captures pulse signals from flow meters, sensors, and other field devices, enabling precise measurement and monitoring of process variables.

General Information

Part Number: 51404351-175

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / USA

Series: TK Series

Type: Pulse Input Module

Mounting: DIN rail or panel-mounted installation within control cabinets

Technology: High-speed pulse counting, modular design, fault detection, and signal isolation

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 6 W

Input: Powered from system or cabinet supply

Protection: Surge protection, reverse-polarity protection

Indicators: LED indicators for input status and fault

Communication & Interface

Interface Ports: Connects directly to control system backplane

Diagnostics: Channel-level monitoring, fault detection, and reporting

Operator Interface: LEDs for operational and fault status

Reset Features: Supports controlled software and hardware reset

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for industrial cabinet environments

Dimensions & Weight

Dimensions (L × W × H): 201 × 166 × 35 mm

Weight: ~ 0.27 kg

Accurate Pulse Monitoring, Ready for Quick Integration!
