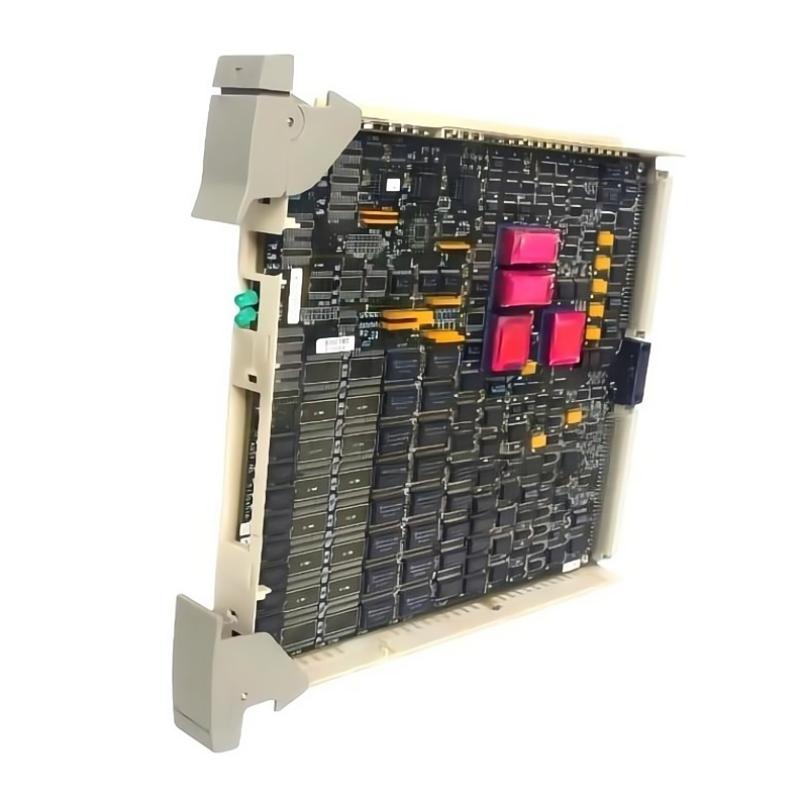

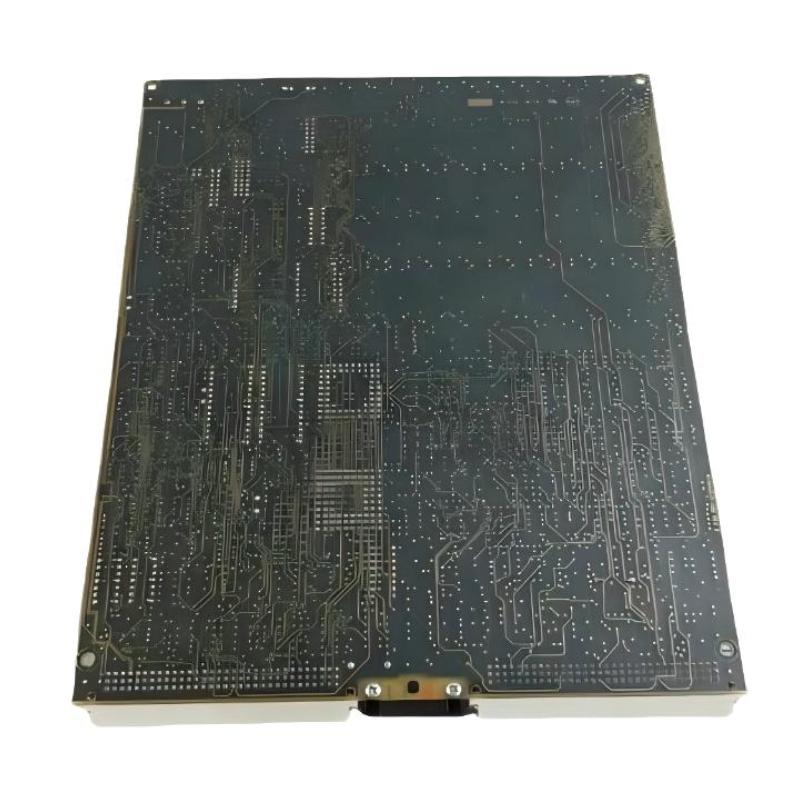

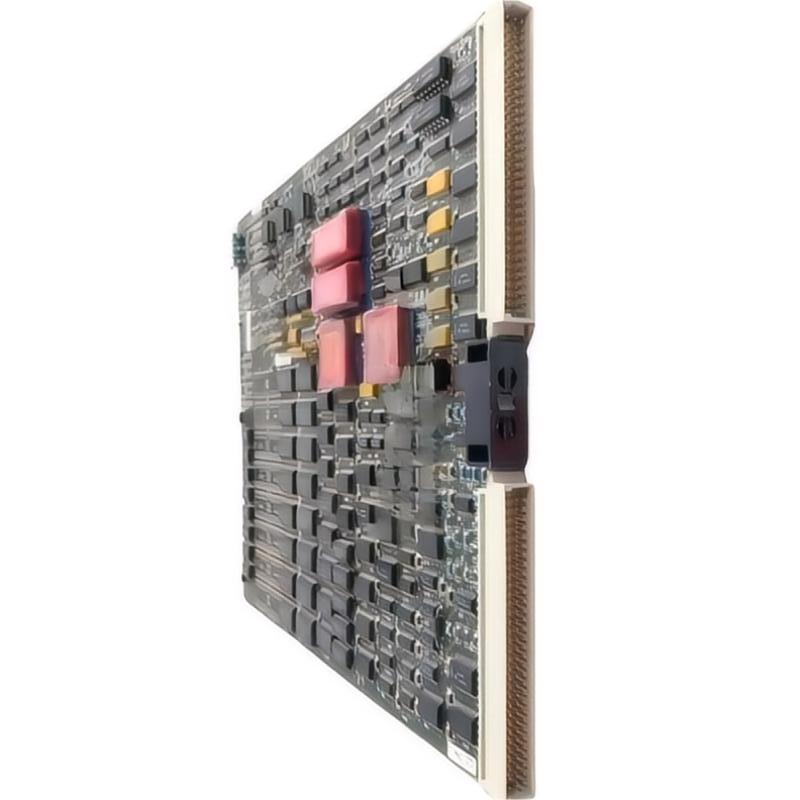

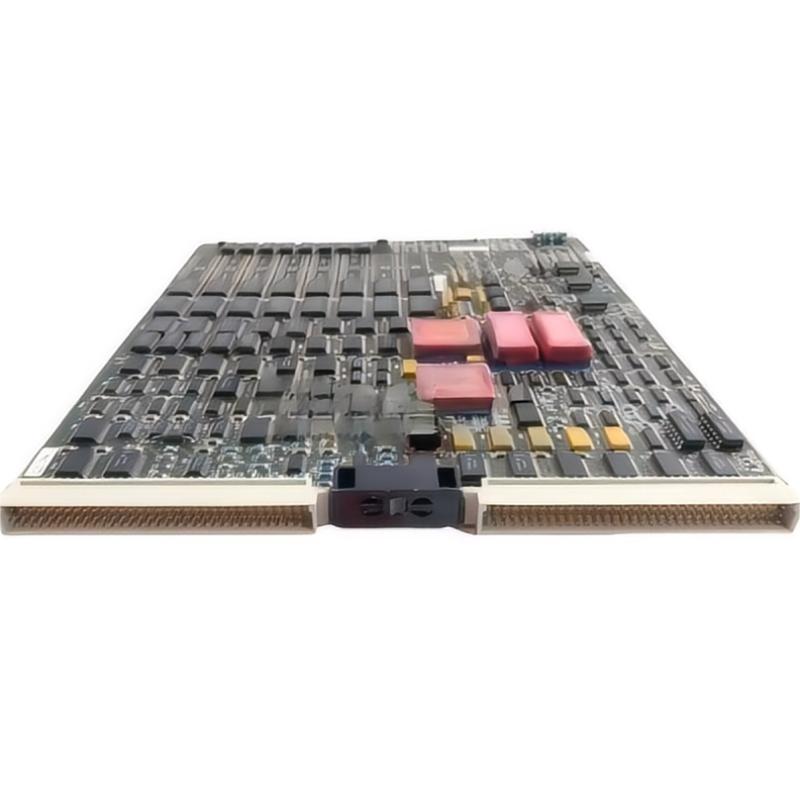

Honeywell MC-PPIX02 51304386-150 Pulse Input Processor

Overview

The Honeywell MC-PPIX02 51304386-150 is a pulse input processor designed for industrial automation systems. It accurately processes pulse signals from field devices, enabling precise measurement, counting, and monitoring of equipment operations in critical control applications.

General Information

Part Number: MC-PPIX02 / 51304386-150

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / USA

Series: MC-PPIX Series

Type: Pulse Input Processor

Mounting: Panel or DIN rail installation within control cabinet

Technology: High-speed pulse processing, signal conditioning, and integration with Honeywell control systems

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Input: Powered through system interface

Protection: Overvoltage, short-circuit, and reverse-polarity protection

Indicators: LED for power and operational status

Communication & Interface

Communication Ports: Field device input and system interface connections

Protocol Support: Compatible with Honeywell MC automation systems

Diagnostics: Pulse signal integrity monitoring, fault detection

Operator Interface: LED indicators for power and status

Reset Features: Supports soft reset via system interface

I/O & Channels

Input Channels: Pulse signal inputs from field devices

External Load Support: N/A

Environmental

Operating Temperature: 0 to +55 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (industrial cabinet environment)

Dimensions & Weight

Dimensions (L × W × H): 246 × 105 × 27 mm

Weight: ~ 0.8 kg

Fast Shipping – Ensure Accurate Pulse Processing for Your Automation Systems!
