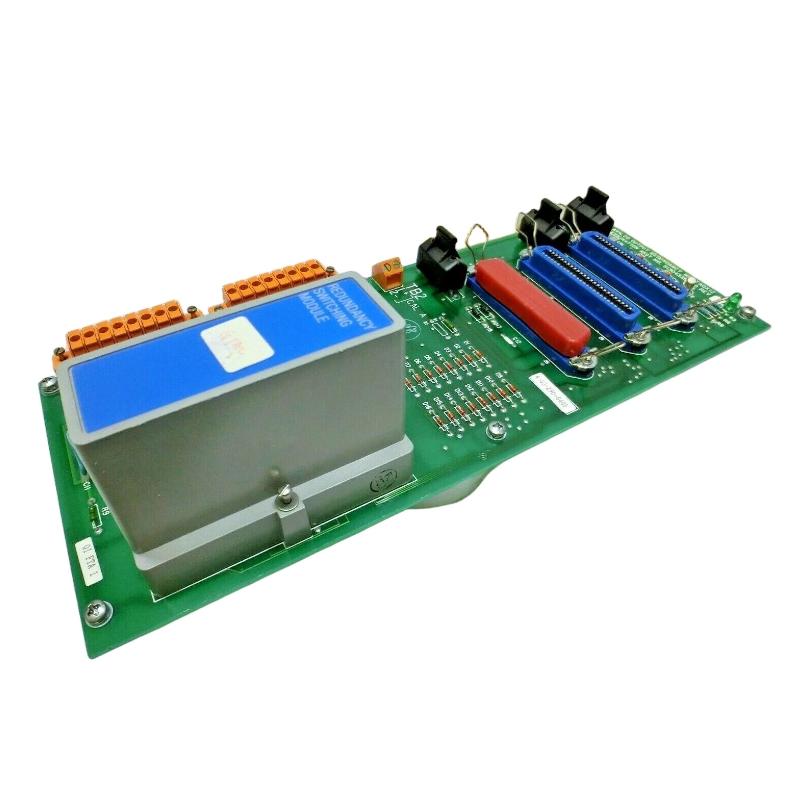

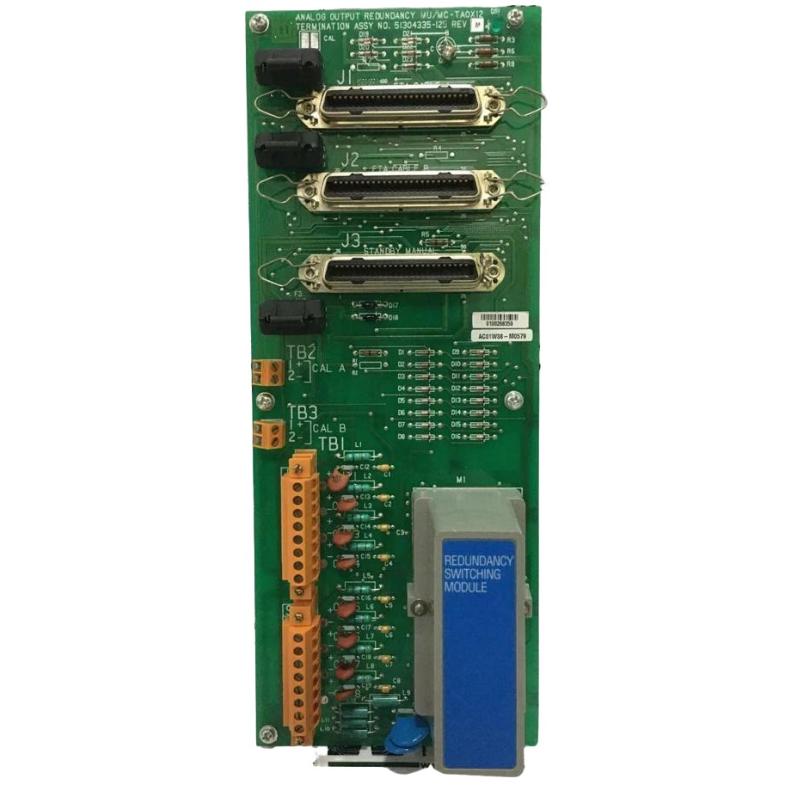

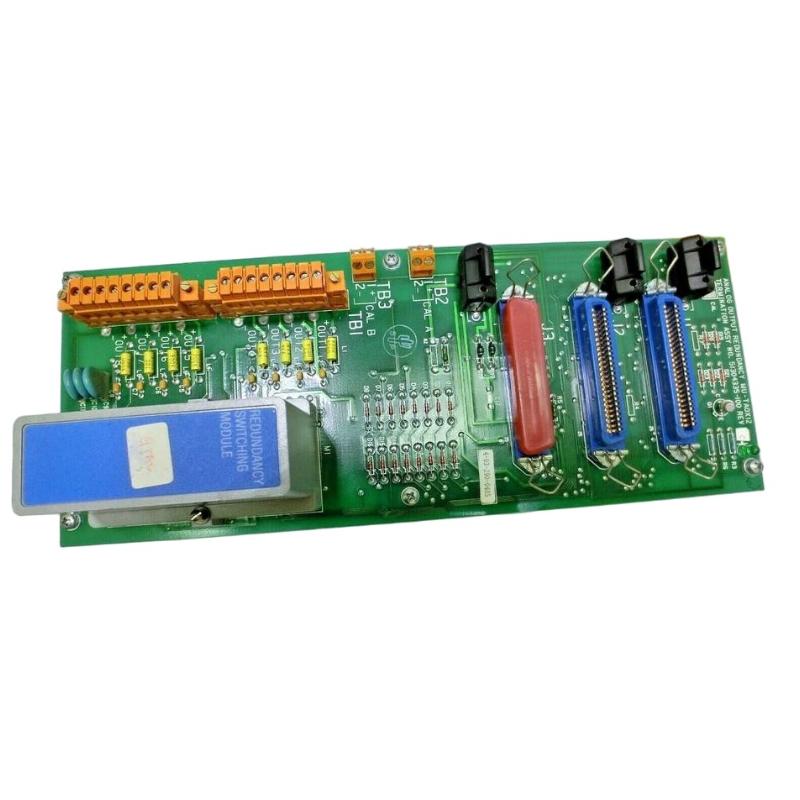

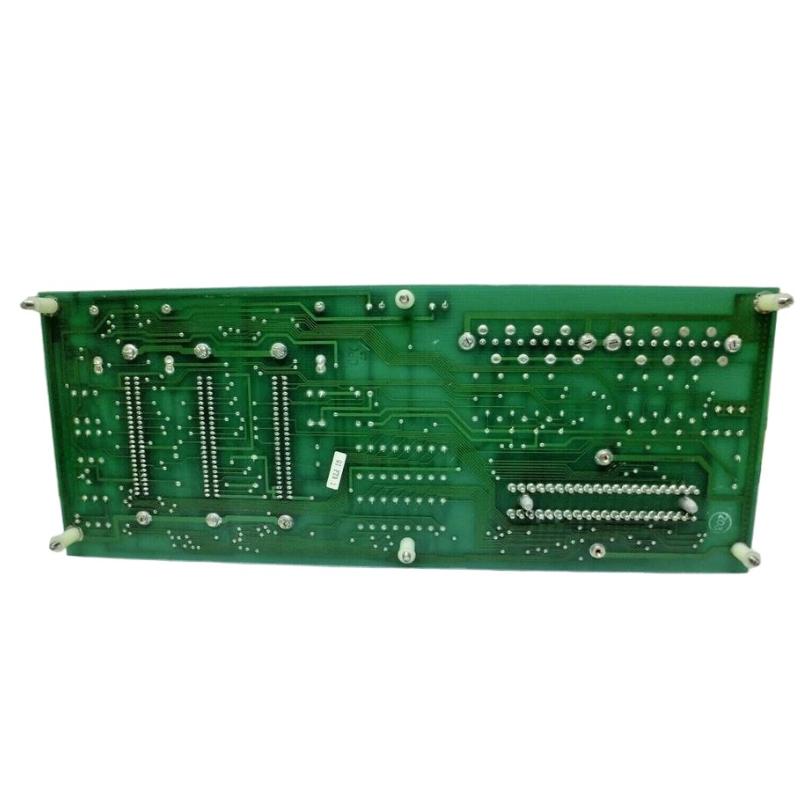

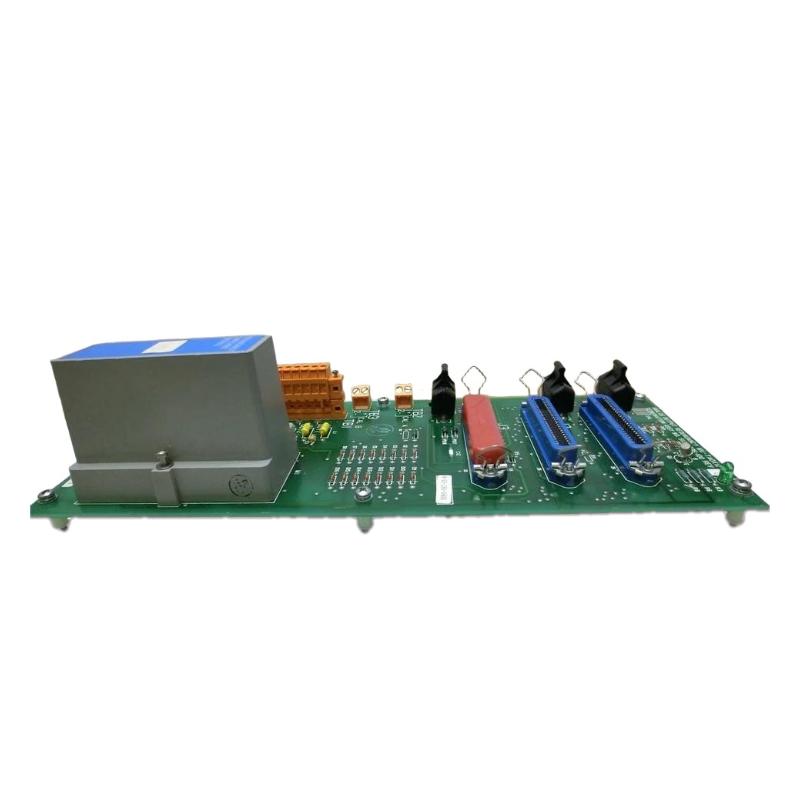

Honeywell MU-TAOX12 51304335-100 Analog Output Terminal Assembly

Overview

The Honeywell MU-TAOX12 51304335-100 is an analog output terminal assembly designed for Honeywell Experion and industrial automation systems. It delivers accurate and reliable analog outputs, supporting voltage or current control signals to drive actuators, valves, and other field devices for precise process automation.

General Information

Part Number: 51304335-100

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / USA

Series: MU-TAOX

Type: Analog Output Terminal Assembly

Mounting: Rack or card installation within control system chassis

Technology: High-precision analog output, signal conditioning, and diagnostic monitoring

Power Specifications

Supply Voltage: 5 V DC from backplane

Power Consumption: ≤ 7 W

Input: Powered via system backplane

Protection: Overvoltage, short-circuit, and reverse-polarity protection

Indicators: LEDs for power, output activity, and fault status

Communication & Interface

Output Channels: Multiple analog output channels (voltage/current configurable)

Interface: Backplane bus interface with Experion controllers

Diagnostics: Signal integrity, output monitoring, and error detection

Operator Interface: LED indicators for output activity and fault conditions

Reset Features: Supports system-level reset and card-specific soft reset

Environmental

Operating Temperature: −20 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or installed within industrial control cabinet

Dimensions & Weight

Dimensions (L × W × H): 264 × 32 × 127 mm

Weight: 0.4 kg
