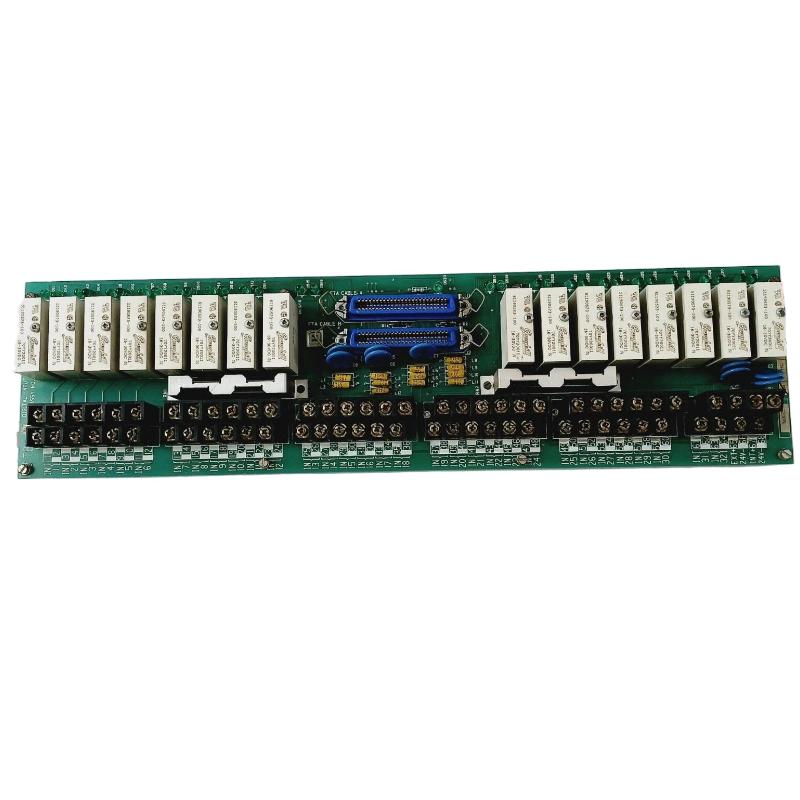

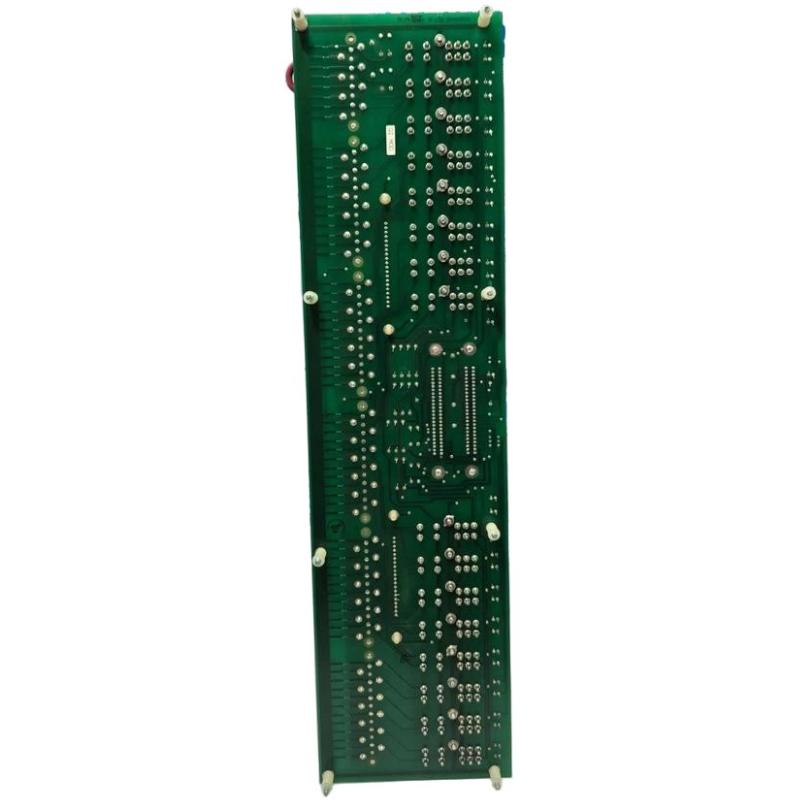

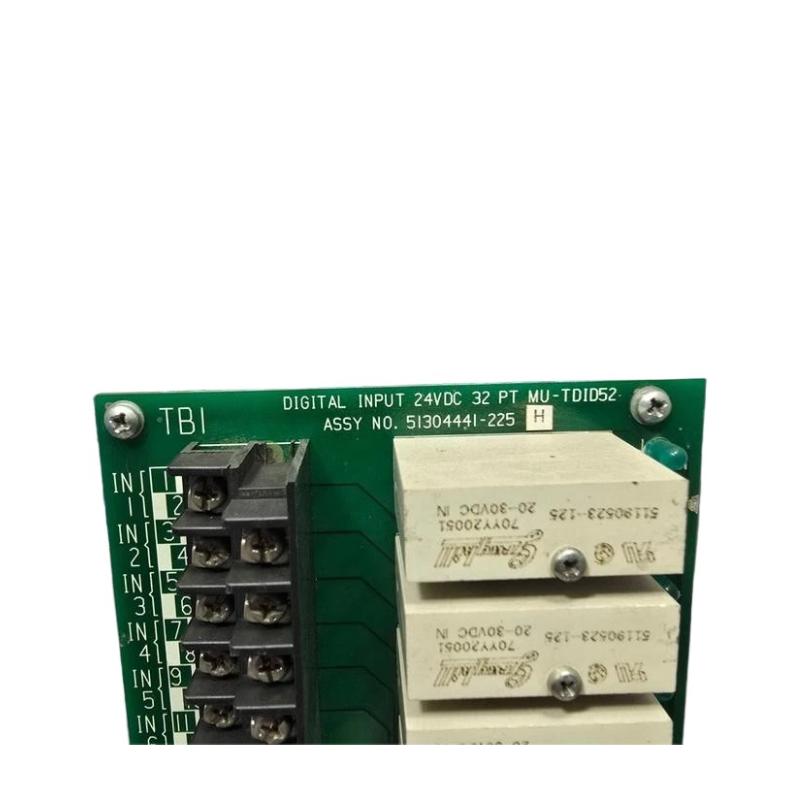

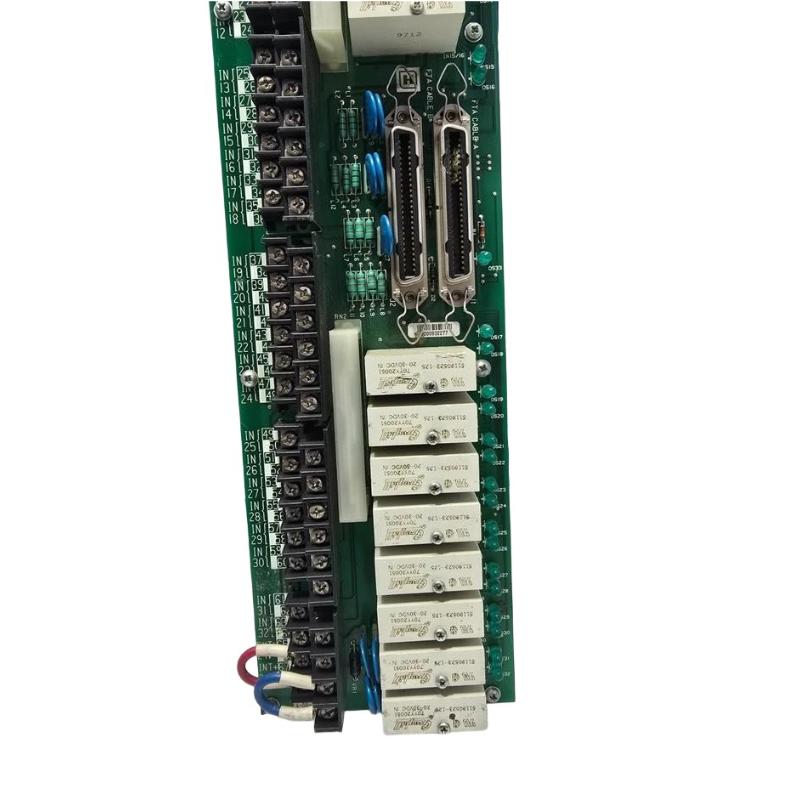

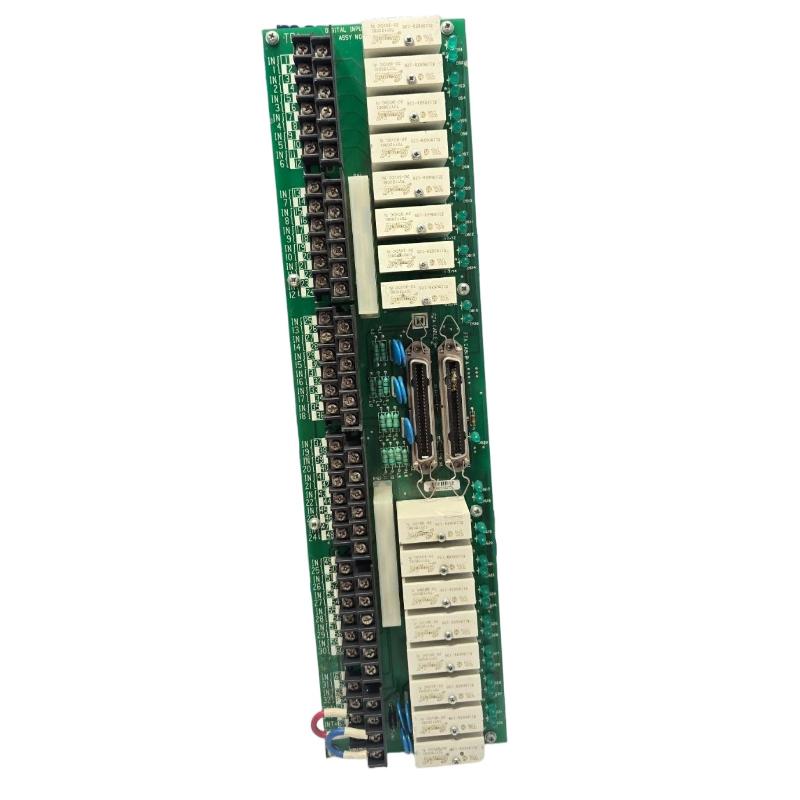

Honeywell MU-TDID52 51304441-225 Digital Input Field Termination Components

Overview

The Honeywell MU-TDID52 51304441-225 is a digital input field termination assembly designed for Honeywell Experion and industrial automation systems. It provides organized and secure wiring for multiple digital input signals, ensuring reliable signal transmission and accurate monitoring for process control applications.

General Information

Part Number: 51304441-225

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / USA

Series: MU-TDID

Type: Digital Input Field Termination Components

Mounting: Rack or panel installation within control system cabinet

Technology: Field termination, signal routing, and diagnostic support

Power Specifications

Supply Voltage: Powered via backplane or external system source

Power Consumption: ≤ 5 W

Protection: Overvoltage, short-circuit, and reverse-polarity protection

Indicators: LEDs for power and input signal status

Communication & Interface

Input Channels: Multiple digital input channels

Interface: Backplane or field bus connection to Experion controllers

Diagnostics: Input status monitoring, signal integrity checks, and fault detection

Operator Interface: LED indicators for channel activity and fault conditions

Reset Features: Supports system-level reset

Environmental

Operating Temperature: −20 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or installed within industrial control cabinet

Dimensions & Weight

Dimensions (L × W): 462.3 × 120.7 mm

Weight: 0.68 kg
