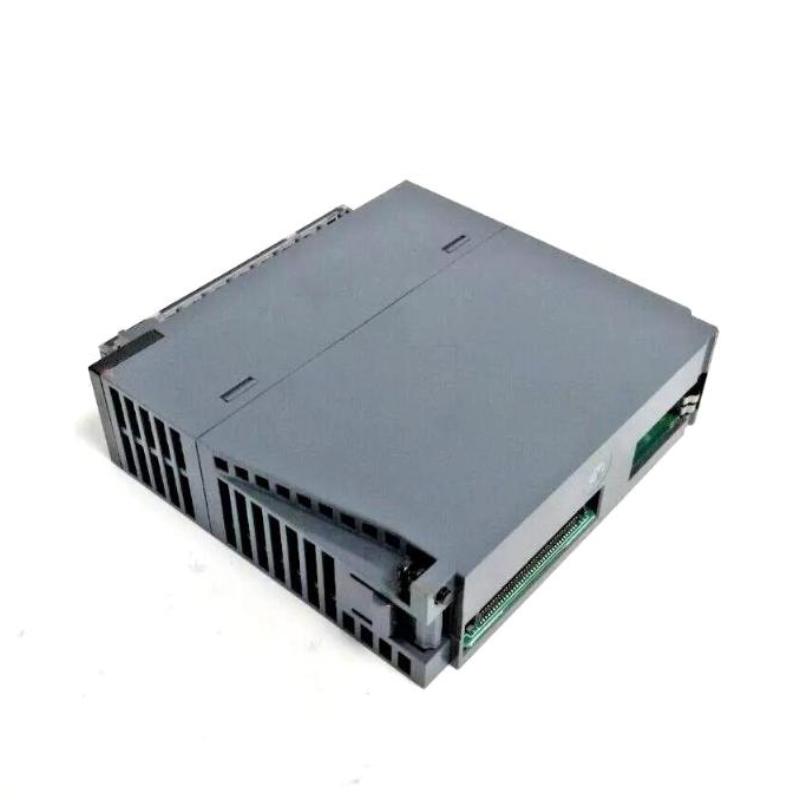

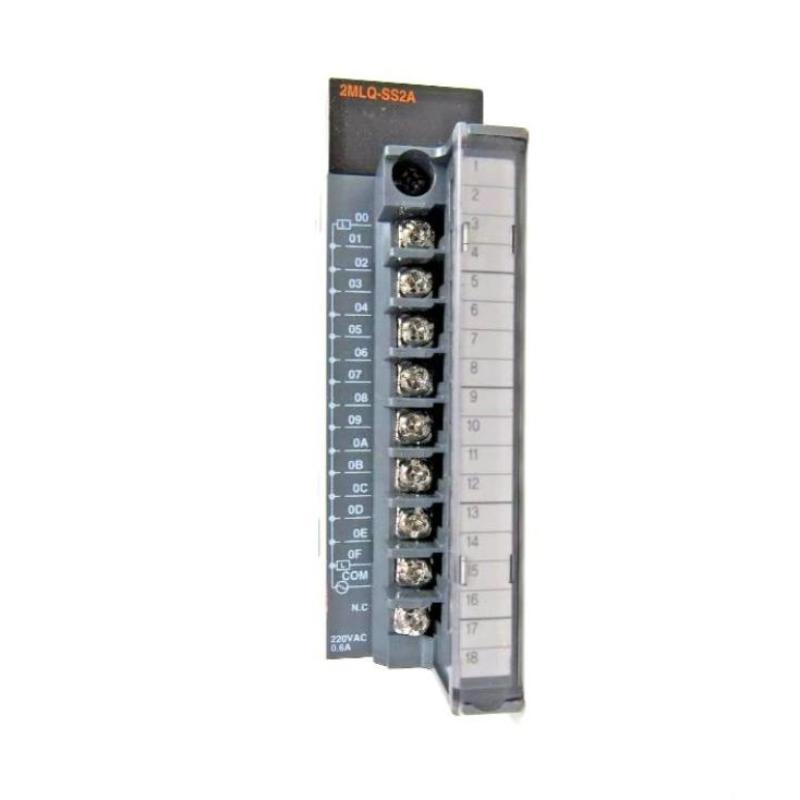

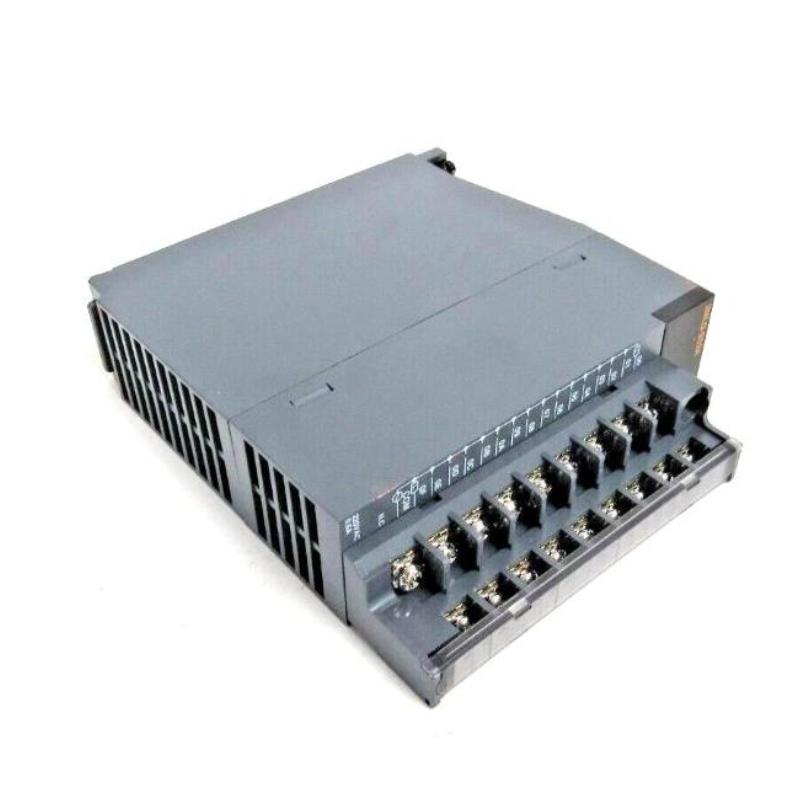

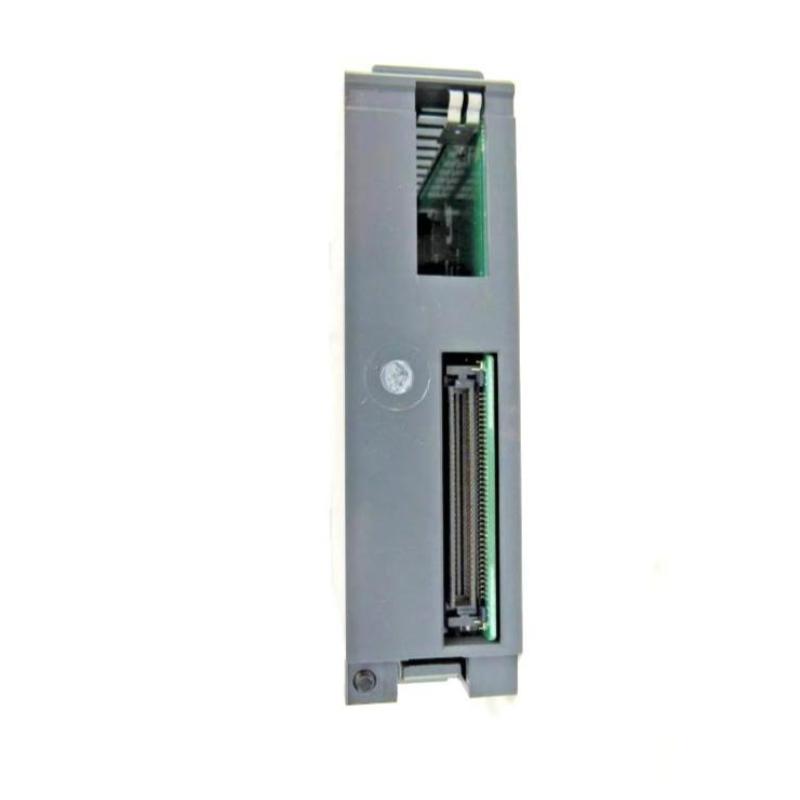

Honeywell 2MLQ-SS2A-CC Three-Terminal Bidirectional Thyristor Output Module

Overview

The Honeywell 2MLQ-SS2A-CC is a solid-state output module utilizing three-terminal bidirectional thyristor technology for reliable AC load control. It is designed for high-frequency switching applications, offering silent operation, long lifespan, and enhanced durability without mechanical wear.

General Information

Part Number: 2MLQ-SS2A-CC

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / United States

Series: MLQ I/O Series

Type: Three-Terminal Bidirectional Thyristor Output Module

Mounting: Rack or panel-mounted within compatible automation systems

Function: Provides solid-state switching of AC loads using bidirectional thyristor outputs

Power Specifications

Supply Voltage: Powered via system backplane

Power Consumption: Energy-efficient design with low heat generation

Output Type: Solid-state thyristor (triac-based) outputs

Load Voltage Range: Suitable for AC load control applications

Switching Characteristics: Fast response with no mechanical wear

Protection: Integrated surge protection and electrical isolation

Indicators: LED indicators for module status and output channels

Communication & Interface

System Interface: Backplane communication with controller

Signal Transmission: Internal digital signal routing from CPU

Diagnostics: Real-time status monitoring via LEDs and system diagnostics

Operator Interface: LED indicators for channel activity and status

Compatibility: Designed for PLC and DCS system integration

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Suitable for installation in industrial enclosures

Vibration Resistance: Complies with industrial vibration standards

Dimensions & Weight

Dimensions (L × W × H): 114 × 48 × 127 mm

Weight: 0.2 kg

High Efficiency Switching – Built for Continuous Operation!
