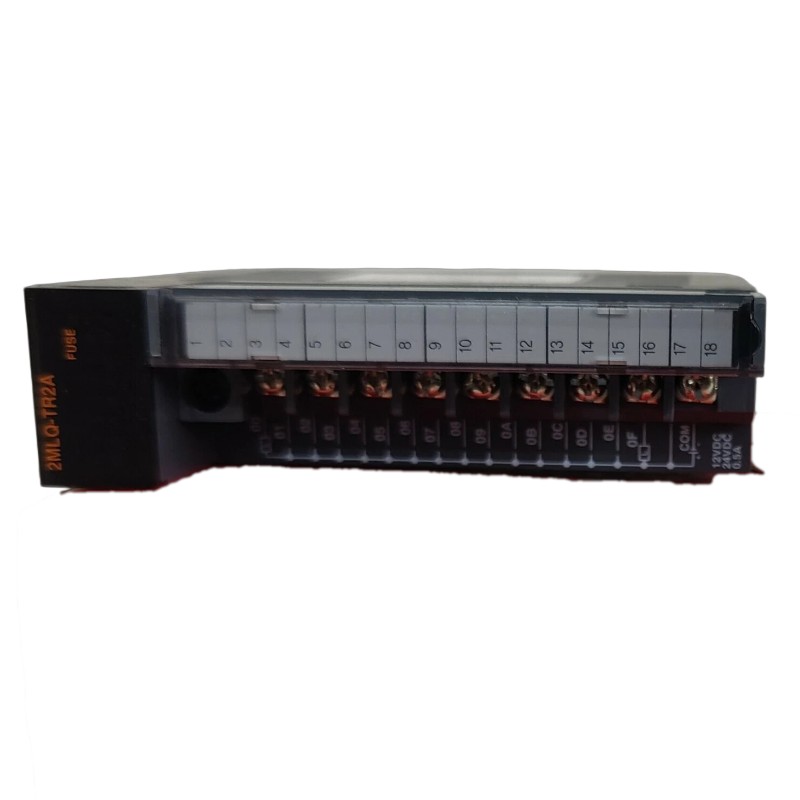

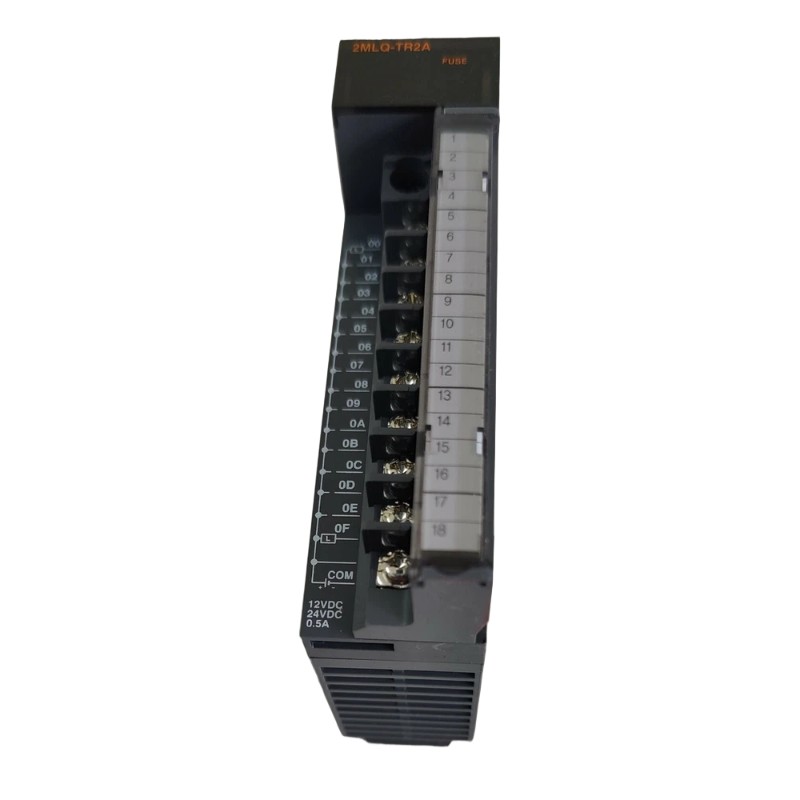

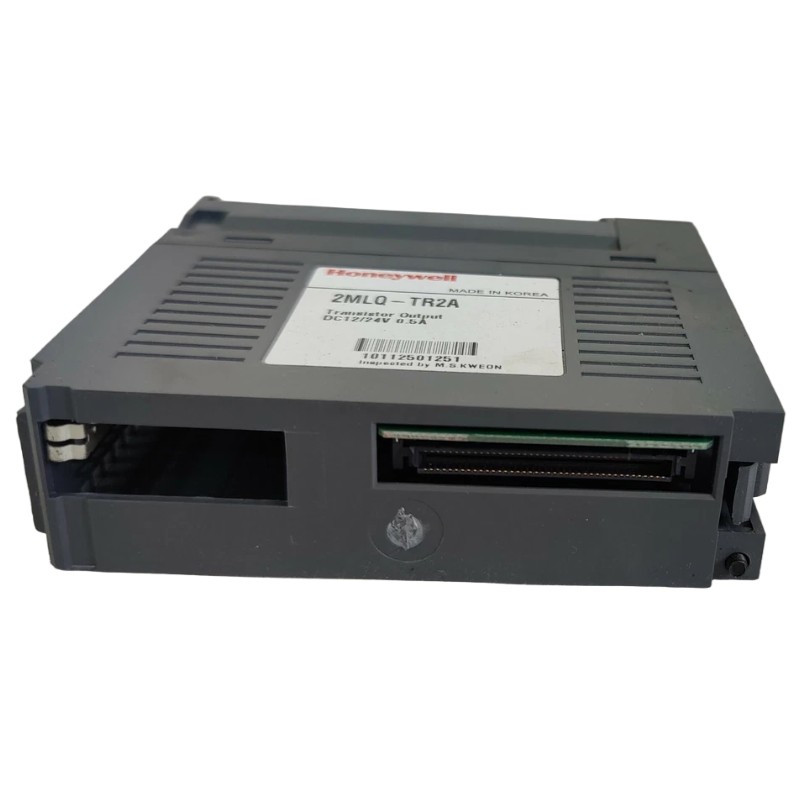

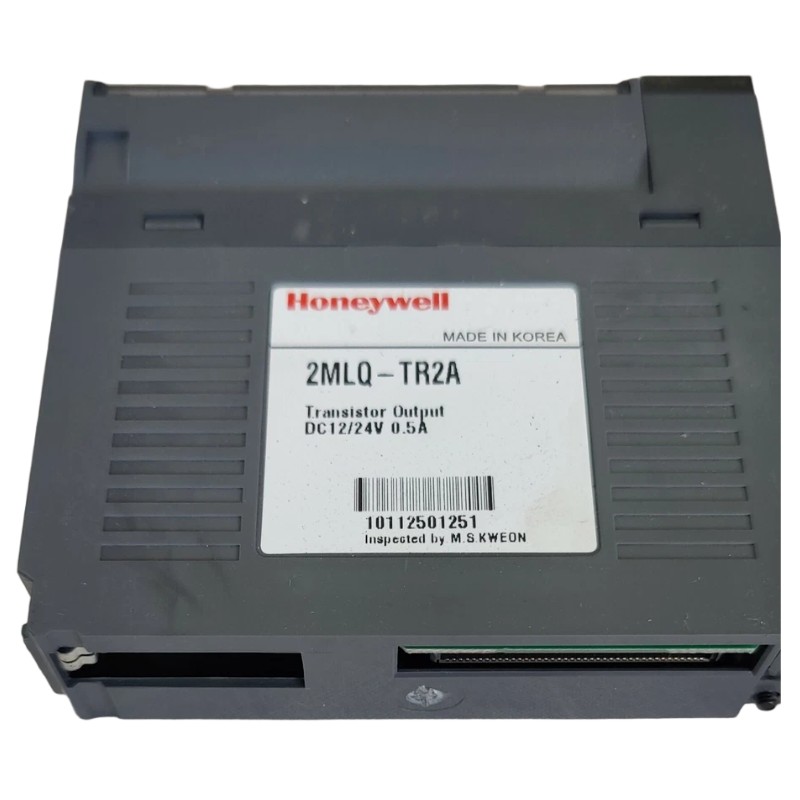

Honeywell 2MLQ-TR2A Output Module

Overview

The Honeywell 2MLQ-TR2A is a compact and efficient output module designed for industrial automation systems. It delivers reliable signal output for controlling external devices, ensuring stable performance and precise operation in various control applications.

General Information

Part Number: 2MLQ-TR2A

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / United States

Series: MLQ I/O Series

Type: Output Module

Mounting: Rack or panel-mounted within compatible control systems

Function: Provides output signal control for external devices in automation systems

Power Specifications

Supply Voltage: Powered via system backplane

Power Consumption: Low power consumption design

Output Type: Transistor-based outputs (typical configuration)

Load Voltage Range: Suitable for DC load control applications

Protection: Built-in electrical protection and isolation

Indicators: LED indicators for module and channel status

Communication & Interface

System Interface: Backplane communication with controller

Signal Transmission: Internal routing of digital signals from CPU

Diagnostics: LED status monitoring and system diagnostics support

Operator Interface: Visual LED indicators for output channels

Compatibility: Designed for integration with PLC and DCS platforms

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Suitable for industrial cabinet environments

Vibration Resistance: Meets standard industrial vibration requirements

Dimensions & Weight

Dimensions (L × W × H): 114 × 48 × 127 mm

Weight: 0.11 kg

Compact Design – Perfect for Space-Saving Installations!
