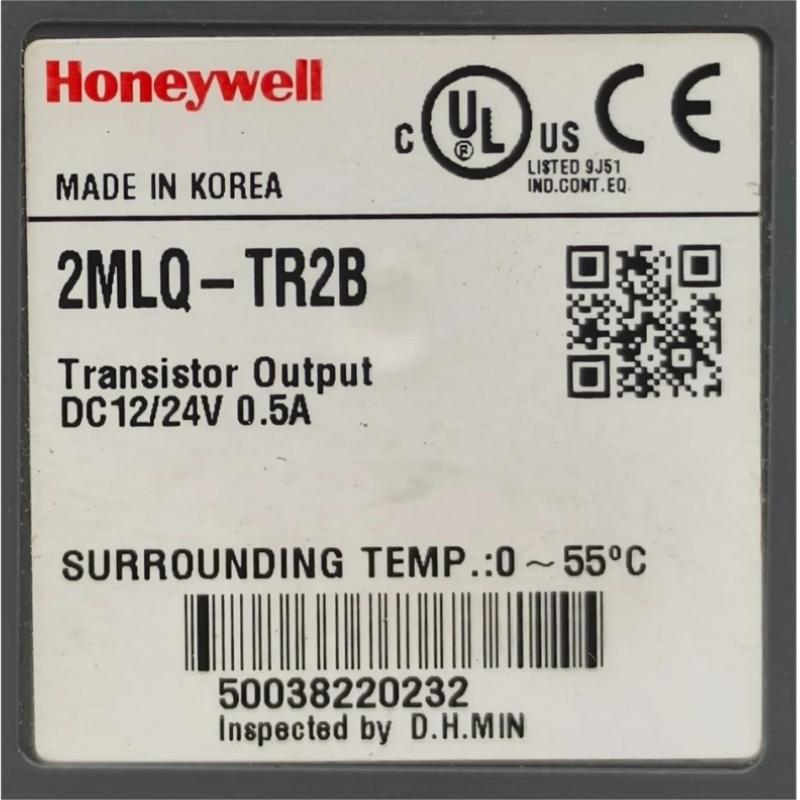

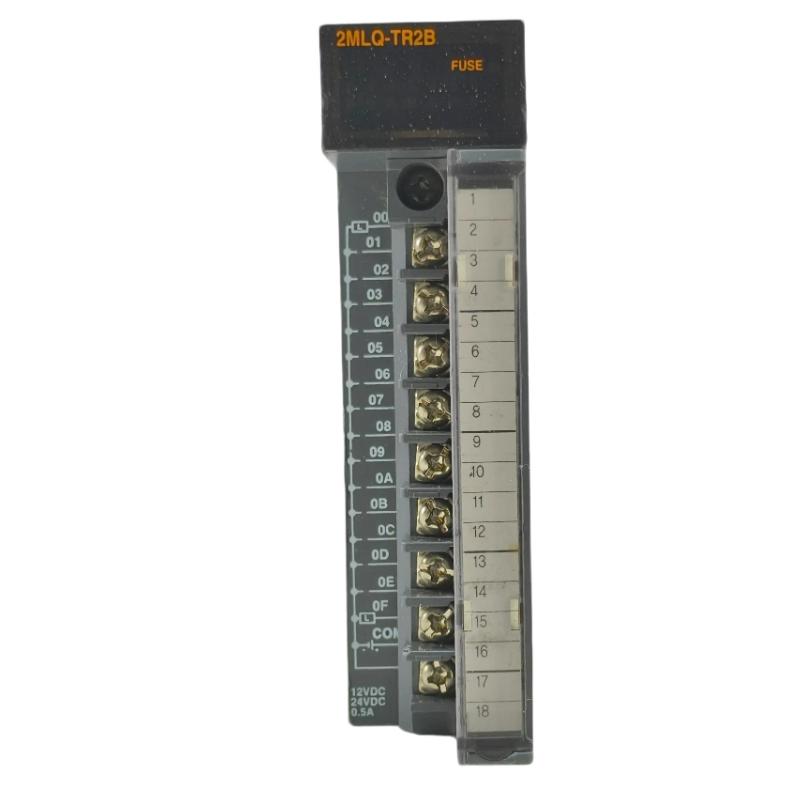

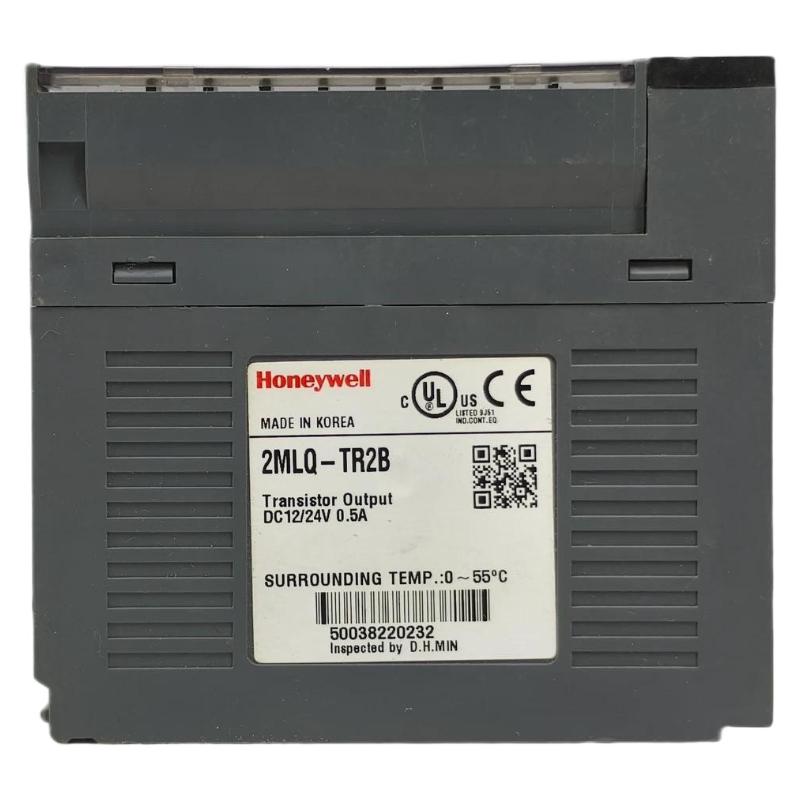

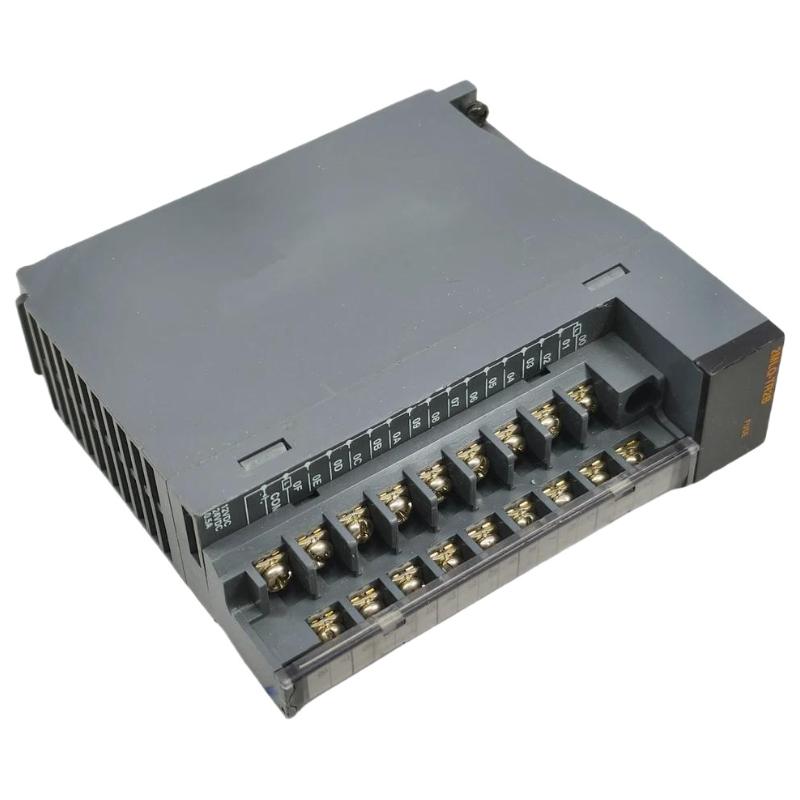

Honeywell 2MLQ-TR2B Digital Output Module

Overview

The Honeywell 2MLQ-TR2B is a reliable digital output module designed for industrial automation systems. It provides fast and stable signal switching for controlling external DC devices such as relays, indicators, and actuators, ensuring consistent performance in demanding environments.

General Information

Part Number: 2MLQ-TR2B

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / United States

Series: MLQ I/O Series

Type: Digital Output Module

Mounting: Rack or panel-mounted within compatible control systems

Function: Converts digital control signals into transistor-based outputs for field devices

Power Specifications

Supply Voltage: Powered via system backplane

Power Consumption: Low power consumption for efficient system operation

Output Type: Transistor (solid-state) outputs

Load Voltage Range: Designed for DC load control applications

Protection: Integrated electrical protection and isolation

Indicators: LED indicators for module status and output channels

Communication & Interface

System Interface: Backplane communication with controller

Signal Transmission: Internal digital signal routing from CPU

Diagnostics: LED-based status monitoring and system diagnostics

Operator Interface: LED indicators for each output channel

Compatibility: Suitable for PLC and DCS system integration

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Designed for industrial enclosure installation

Vibration Resistance: Meets standard industrial requirements

Dimensions & Weight

Dimensions (L × W × H): 114 × 48 × 127 mm

Weight: 0.12 kg

Stable Performance – Ready for Immediate Deployment!
