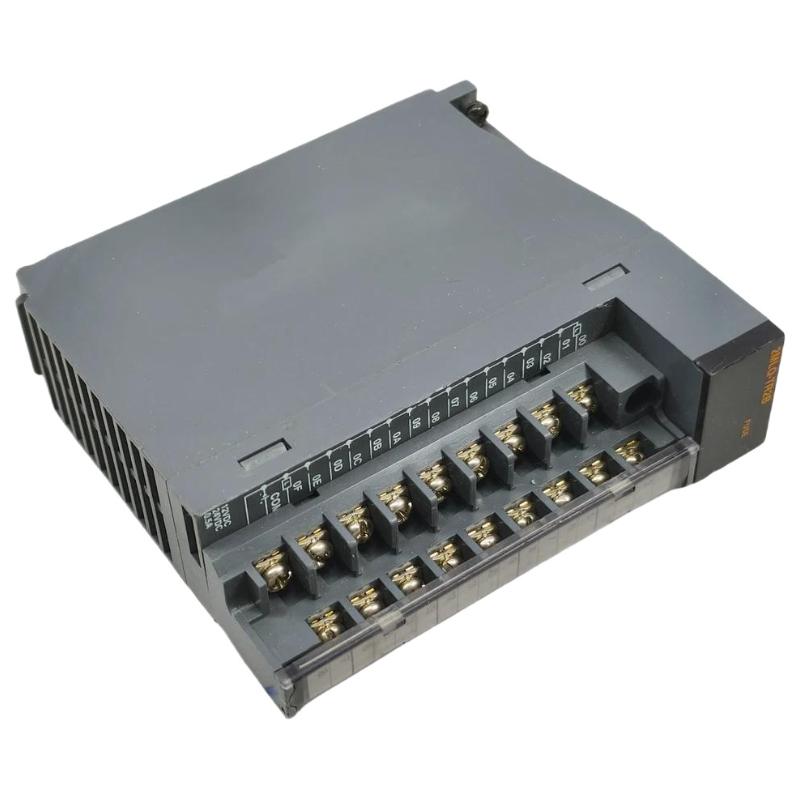

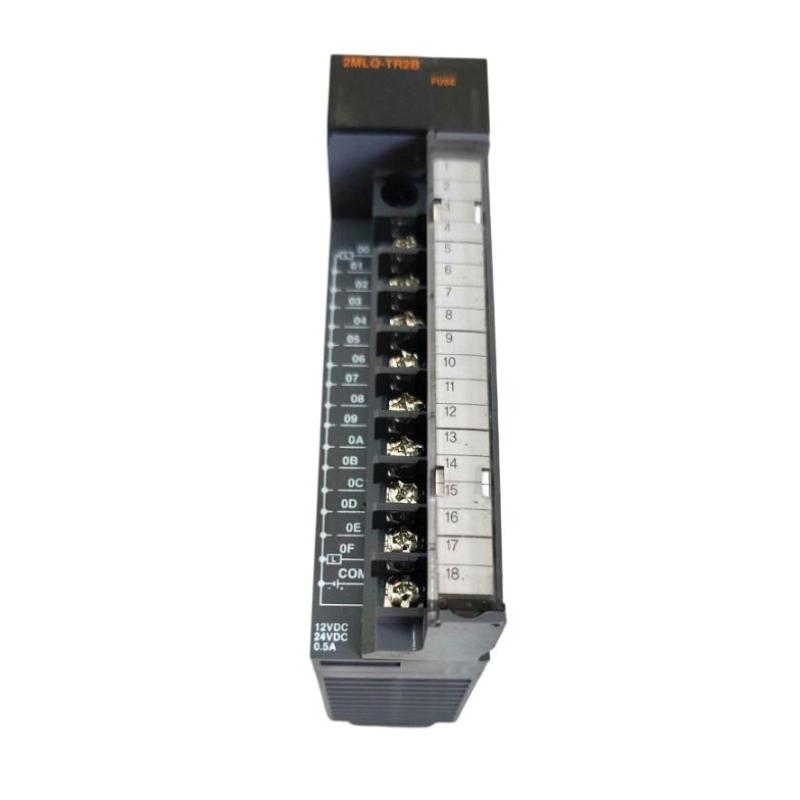

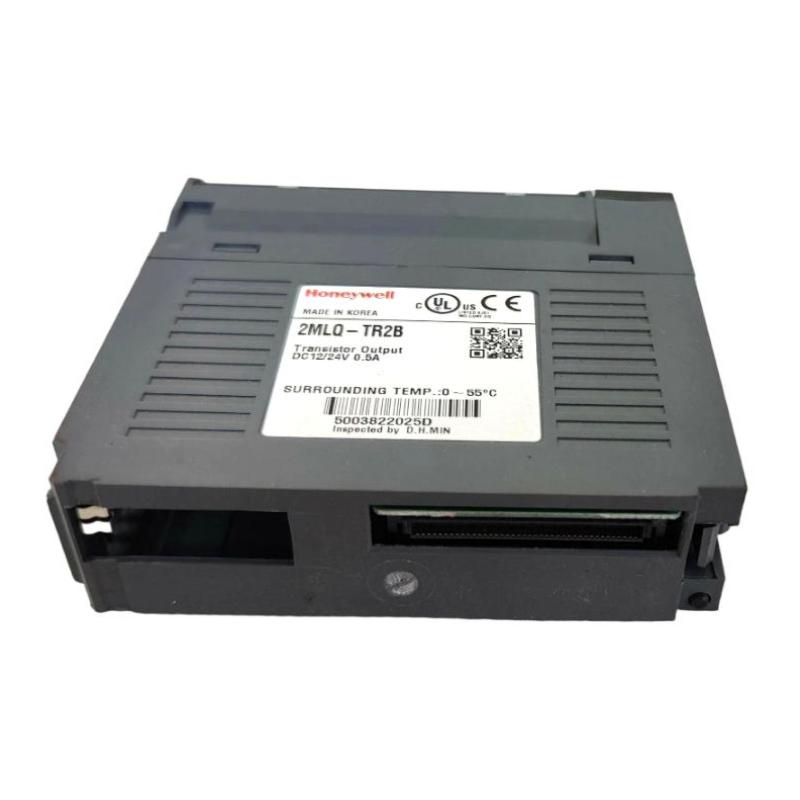

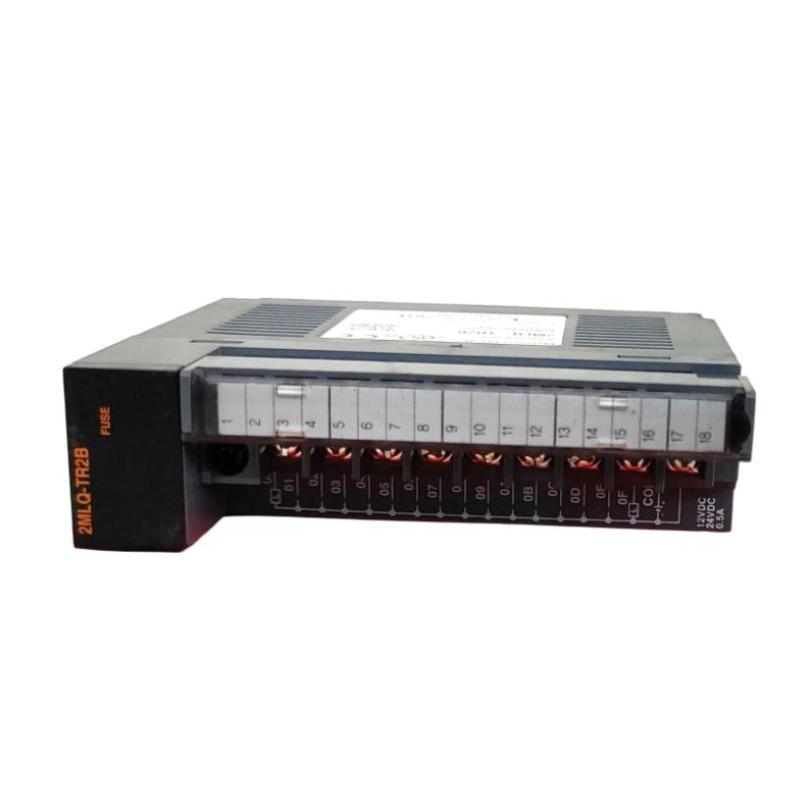

Honeywell 2MLQ-TR2BA Digital Output Module

Overview

The Honeywell 2MLQ-TR2BA is a high-efficiency digital output module designed for precise control in industrial automation systems. It delivers fast and reliable switching for DC-powered devices such as relays, indicators, and actuators, ensuring stable and consistent operation in critical environments.

General Information

Part Number: 2MLQ-TR2BA

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / United States

Series: MLQ I/O Series

Type: Digital Output Module

Mounting: Rack or panel-mounted within compatible control systems

Function: Converts digital signals into transistor-based outputs for field device control

Power Specifications

Supply Voltage: Powered via system backplane

Power Consumption: Low power consumption design for efficient operation

Output Type: Transistor (solid-state) outputs

Load Voltage Range: Suitable for DC load switching applications

Protection: Built-in electrical protection and isolation

Indicators: LED indicators for module status and output channels

Communication & Interface

System Interface: Backplane communication with controller

Signal Transmission: Internal digital signal routing from CPU

Diagnostics: LED-based status monitoring and system diagnostics support

Operator Interface: LED indicators for each output channel

Compatibility: Designed for seamless integration with PLC and DCS systems

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Suitable for industrial cabinet installation

Vibration Resistance: Meets standard industrial vibration requirements

Dimensions & Weight

Dimensions (L × W × H): 114 × 48 × 127 mm

Weight: 0.12 kg

Reliable Output Control – Engineered for Industrial Excellence!
