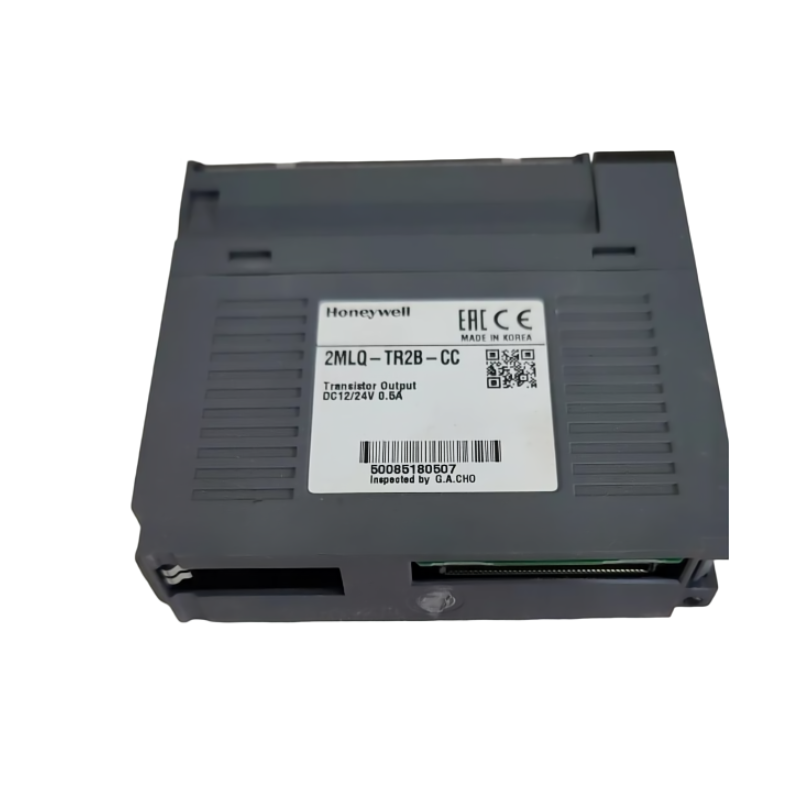

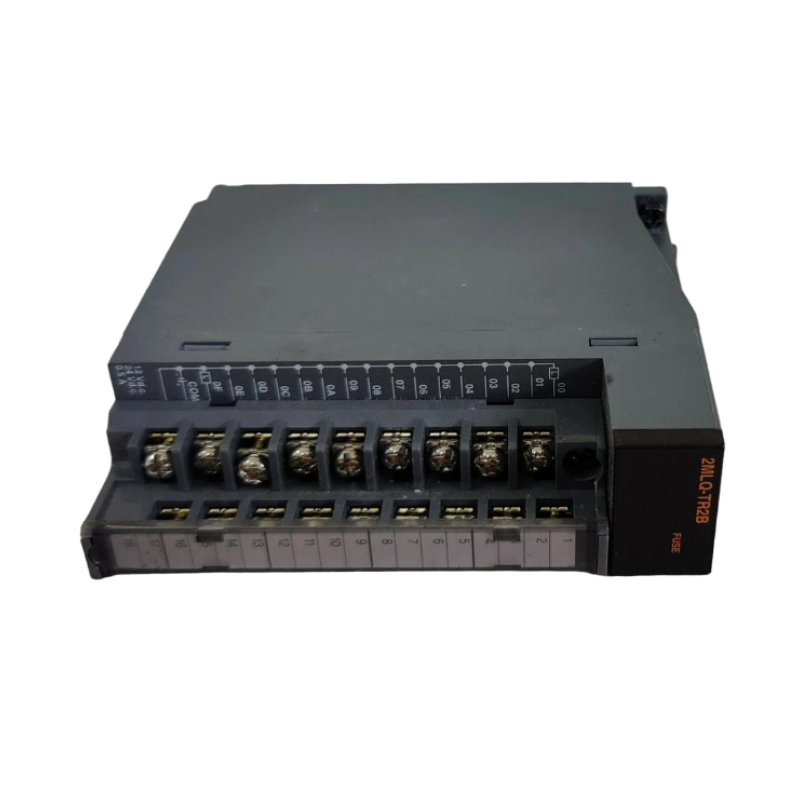

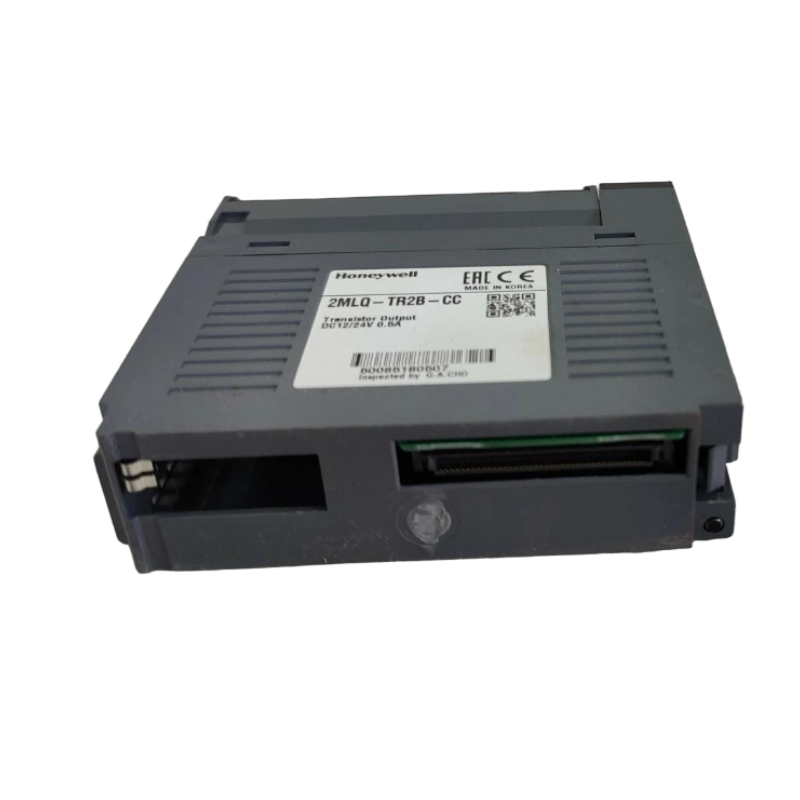

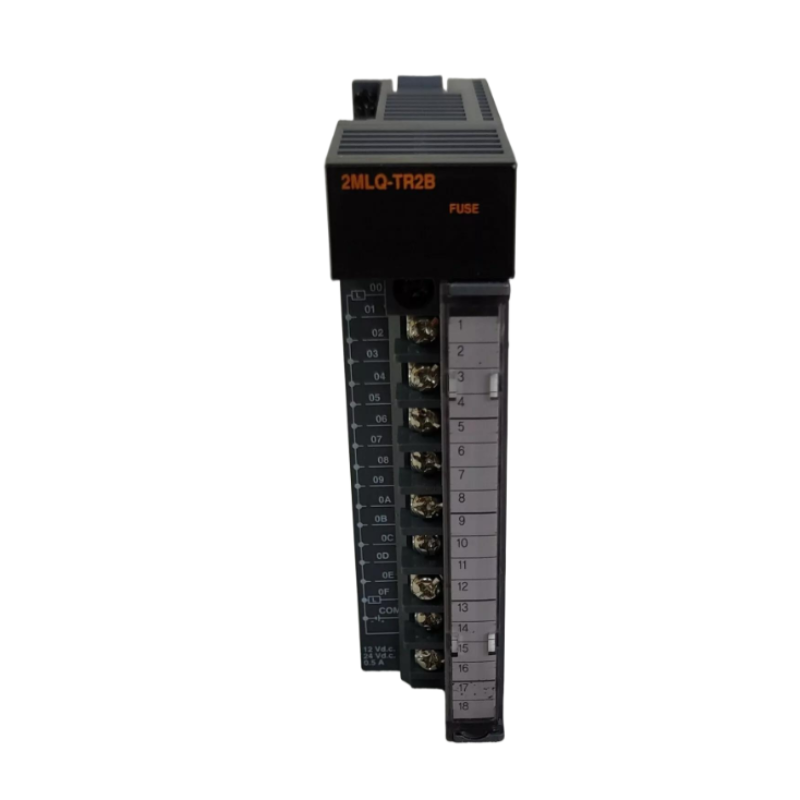

Honeywell 2MLQ-TR2B-CC Digital Output Module

Overview

The Honeywell 2MLQ-TR2B-CC is a compact digital output module designed for high-performance industrial automation systems. It provides fast and reliable transistor-based switching for DC loads, making it ideal for controlling relays, indicators, and actuators with precision and stability.

General Information

Part Number: 2MLQ-TR2B-CC

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / United States

Series: MLQ I/O Series

Type: Digital Output Module

Mounting: Rack or panel-mounted within compatible control systems

Function: Converts digital control signals into solid-state outputs for field devices

Power Specifications

Supply Voltage: Powered via system backplane

Power Consumption: Low power consumption for efficient system integration

Output Type: Transistor (solid-state) outputs

Load Voltage Range: Designed for DC load switching applications

Protection: Integrated electrical protection and isolation

Indicators: LED indicators for module status and output channels

Communication & Interface

System Interface: Backplane communication with controller

Signal Transmission: Internal digital signal routing from CPU

Diagnostics: LED-based monitoring and system diagnostics support

Operator Interface: Visual LED indicators for each output channel

Compatibility: Suitable for PLC and DCS automation platforms

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Designed for installation in industrial enclosures

Vibration Resistance: Meets standard industrial requirements

Dimensions & Weight

Dimensions (L × W × H): 22 × 124 × 126 mm

Weight: 0.12 kg
