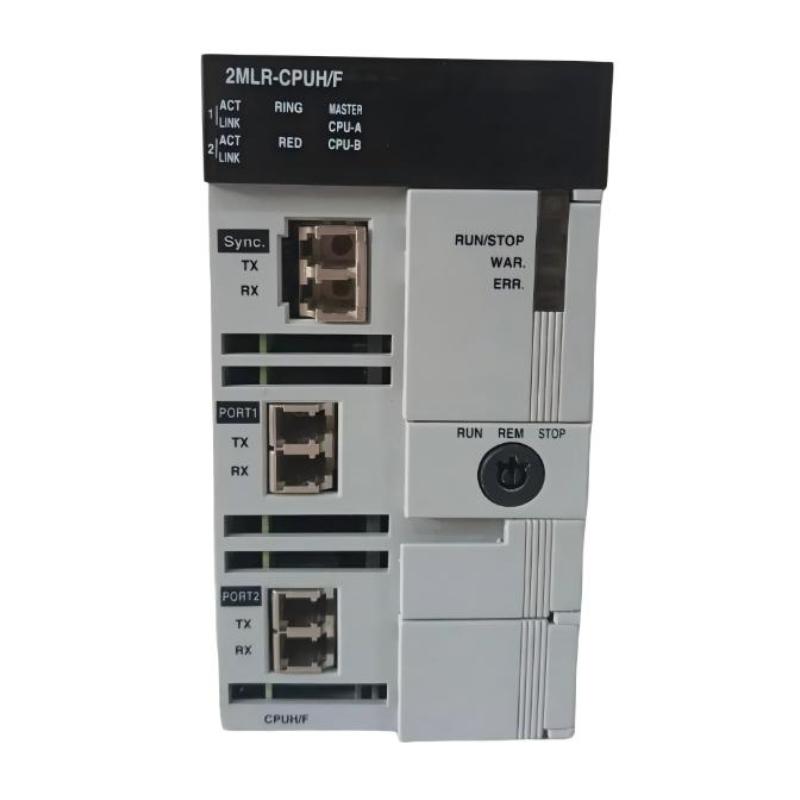

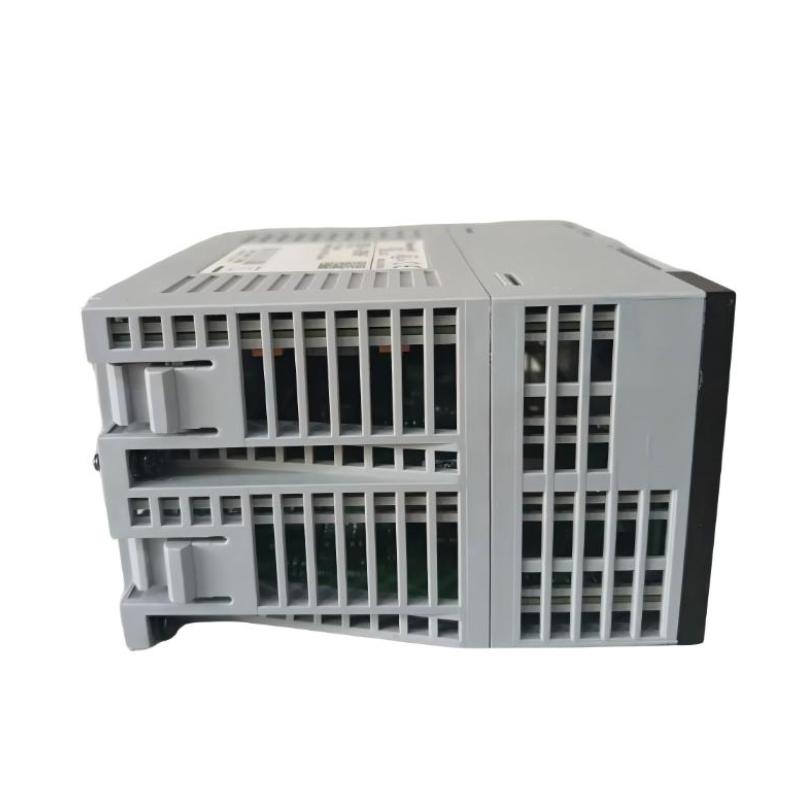

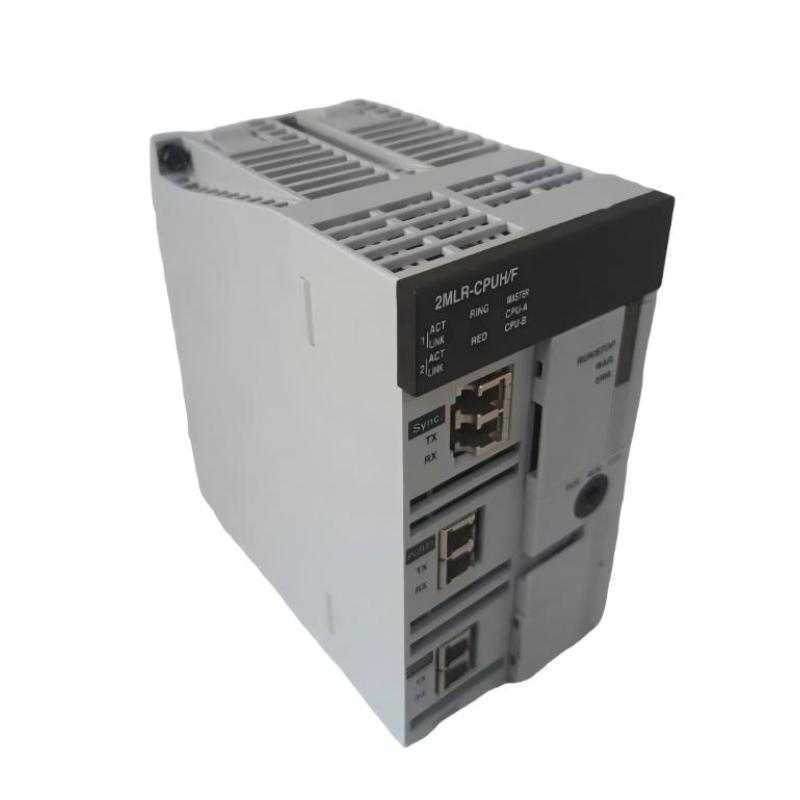

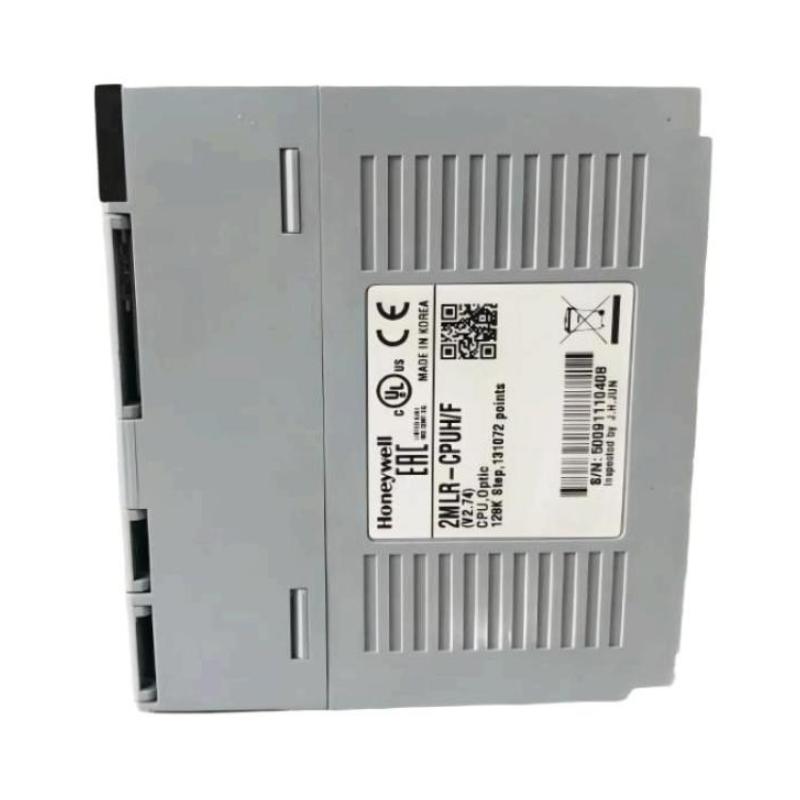

Honeywell 2MLR-CPUH/F-CC CPU Module

Overview

The Honeywell 2MLR-CPUH/F-CC is a high-performance CPU module designed for advanced industrial automation systems. It acts as the core controller, executing logic operations, coordinating I/O modules, and ensuring fast, reliable real-time control for complex applications.

General Information

Part Number: 2MLR-CPUH/F-CC

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / United States

Series: MLR Control Series

Type: CPU Module

Mounting: Rack-mounted within compatible control systems

Function: Central processing unit for executing control programs and managing system communication

Power Specifications

Supply Voltage: Powered via system backplane

Power Consumption: Optimized for efficient processing performance

Processing Capability: High-speed processing for real-time automation tasks

Memory: Integrated program and data memory (configuration dependent)

Protection: Built-in fault handling and system protection mechanisms

Indicators: LED indicators for power, run status, and fault conditions

Communication & Interface

System Interface: Backplane communication with I/O and expansion modules

Communication Ports: Supports industrial communication protocols (model dependent)

Diagnostics: Advanced system diagnostics and performance monitoring

Operator Interface: LED indicators for operational and fault status

Compatibility: Designed for seamless integration with PLC and DCS systems

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Suitable for installation in industrial control cabinets

Vibration Resistance: Meets industrial vibration and shock standards

Dimensions & Weight

Dimensions (L × W × H): 150 × 100 × 50 mm

Weight: 0.12 kg

Efficient Control Core – Powering Smarter Automation Systems!
