Overview

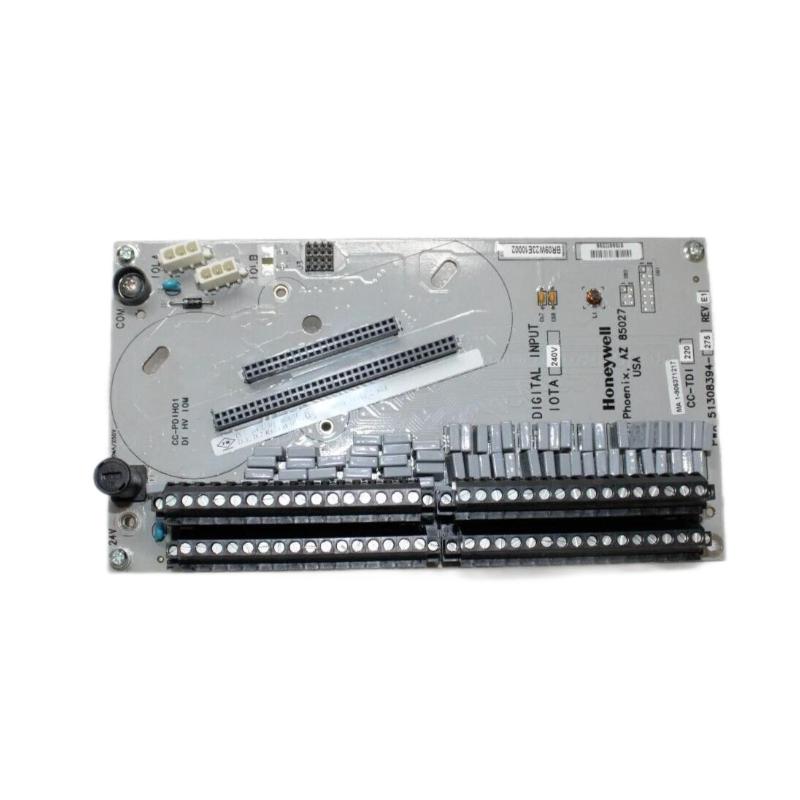

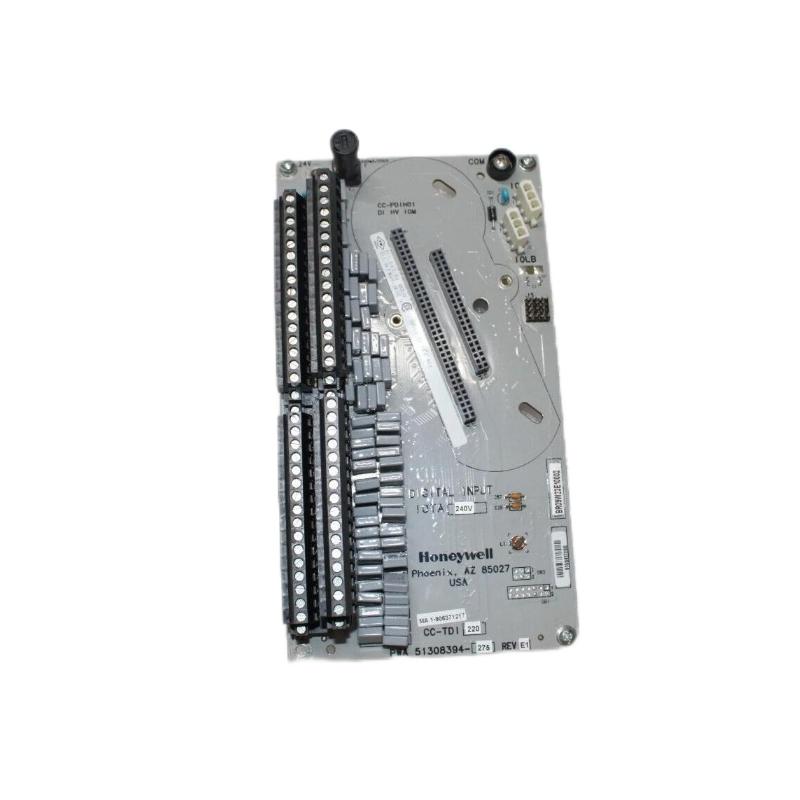

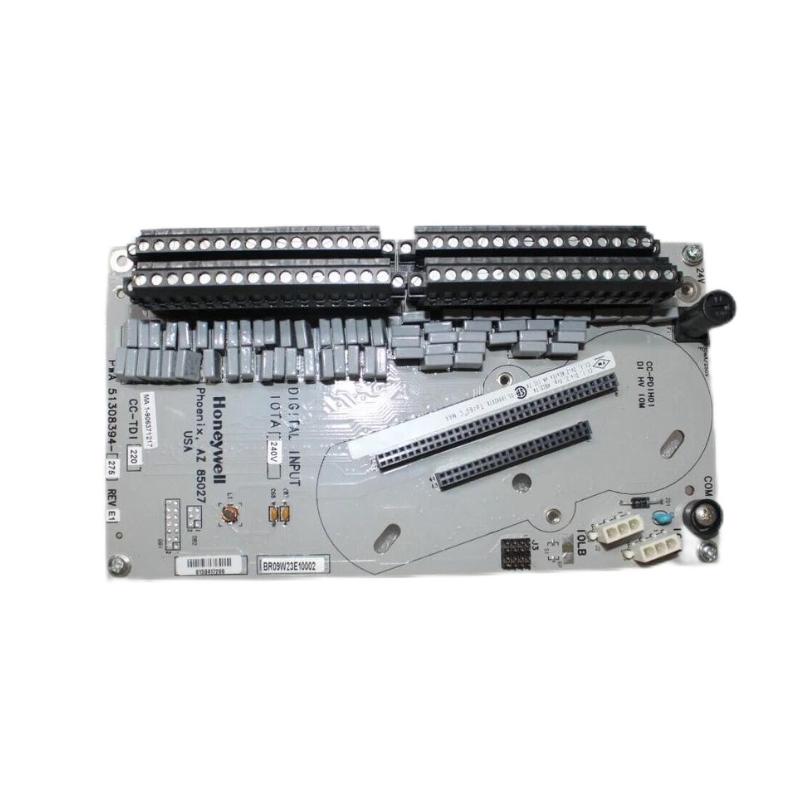

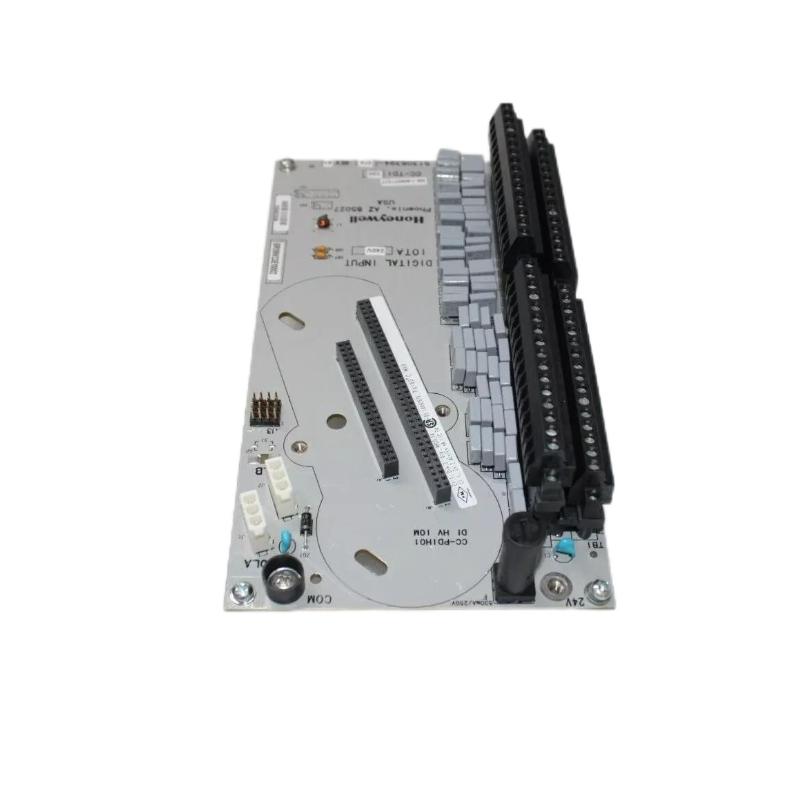

The Honeywell CC-TDI220 51308394-275 is a 16-channel digital input module designed for Honeywell Experion C300 controllers. It is used to monitor digital signals from field devices in industrial automation systems.
General Information
Part Number: 51308394-275
Manufacturer: Honeywell
Brand / Country of Origin: Honeywell / USA
Series: Experion C300
Type: Digital Input Module
Channels: 16
Input Type: Digital (24 V DC)
Mounting: Rack-mounted
Power Specifications
Supply Voltage: 24 V DC
Input Current: 5 mA per channel at 24 V DC
Input Impedance: 4.7 kΩ
Power Consumption: Approx. 6 W
Communication & Interface
Interface: DeviceNet compatible
Isolation: 1500 V RMS between channels and logic
Response Time: < 1 ms
Environmental
Operating Temperature: –40 °C to +70 °C
Storage Temperature: –40 °C to +85 °C
Humidity: 5% to 95% RH, non-condensing
Protection Rating: IP20
Dimensions & Weight
Dimensions (L × W × H): 150 × 30 × 130 mm
Weight: Approx. 0.45 kg
