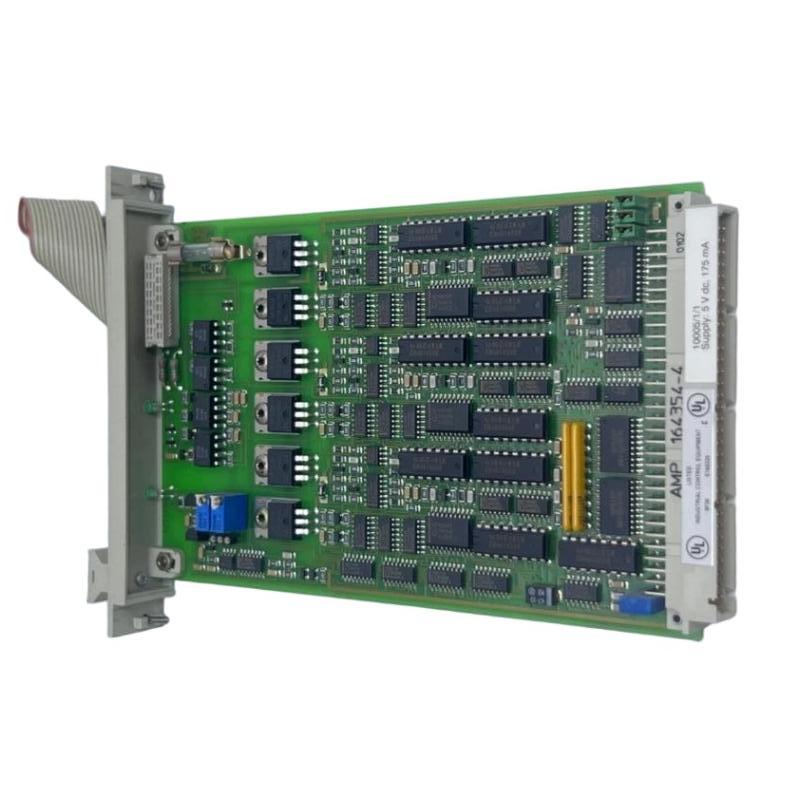

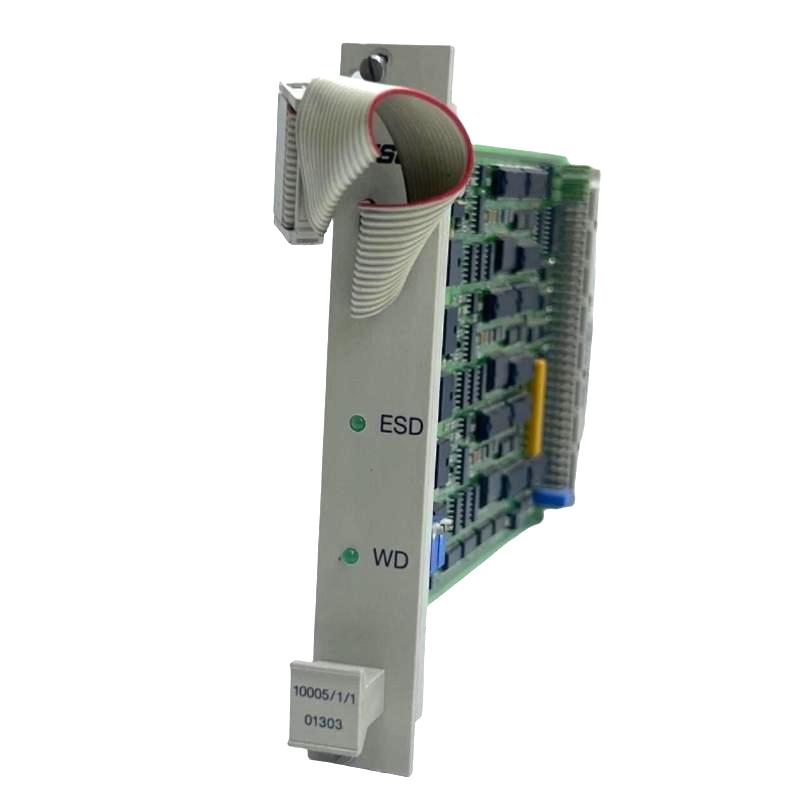

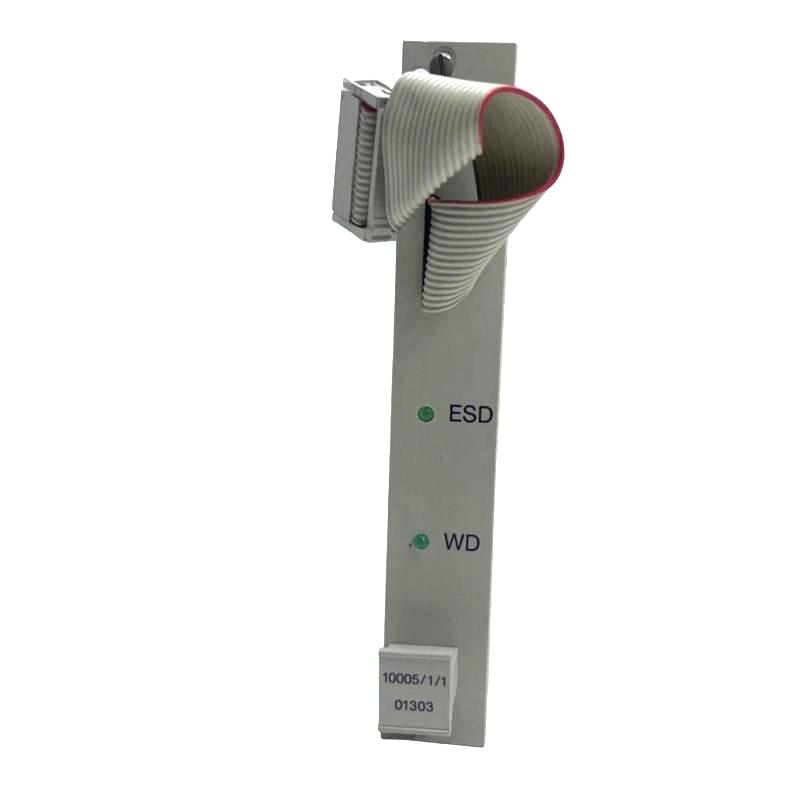

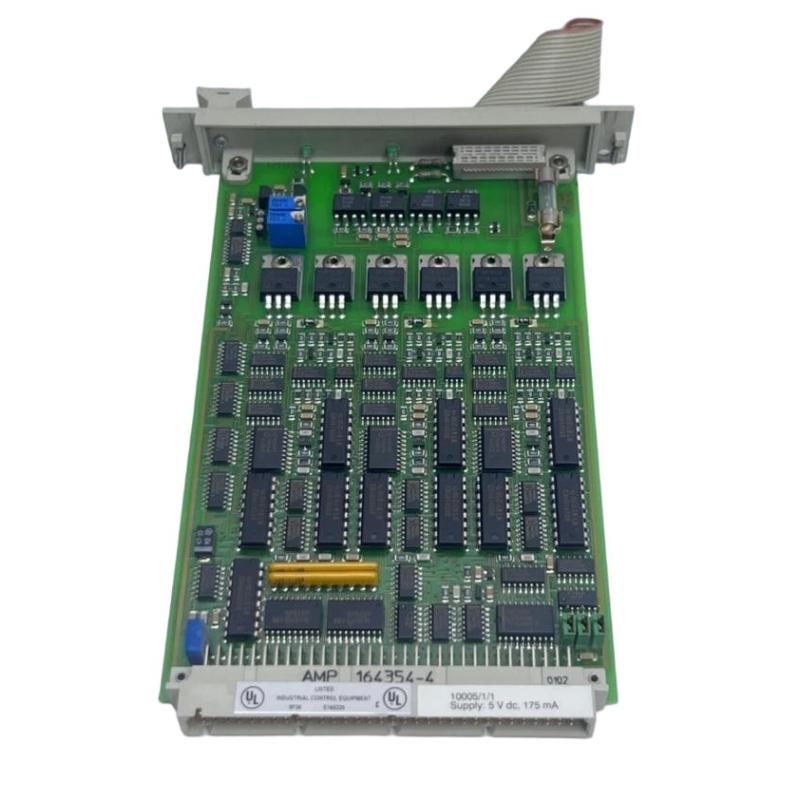

Honeywell 10005/1/1 Watchdog Module

Overview

The Honeywell 10005/1/1 is a watchdog module designed for industrial automation systems. It monitors the operation of controllers and critical processes, providing fail-safe supervision and ensuring that any system faults are quickly detected to maintain reliable and safe operation.

General Information

Part Number: 10005/1/1

Manufacturer: Honeywell

Brand: Honeywell

Country of Origin: USA

Series: Watchdog Modules

Type: Watchdog / Supervisory Control Module

Application: Monitoring controller operation and system processes in industrial automation

Installation: Panel-mounted within control enclosures

Technology: Digital monitoring with fail-safe detection and reset capability

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low, system dependent

Input: Powered via control system bus

Protection: Overvoltage and reverse-polarity protection

Indicators: LED status indicators for operational monitoring

Communication & Interface

Interface Type: Digital input/output for supervision signals

Data Integration: Monitors controllers and relays, sending fault signals to the system

Diagnostics: Fault detection and system status monitoring

Reset Features: Supports manual or system-level reset

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Cooling Method: Natural convection within control cabinet

Protection Class: Typically IP20 inside industrial enclosure

Dimensions & Weight

Dimensions (L × W × H): 160 × 20 × 100 mm

Weight: 0.118 kg

Reliable supervision, perfect for enhancing system safety and uptime.
