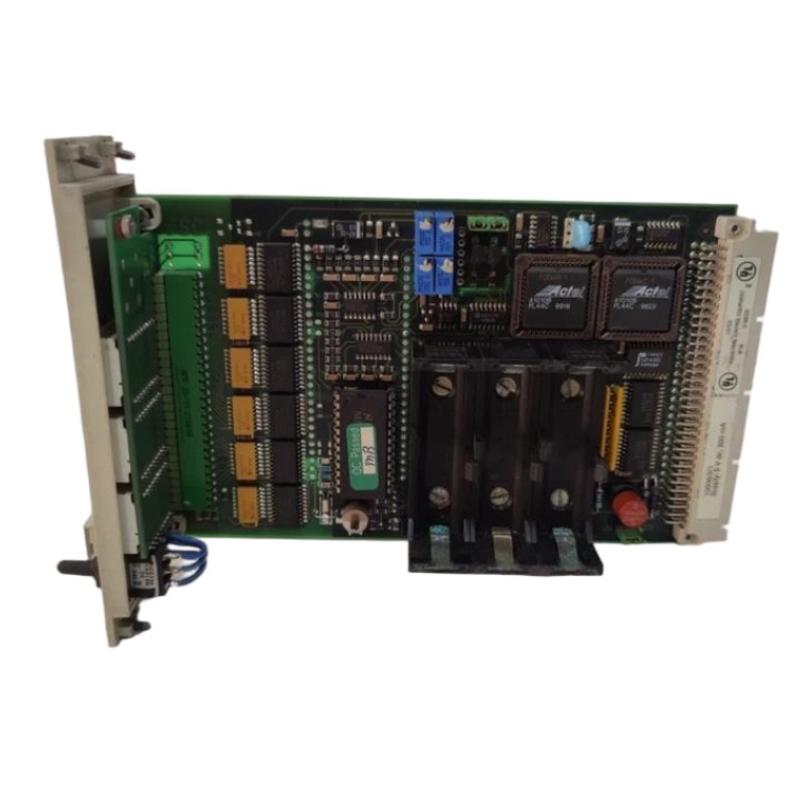

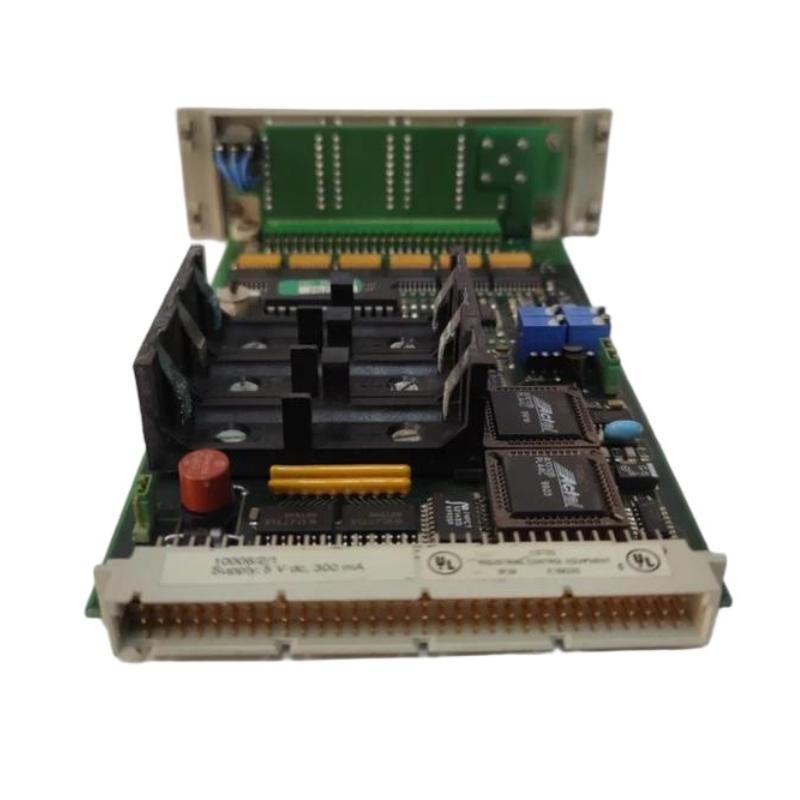

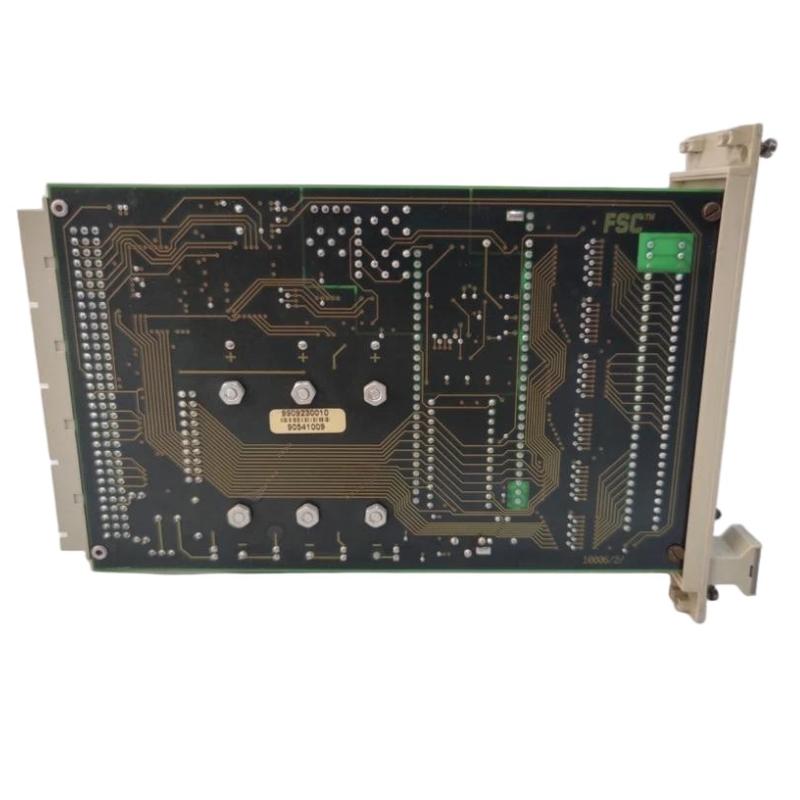

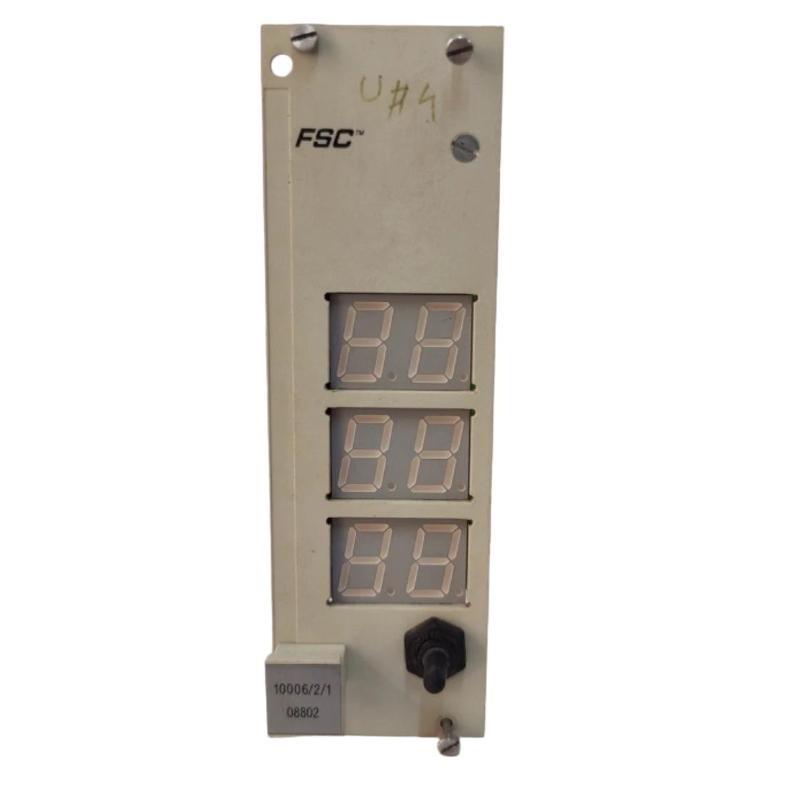

Honeywell 10006/2/1 Diagnostics And Battery Module

Overview

The Honeywell 10006/2/1 is a diagnostics and battery module designed for industrial automation systems. It provides real-time monitoring of system performance and ensures reliable backup power, maintaining operational continuity in case of power interruptions or faults.

General Information

Part Number: 10006/2/1

Manufacturer: Honeywell

Brand: Honeywell

Country of Origin: USA

Series: Diagnostics & Battery Modules

Type: Diagnostics and Battery Backup Module

Application: System diagnostics, monitoring, and battery backup in industrial automation

Installation: Panel or chassis-mounted within control enclosures

Technology: Integrated diagnostics circuitry with rechargeable battery backup

Power Specifications

Supply Voltage: 24 V DC

Battery Backup: Provides short-term power support during interruptions

Power Consumption: Low, system-dependent

Protection: Overvoltage, reverse-polarity, and short-circuit protection

Indicators: LED indicators for battery status and system health

Communication & Interface

Interface Type: Digital outputs for fault and status signaling

Data Integration: Connects to controllers and monitoring systems for real-time diagnostics

Diagnostics: Monitors system voltage, battery health, and fault conditions

Reset Features: Supports system or module-level reset

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Cooling Method: Natural convection or cabinet ventilation

Protection Class: Typically IP20 inside industrial enclosure

Dimensions & Weight

Dimensions (L × W × H): 160 × 110 × 40 mm

Weight: 0.24 kg

Keep your system running smoothly with reliable diagnostics and backup power.
