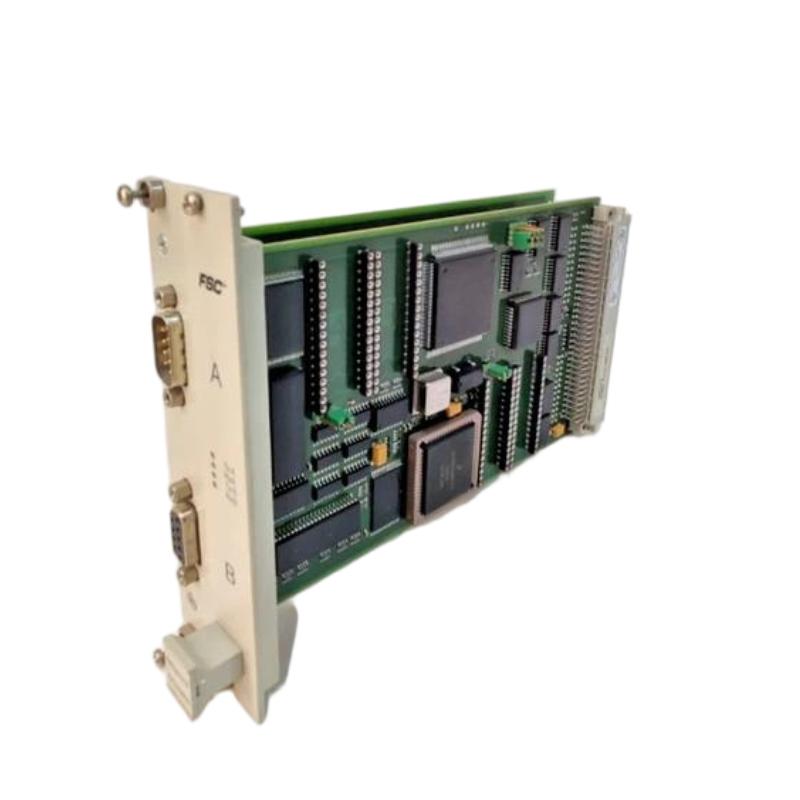

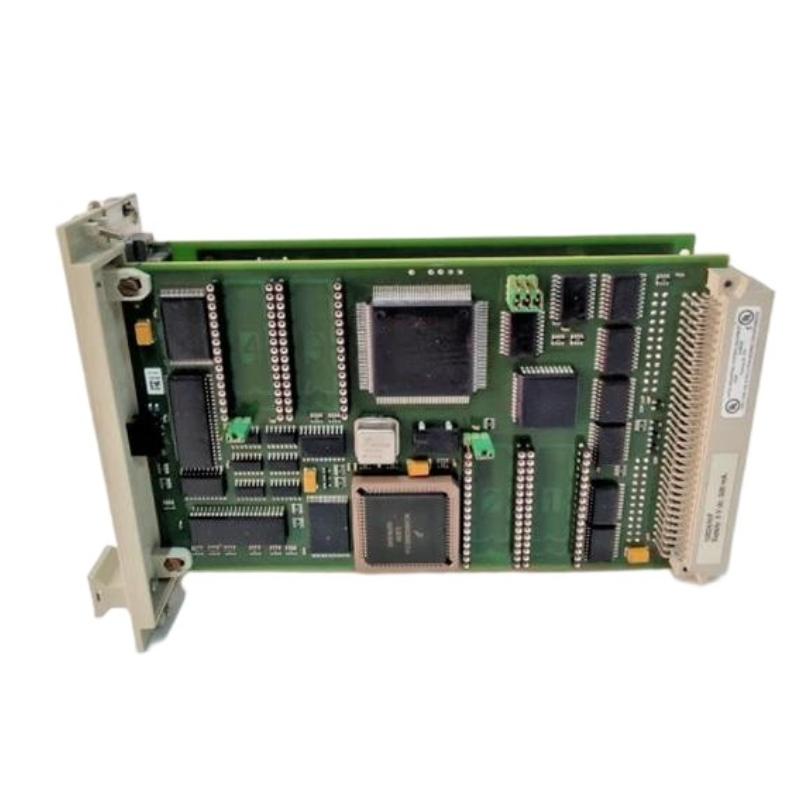

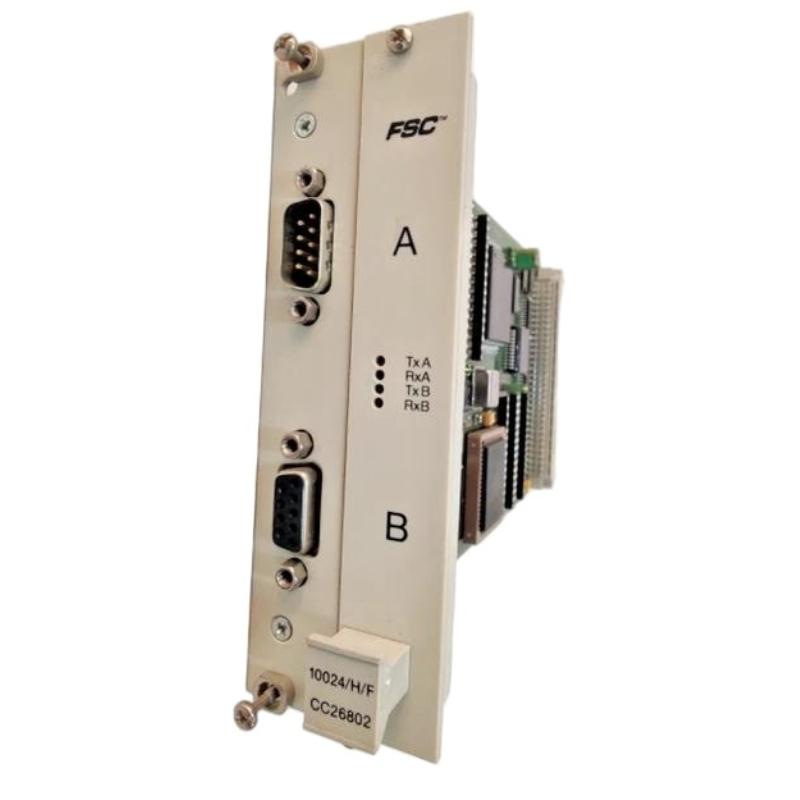

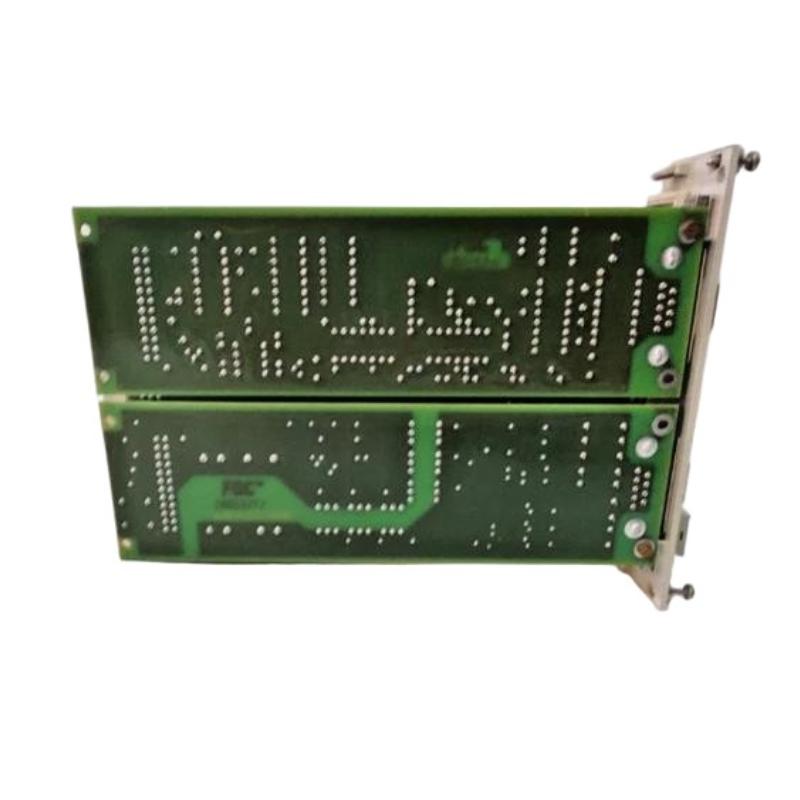

Honeywell 10024/H/F Enhanced Communication Module

Overview

The Honeywell 10024/H/F is an enhanced communication module built for industrial automation systems requiring stable and efficient data exchange. It supports high-speed communication between controllers, field devices, and network systems, ensuring reliable performance in complex and demanding process environments.

General Information

Part Number: 10024/H/F

Manufacturer: Honeywell

Brand: Honeywell

Country of Origin: USA

Series: Enhanced Communication Modules

Type: Communication / Interface Module

Application: Advanced data communication and network integration in industrial automation

Installation: Panel or DIN-rail mounted within control enclosures

Technology: Enhanced communication interface with integrated diagnostics and system compatibility

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 15 W

Input: Powered via system bus or dedicated supply

Protection: Overvoltage and reverse-polarity protection

Indicators: LEDs for power, communication activity, and fault status

Communication & Interface

Interface Type: Serial or fieldbus communication interfaces (configuration dependent)

Data Integration: Connects controllers, PLCs, HMIs, and field devices

Diagnostics: Real-time monitoring, fault detection, and communication status reporting

Reset Features: Supports module-level and system-level reset

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Cooling Method: Natural convection or cabinet ventilation

Protection Class: Typically IP20 inside industrial enclosure

Dimensions & Weight

Dimensions (L × W × H): 40 × 130 × 160 mm

Weight: 0.5 kg

Designed for performance, ready to keep your network running smoothly.
