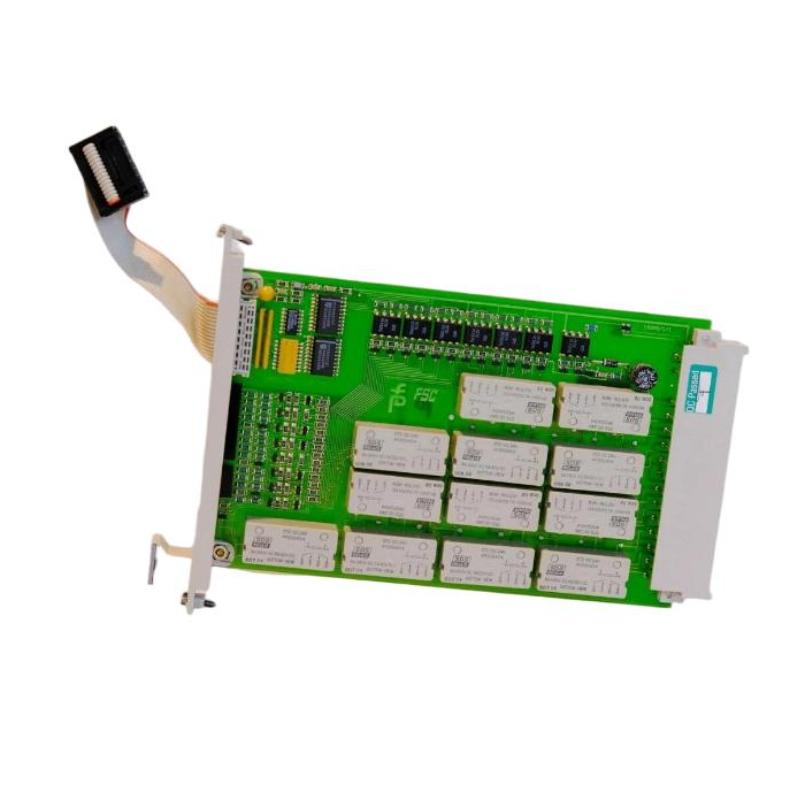

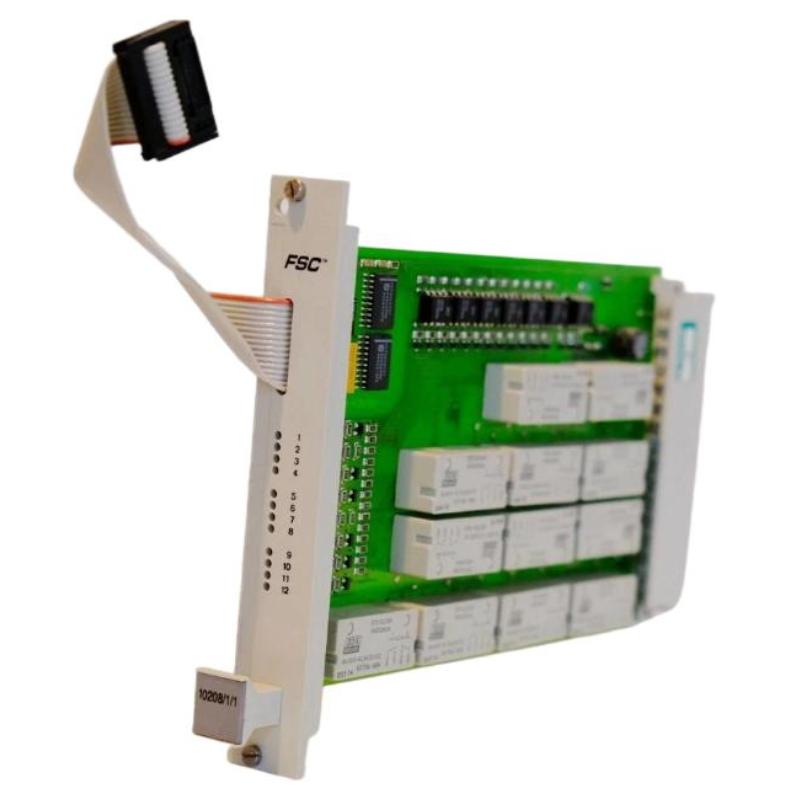

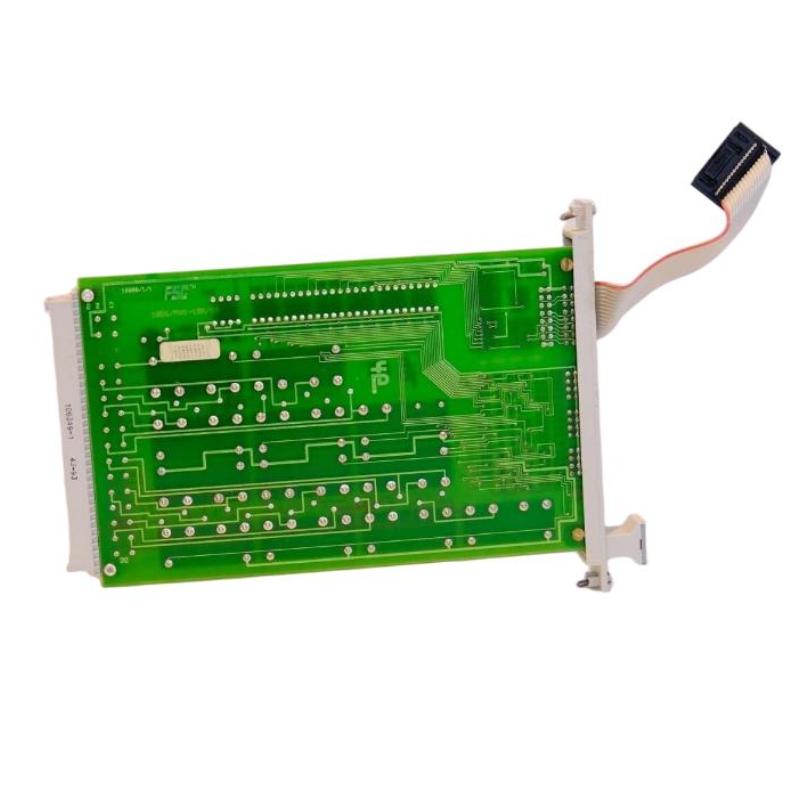

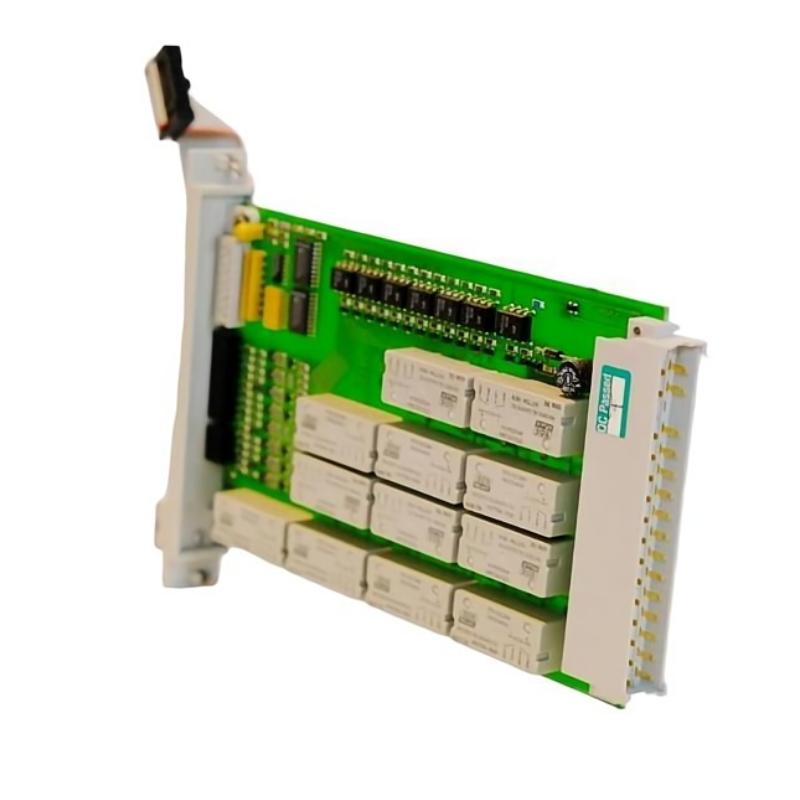

Honeywell 10208/1/1 Relay Output Module

Overview

The Honeywell 10208/1/1 is a relay output module designed for industrial automation and control systems. It provides reliable switching of external loads through electromechanical relays, making it suitable for interfacing controllers with field devices. The module ensures stable performance and dependable operation in demanding industrial environments.

General Information

Part Number: 10208/1/1

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / United States

Series: Relay Output Modules

Type: Relay Output Module

Application: Industrial automation, process control, and equipment switching

Mounting: Rack or panel-mounted within control cabinets

Technology: Electromechanical relay-based output switching with diagnostics

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 7 W

Input Power Source: Backplane or external DC supply

Protection: Overload and short-circuit protection

Indicators: LED indicators for power status and relay activity

Communication & Interface

Interface Type: Backplane interface to control system

Output Type: Relay outputs (NO/NC depending on configuration)

Load Capacity: Suitable for switching industrial loads

Diagnostics: Basic fault indication and status monitoring

Status Indication: LED indicators per module or channel

Configuration: System-configurable via controller

Isolation: Electrical isolation between control and output circuits

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Vibration Resistance: Designed for industrial environments

Protection Rating: IP20 (for cabinet installation)

Dimensions & Weight

Dimensions (L × W × H): 38 × 127 × 191 mm

Weight: 0.4 kg
