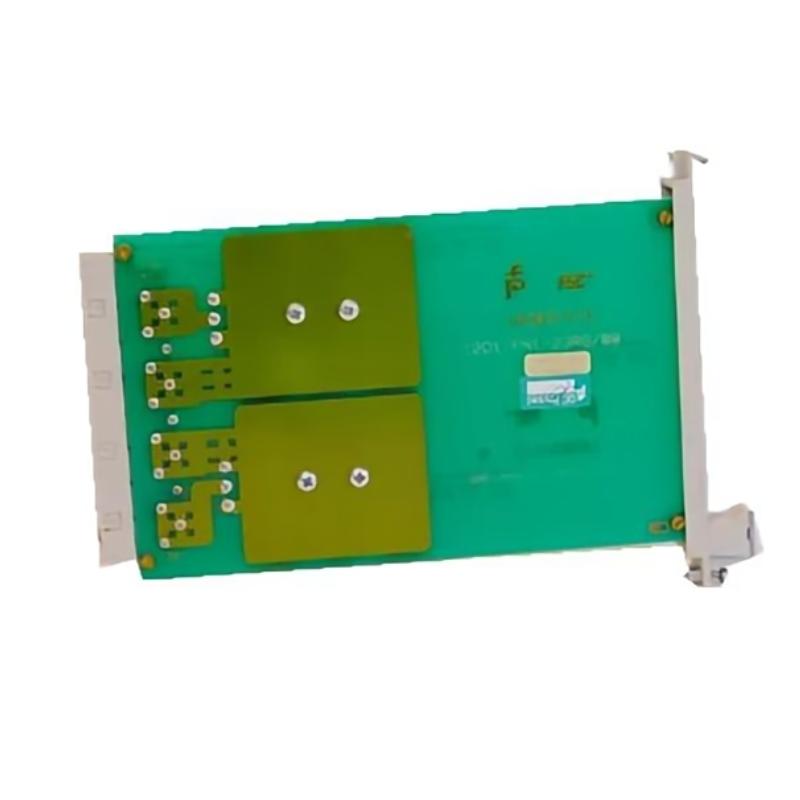

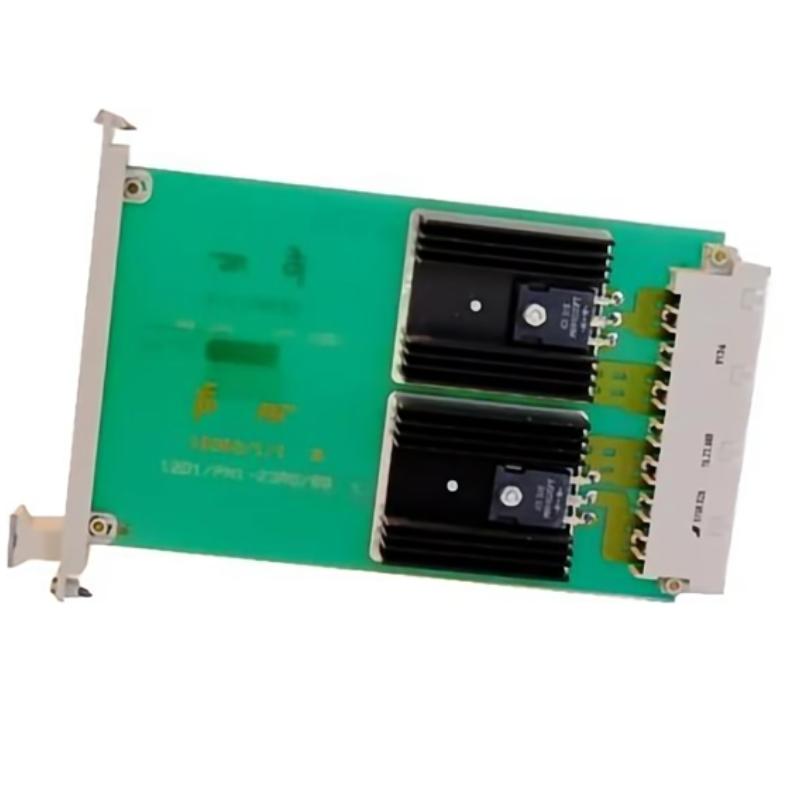

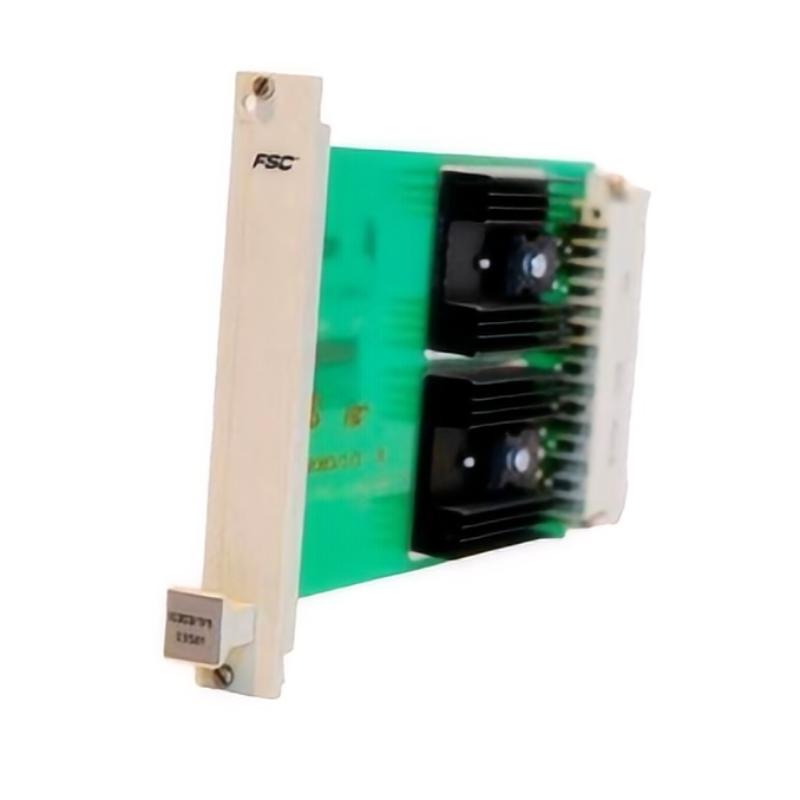

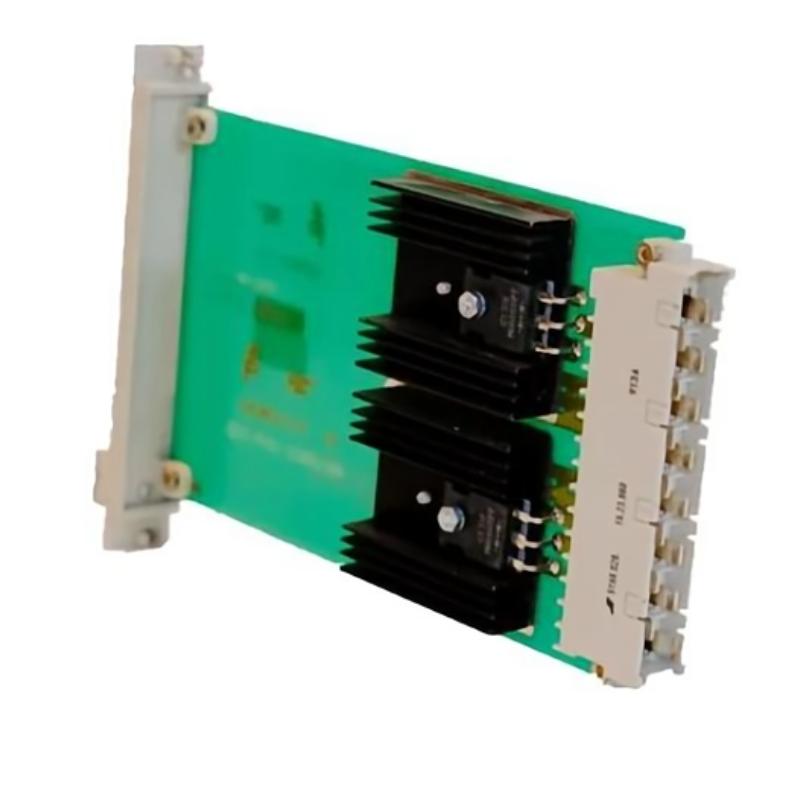

Honeywell 10307/1/1 Vertical Bus Terminator

Overview
The Honeywell 10307/1/1 Vertical Bus Terminator is designed to provide proper signal termination for vertical bus systems in industrial control architectures. It ensures signal stability, reduces reflections, and maintains reliable communication across connected modules within the system backplane.

General Information
Part Number: 10307/1/1

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / United States

Series: Bus Termination Modules

Type: Vertical Bus Terminator

Application: Signal termination for control system backplanes and bus networks

Mounting: Rack or vertical chassis-mounted module

Technology: Passive termination with impedance matching for stable data transmission

Power Specifications
Supply Voltage: Not required (passive module)

Power Consumption: 0 W (passive operation)

Input Power Source: None

Protection: Designed for signal integrity protection and bus stability

Indicators: No active indicators required

Communication & Interface
Interface Type: Vertical system bus interface

Function: Terminates bus lines to prevent signal reflection and data distortion

Diagnostics: No active diagnostics (system-level monitoring dependent)

Status Indication: None (passive termination module)

Configuration: Fixed hardware configuration

Isolation: Passive electrical termination for bus stabilization

Environmental
Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Vibration Resistance: Suitable for industrial cabinet environments

Protection Rating: IP20 (installed inside control systems)

Dimensions & Weight
Dimensions (L × W × H): 38 × 127 × 191 mm

Weight: 0.4 kg
